NSComm WB5axH6-32 WiFi 6 5GHz AX2400 Long-Range Wireless Bridge with 33dBi Dish Antenna
NS WB5axH6-32 WiFi 6 5GHz Long-Range Industrial Wireless Bridge
The NS WB5axH6-32 is a WiFi 6 (802.11ax) ultra-long-range industrial wireless bridge designed for high-capacity, long-distance point-to-point (PTP) wireless backhaul in mission-critical outdoor environments.
Operating on the 5 GHz band and delivering up to 2400 Mbps wireless throughput, the WB5axH6-32 integrates a 33 dBi high-gain external dish antenna with an ultra-narrow 6° × 6° beamwidth, enabling stable wireless links over distances of up to 35 km. Its IP67 all-metal enclosure and industrial-grade protection make it ideal for backbone links in industrial, security, and infrastructure deployments.
Overview
Highlights
-
Ultra-Long-Range WiFi 6 Backhaul
Powered by WiFi 6 (802.11ax) technology, delivering high spectral efficiency and stable throughput for long-distance wireless transmission. -

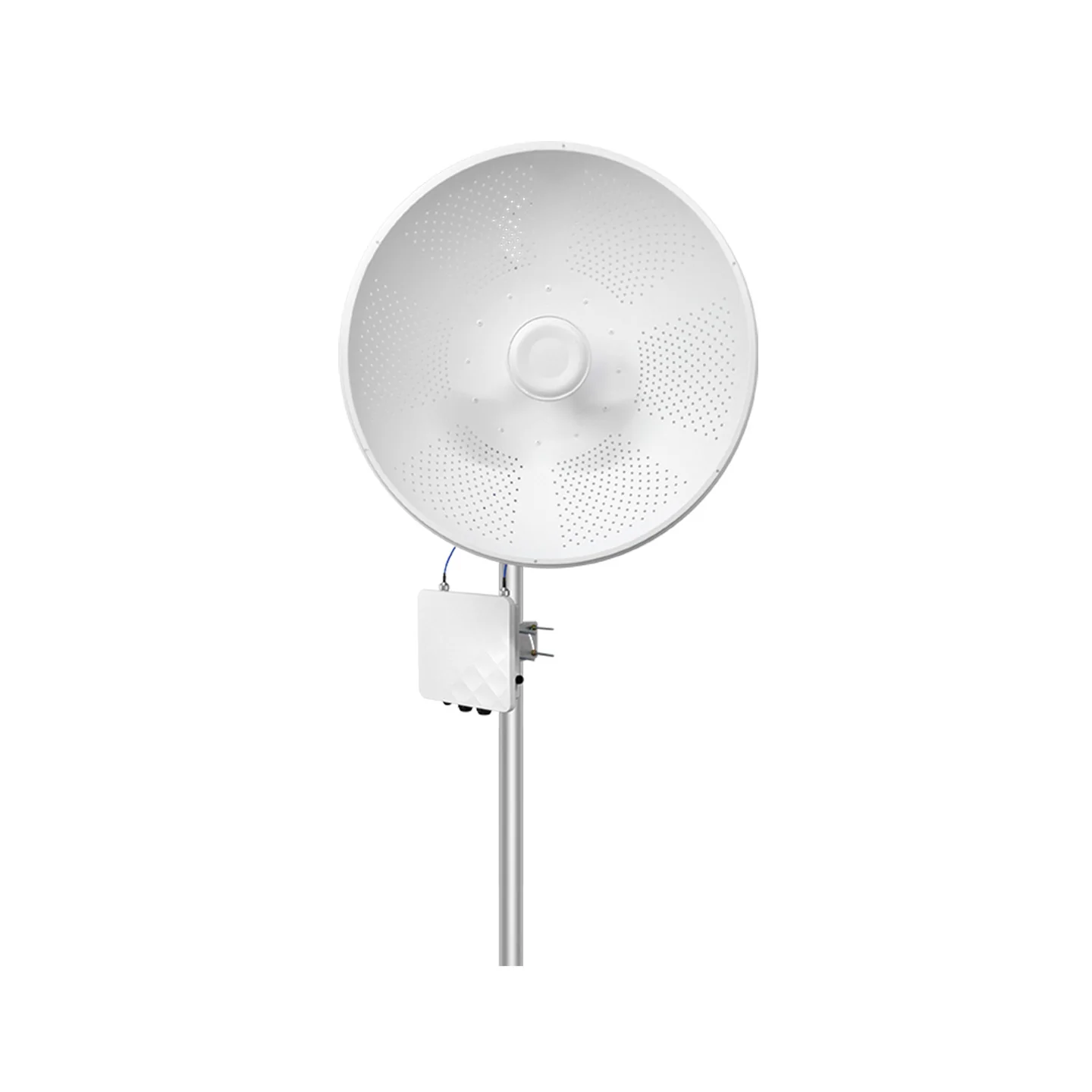

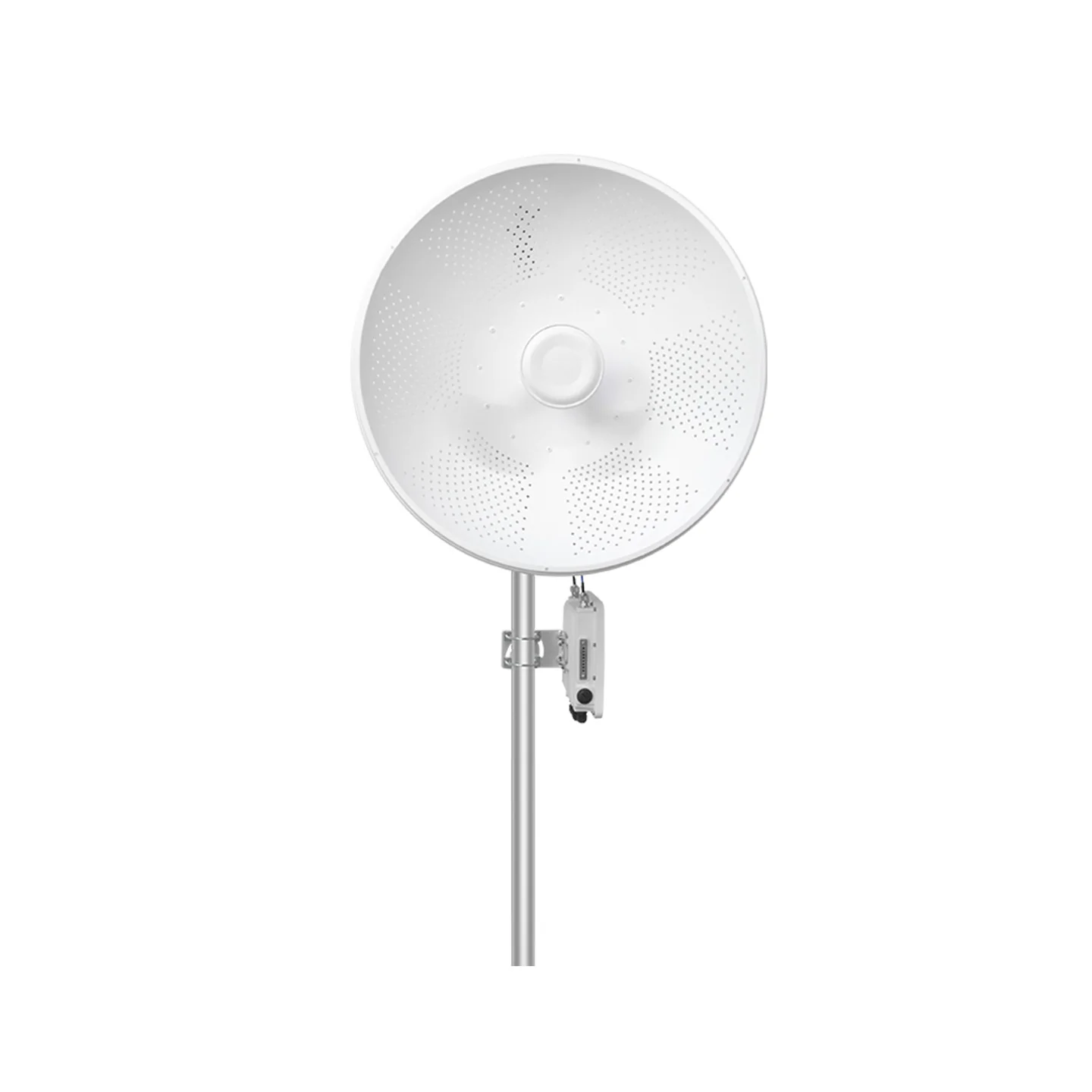

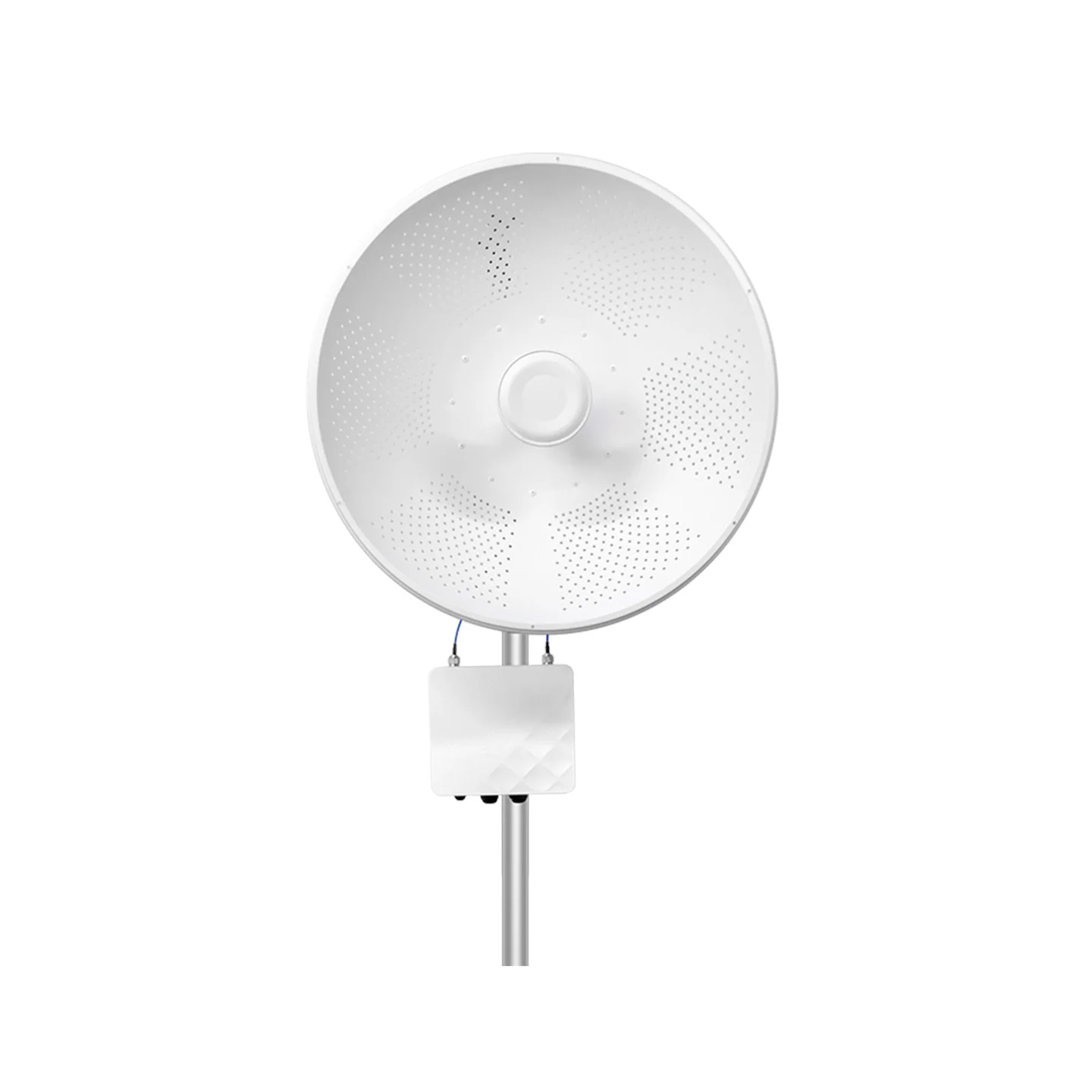

33 dBi High-Gain Dish Antenna
Equipped with a 33 dBi directional dish antenna and 6° × 6° ultra-narrow beamwidth, ensuring focused signal transmission and minimal interference. -
35 km Line-of-Sight Transmission
Supports point-to-point wireless links up to 35 km, suitable for cross-campus, cross-river, and remote site interconnection. -

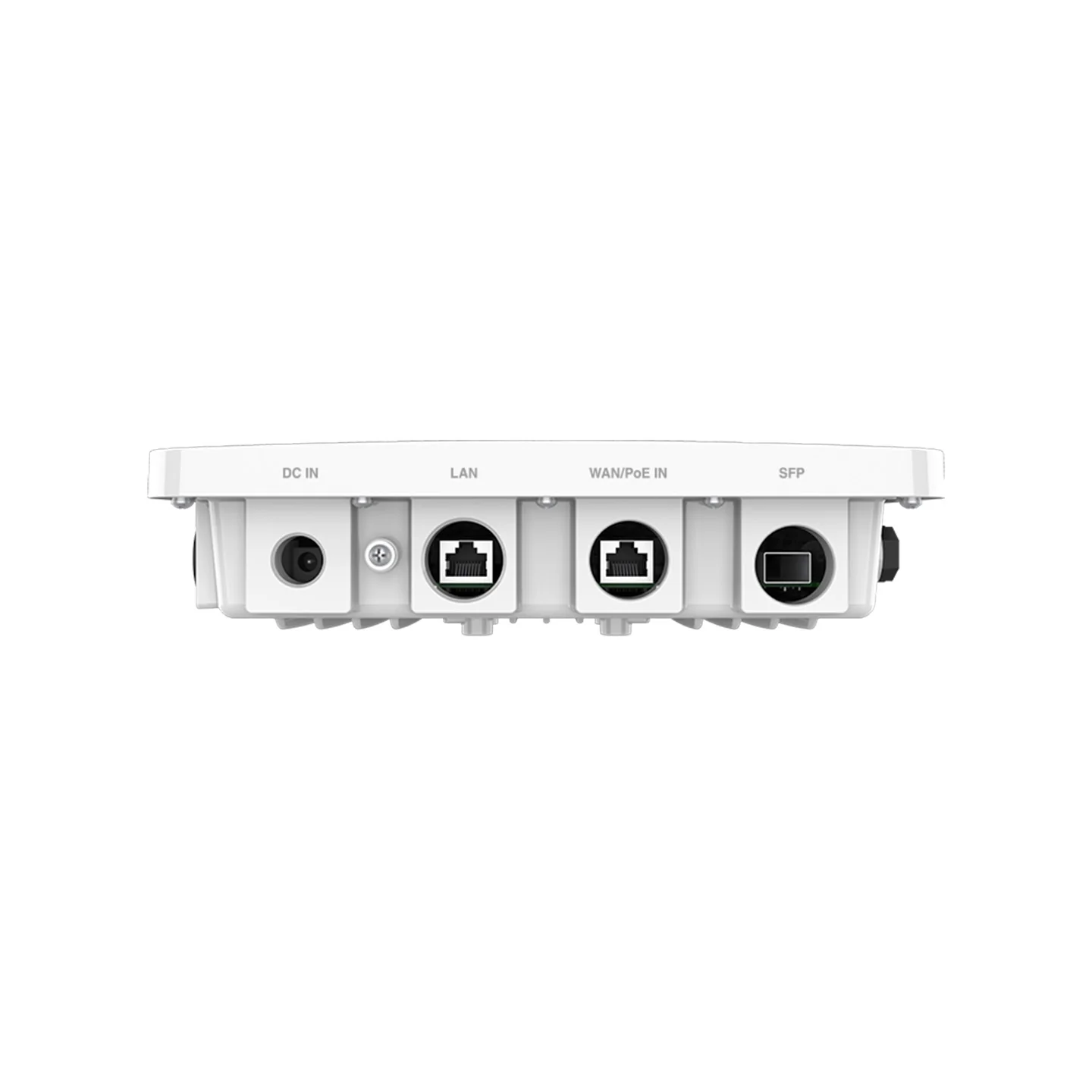

Fiber + Ethernet Hybrid Interfaces
Provides 1× Gigabit SFP fiber port and 2× Gigabit Ethernet ports, supporting flexible backhaul architectures. -

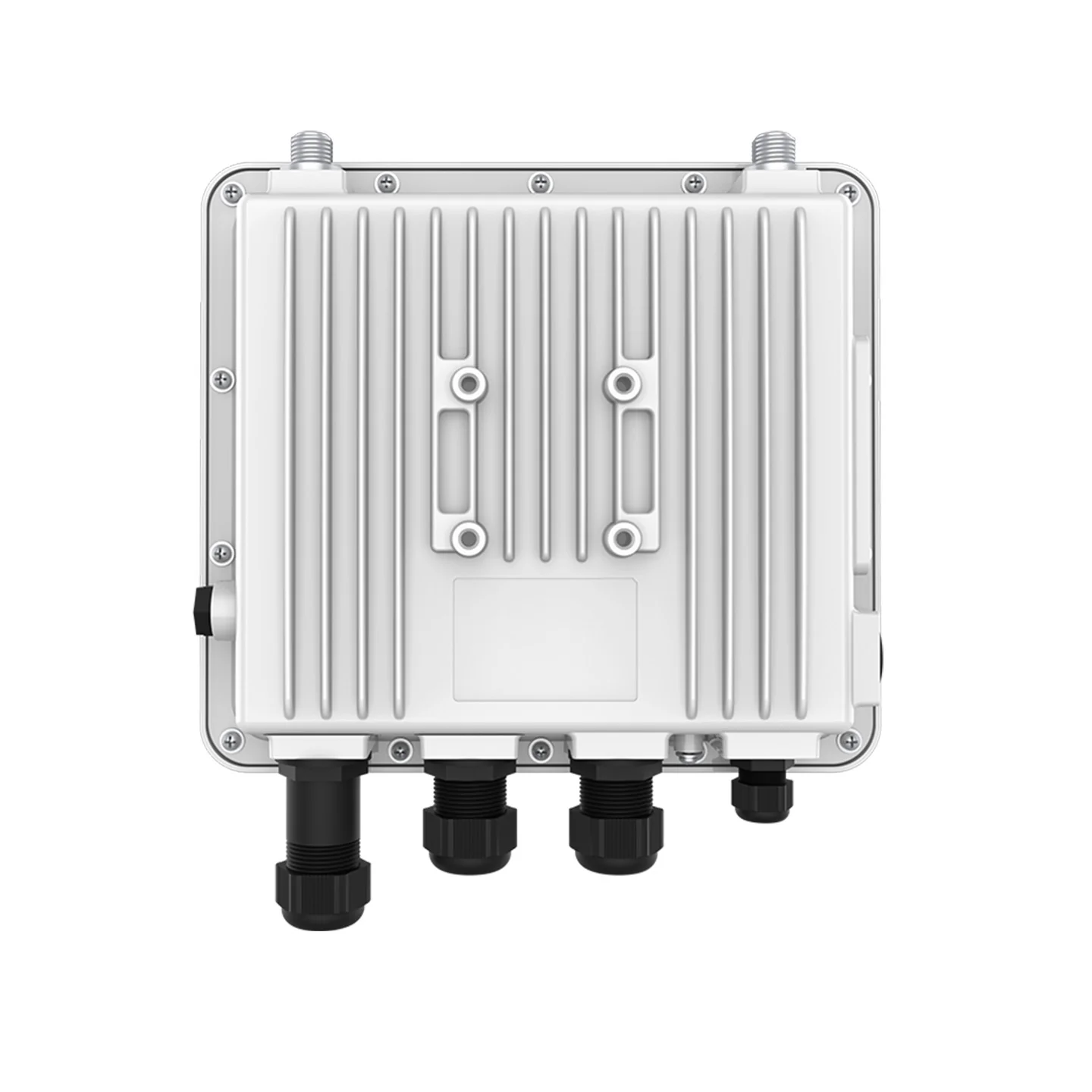

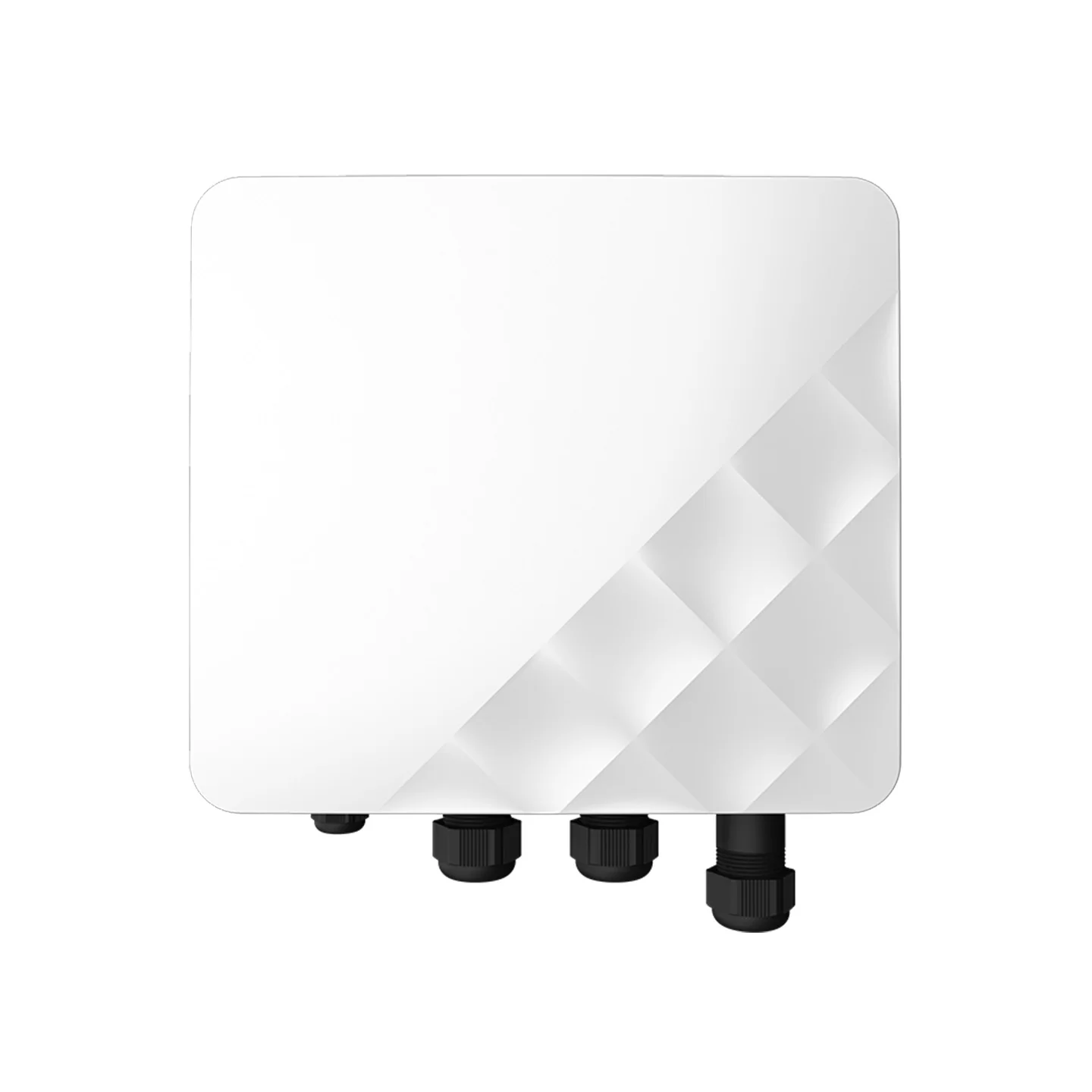

Industrial-Grade IP67 All-Metal Housing
Rugged metal enclosure ensures reliable operation in harsh outdoor environments, including rain, dust, wind, and extreme temperatures. -
Lightning & Surge Protection
Built-in port-level lightning and surge protection enhances network stability and equipment safety. -
Centralized Management & Cloud Control
Supports AC management, cloud platform control, and mobile APP management for large-scale deployment and monitoring.
Comparison with Similar Models
| Feature | NS WB5axH6-32 | NS WB5axH6-N | H3C WA7xxx-LongRange | Huawei AirEngine LongRange Bridge |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 | WiFi 6 |
| Operating Band | 5 GHz | 5 GHz | 5 GHz | 5 GHz |
| Wireless Rate | 2400 Mbps | 2400 Mbps | ~2400 Mbps | ~2400 Mbps |
| Antenna Gain | 33 dBi dish | External directional | 30-33 dBi | 30-33 dBi |
| Beamwidth | 6° × 6° | Wider beam | Narrow beam | Narrow beam |
| Max Transmission Distance | Up to 35 km | Up to 35 km | ~30-35 km | ~30-35 km |
| Interfaces | 2×GE + 1×SFP | 2×GE + optional SFP | GE / SFP | GE / SFP |
| Enclosure | IP67 all-metal | IP67 metal | Industrial | Industrial |
| Typical Positioning | Backbone long-range link | Standard industrial bridge | Enterprise backbone | Enterprise backbone |
Positioning Summary:
-
WB5axH6-32: WiFi 6 ultra-long-range backbone wireless bridge with 33 dBi dish antenna.
-
WB5axH6-N: WiFi 6 industrial bridge for general long-distance applications.
-
H3C / Huawei: Comparable enterprise-grade long-range wireless bridges for infrastructure backhaul.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Operating Band | 5 GHz |
| Maximum Data Rate | 2400 Mbps |
| MIMO | 2×2 |
| Antenna | 33 dBi external dish antenna |
| Beamwidth | 6° × 6° |
| Transmission Distance | Up to 35 km (line-of-sight) |
| Ethernet Interfaces | 2× Gigabit Ethernet |
| Fiber Interface | 1× Gigabit SFP |
| Power Supply | 48 V PoE / 12 V DC |
| Management | AC management, cloud platform, APP |
| Protection Rating | IP67 all-metal enclosure |
| Installation | Pole-mounted or wall-mounted |
| Protection Features | Lightning & surge protection |
| Application Scenarios | Long-distance backhaul, surveillance trunk links, industrial networks, rural connectivity |
