NSComm FAP834 WiFi 6 AX3000 Dual-Band In-Wall Access Point with PoE and 4¡ÁLAN

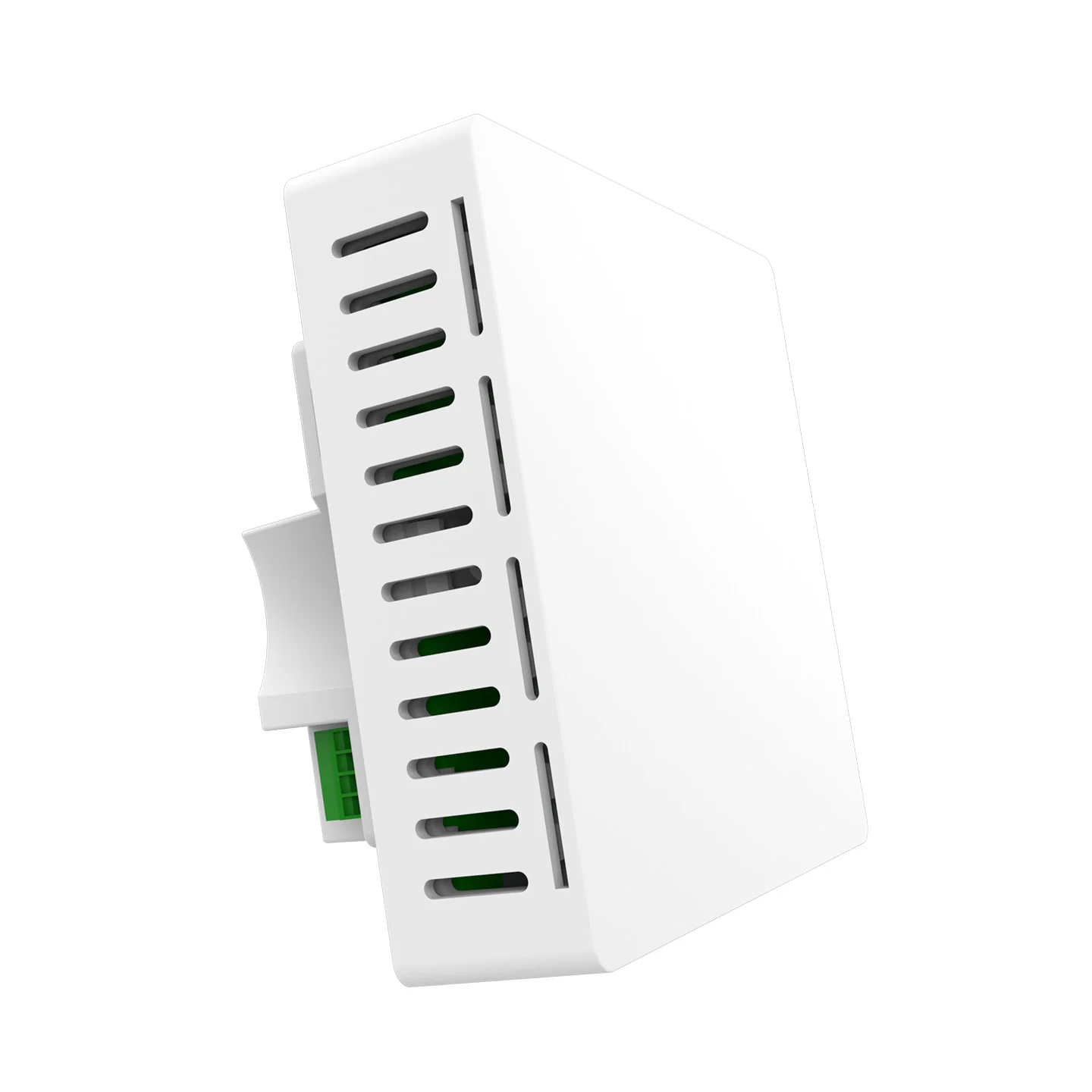

NS FAP834 WiFi 6 AX3000 Multi-Port In-Wall Access Point
The NS FAP834 is a commercial-grade WiFi 6 (802.11ax) in-wall access point designed for enterprise and hospitality environments that require both high-speed wireless coverage and multiple wired connections within a single room.
Delivering AX3000 dual-band wireless performance, the FAP834 integrates four Gigabit Ethernet LAN ports into a standard 86 mm in-wall form factor, supporting up to 128 concurrent devices. It is ideal for hotels, serviced apartments, dormitories, hospitals, and office rooms where multiple wired endpoints are required.
Overview
Highlights
-
Commercial-Grade WiFi 6 Performance
Delivers AX3000 dual-band wireless throughput with OFDMA and MU-MIMO, ensuring stable and efficient connectivity in dense environments. -

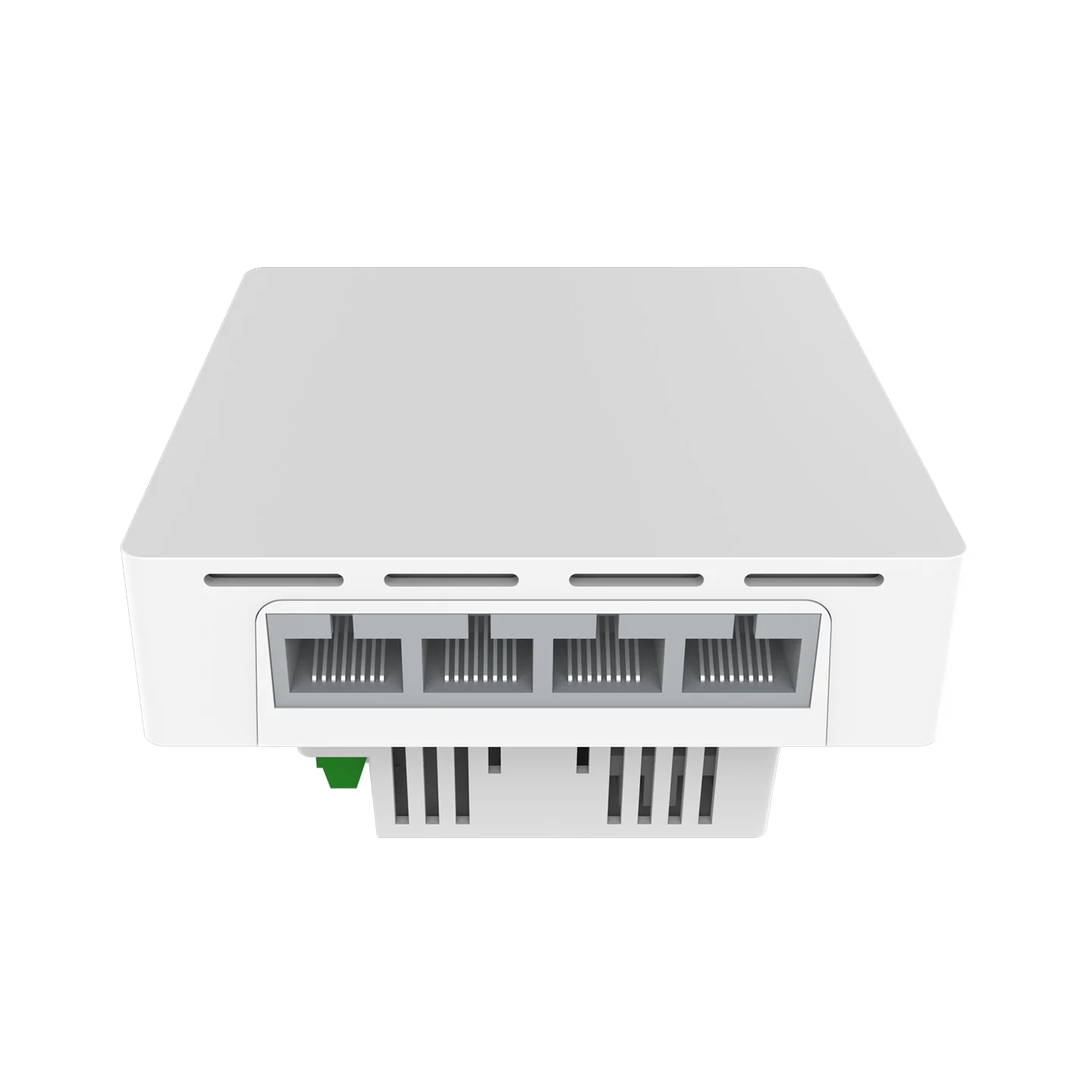

Integrated Multi-Port Wired Connectivity
Provides 4× Gigabit Ethernet LAN ports, enabling direct connection of IP phones, TVs, PCs, printers, and other wired devices. -

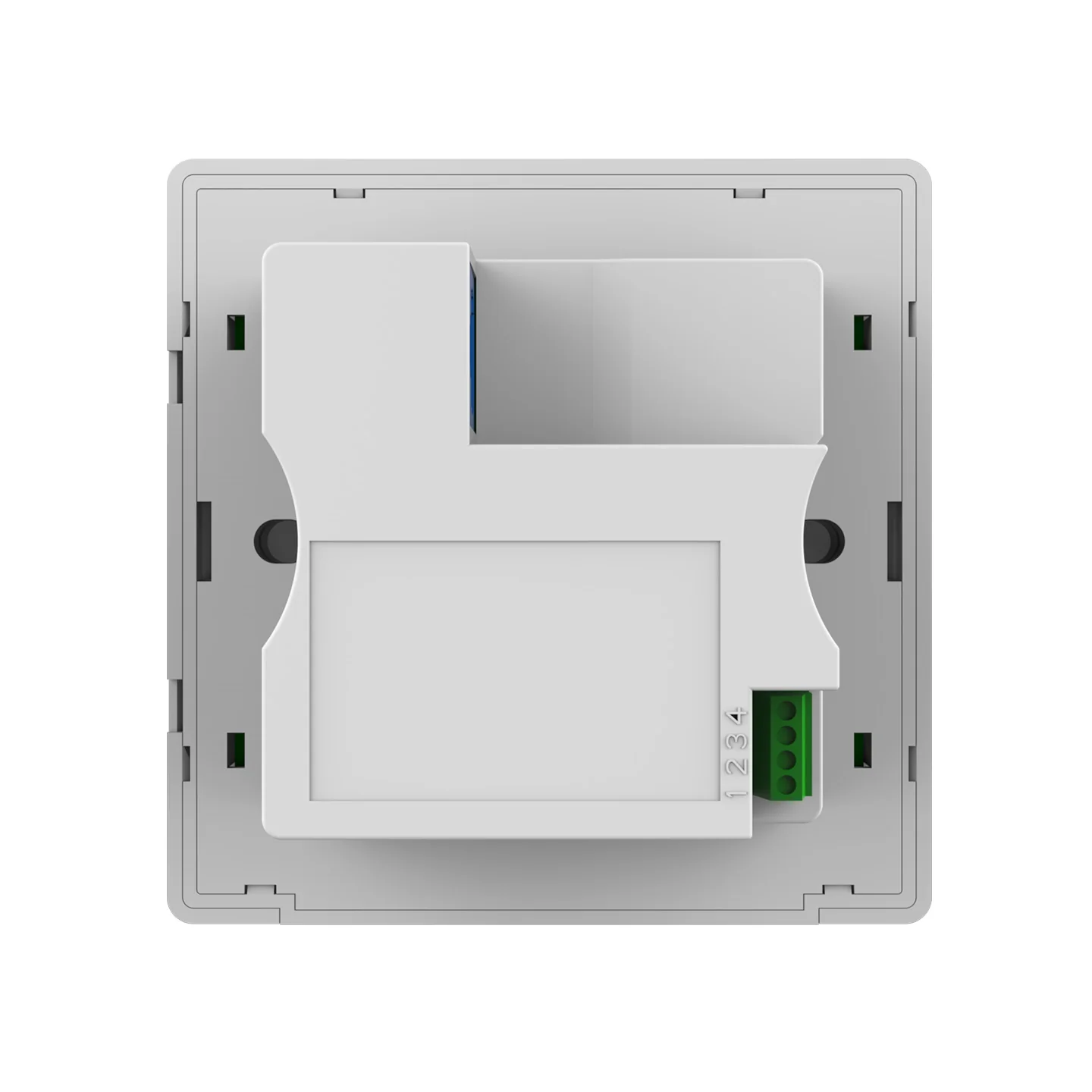

Standard 86 mm In-Wall Installation
Designed for standard 86-type wall boxes, ensuring compatibility with existing building infrastructure. -
PoE-Powered Simplified Deployment
Supports standard PoE power supply, allowing power and data transmission over a single Ethernet cable. -
Optimized for Hospitality & Enterprise Rooms
Combines wireless access and wired switching into one device, reducing cabling complexity and deployment cost. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP834 | NS FAP830 | H3C EWP-WA5630 | Huawei AirEngine 5761-10W |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 4×Gigabit LAN | 1×GE WAN + 1×GE LAN | 4×GE | 4×GE |
| Panel Type | Commercial in-wall | Home / light commercial | Commercial in-wall | Commercial in-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE | PoE | PoE | PoE |
| Typical Positioning | Multi-port room AP | Dual-port room AP | Enterprise room AP | Enterprise room AP |
Positioning Summary:
-
FAP834: AX3000 commercial multi-port in-wall AP for rooms requiring multiple wired connections.
-
FAP830: AX3000 dual-port in-wall AP for residential and light commercial use.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs for centralized WLAN systems.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit WAN, 4×Gigabit LAN |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (standard 86 mm wall box) |
| Dimensions | 86 × 86 × 51.05 mm |
| Application Scenarios | Hotels, apartments, hospitals, dormitories, office rooms |
