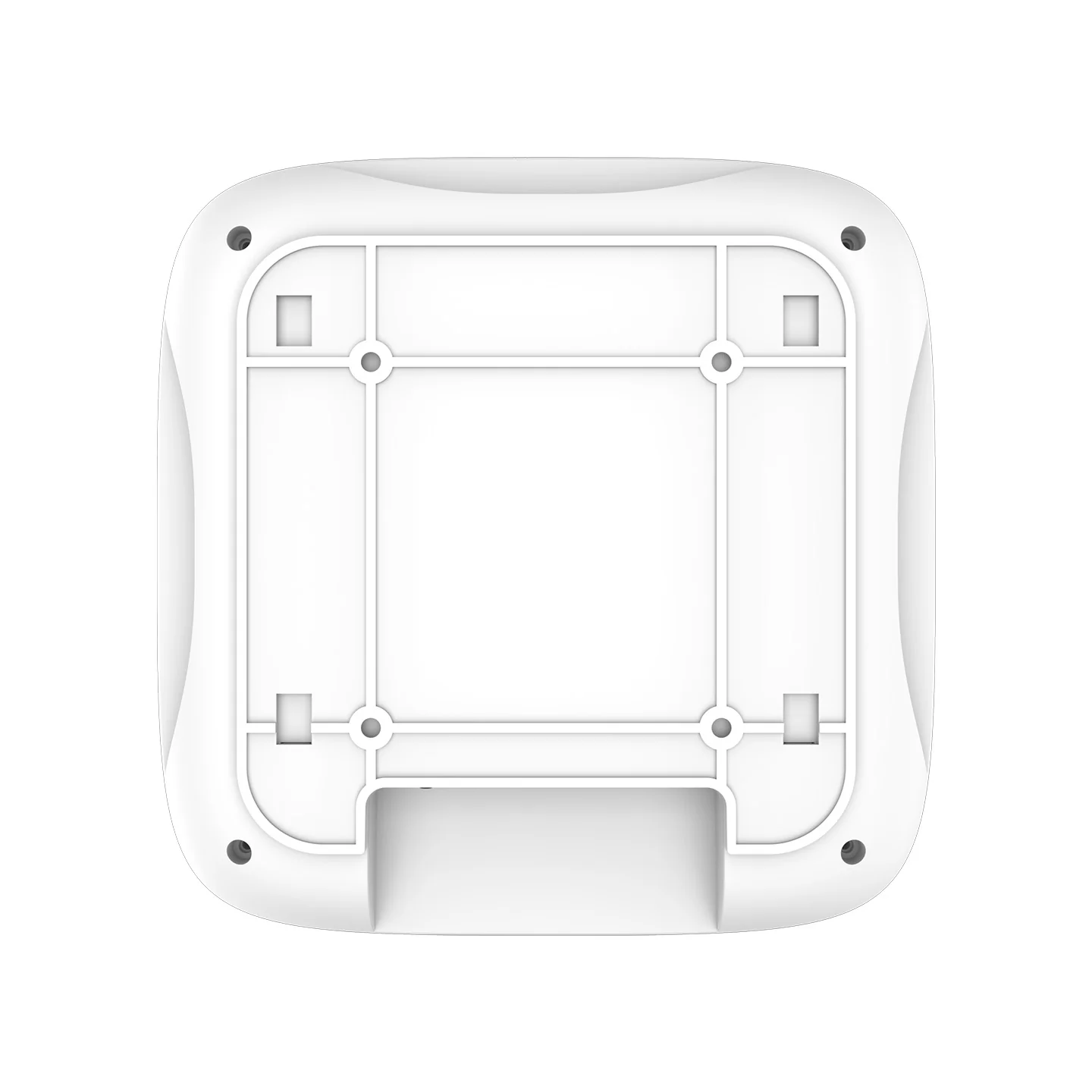

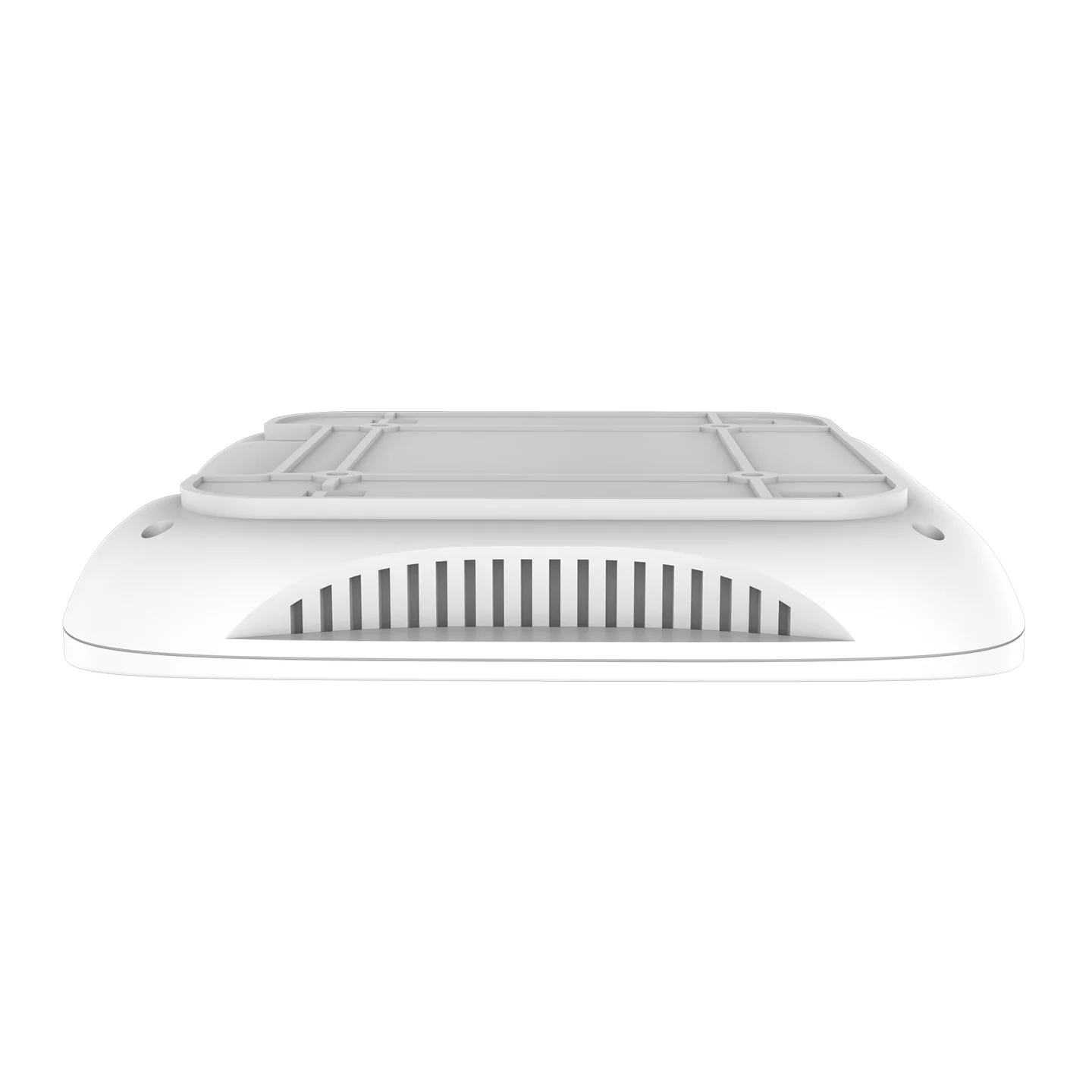

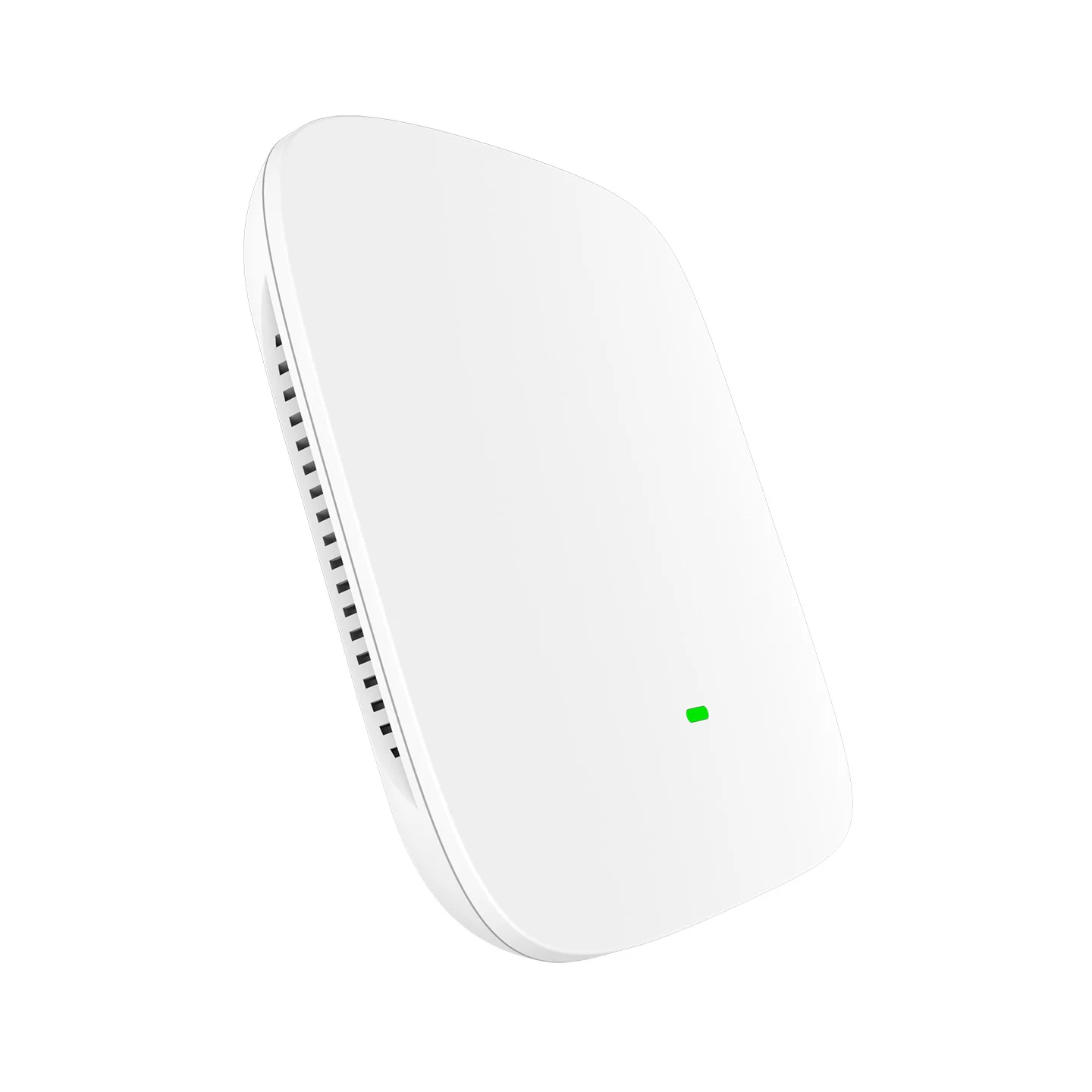

NSComm AX820 WiFi 6 AX1800 Dual-Band Ceiling Access Point with PoE
NS AX820 WiFi 6 AX1800 Ceiling Access Point
The NS AX820 is a compact WiFi 6 (802.11ax) dual-band access point designed for small to medium enterprise networks, supporting up to 128 concurrent users with stable, high-efficiency wireless performance.
Delivering AX1800 wireless throughput across 2.4 GHz and 5 GHz bands, the AX820 features dual Gigabit Ethernet ports, standard PoE power, and flexible ceiling or wall mounting. It is ideal for enterprise offices, retail spaces, schools, hotels, and high-density indoor deployments requiring reliable WiFi 6 connectivity at an entry-level cost.
Overview
Highlights
-
Efficient WiFi 6 Performance
Supports dual-band AX1800 throughput with OFDMA and MU-MIMO, improving efficiency and reducing latency in multi-user environments. -
Flexible Deployment Options
Supports ceiling-mounted or wall-mounted installation, adapting easily to offices, classrooms, retail stores, and hospitality environments. -
Dual Gigabit Connectivity
Equipped with two Gigabit Ethernet ports for flexible uplink or network extension, supporting both PoE and DC power input. -
Optimized Antenna Design
Built-in 4-antenna array with a front coverage angle greater than 130°, ensuring consistent signal distribution across indoor spaces. -
Enterprise-Grade Network Features
Supports VLAN, adjustable transmit power, seamless roaming, and Fat/Thin AP modes to fit both standalone and controller-based networks. -
Centralized Cloud Management
Compatible with cloud management platforms for unified monitoring, configuration, and lifecycle management of APs.
Comparison with Similar Models
| Feature | NS AX820 | NS AX830 | H3C WA6320 | Huawei AirEngine 5761-11 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX1800 | AX3000 | AX1800 | AX1800 |
| MIMO | 2×2 (2.4G) + 2×2 (5G) | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 2× Gigabit | 2× Gigabit | 1× Gigabit | 1× Gigabit |
| Max Clients | 128 | 128 | 128 | 128 |
| Power Supply | PoE / 12V DC | PoE / 12V DC | PoE | PoE |
| Mounting | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | Entry-level enterprise WiFi 6 | Higher throughput upgrade | Enterprise WiFi 6 AP | Enterprise WiFi 6 AP |
Positioning Summary:
-
AX820: Entry-level WiFi 6 AP with dual Gigabit ports and flexible deployment.
-
AX830: Same platform family with higher AX3000 throughput for denser environments.
-
H3C / Huawei: Comparable enterprise AX1800 models with similar capacity but fewer physical interfaces.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX1800 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4 internal antennas, >130° front coverage |
| Maximum Concurrent Clients | 128 |
| Ethernet Interfaces | 2× Gigabit Ethernet (RJ45) |
| Power Supply | 802.3af PoE / 12V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | Ceiling-mounted or wall-mounted |
| Dimensions | 186 × 186 × 36 mm |
| Application Scenarios | Offices, schools, retail, hotels, SMB environments |
