NSComm FAP815 WiFi 6 AX1500 Dual-Band In-Wall Access Point with PoE
NS FAP815 WiFi 6 AX1500 In-Wall Access Point
The NS FAP815 is a WiFi 6 (802.11ax) in-wall access point designed for cost-effective indoor wireless coverage in homes, apartments, hotels, dormitories, and small office environments.
Featuring an ultra-thin 8.0 mm panel design, the FAP815 delivers AX1500 dual-band wireless performance, supports standard PoE power supply, and fits seamlessly into a standard 86 mm in-wall junction box. It is an ideal solution for projects that require clean aesthetics, stable connectivity, and large-scale deployment efficiency.
Overview
Highlights
-
Cost-Effective WiFi 6 Performance
Provides AX1500 dual-band WiFi 6 connectivity, delivering reliable wireless access for everyday applications such as browsing, video streaming, and smart home devices. -

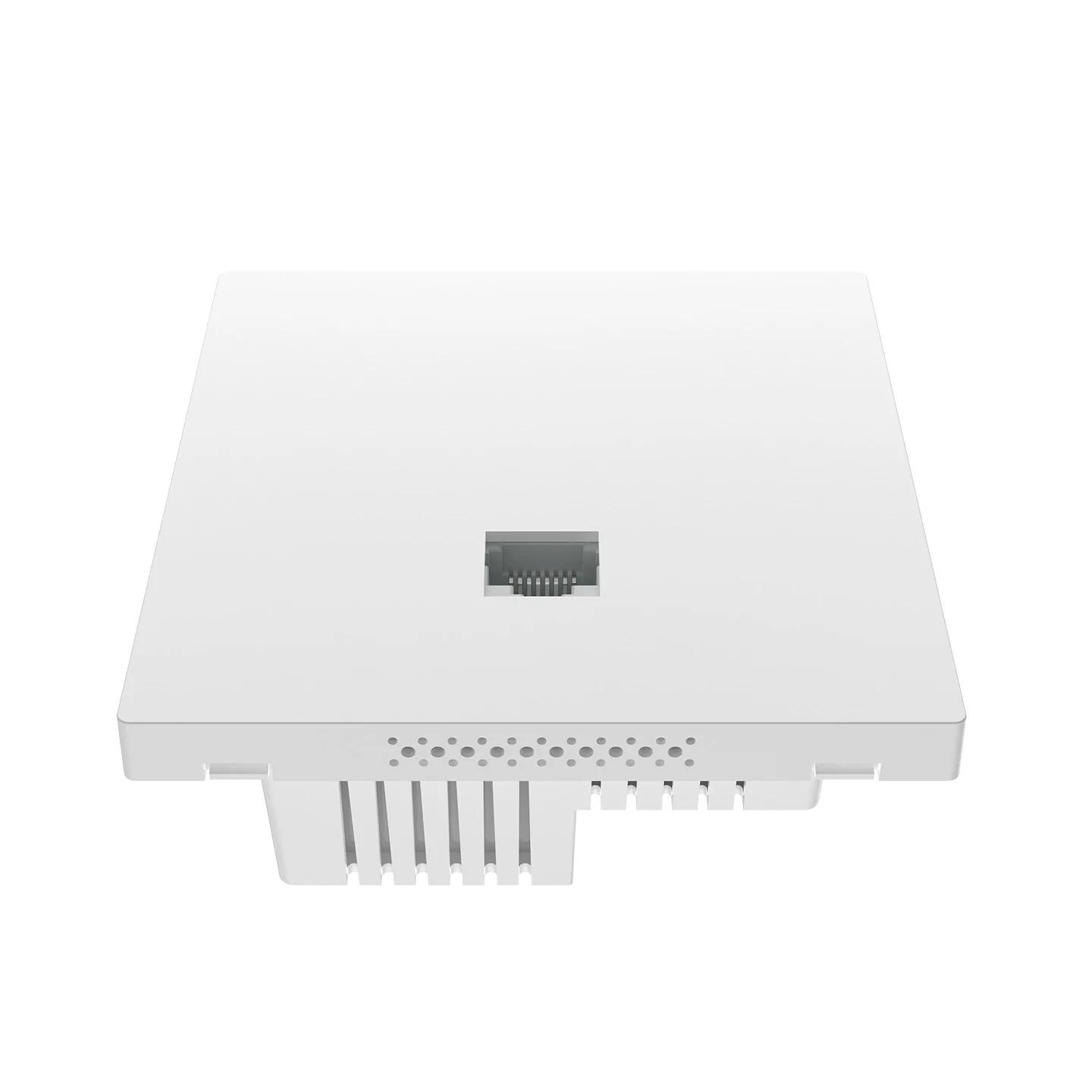

Ultra-Thin In-Wall Design
Features an 8.0 mm slim front panel, offering a modern, minimal appearance that blends naturally into residential and hospitality interiors. -

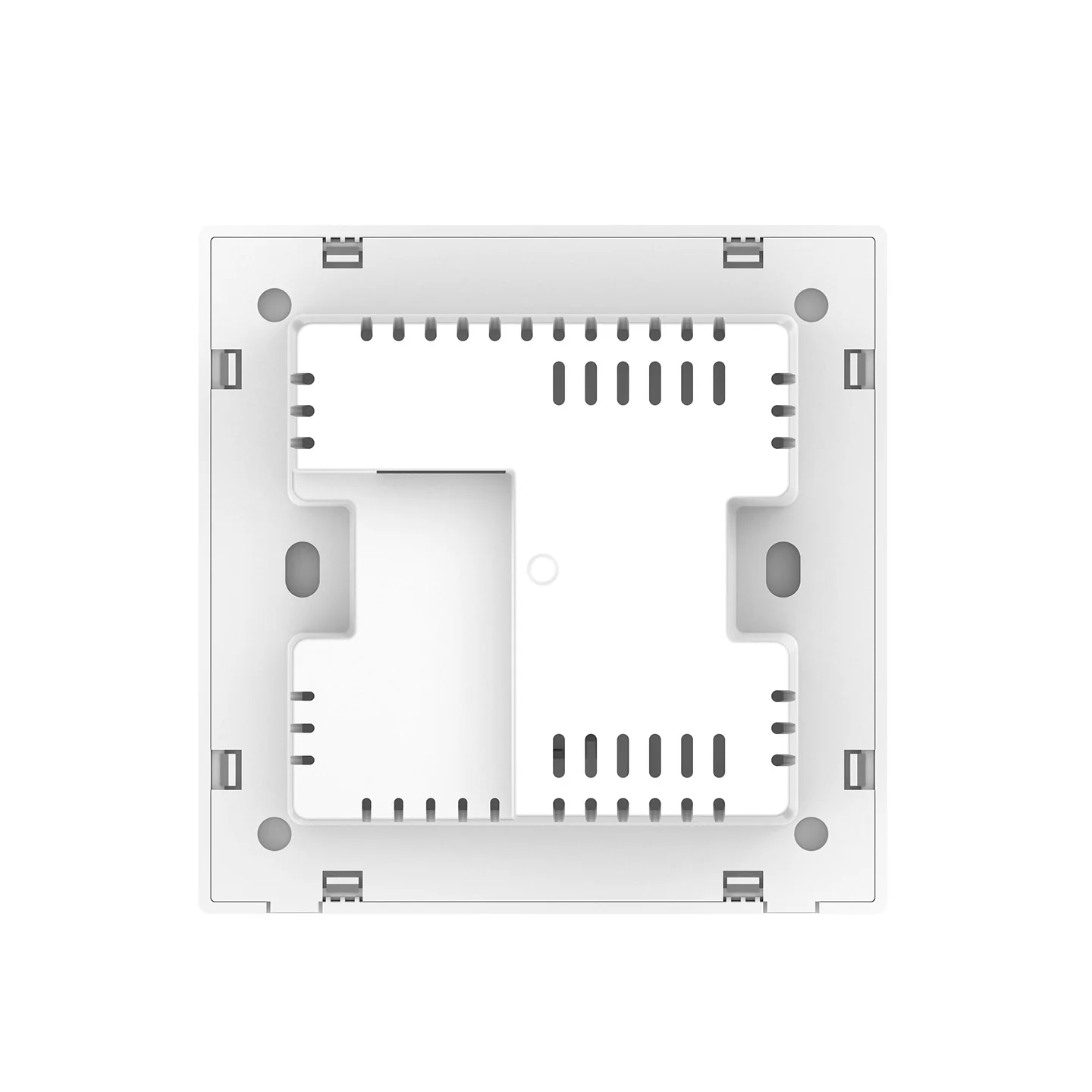

Standard 86 mm Wall Box Installation
Designed for standard 86-type in-wall boxes, making it suitable for both renovation projects and new construction. -
PoE-Powered Simple Deployment
Supports standard PoE (802.3af/at), allowing power and data transmission over a single Ethernet cable for simplified installation. -
Internal Antenna System
Equipped with 4 internal omnidirectional antennas, ensuring stable and balanced signal coverage within rooms. -
Enterprise Features with Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, unified Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP815 | NS FAP818 | H3C EWP-WA5510 | Huawei AirEngine 5760-10W |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX1500 | AX3000 | AX1500 | AX1500 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 1×Gigabit LAN | 1×GE WAN + 1×GE LAN | 1×GE | 1×GE |
| Panel Thickness | 8.0 mm ultra-thin | 8.5 mm ultra-thin | Slim panel | Slim panel |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE (802.3af/at) | PoE | PoE | PoE |
| Typical Positioning | Entry-level in-wall AP | High-performance in-wall AP | Enterprise in-wall AP | Enterprise in-wall AP |
Positioning Summary:
-
FAP815: AX1500 entry-level WiFi 6 in-wall AP optimized for cost-sensitive projects.
-
FAP818: AX3000 in-wall AP for higher throughput and dual-port connectivity.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs focused on centralized WLAN management.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX1500 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit Ethernet (LAN) |
| Power Supply | Standard PoE (802.3af/at) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (standard 86 mm junction box) |
| Application Scenarios | Homes, hotels, dormitories, apartments, SOHO |
