NSComm FAP834-PoF WiFi 6 AX3000 Dual-Band In-Wall Access Point with PoF Uplink
NS FAP834-PoF WiFi 6 AX3000 PoF In-Wall Access Point
The NS FAP834-PoF is a commercial-grade WiFi 6 (802.11ax) in-wall access point with PoF (Power over Fiber), designed for next-generation optical access networks that require simplified cabling, long-distance transmission, and centralized power delivery.
Delivering AX3000 dual-band wireless performance, the FAP834-PoF integrates a Gigabit SC fiber uplink with hybrid optical/power transmission and four Gigabit Ethernet LAN ports in a compact 86 mm in-wall form factor. It supports up to 128 concurrent devices, making it ideal for hotels, hospitals, campuses, and large-scale residential projects adopting fiber-to-the-room (FTTR) architectures.
Overview
Highlights
-
WiFi 6 AX3000 Commercial Performance
Delivers AX3000 dual-band wireless throughput with OFDMA and MU-MIMO, ensuring efficient and stable connectivity in dense indoor environments. -

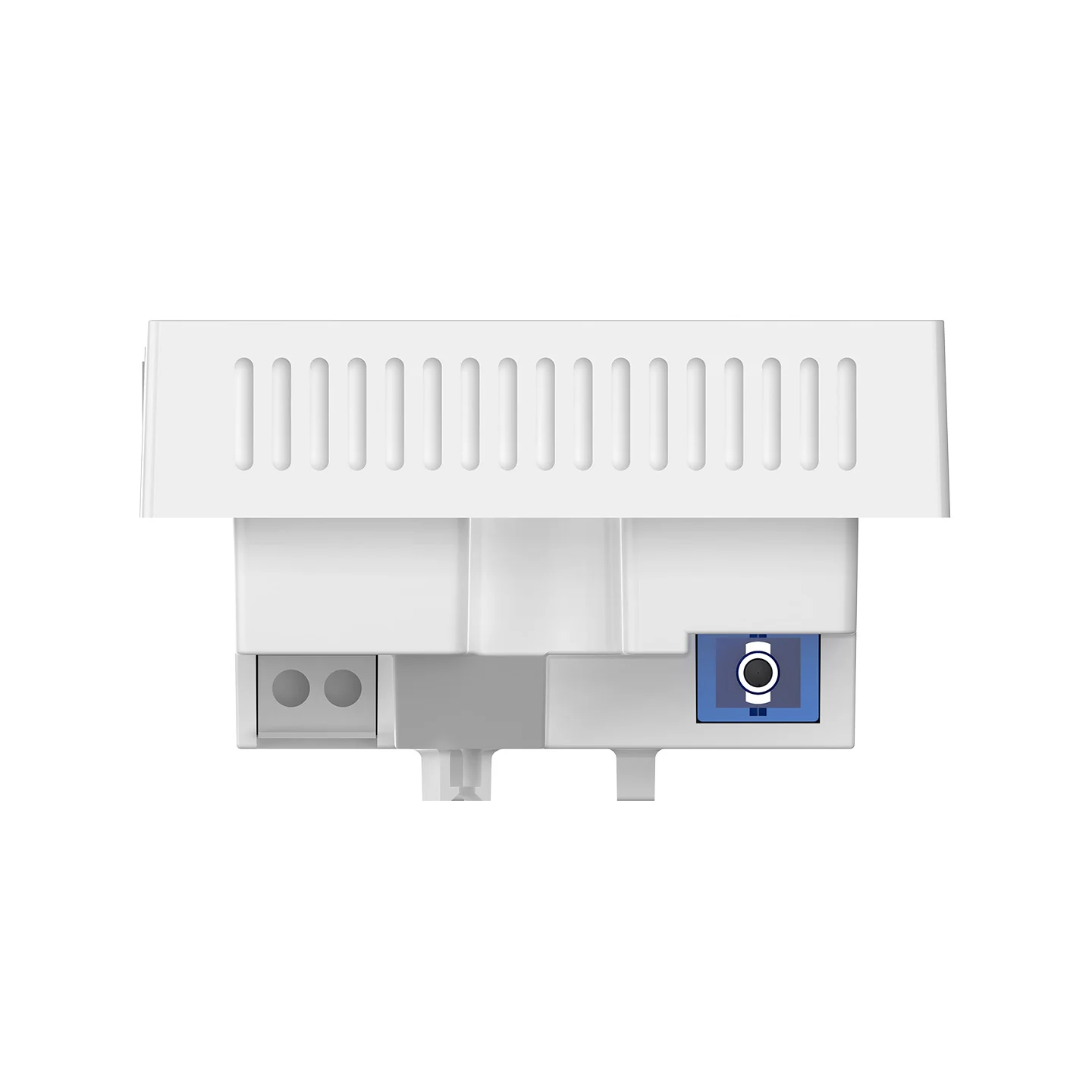

Power over Fiber (PoF) Architecture
Features a Gigabit SC fiber uplink supporting hybrid optical data + power transmission, enabling long-distance deployment with centralized power supply. -

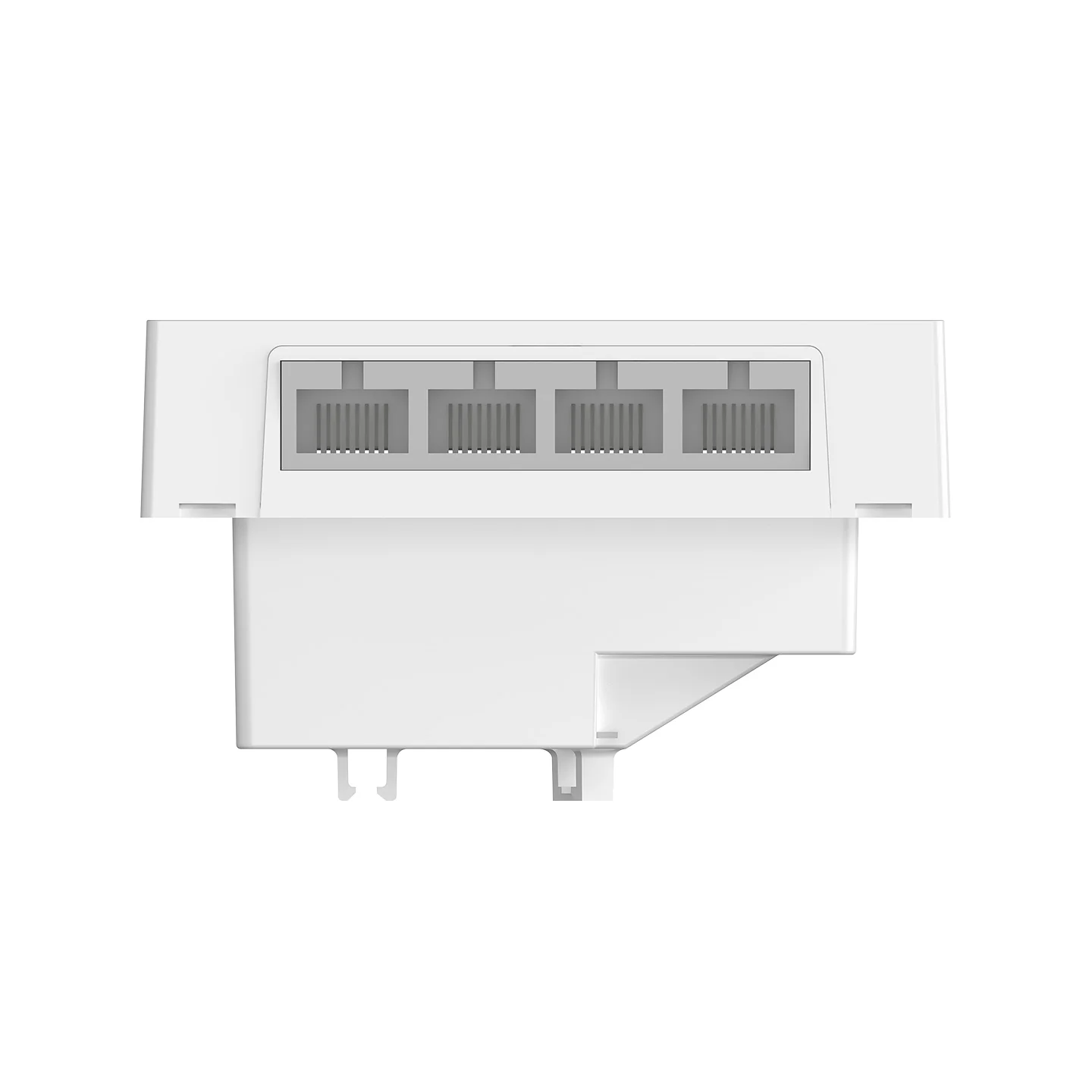

Integrated Multi-Port Wired Access
Provides 4× Gigabit Ethernet LAN ports for connecting IP phones, TVs, PCs, and other wired devices within the room. -
Standard 86 mm In-Wall Installation
Designed for standard 86-type wall boxes, ensuring seamless integration into modern building infrastructure. -
Simplified Cabling & Centralized Power
Eliminates the need for local power outlets, reduces cable complexity, and improves network reliability and maintainability. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP834-PoF | NS FAP834 | H3C EWP-WA5630-PoF | Huawei AirEngine 5761-10W-PoF |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| Uplink Type | Gigabit SC Fiber (PoF) | Gigabit Ethernet | PoF Fiber | PoF Fiber |
| LAN Ports | 4× Gigabit Ethernet | 4× Gigabit Ethernet | 4× GE | 4× GE |
| Power Supply | PoF (Hybrid Fiber) | PoE | PoF | PoF |
| Panel Type | Commercial in-wall | Commercial in-wall | Commercial in-wall | Commercial in-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Typical Positioning | FTTR / PoF room AP | Standard PoE room AP | Enterprise PoF AP | Enterprise PoF AP |
Positioning Summary:
-
FAP834-PoF: AX3000 PoF in-wall AP for fiber-based, centralized-power deployments.
-
FAP834: AX3000 PoE in-wall AP for traditional Ethernet cabling.
-
H3C / Huawei: Comparable enterprise PoF in-wall APs for optical access networks.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Uplink Interface | 1× Gigabit SC fiber (hybrid PoF) |
| LAN Interfaces | 4× Gigabit Ethernet |
| Power Supply | Power over Fiber (PoF) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (standard 86 mm wall box) |
| Application Scenarios | Hotels, hospitals, campuses, FTTR deployments |
