NSComm FAP855P WiFi 7 Dual-Band 3.6Gbps In-Wall Access Point with 2.5G PoE Out
NS FAP855P WiFi 7 BE3600 In-Wall Access Point with PoE Output

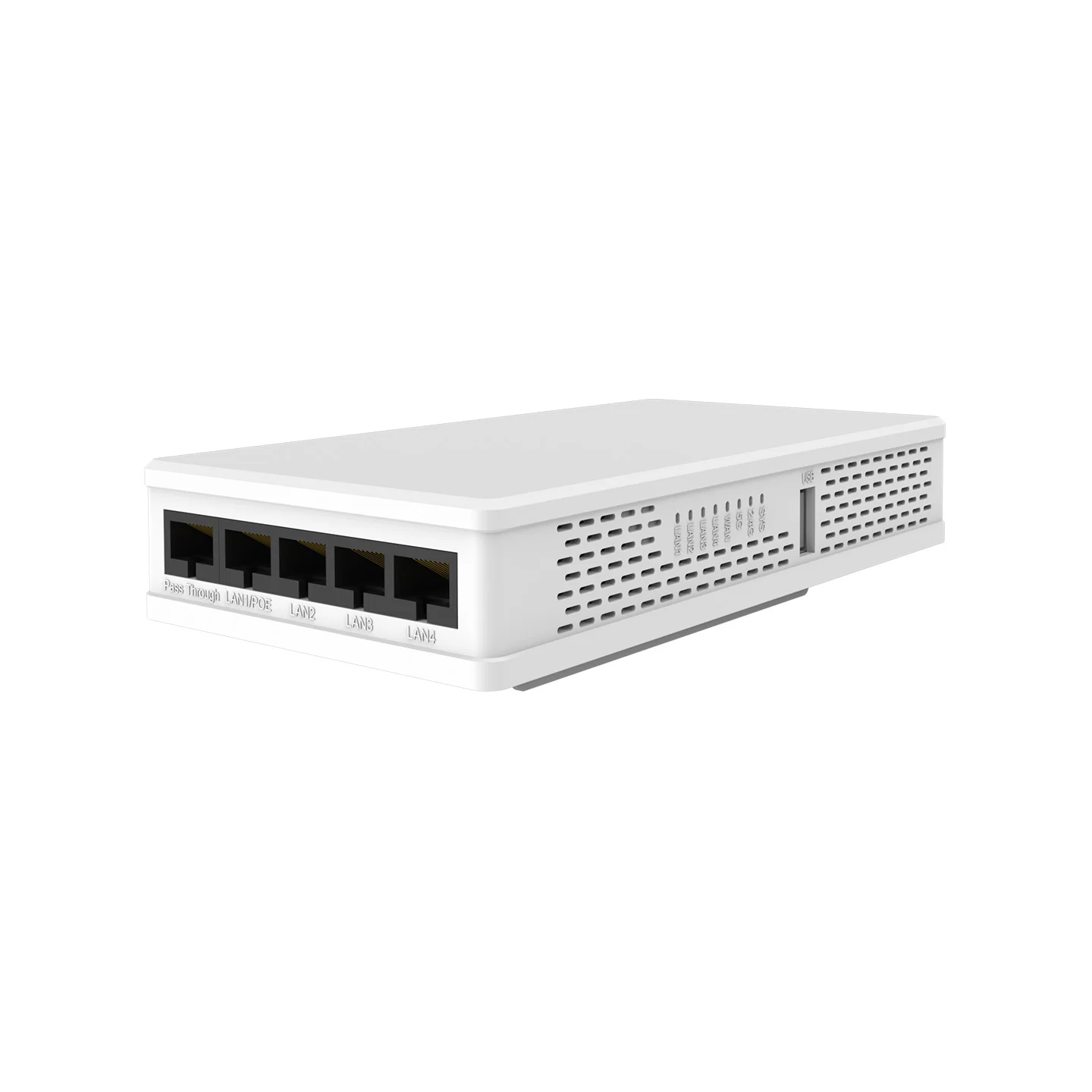

The NS FAP855P is a commercial-grade WiFi 7 (802.11be) in-wall access point with PoE output, designed for next-generation enterprise and hospitality rooms that require high-speed wireless access, multi-port wired connectivity, and direct power supply to edge devices.
Delivering up to 3.6 Gbps dual-band wireless performance, the FAP855P integrates a 2.5 Gbps Ethernet uplink, four Gigabit LAN ports, PoE output on one downlink port, and dual pass-through interfaces into a large 86×160 mm in-wall form factor. It supports up to 128 concurrent devices, making it ideal for smart hotels, hospitals, offices, and high-end residential deployments.
Overview
Highlights
-
Wi-Fi 7 Next-Generation Wireless Performance
Built on the Wi-Fi 7 (802.11be) standard, providing higher capacity, lower latency, and improved efficiency for modern high-density indoor environments. -
2.5G Multi-Gigabit Uplink
Equipped with a 2.5 Gbps Ethernet uplink, ensuring sufficient backhaul bandwidth for Wi-Fi 7 traffic and future network expansion. -

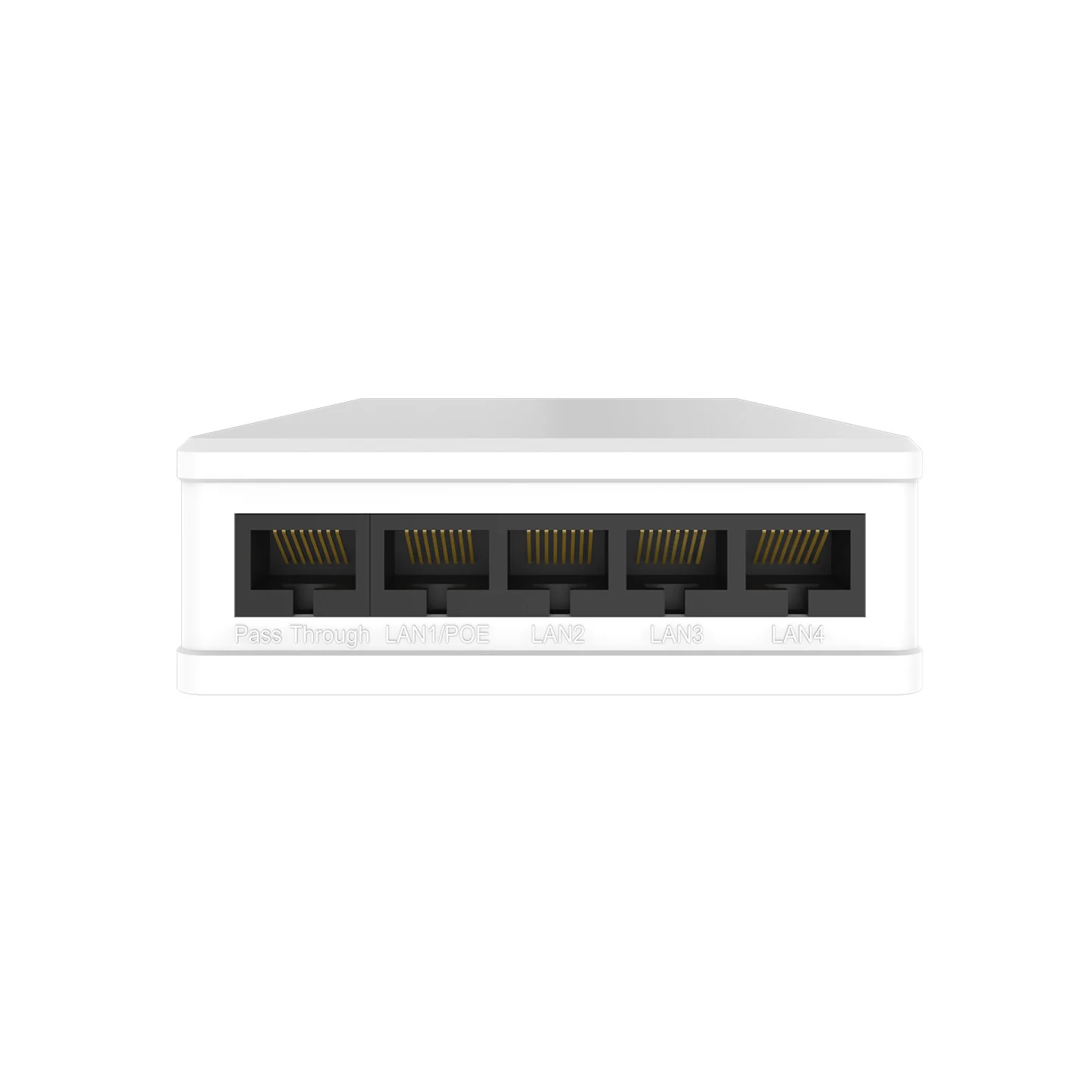

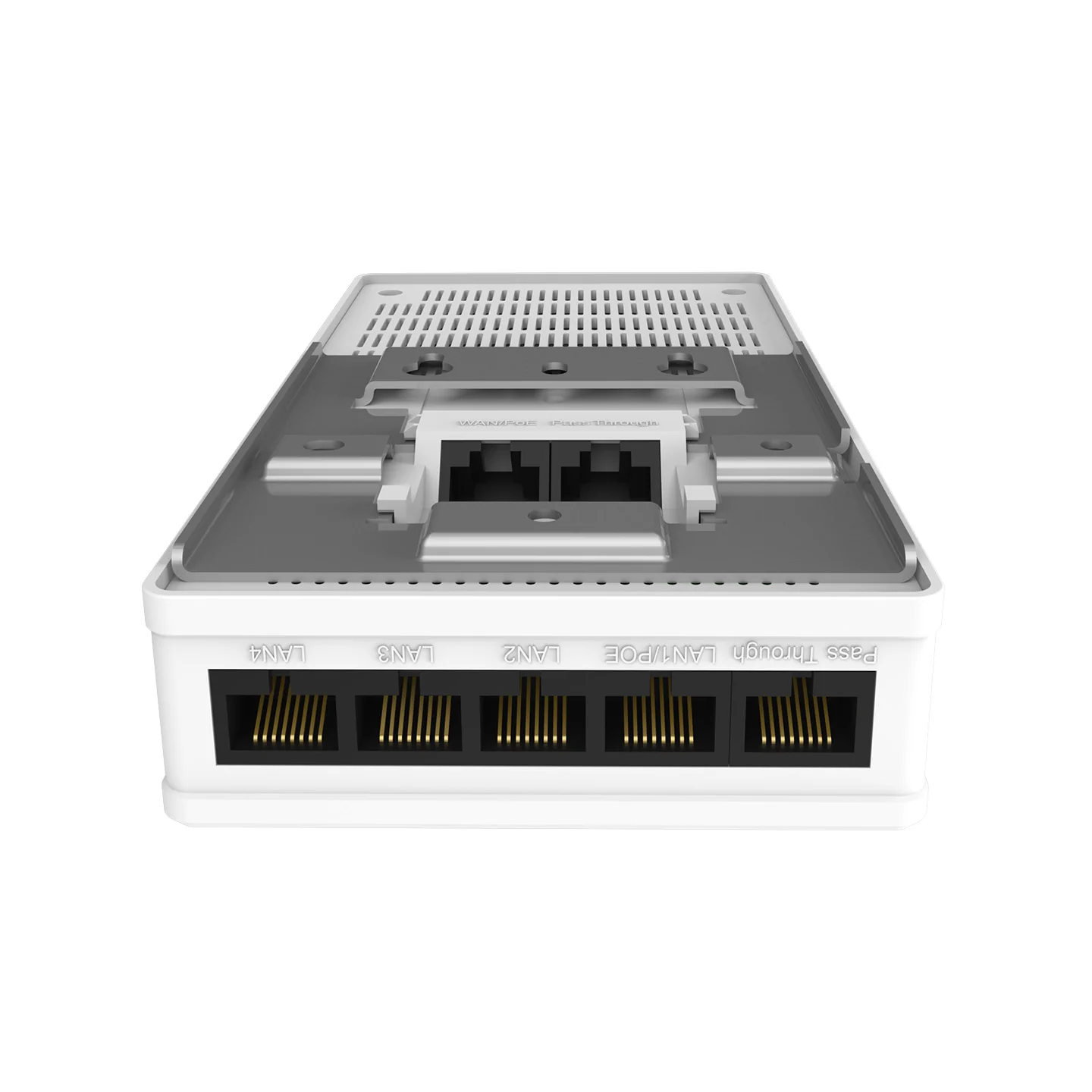

Integrated Multi-Port Room Connectivity
Provides 4× Gigabit Ethernet LAN ports, enabling direct connection of TVs, IP phones, PCs, printers, and other wired devices. -
Built-In PoE Output for Downstream Devices
Supports PoE output on one LAN port, allowing direct power delivery to IP phones, cameras, access terminals, or IoT devices without additional power adapters. -

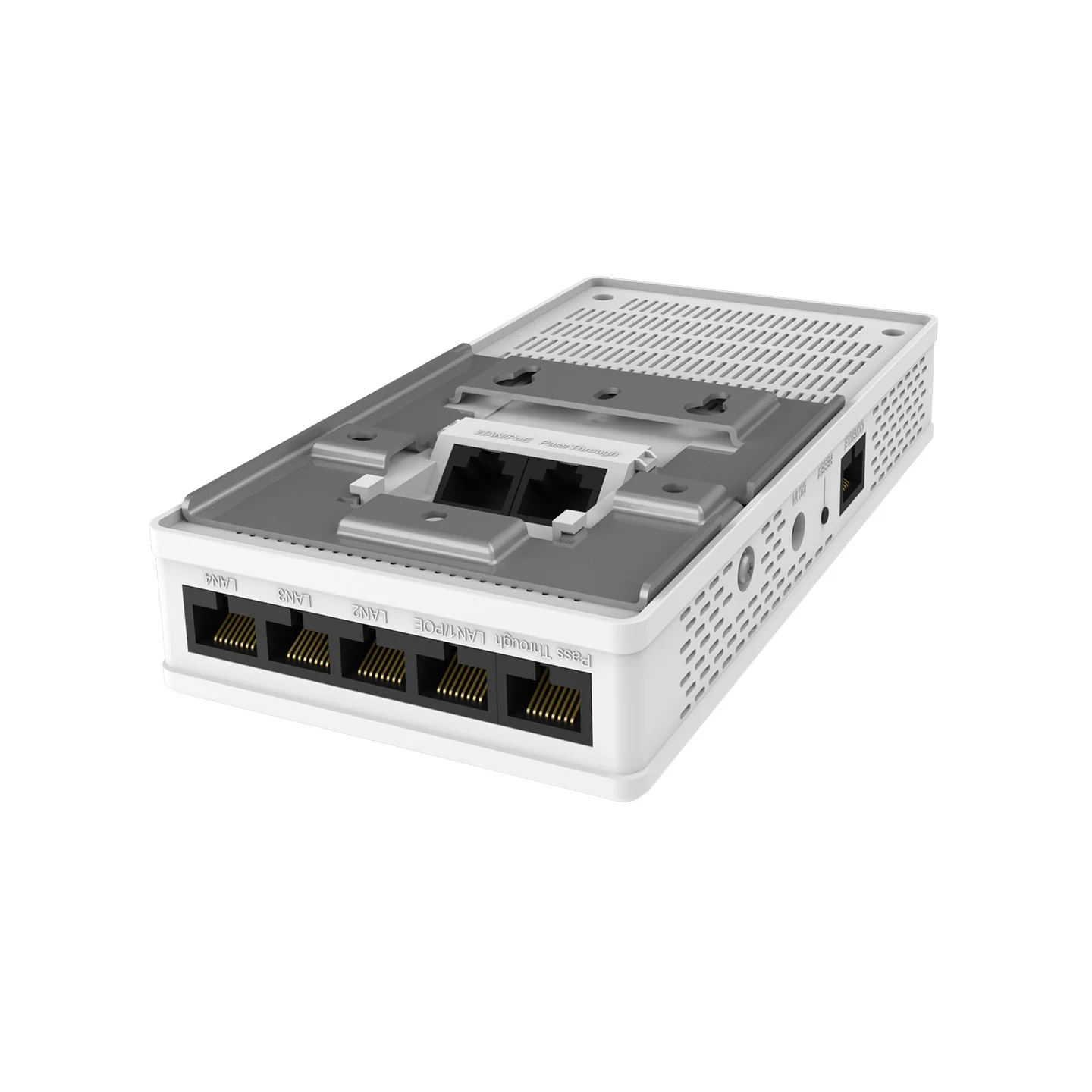

Dual Pass-Through Interfaces
Includes 1 pair of pass-through ports, simplifying cable routing and supporting legacy wiring within the wall box. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP855P | NS FAP855 | H3C EWP-WA7xxxP | Huawei AirEngine 5763-12WP |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Wireless Rate | BE3600 | BE3600 | BE3600 | BE3600 |
| Uplink Interface | 2.5 Gbps Ethernet | 2.5 Gbps Ethernet | 2.5 Gbps | 2.5 Gbps |
| LAN Ports | 4× Gigabit Ethernet | 4× Gigabit Ethernet | 4× GE | 4× GE |
| PoE Output | Yes (1 port) | No | Yes | Yes |
| Pass-Through Ports | Yes (1 pair) | Yes | Optional | Optional |
| Panel Size | 86×160 mm | 86×160 mm | Large in-wall | Large in-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Typical Positioning | Wi-Fi 7 room AP with PoE out | Wi-Fi 7 room AP | Enterprise Wi-Fi 7 AP | Enterprise Wi-Fi 7 AP |
Positioning Summary:
-
FAP855P: Wi-Fi 7 in-wall AP with PoE output, ideal for smart-room and multi-device power scenarios.
-
FAP855: Wi-Fi 7 in-wall AP focused on wireless + wired access without power output.
-
H3C / Huawei: Comparable enterprise-grade Wi-Fi 7 in-wall APs with downstream PoE support.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | BE3600 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×2.5 Gbps uplink, 4×Gigabit LAN (1×PoE Out) |
| Pass-Through Ports | 1 pair |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |

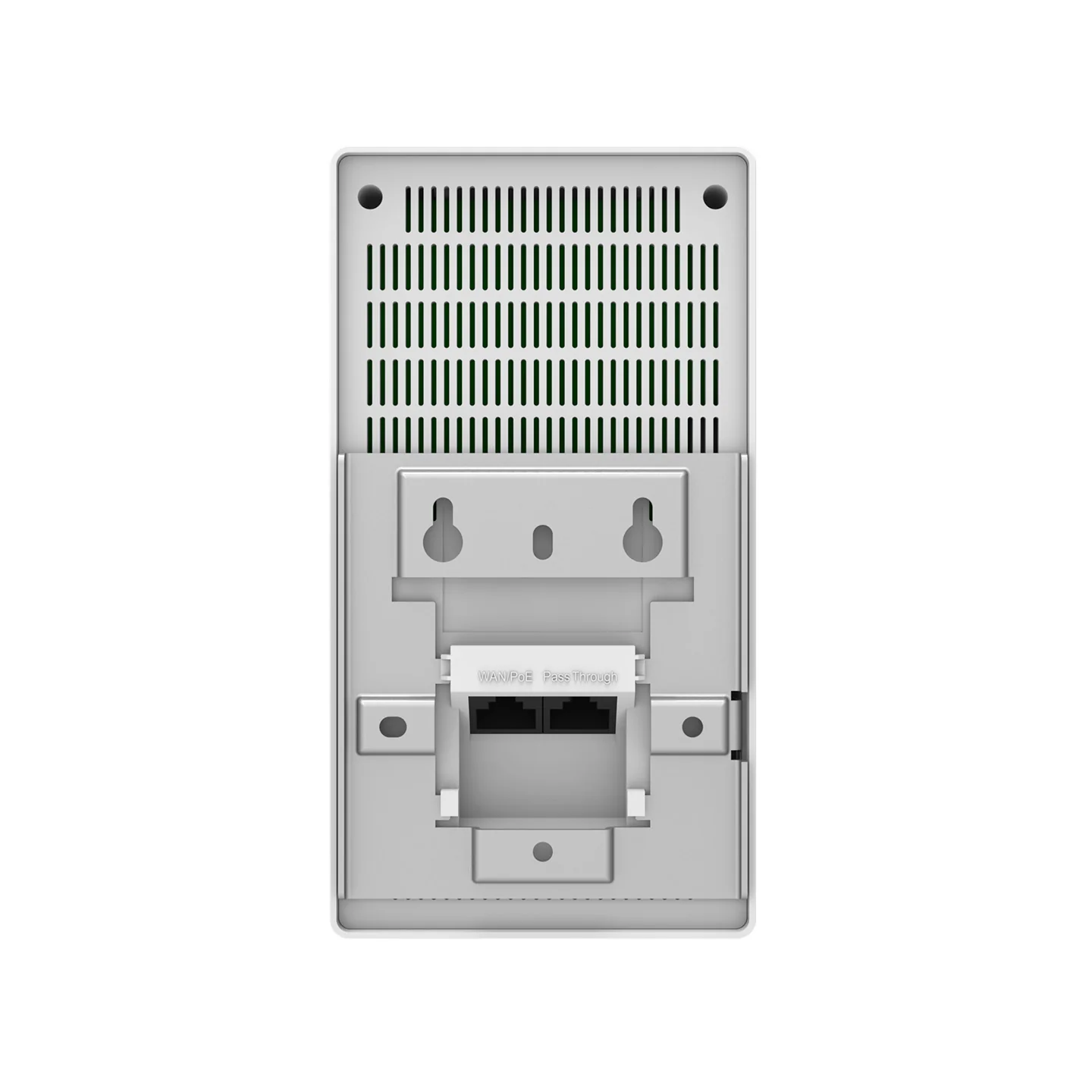

| Installation | In-wall (86×160 mm wall box) |
| Application Scenarios | Smart hotels, hospitals, offices, smart rooms, enterprise buildings |
