NSComm FAP830 WiFi 6 AX3000 Dual-Band In-Wall Access Point with PoE
NS FAP830 WiFi 6 AX3000 In-Wall Access Point
The NS FAP830 is a WiFi 6 (802.11ax) in-wall access point designed for high-performance indoor wireless coverage in residential, hospitality, and light commercial environments.
Delivering AX3000 dual-band wireless performance, the FAP830 supports standard PoE power supply, fits into a standard 86 mm wall-mounted box, and provides reliable wireless connectivity for up to 128 concurrent devices. It is well suited for apartments, hotels, serviced residences, dormitories, and small offices.
Overview
Highlights
-
High-Speed WiFi 6 Performance
Delivers AX3000 dual-band throughput with OFDMA and MU-MIMO, ensuring smooth and stable connectivity for multiple devices. -

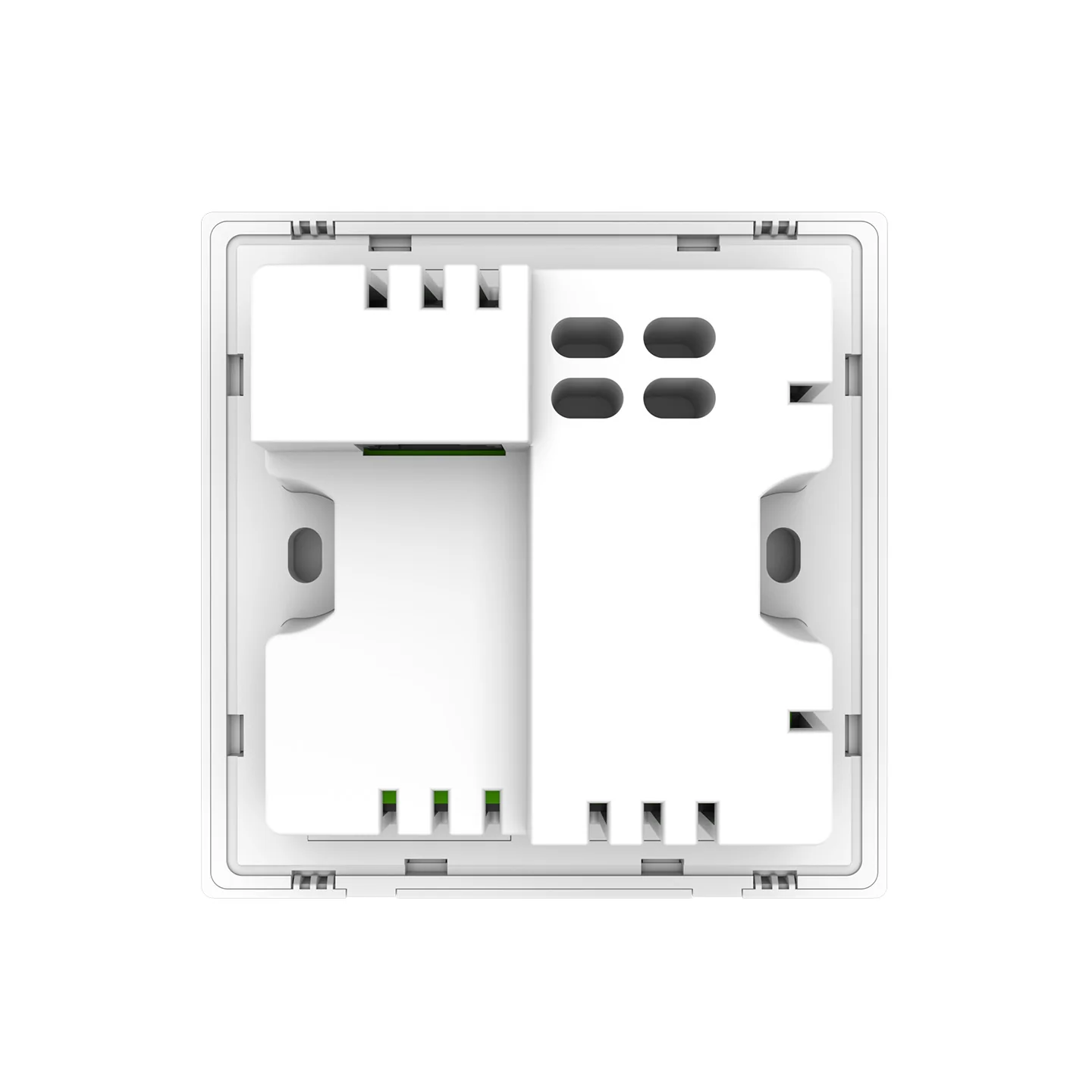

Standard 86 mm In-Wall Installation
Designed for standard 86-type wall boxes, making it easy to deploy in both new construction and renovation projects. -
PoE-Powered Simple Deployment
Supports standard PoE power supply, allowing power and data transmission over a single Ethernet cable for clean and efficient installation. -
Dual Gigabit Ethernet Ports
Equipped with 1×Gigabit WAN port and 1×Gigabit LAN port, supporting wired backhaul and local device connectivity. -
Compact and Practical Design
Balanced panel thickness and clean industrial design make it suitable for a wide range of indoor environments. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP830 | NS FAP818 | H3C EWP-WA5620 | Huawei AirEngine 5760-10W |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 1×GE WAN + 1×GE LAN | 1×GE WAN + 1×GE LAN | 1×GE | 1×GE |
| Panel Type | Standard in-wall | Ultra-thin in-wall | In-wall | In-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE | PoE | PoE | PoE |
| Typical Positioning | Mainstream in-wall AP | Premium slim in-wall AP | Enterprise in-wall AP | Enterprise in-wall AP |
Positioning Summary:
-
FAP830: Mainstream AX3000 WiFi 6 in-wall AP balancing performance and installation practicality.
-
FAP818: Premium AX3000 in-wall AP with ultra-thin design.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs designed for centralized WLAN deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 2× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit WAN, 1×Gigabit LAN |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (standard 86 mm wall box) |
| Dimensions | 86 × 86 × 42.8 mm |
| Application Scenarios | Apartments, hotels, dormitories, SOHO, serviced residences |
