NSComm BE860-5262 WiFi 7 Tri-Band 9Gbps Ceiling Access Point with 10G SFP+ and PoE++
NS BE860-5262 WiFi 7 Tri-Band 9Gbps Ceiling Access Point

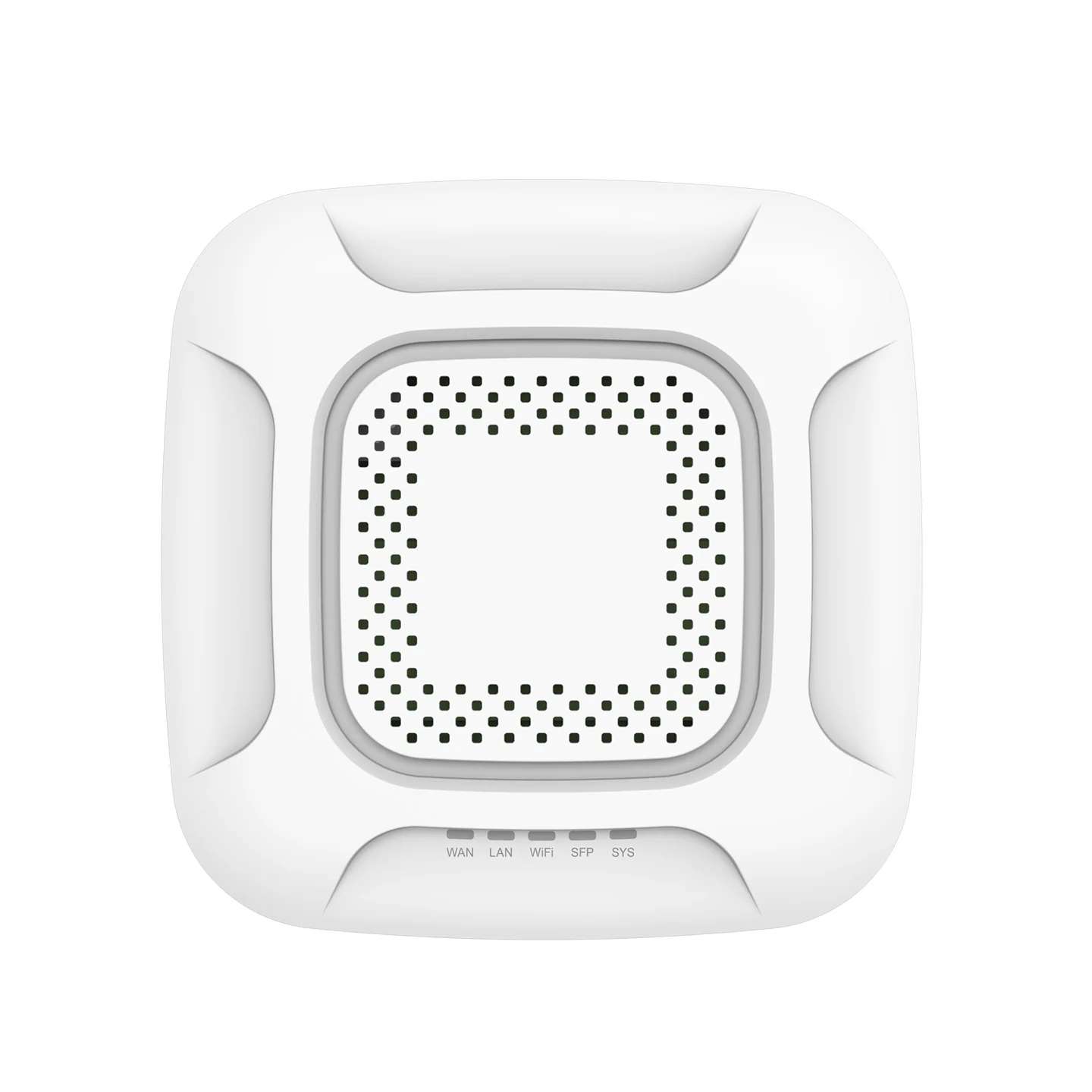

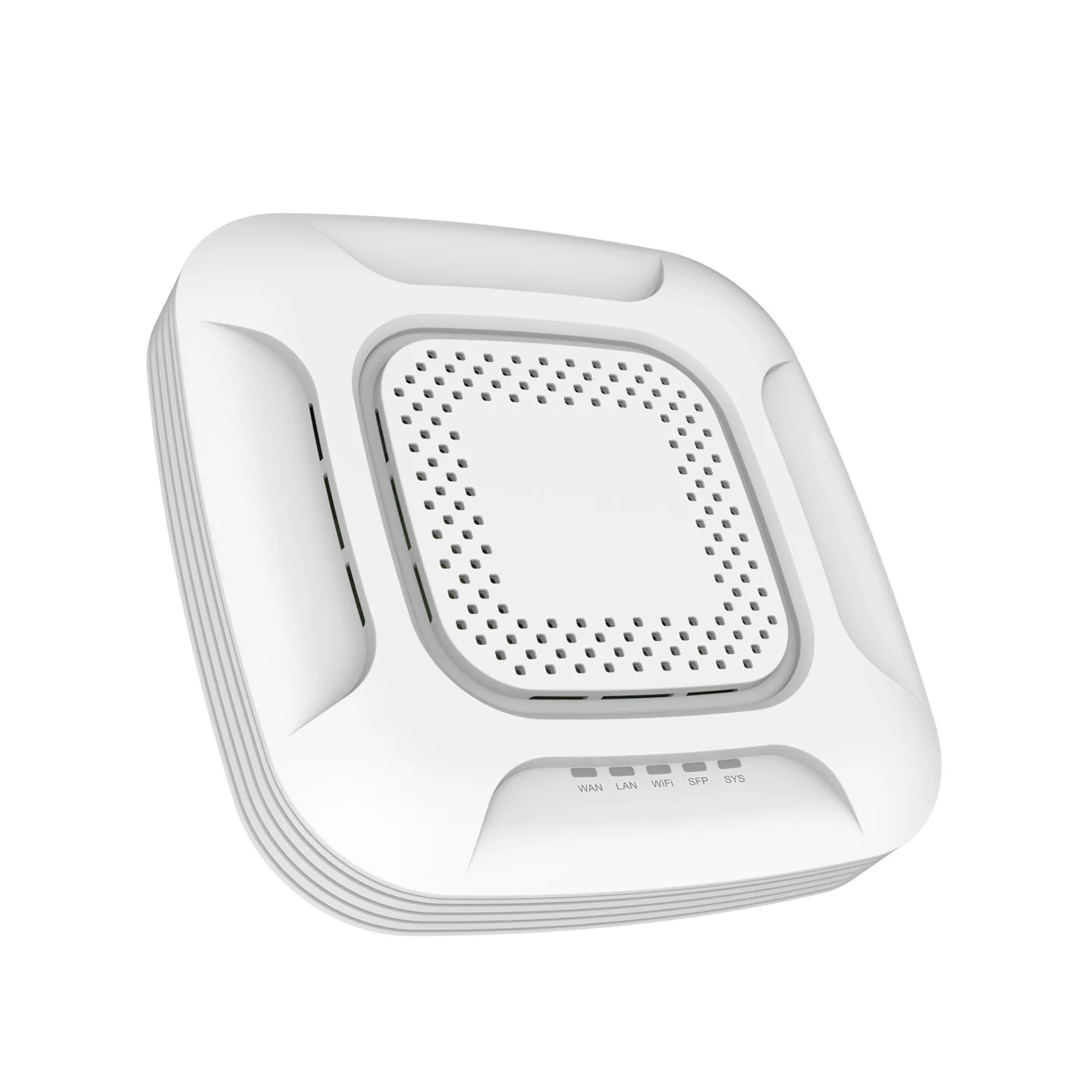

The NS BE860-5262 is a high-end WiFi 7 (802.11be) tri-band ceiling access point designed for ultra-high-density enterprise environments that demand maximum capacity, multi-gigabit backhaul, and future-proof wireless architecture.
Delivering up to 9 Gbps of tri-band wireless throughput across 2.4 GHz, 5 GHz, and 6 GHz, the BE860-5262 features a 10G SFP+ uplink, dual 2.5G Ethernet ports, and enterprise-grade Qualcomm WiFi 7 chipset architecture. Supporting up to 192 concurrent clients, it is ideal for large campuses, headquarters offices, conference centers, and next-generation high-density WLAN deployments.
Overview
Highlights
-
True Tri-Band WiFi 7 Architecture
Supports simultaneous operation on 2.4 GHz, 5 GHz, and 6 GHz, significantly increasing total system capacity and reducing congestion in high-density environments. -
Ultra-High Wireless Throughput
Delivers up to 9 Gbps aggregate wireless performance, enabling next-generation applications such as ultra-HD collaboration, AR/VR, and latency-sensitive enterprise services. -
10G Fiber Uplink for Core Integration
Equipped with a 10G SFP+ optical uplink, ensuring seamless integration with enterprise core switches and eliminating backhaul bottlenecks. -
Multi-Gigabit Wired Expansion
Includes two 2.5G Ethernet ports, offering flexible connectivity for aggregation, downstream devices, or mixed wired/wireless deployments. -
High-Density Client Optimization
Designed to support up to 192 concurrent devices, with advanced airtime efficiency and multi-band load balancing. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management for large-scale deployments.
Comparison with Similar Models
| Feature | NS BE860-5262 | NS BE830-P5V2 | H3C WA8xxx | Huawei AirEngine 8771-X1T |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Frequency Bands | 2.4G + 5G + 6G | 2.4G + 5G | 2.4G + 5G + 6G | 2.4G + 5G + 6G |
| Wireless Rate | 9 Gbps | 3.6 Gbps | ~9 Gbps | ~9 Gbps |
| MIMO | 2×2 (2.4G) + 2×2 (5G) + 2×2 (6G) | 2×2 + 2×2 | 2×2 + 2×2 + 2×2 | 2×2 + 2×2 + 2×2 |
| Uplink Interface | 1×10G SFP+ + 2×2.5G | 1×2.5G + 1×GE | 1×10G | 1×10G |
| Max Concurrent Clients | 192 | 128 | 192 | 192 |
| Deployment Type | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | Enterprise tri-band flagship | Mainstream WiFi 7 AP | High-end enterprise AP | High-end enterprise AP |
Positioning Summary:
-
BE860-5262: Enterprise-grade tri-band WiFi 7 AP with 10G fiber uplink, designed for ultra-high-density environments.
-
BE830-P5V2: Mainstream dual-band WiFi 7 AP for cost-effective enterprise upgrades.
-
H3C / Huawei: Comparable high-end WiFi 7 tri-band APs typically deployed in large controller-centric WLAN architectures.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz + 6 GHz |
| Maximum Data Rate | Up to 9 Gbps |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz), 2×2 (6 GHz) |
| Maximum Concurrent Clients | 192 |

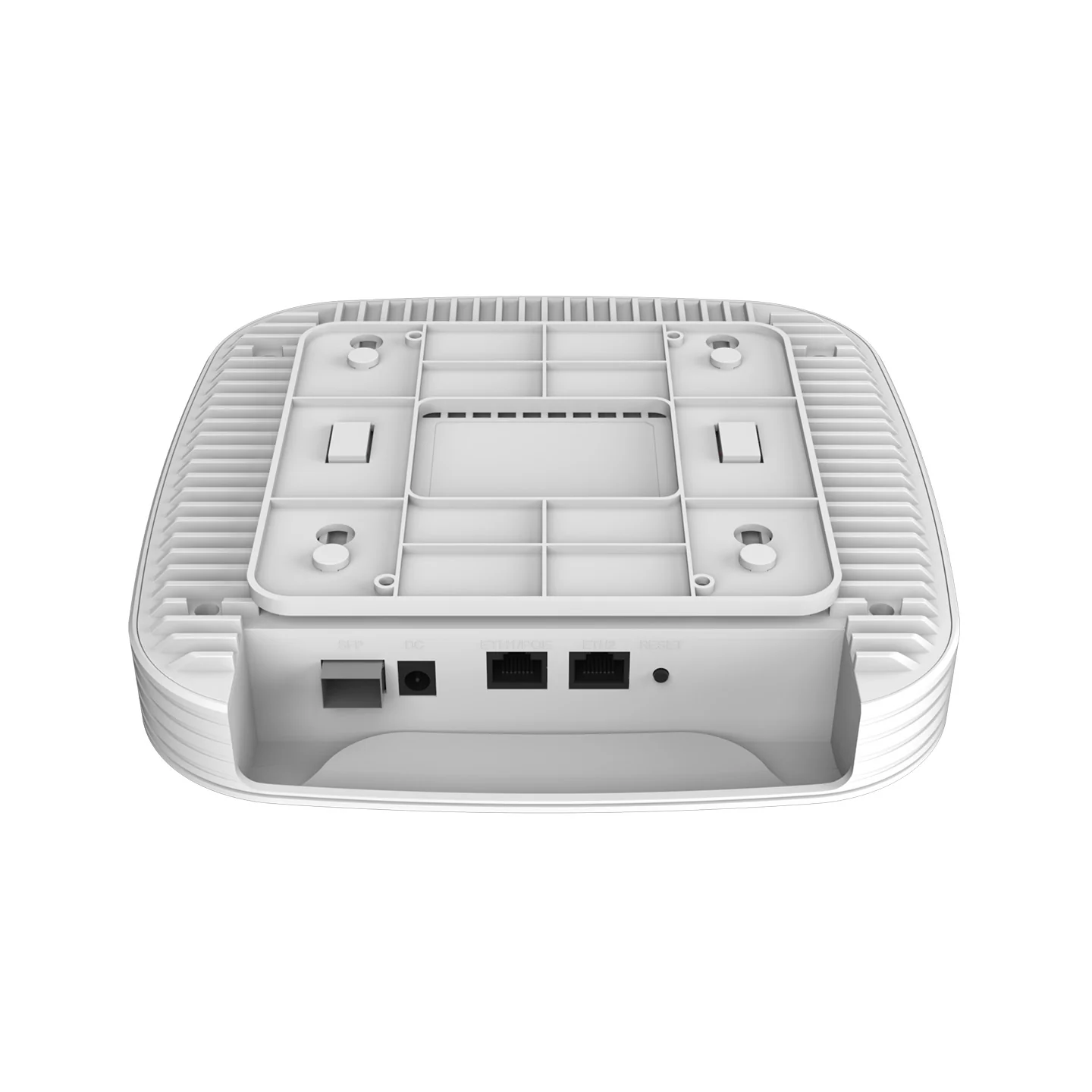

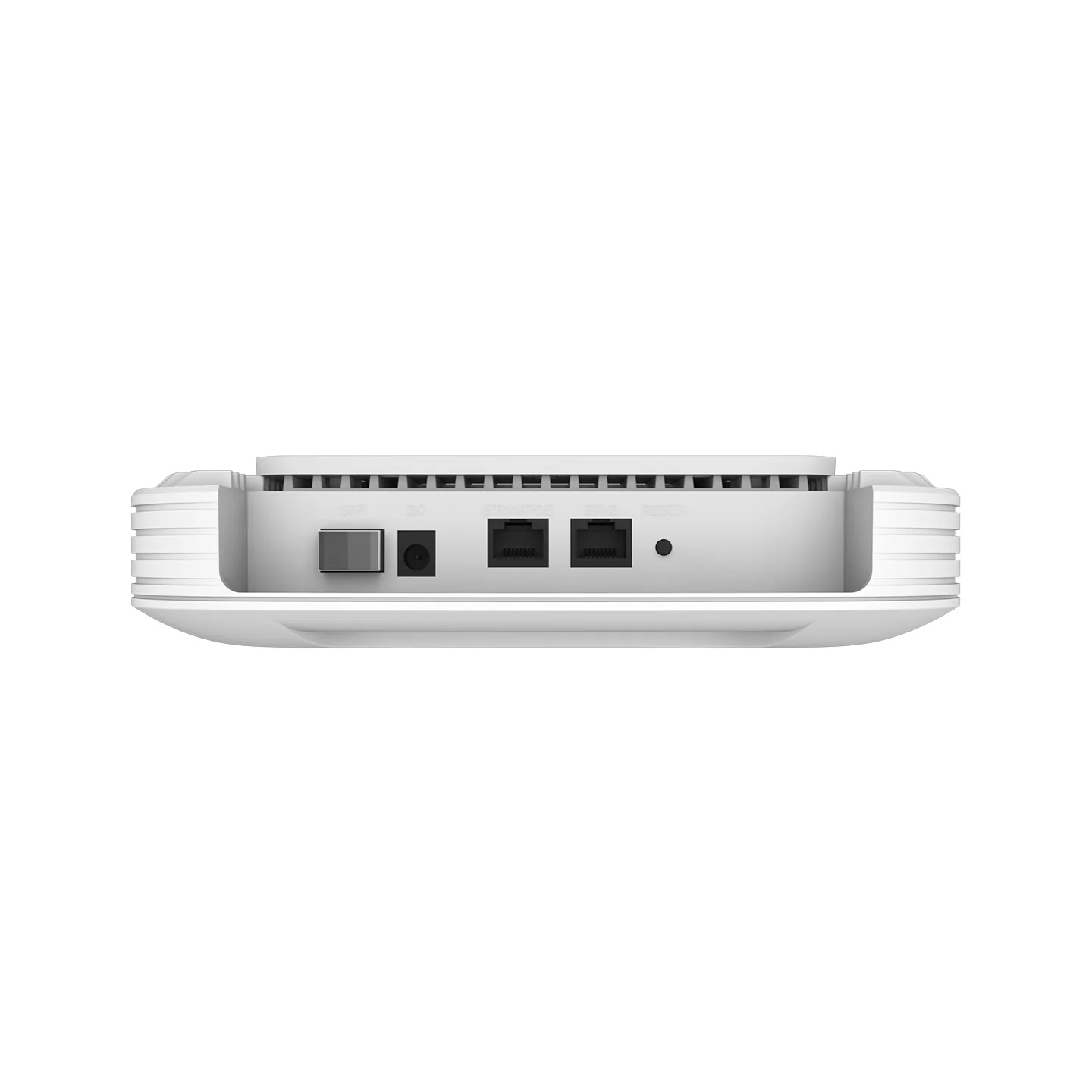

| Ethernet Interfaces | 1× 10G SFP+ port, 2× 2.5G Ethernet ports |
| Power Supply | PoE (802.3bt) / 12 V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |

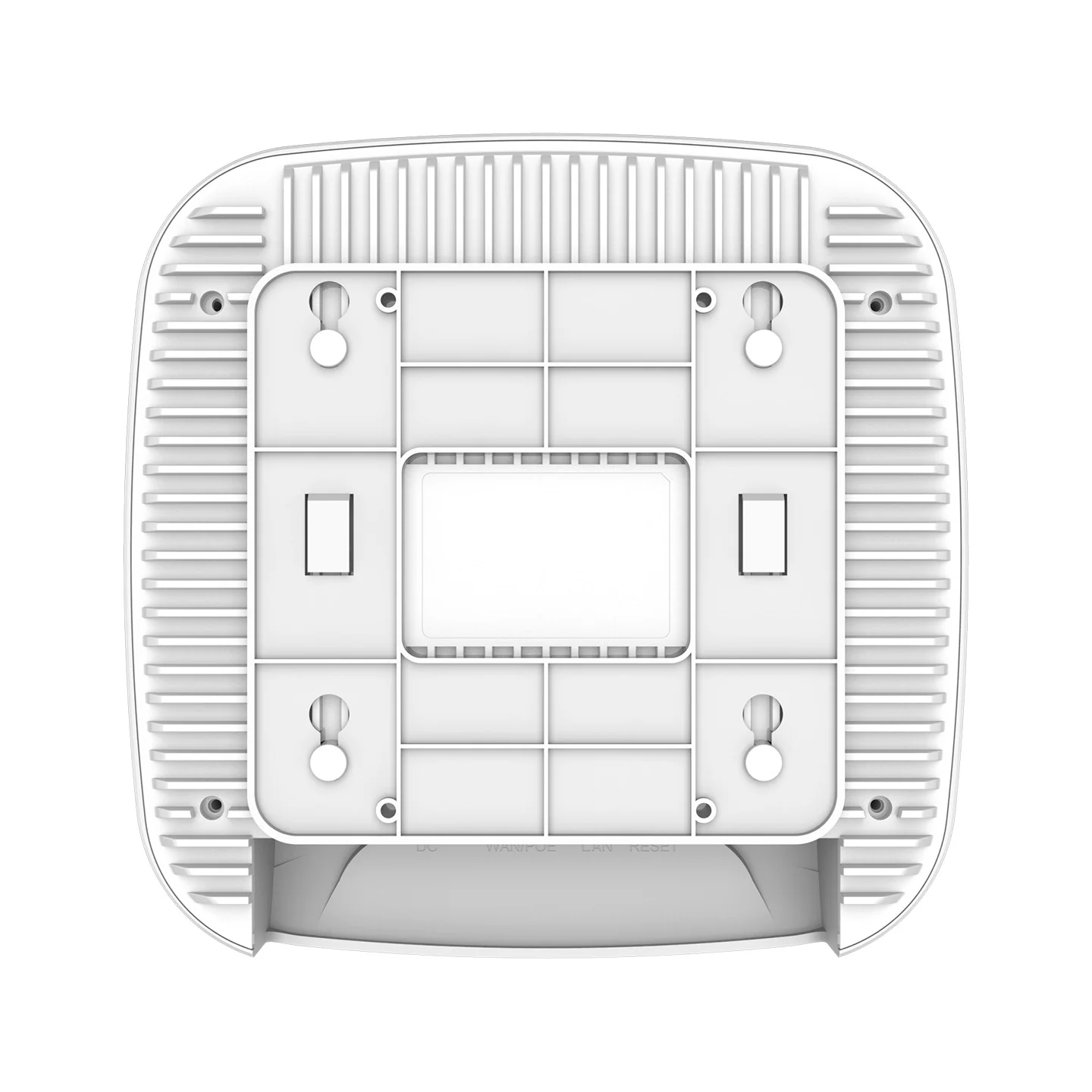

| Installation | Ceiling-mounted or wall-mounted |
| Application Scenarios | Large campuses, headquarters offices, conference centers, high-density enterprise WLANs |
