NSComm BE19000 WiFi 7 Tri-Band 19Gbps Ceiling Access Point with Dual 10G and PoE++
NS BE19000 WiFi 7 Tri-Band 19Gbps Flagship Access Point
The NS BE19000 is an ultra-flagship WiFi 7 (802.11be) tri-band access point engineered for mission-critical, ultra-high-density enterprise wireless networks where maximum throughput, extreme concurrency, and carrier-class reliability are required.
Delivering up to 19 Gbps of aggregate tri-band wireless throughput across 2.4 GHz, 5 GHz, and 6 GHz, the BE19000 features a full 4×4 MIMO design on all three bands, dual 10G backhaul interfaces, and support for up to 640 concurrent clients. It is purpose-built for stadiums, convention centers, large campuses, transportation hubs, and next-generation smart venues.
Overview
Highlights
-
Ultimate WiFi 7 Tri-Band Performance
Supports simultaneous operation on 2.4 GHz, 5 GHz, and 6 GHz with a combined throughput of up to 19 Gbps, delivering unmatched wireless capacity and spectrum efficiency. -
Full 4×4×4 MIMO Architecture
Equipped with 4×4 MIMO on all three bands, dramatically increasing spatial streams, client concurrency, and overall network resilience in ultra-dense deployments. -
Extreme Client Capacity
Designed to support up to 640 concurrent connected devices, making it ideal for environments with massive user density and heavy traffic demand. -
Dual 10G Enterprise Backhaul
Features 1×10G SFP+ optical port and 1×10G Ethernet (RJ45) port, ensuring seamless integration with high-performance core and aggregation networks. -
PoE Output for Network Expansion
Includes a 2.5G Ethernet port with 802.3at PoE output, enabling direct power and connectivity for downstream devices such as IP cameras, IoT gateways, or edge switches. -
Advanced Antenna System
Integrated 12 high-performance antennas, each with a front coverage angle greater than 130°, delivering uniform coverage and superior signal quality. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management for large-scale enterprise deployments.
Comparison with Similar Models
| Feature | NS BE19000 | NS BE880-5262 | H3C WA9xxx | Huawei AirEngine 8760-X1 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Frequency Bands | 2.4G + 5G + 6G | 2.4G + 5G + 6G | 2.4G + 5G + 6G | 2.4G + 5G + 6G |
| Wireless Throughput | 19 Gbps | 10 Gbps | ~18-20 Gbps | ~18-20 Gbps |
| MIMO Configuration | 4×4 + 4×4 + 4×4 | 4×4 + 2×2 + 2×2 | 4×4 + 4×4 + 4×4 | 4×4 + 4×4 + 4×4 |
| Max Concurrent Clients | 640 | 384 | 512+ | 512+ |
| Backhaul Interfaces | 10G SFP+ + 10G RJ45 + 2.5G PoE Out | 10G SFP+ + 10G RJ45 | 10G | 10G |
| Power Supply | PoE (802.3bt) / DC 54V | PoE (802.3bt) / DC | PoE | PoE |
| Typical Positioning | Ultra-flagship AP | High-density flagship | Venue-grade AP | Venue-grade AP |
Positioning Summary:
-
BE19000: Ultra-flagship WiFi 7 tri-band AP with maximum throughput and client density.
-
BE880-5262: High-end tri-band WiFi 7 AP for large enterprise deployments.
-
H3C / Huawei: Comparable venue-grade WiFi 7 APs designed for controller-centric, large-scale WLANs.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz + 6 GHz |
| Maximum Data Rate | Up to 19 Gbps |
| MIMO | 4×4 (2.4 GHz), 4×4 (5 GHz), 4×4 (6 GHz) |
| Antenna Design | 12 internal antennas, >130° front coverage per antenna |
| Maximum Concurrent Clients | 640 |
| Ethernet Interfaces | 1×10G SFP+, 1×10G Ethernet (RJ45), 1×2.5G Ethernet (PoE Out) |
| Power Supply | 802.3bt PoE / 54 V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |

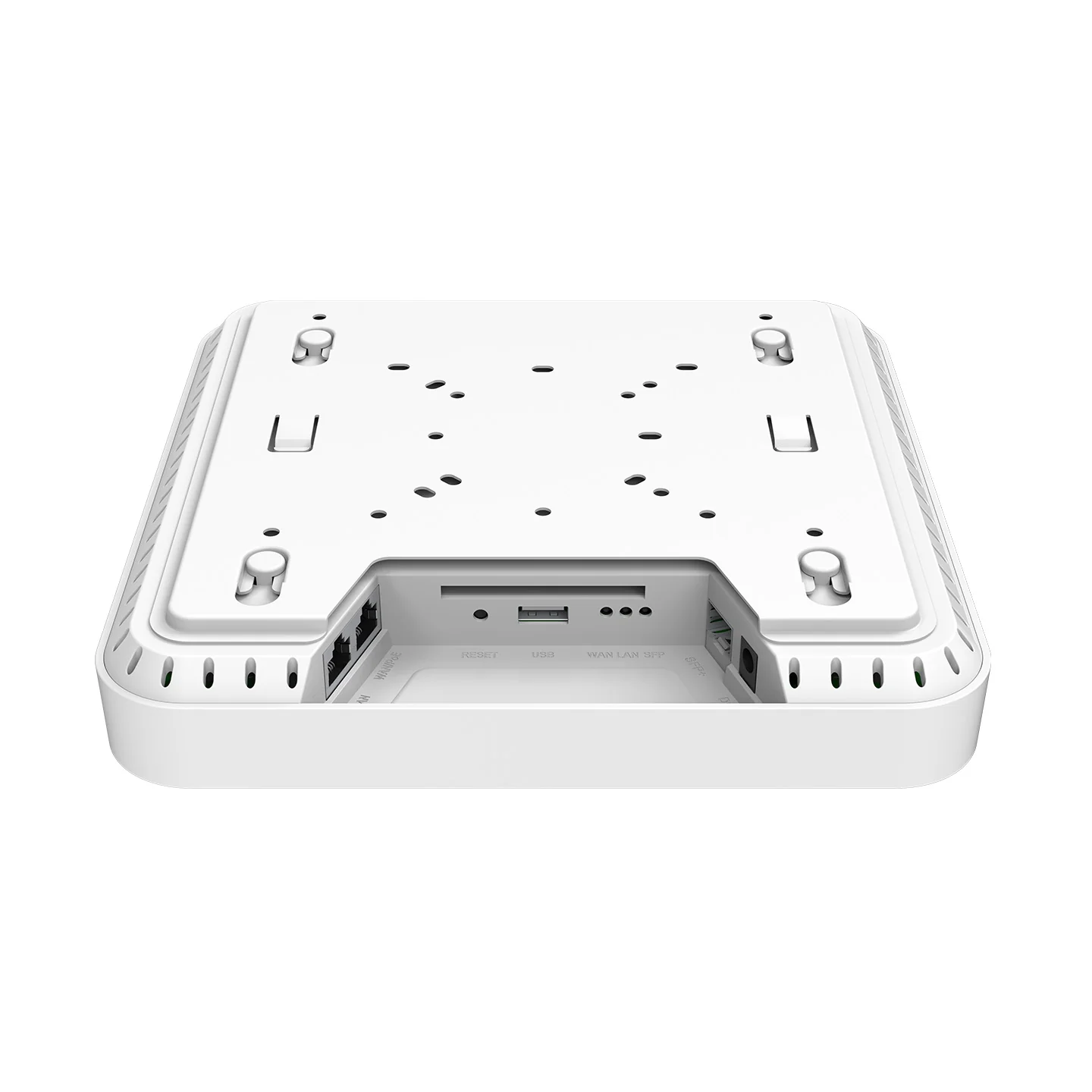

| Installation | Ceiling-mounted or wall-mounted |
| Dimensions | 220 × 220 × 42 mm |
| Application Scenarios | Stadiums, convention centers, campuses, transportation hubs, ultra-high-density WLANs |
