NSComm AX880 WiFi 6 AX3600 Dual-Band Ceiling Access Point with Dual 2.5G PoE

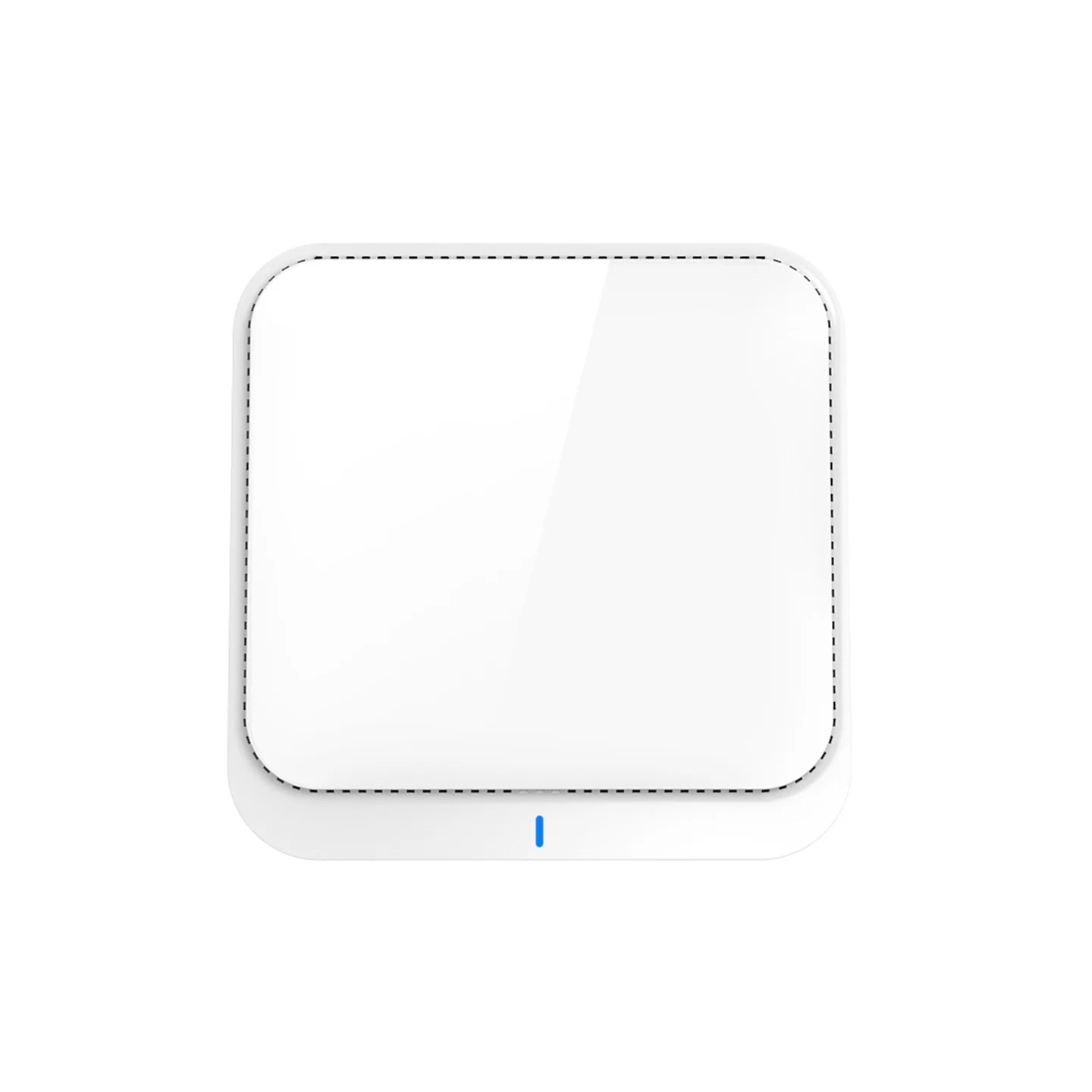

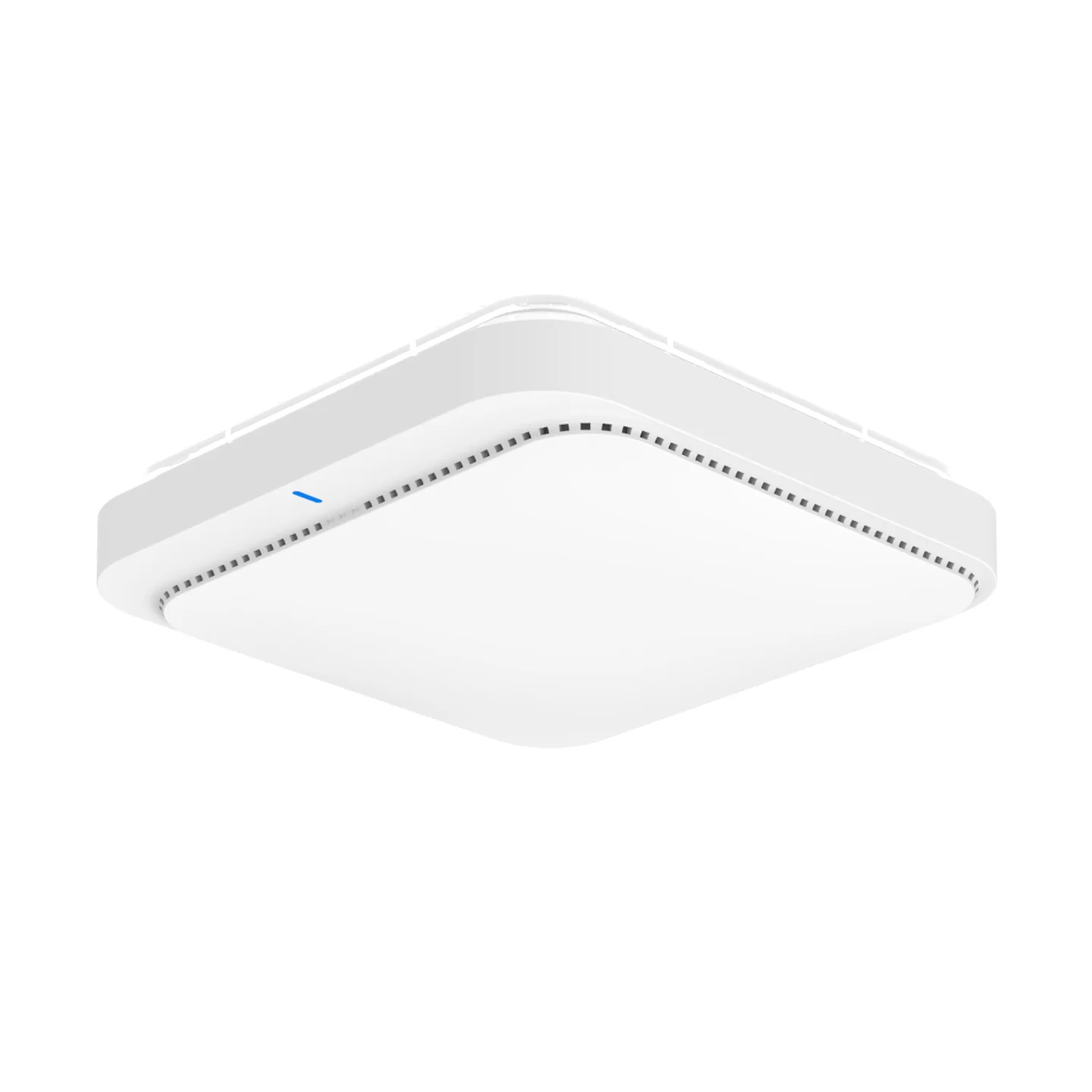

NS AX880 WiFi 6 AX3600 Ceiling Access Point
The NS AX880 is a flagship WiFi 6 (802.11ax) dual-band ceiling access point designed for high-density enterprise environments that demand maximum wireless capacity, high concurrency, and multi-gigabit uplink performance.
Delivering AX3600 wireless throughput with 4×4 MIMO on both 2.4 GHz and 5 GHz bands, the AX880 supports up to 256 concurrent users and features dual 2.5 Gbps Ethernet ports. It is ideal for large enterprise offices, conference centers, education campuses, and high-density commercial deployments where performance and scalability are critical.
Overview
Highlights
-
Flagship WiFi 6 Performance
Provides AX3600 dual-band throughput with OFDMA and MU-MIMO, delivering high efficiency, low latency, and consistent performance in extremely dense environments. -
4×4 MIMO on Both Bands
Advanced 4×4 MIMO architecture on both 2.4 GHz and 5 GHz bands significantly improves capacity, throughput, and multi-user performance. -

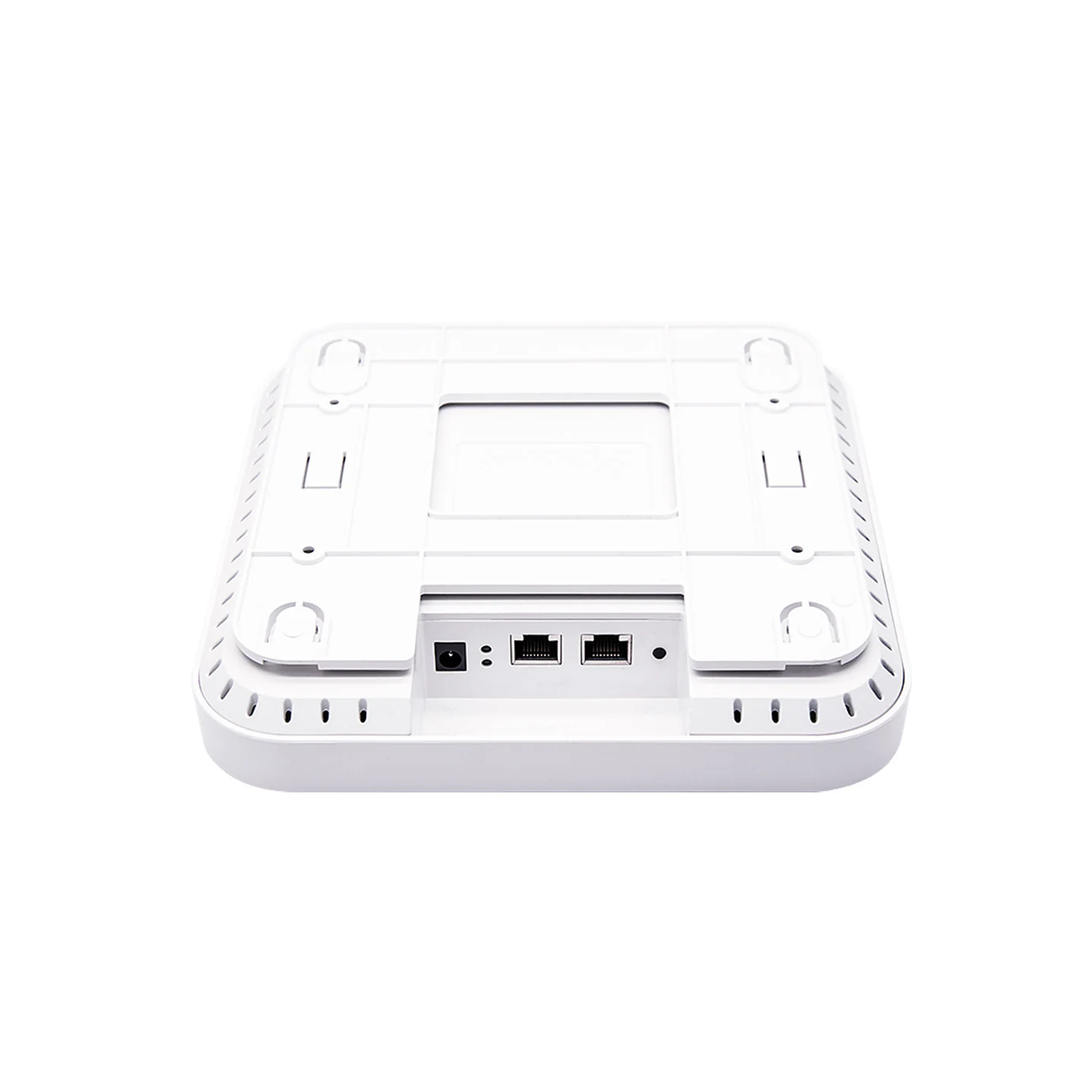

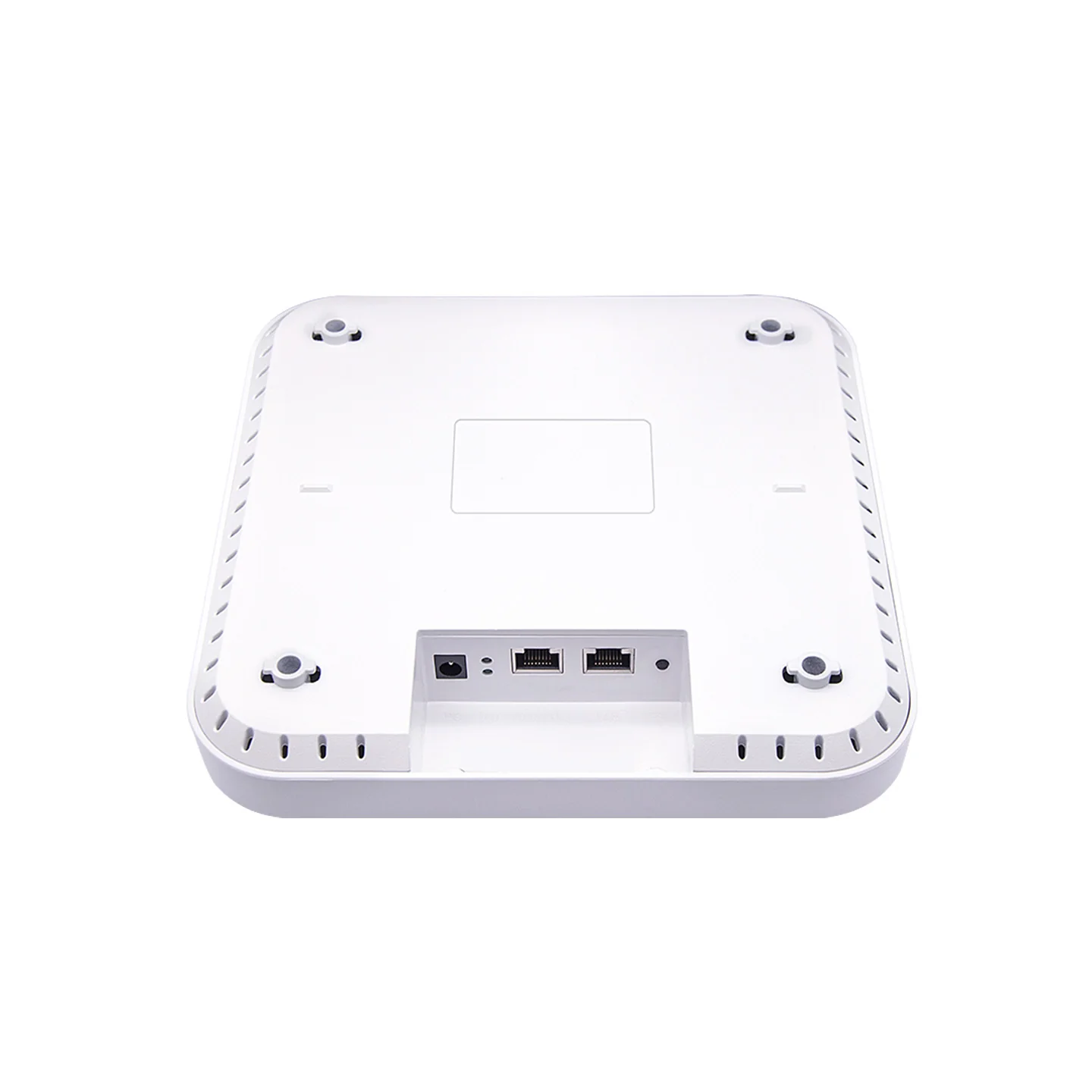

Dual 2.5G Multi-Gigabit Uplinks
Equipped with two 2.5 Gbps Ethernet ports, enabling full utilization of WiFi 6 capacity and seamless integration into high-speed enterprise networks. -
High-Density Client Support
Designed to support up to 256 concurrent devices, making it suitable for auditoriums, conference halls, classrooms, and other high-density scenarios. -

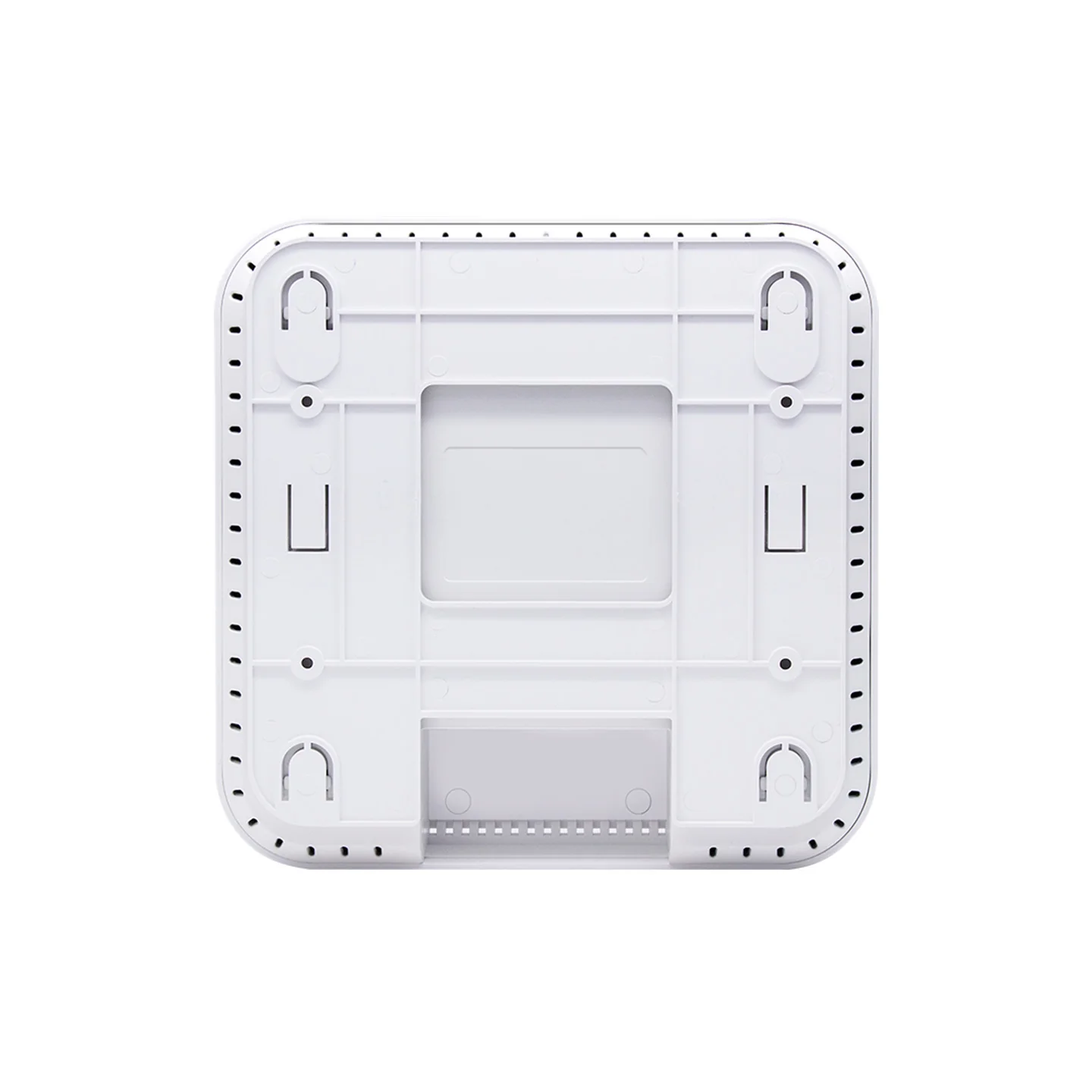

Flexible Deployment Options
Supports both ceiling-mounted and wall-mounted installation to adapt to various enterprise indoor environments. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, unified Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS AX880 | NS AX830-P5 | H3C WA6638 | Huawei AirEngine 6761-21 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX3600 | AX3000 | AX3600 | AX3600 |
| MIMO | 4×4 (2.4G) + 4×4 (5G) | 2×2 + 2×2 | 4×4 + 4×4 | 4×4 + 4×4 |
| Ethernet Ports | 2× 2.5G | 1×2.5G + 1×GE | 1×2.5G | 1×Multi-GE |
| Max Concurrent Clients | 256 | 128 | 256 | 256 |
| Power Supply | PoE (802.3at) / 12V DC | PoE / 12V DC | PoE | PoE |
| Mounting Options | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | High-density flagship AP | AX3000 mid-range AP | High-density enterprise AP | High-density enterprise AP |
Positioning Summary:
-
AX880: Flagship AX3600 WiFi 6 AP with maximum capacity, dual 2.5G uplinks, and 4×4 MIMO on both bands.
-
AX830-P5: AX3000 AP optimized for cost-effective Multi-Gig deployments.
-
H3C / Huawei: Comparable high-density AX3600 enterprise APs designed for large-scale controller-based WLANs.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3600 |
| MIMO | 4×4 (2.4 GHz), 4×4 (5 GHz) |
| Maximum Concurrent Clients | 256 |
| Ethernet Interfaces | 2× 2.5 Gbps Ethernet (RJ45) |
| Power Supply | 802.3at PoE / 12 V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | Ceiling-mounted or wall-mounted |
| Application Scenarios | Conference centers, campuses, large offices, high-density indoor environments |
