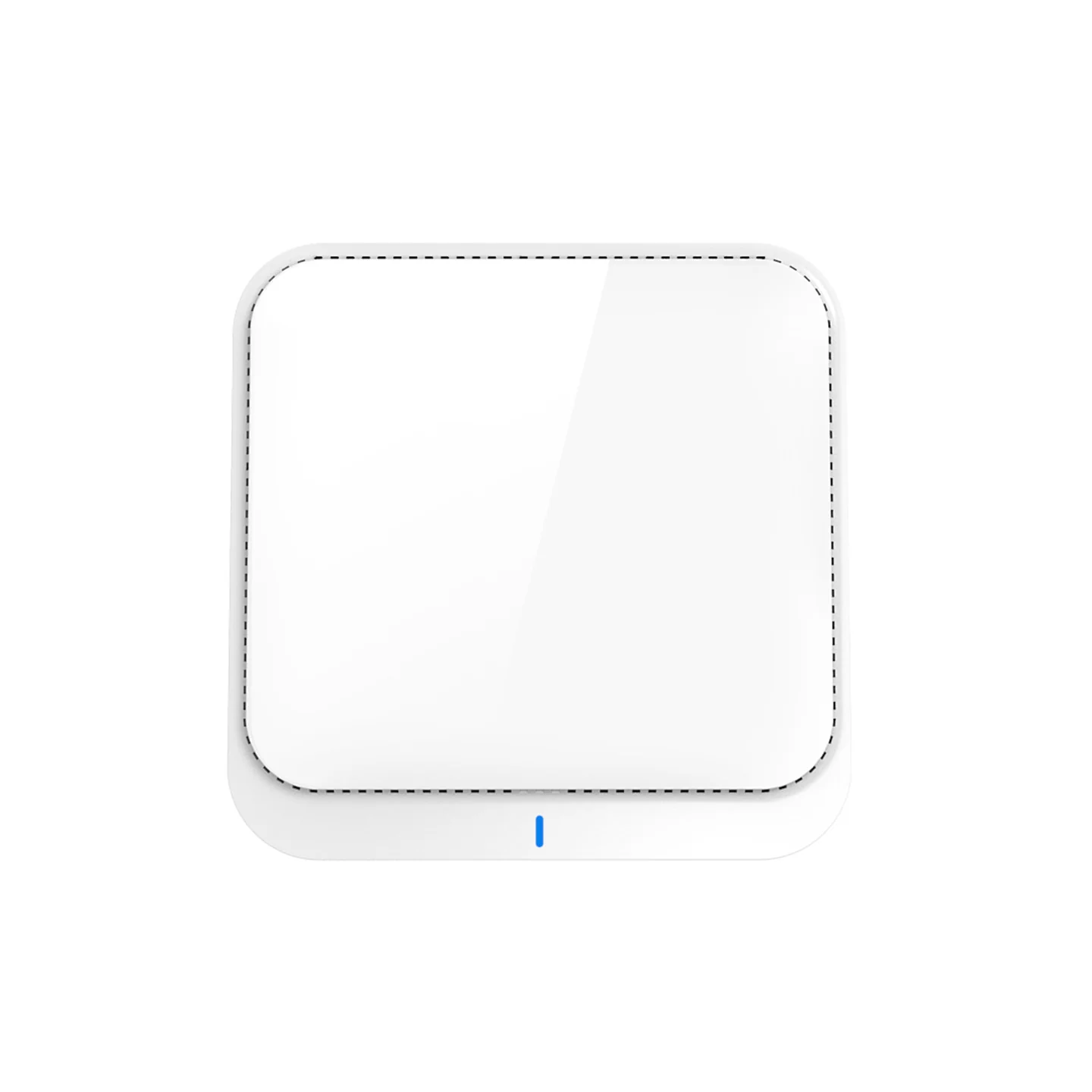

NSComm AX840-P5 WiFi 6 AX1800 Dual-Band Ceiling Access Point with PoE
NS AX840-P5 WiFi 6 AX1800 Ceiling Access Point
The NS AX840-P5 is a WiFi 6 (802.11ax) dual-band ceiling access point designed for enterprise indoor deployments that require stable connectivity, high user capacity, and strong signal penetration at an efficient AX1800 performance level.
Powered by a Qualcomm ARM quad-core platform, the AX840-P5 supports up to 192 concurrent users, features dual Gigabit Ethernet ports, and offers flexible ceiling or wall mounting. It is well suited for offices, classrooms, retail stores, and hospitality environments where reliability and scalability are more critical than peak throughput.
Overview
Highlights
-
Reliable WiFi 6 Dual-Band Performance
Delivers AX1800 wireless throughput across 2.4 GHz and 5 GHz bands with OFDMA and MU-MIMO, ensuring efficient multi-user access and stable connections. -
High Client Capacity Design
Supports up to 192 concurrent devices, making it ideal for dense indoor environments with many connected terminals. -
Qualcomm Quad-Core Platform
Built on a Qualcomm ARM quad-core architecture, providing stable processing performance and long-term reliability for enterprise WLAN deployments. -

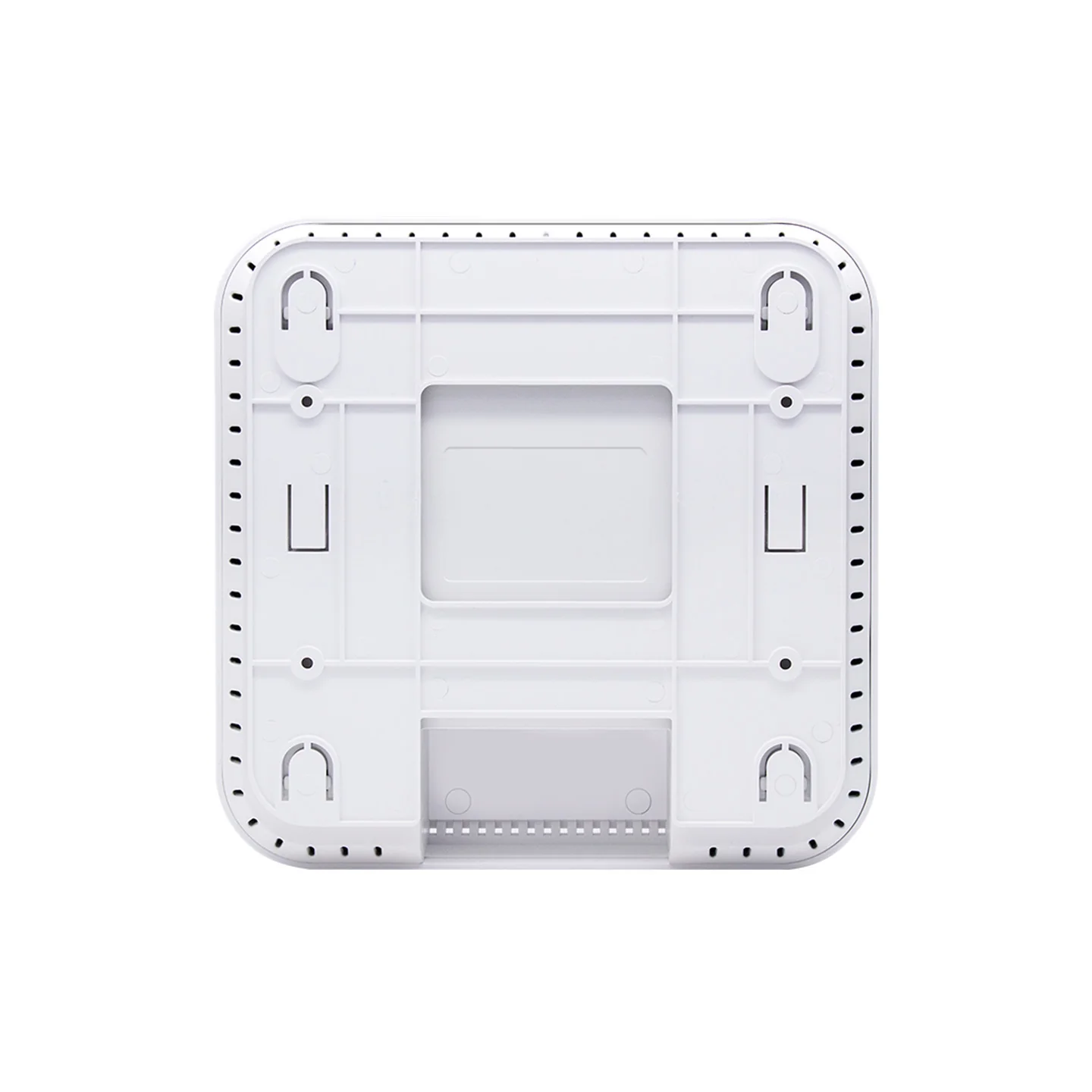

Flexible Deployment Options
Supports both ceiling-mounted and wall-mounted installation, adapting easily to different indoor layouts. -

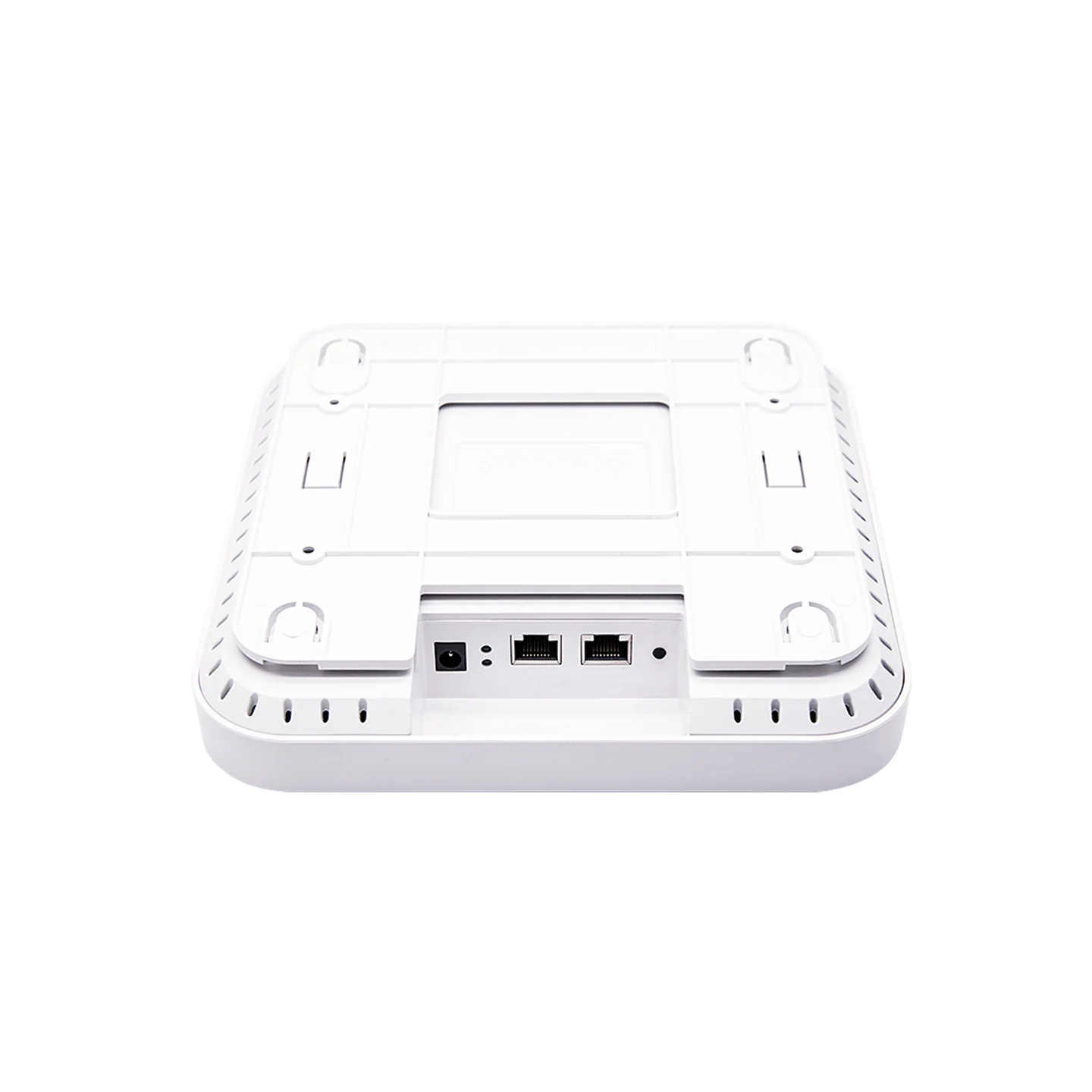

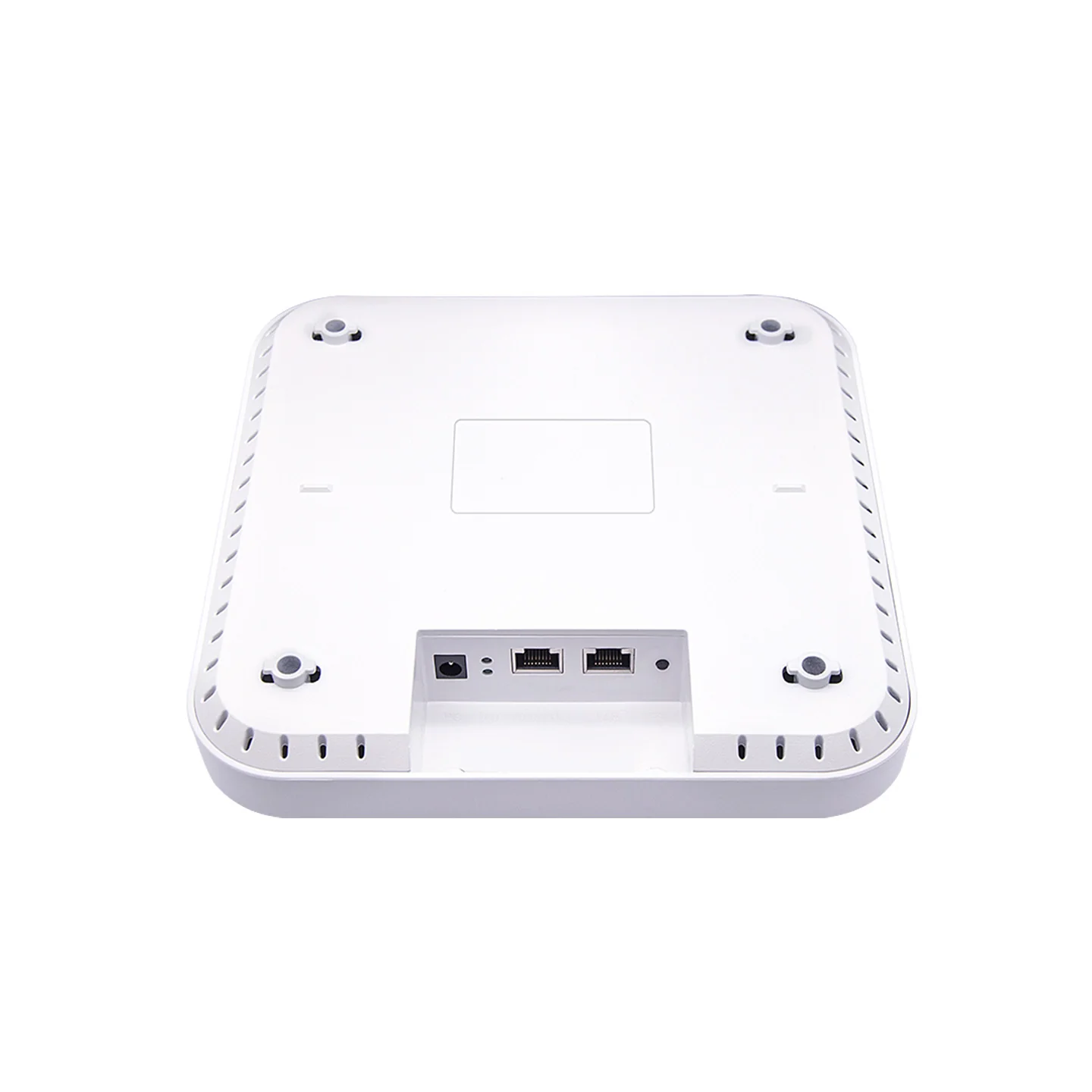

Dual Gigabit Ethernet Interfaces
Equipped with two Gigabit Ethernet ports, supporting standard PoE (802.3at) and 12 V DC power input for flexible network integration. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS AX840-P5 | NS AX830-P5 | H3C WA6320 | Huawei AirEngine 5761-11 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX1800 | AX3000 | AX1800 | AX1800 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 2× Gigabit | 1×2.5G + 1×GE | 1× Gigabit | 1× Gigabit |
| Max Concurrent Clients | 192 | 128 | 128 | 128 |
| Power Supply | PoE (802.3at) / 12V DC | PoE / 12V DC | PoE | PoE |
| Mounting Options | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | High-capacity AX1800 AP | High-throughput AX3000 AP | Enterprise AX1800 AP | Enterprise AX1800 AP |
Positioning Summary:
-
AX840-P5: AX1800 enterprise AP optimized for higher client density and stable coverage.
-
AX830-P5: AX3000 model designed for higher throughput and Multi-Gig uplinks.
-
H3C / Huawei: Comparable AX1800 enterprise APs focused on standardized indoor coverage with lower client capacity.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX1800 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Maximum Concurrent Clients | 192 |
| Ethernet Interfaces | 2× Gigabit Ethernet (RJ45) |
| Power Supply | 802.3at PoE / 12 V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | Ceiling-mounted or wall-mounted |
| Application Scenarios | Offices, classrooms, retail, hospitality, high-density indoor networks |
