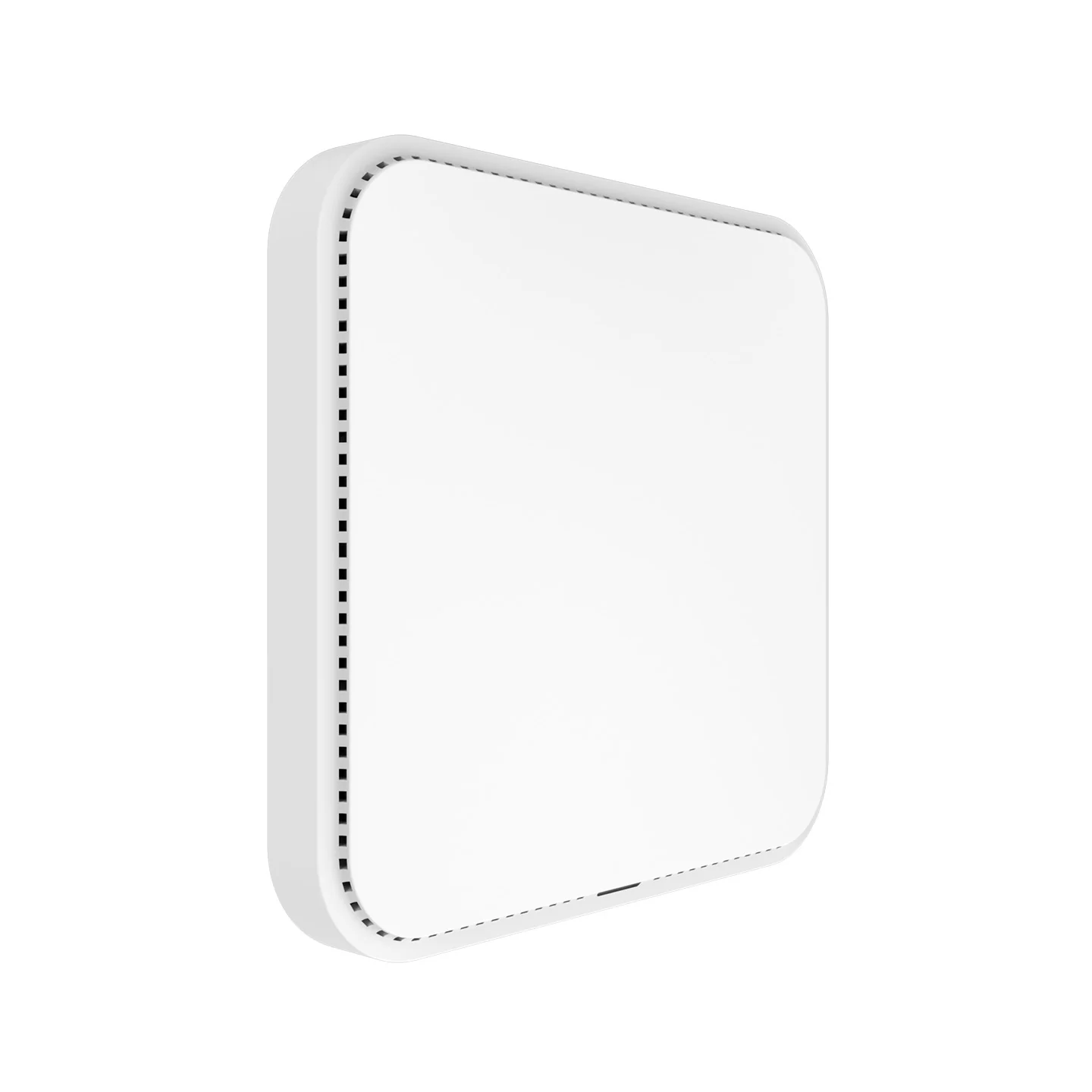

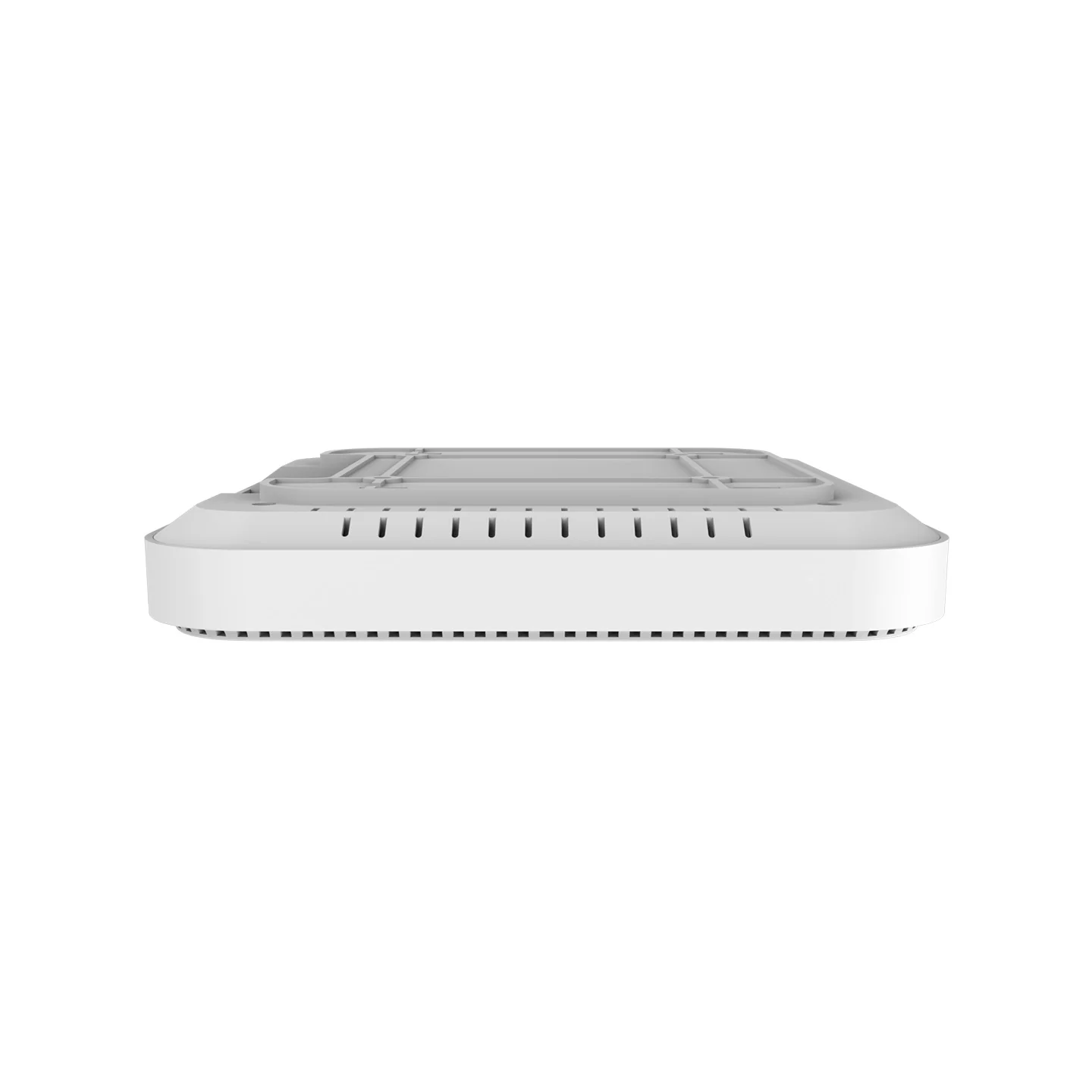

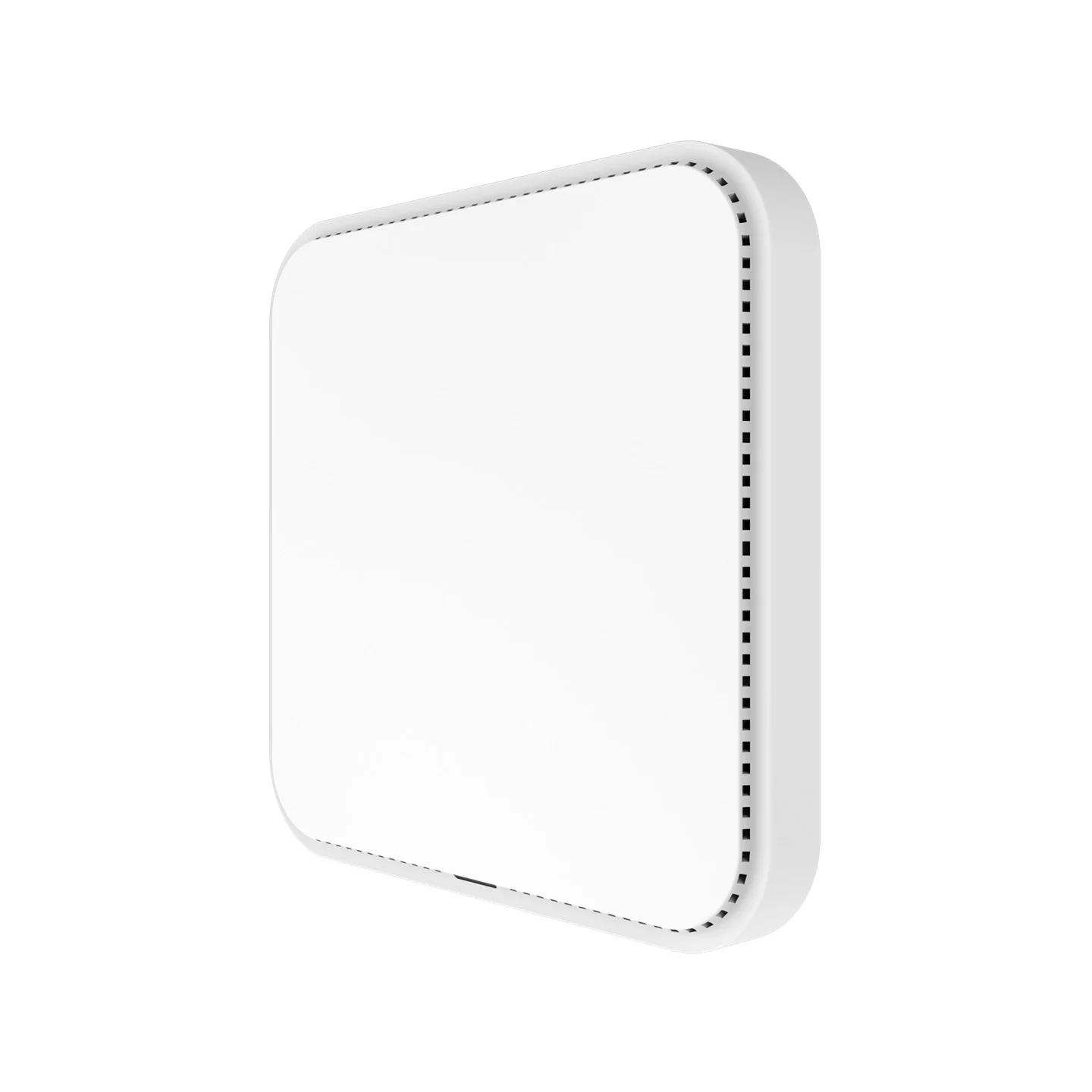

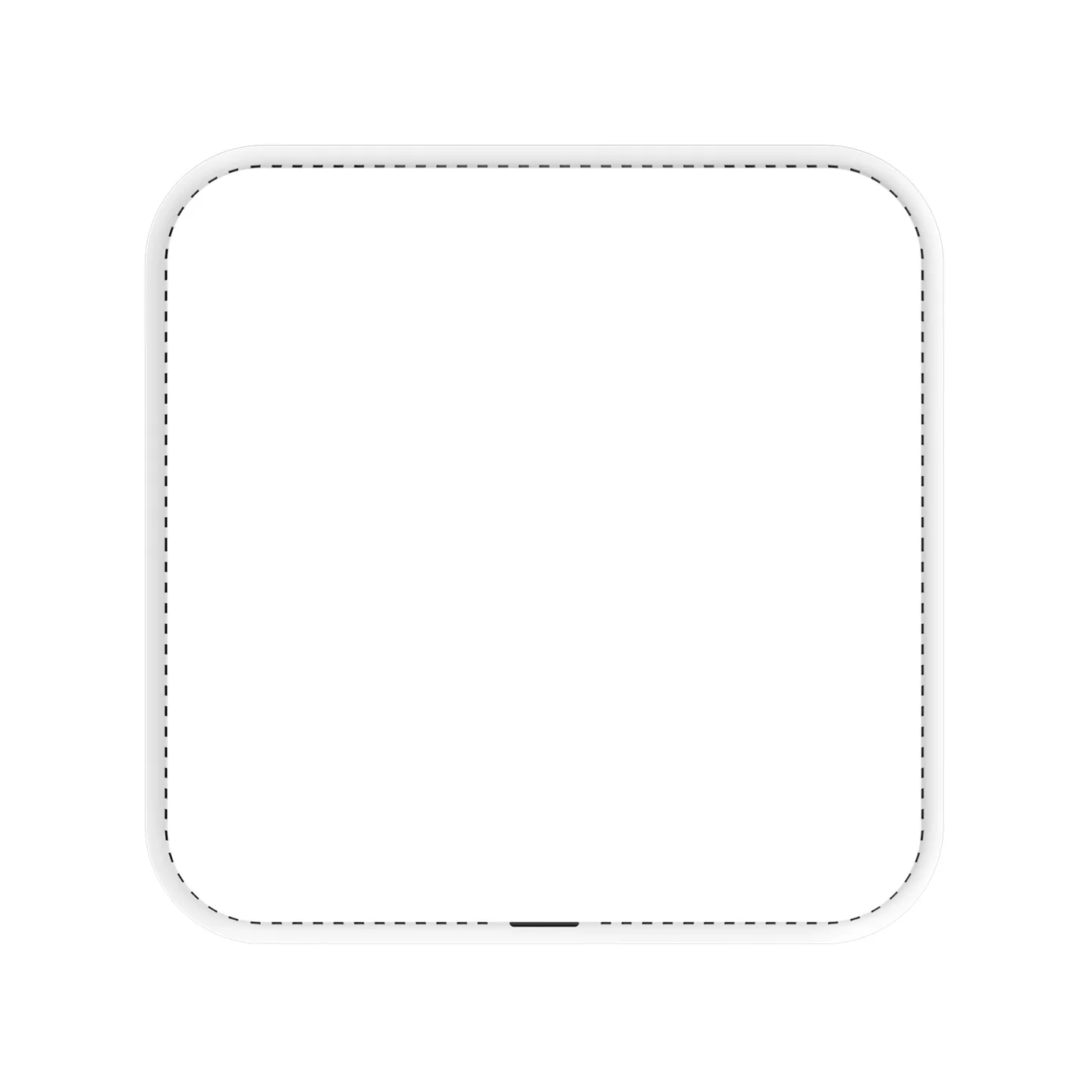

NSComm AX835 WiFi 6 AX3000 Dual-Band Ceiling Access Point with PoE
NS AX835 WiFi 6 AX3000 Ceiling Access Point
The NS AX835 is a high-performance WiFi 6 (802.11ax) dual-band access point designed for medium to high-density enterprise environments, delivering up to AX3000 wireless throughput and supporting 128 concurrent users.
Built on a next-generation MediaTek platform, the AX835 features enhanced MIMO capability, dual Gigabit Ethernet ports, and flexible ceiling or wall-mounted deployment. It is well suited for enterprise offices, education, retail, and hospitality networks that require higher capacity and better uplink performance than entry-level WiFi 6 APs.
Overview
Highlights
-
High-Capacity WiFi 6 Performance
Delivers dual-band AX3000 throughput with advanced OFDMA and MU-MIMO, significantly improving efficiency and throughput in high-user-density environments. -
Enhanced MIMO Architecture
Utilizes an optimized antenna and radio design to improve spatial stream utilization, providing stronger uplink and downlink performance in real-world deployments. -

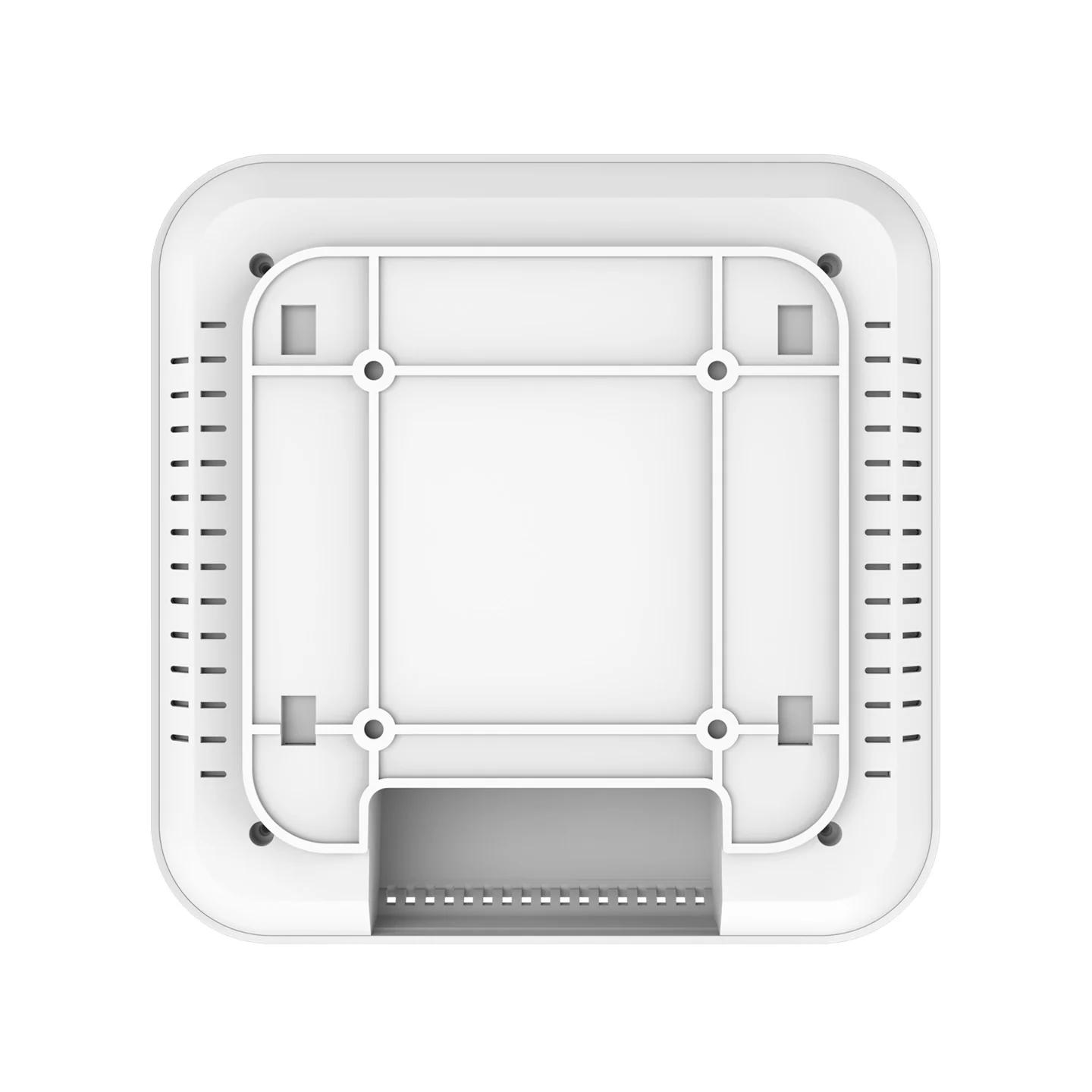

Flexible Installation Options
Supports both ceiling-mounted and wall-mounted installation, allowing easy adaptation to different indoor deployment scenarios. -

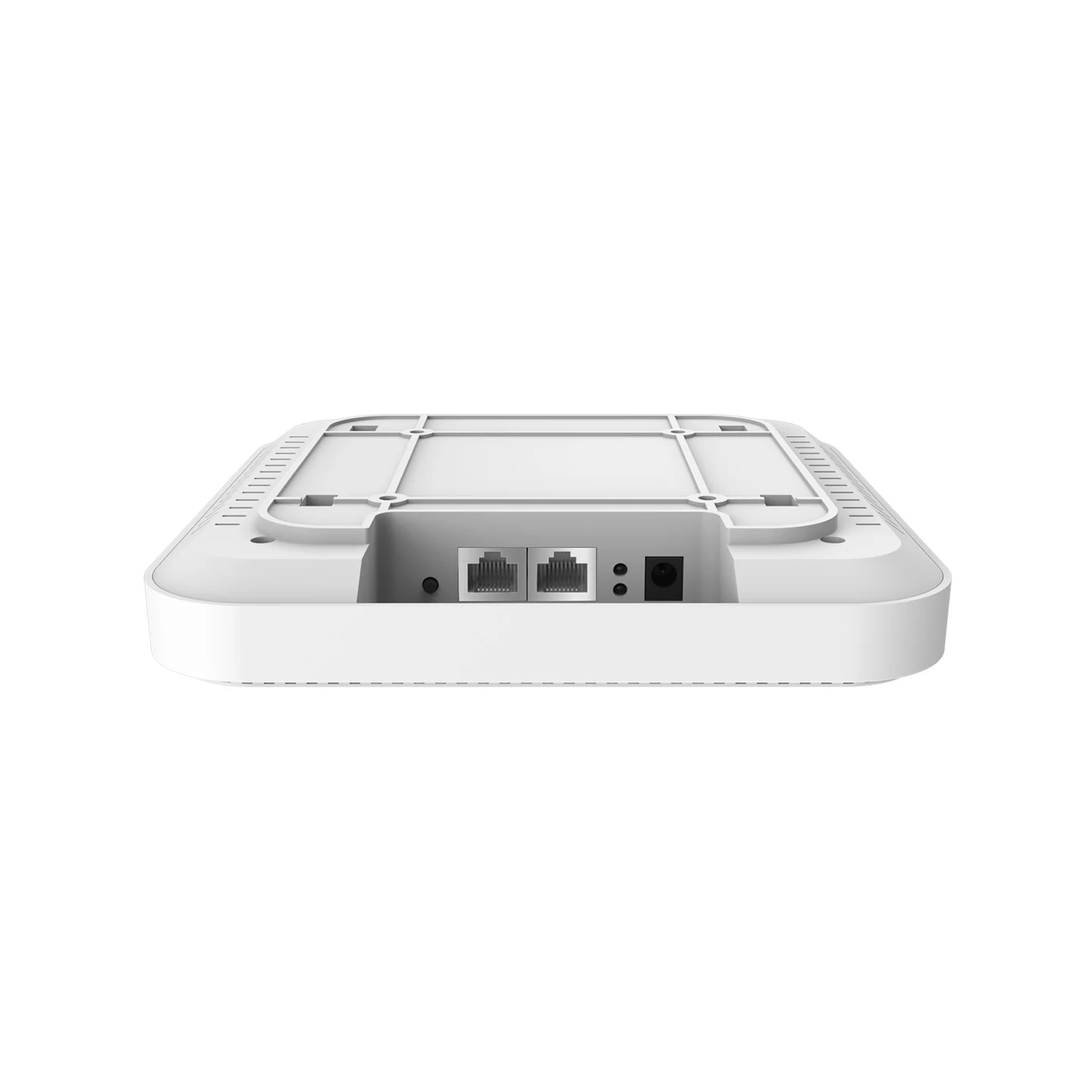

Dual Gigabit Ethernet Interfaces
Equipped with two Gigabit Ethernet ports for flexible uplink and network expansion, supporting both PoE and DC power input. -
Enterprise Network Features
Supports VLAN, adjustable transmit power, seamless roaming, and unified Fat/Thin AP operation to meet enterprise networking requirements. -
Centralized Cloud Management
Integrates with cloud management platforms for centralized configuration, monitoring, and maintenance across distributed deployments.
Comparison with Similar Models
| Feature | NS AX835 | NS AX830 | H3C WA6330 | Huawei AirEngine 5761-21 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | Optimized multi-stream design | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Ethernet Ports | 2× Gigabit | 2× Gigabit | 1× Gigabit | 1× Gigabit |
| Max Clients | 128 | 128 | 128 | 128 |
| Power Supply | PoE / 12V DC | PoE / 12V DC | PoE | PoE |
| Mounting | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | High-capacity enterprise AP | Mainstream AX3000 AP | Enterprise indoor AP | Enterprise indoor AP |
Positioning Summary:
-
AX835: Optimized AX3000 AP for higher-density environments with dual Ethernet ports and flexible deployment.
-
AX830: Mainstream AX3000 AP suitable for standard enterprise coverage.
-
H3C / Huawei: Comparable enterprise AX3000 models focused on standardized ceiling deployments with single uplink ports.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | Enhanced multi-stream architecture |
| Maximum Concurrent Clients | 128 |
| Ethernet Interfaces | 2× Gigabit Ethernet (RJ45) |
| Power Supply | 802.3af PoE / 12V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | Ceiling-mounted or wall-mounted |
| Dimensions | 186 × 186 × 37 mm |
| Application Scenarios | Enterprise offices, education, retail, hospitality |
