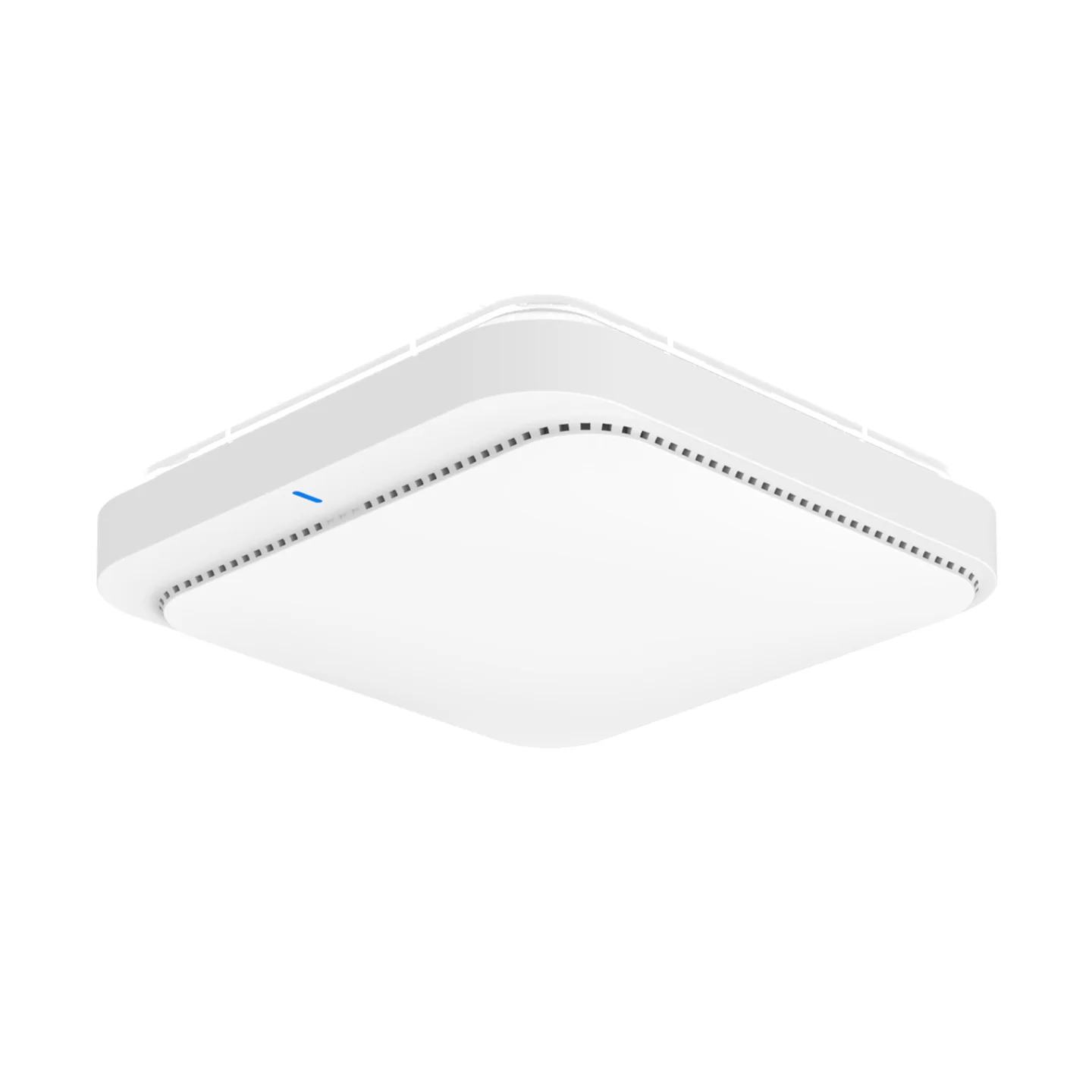

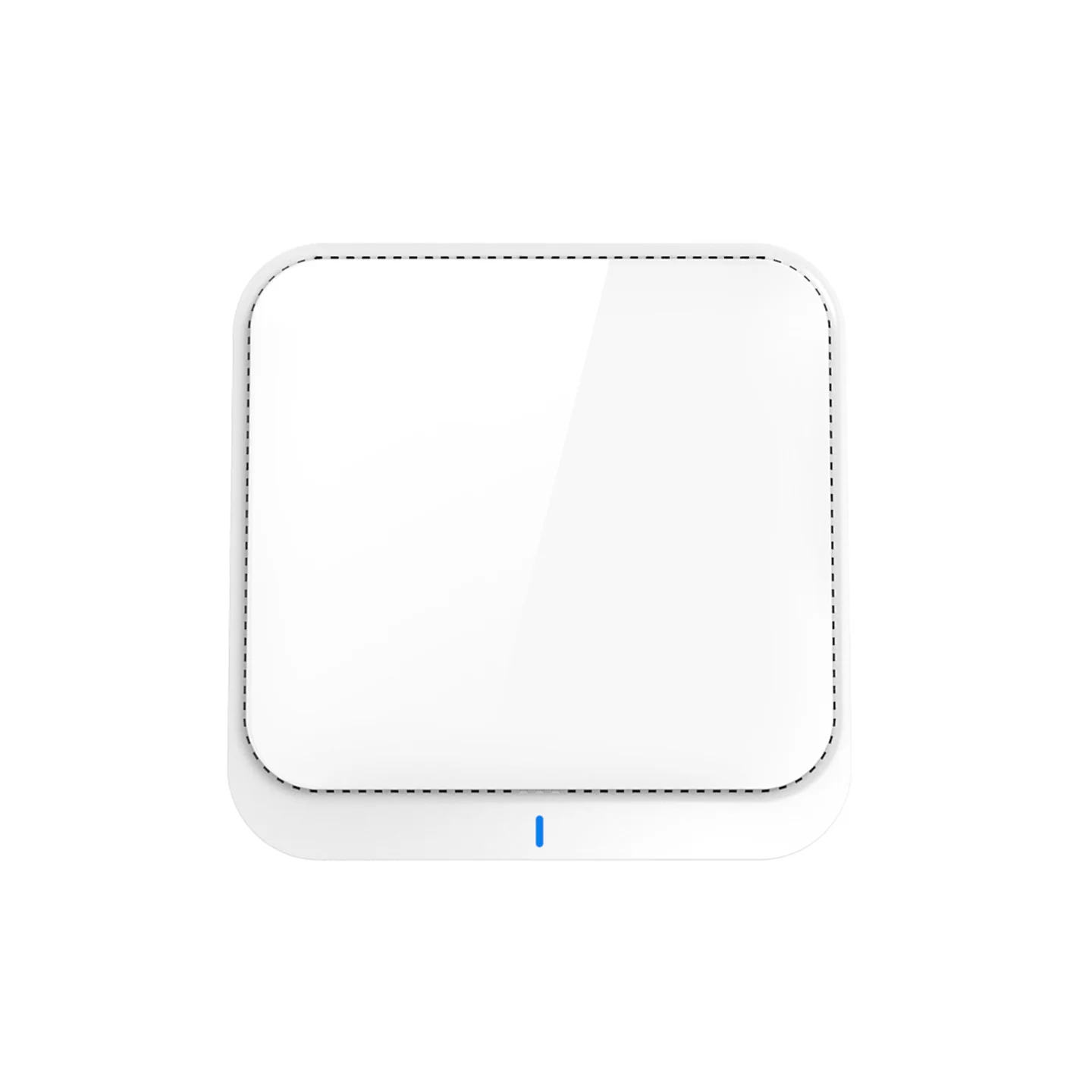

NSComm AX830-P5 WiFi 6 AX3000 Dual-Band Ceiling Access Point with 2.5G PoE
NS AX830-P5 WiFi 6 AX3000 Ceiling Access Point
The NS AX830-P5 is a high-performance WiFi 6 (802.11ax) dual-band ceiling access point designed for enterprise networks upgrading to Multi-Gigabit infrastructure and requiring stronger indoor coverage.
Delivering AX3000 wireless throughput, the AX830-P5 features a 2.5 Gbps Ethernet uplink, an additional Gigabit LAN port, and standard PoE power, supporting up to 128 concurrent users. It is ideal for enterprise offices, education campuses, retail environments, and hospitality networks where higher backhaul capacity and improved wall penetration are required.
Overview
Highlights
-
High-Efficiency WiFi 6 Performance
Provides AX3000 dual-band throughput with OFDMA and MU-MIMO, ensuring efficient spectrum utilization and stable performance in high-density indoor environments. -
2.5G Multi-Gigabit Uplink
Equipped with a 2.5 Gbps Ethernet port, eliminating wired uplink bottlenecks and enabling full utilization of WiFi 6 wireless capacity. -
Enhanced Indoor Coverage
Optimized RF and antenna design with wide front coverage angle improves signal penetration and coverage consistency across complex indoor layouts. -
Flexible Installation Options
Supports both ceiling-mounted and wall-mounted deployment, adapting easily to different enterprise indoor scenarios. -
Enterprise-Grade WLAN Features
Supports VLAN segmentation, adjustable transmit power, seamless roaming, and unified Fat/Thin AP operation for scalable enterprise WLAN architectures. -
Centralized Cloud Management
Fully compatible with cloud management platforms for centralized configuration, monitoring, and lifecycle management.
Comparison with Similar Models
| Feature | NS AX830-P5 | NS AX830H-P3 | H3C WA6638 | Huawei AirEngine 5762-12 |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Uplink Interface | 1×2.5G + 1×GE | 1×2.5G + 1×GE | 1×2.5G | 1×Multi-GE |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Power Supply | PoE / 12V DC | PoE / 12V DC | PoE | PoE |
| Mounting Options | Ceiling / Wall | Ceiling / Wall | Ceiling | Ceiling |
| Typical Positioning | AX3000 AP with enhanced coverage & 2.5G uplink | AX3000 AP with strong penetration | Enterprise AX3000 AP | Enterprise AX3000 AP |
Positioning Summary:
-
AX830-P5: AX3000 WiFi 6 AP optimized for Multi-Gig uplink and enhanced indoor coverage.
-
AX830H-P3: AX3000 AP focused on balanced performance and wall penetration.
-
H3C / Huawei: Comparable enterprise AX3000 models with Multi-Gig uplinks, typically deployed in controller-centric WLAN architectures.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4 internal antennas, >130° front coverage |
| Maximum Concurrent Clients | 128 |

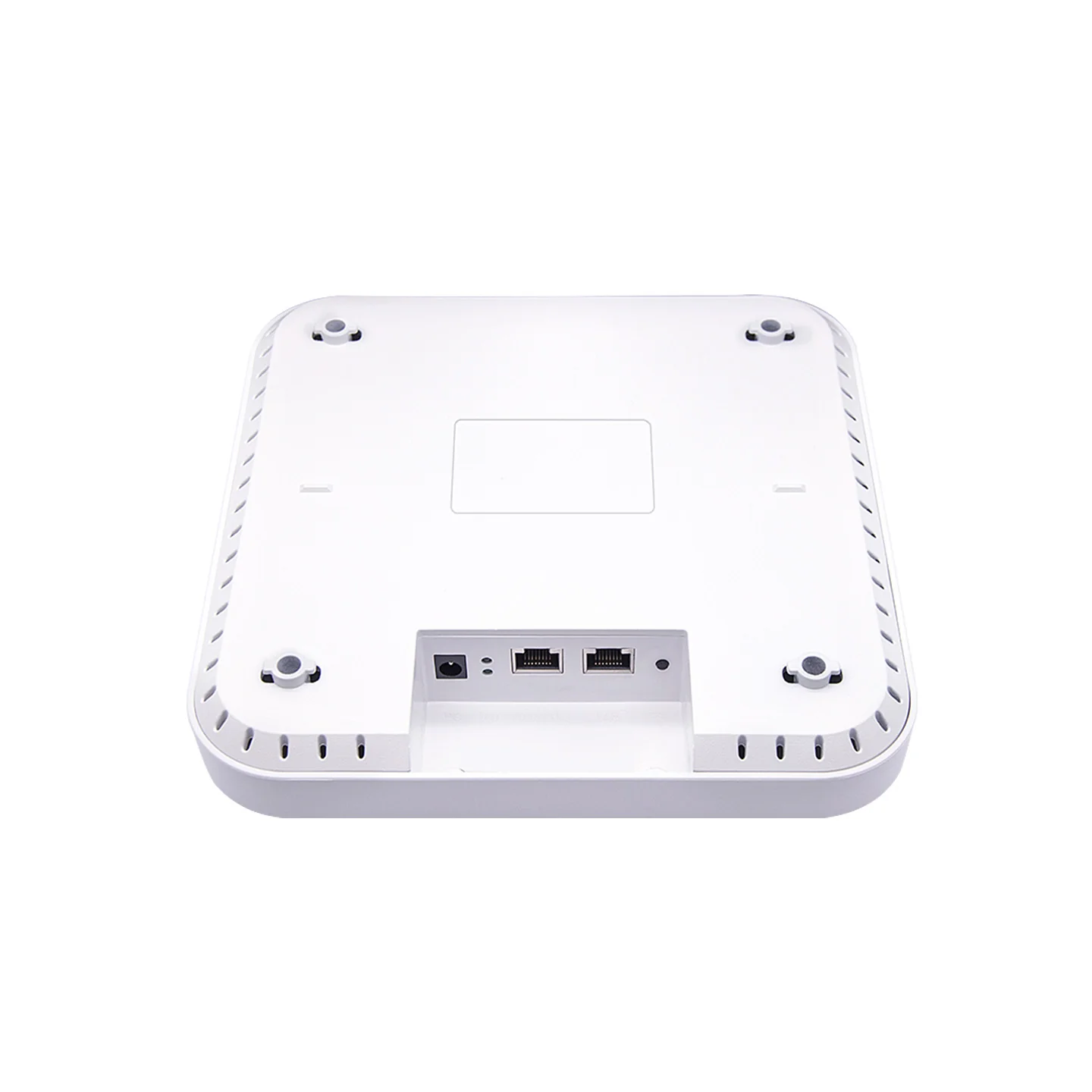

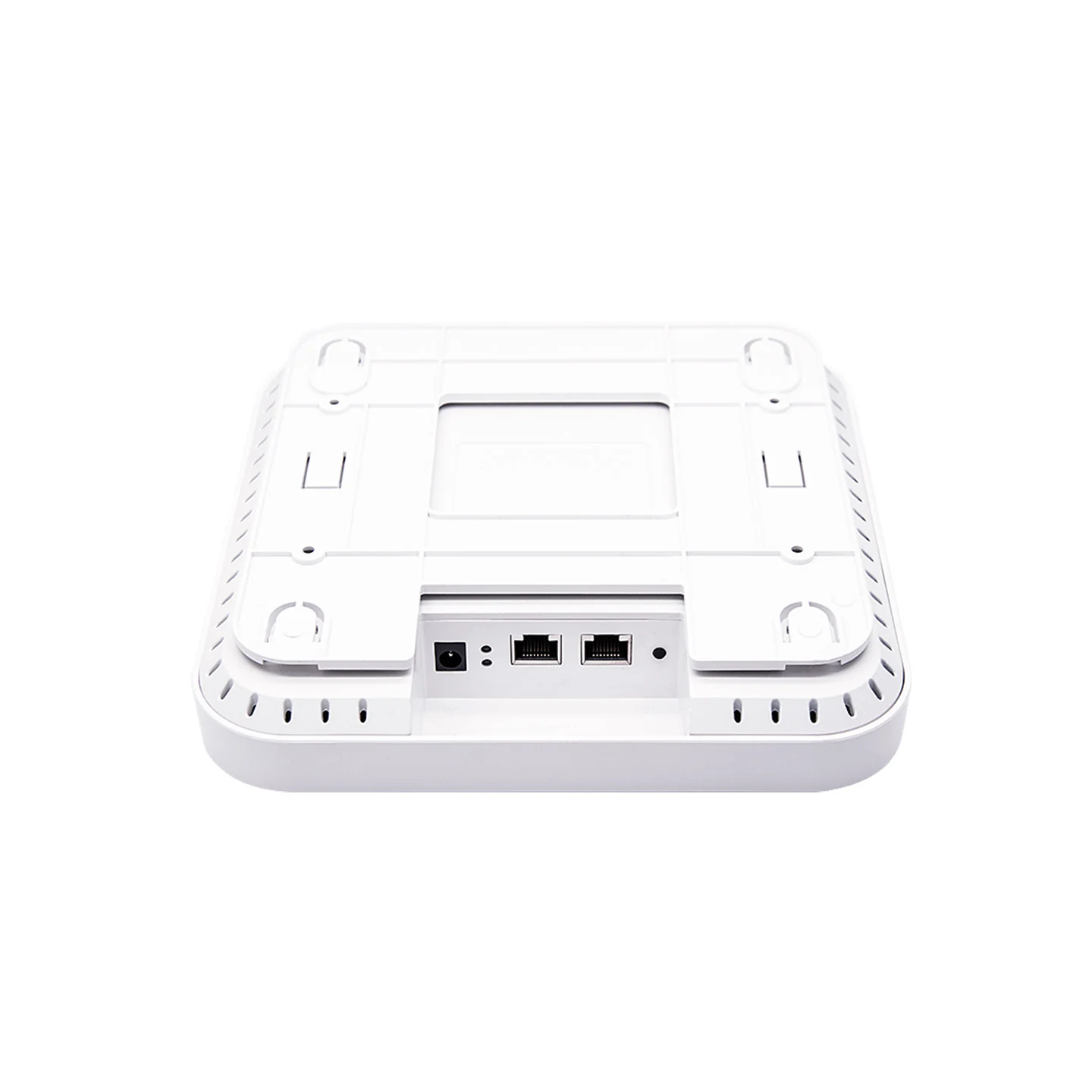

| Ethernet Interfaces | 1×2.5 Gbps Ethernet, 1×Gigabit Ethernet |
| Power Supply | 802.3af/at PoE / 12V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |

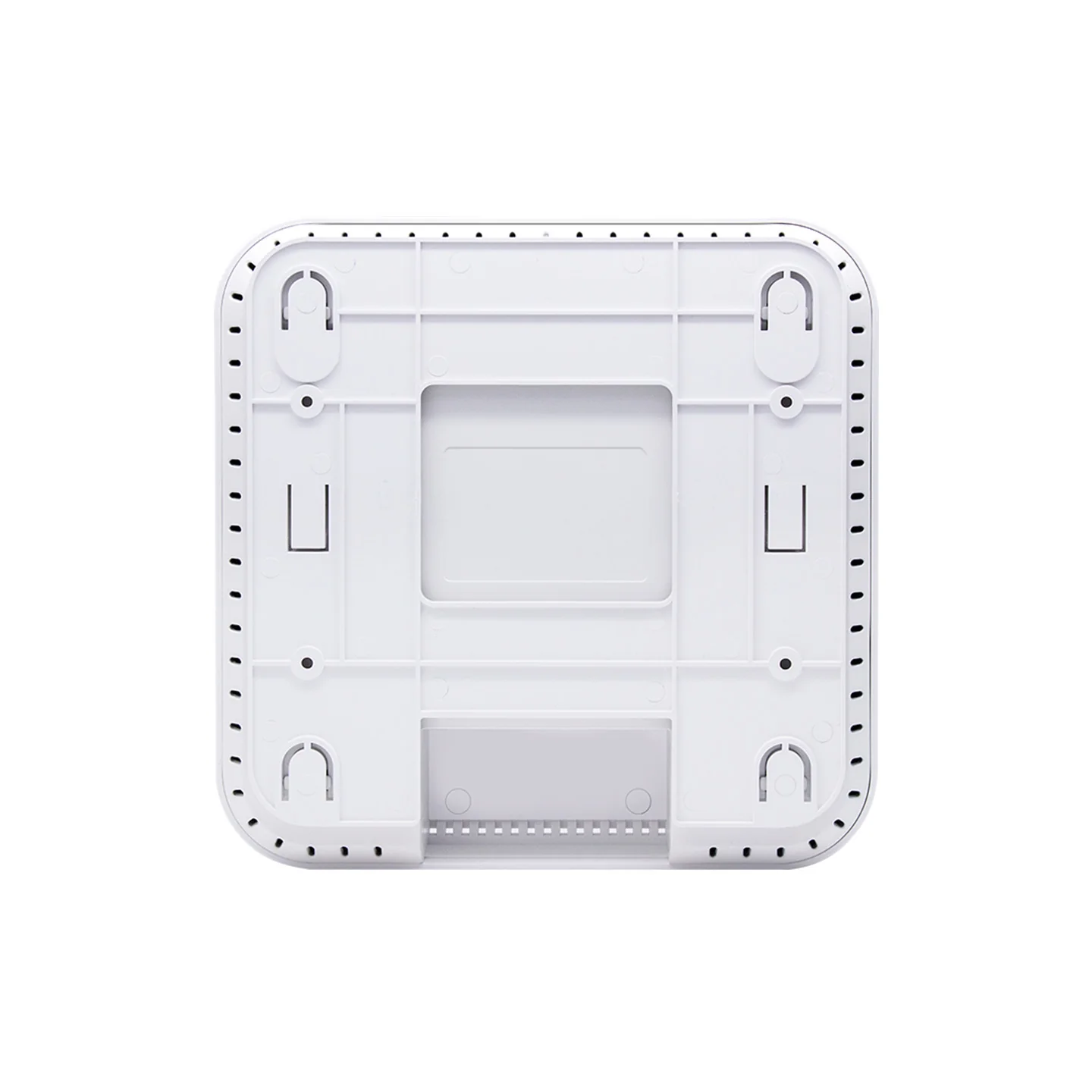

| Installation | Ceiling-mounted or wall-mounted |
| Dimensions | 198 × 198 × 41 mm |
| Application Scenarios | Enterprise offices, education, retail, hospitality, high-density indoor networks |
