NSComm AX-HQ830-P2 WiFi 6 AX3000 Dual-Band Outdoor Access Point with PoE
NS AX-HQ830-P2 WiFi 6 AX3000 Outdoor Access Point
The NS AX-HQ830-P2 is a WiFi 6 (802.11ax) dual-band outdoor access point designed for long-range, stable wireless coverage in enterprise and industrial outdoor environments.
Delivering AX3000 dual-band wireless performance, the AX-HQ830-P2 features a rugged IP67 UV-resistant enclosure, integrated lightning and surge protection, and 360° omnidirectional antenna coverage. With a coverage radius of up to 80 meters and support for 128 concurrent users, it is ideal for campuses, parks, factory yards, logistics areas, and outdoor corridors.
Overview
Highlights
-
Reliable Outdoor WiFi 6 Performance
Provides AX3000 dual-band wireless throughput with OFDMA and MU-MIMO, delivering stable and efficient connectivity for outdoor users. -
Extended Coverage Design
Built-in 360° omnidirectional antennas provide wide area coverage with a typical outdoor radius of up to 80 meters. -
Rugged IP67 Outdoor Construction
UV-resistant plastic enclosure with IP67 protection ensures reliable operation in rain, dust, heat, and harsh outdoor conditions. -
Industrial-Grade Protection
Independent lightning and surge protection safeguards the device and network from electrical disturbances. -
Simple and Stable Network Integration

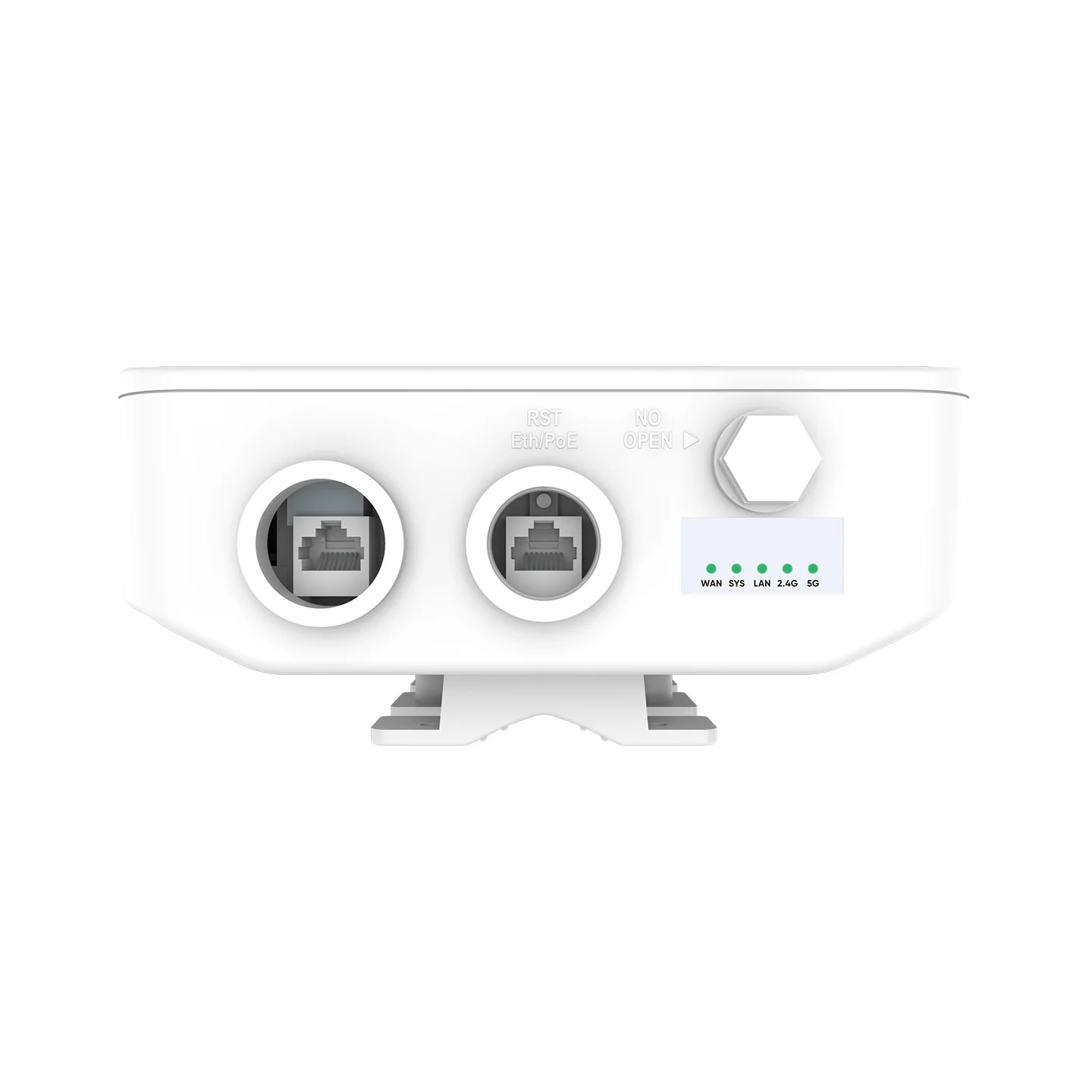

Equipped with a Gigabit Ethernet uplink and a dedicated console port for deployment, configuration, and maintenance. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS AX-HQ830-P2 | NS AX-HQ830-P5 | H3C WA6638-Outdoor | Huawei AirEngine 6761-Outdoor |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Uplink Interface | 1× Gigabit + Console | 1×2.5G + 1×GE | 1×2.5G | 1×Multi-GE |
| Coverage Radius | Up to 80 m | Up to 60 m | ~60-80 m | ~60-80 m |
| Outdoor Protection | IP67 | IP67 | IP67 | IP67 |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Typical Positioning | Long-range outdoor AP | High-throughput outdoor AP | Enterprise outdoor AP | Enterprise outdoor AP |
Positioning Summary:
-
AX-HQ830-P2: AX3000 outdoor AP optimized for longer coverage distance and stable Gigabit backhaul.
-
AX-HQ830-P5: AX3000 outdoor AP with 2.5G uplink for higher backhaul capacity.
-
H3C / Huawei: Comparable enterprise outdoor APs typically deployed in large-scale controller-based WLAN systems.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4 built-in omnidirectional antennas, 360° coverage |
| Coverage Radius | Up to 80 m (typical outdoor environment) |
| Maximum Concurrent Clients | 128 |
| Ethernet Interfaces | 1× Gigabit Ethernet (RJ45), 1× Console |
| Power Supply | 48 V PoE (802.3at) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Protection Rating | IP67, UV-resistant enclosure |

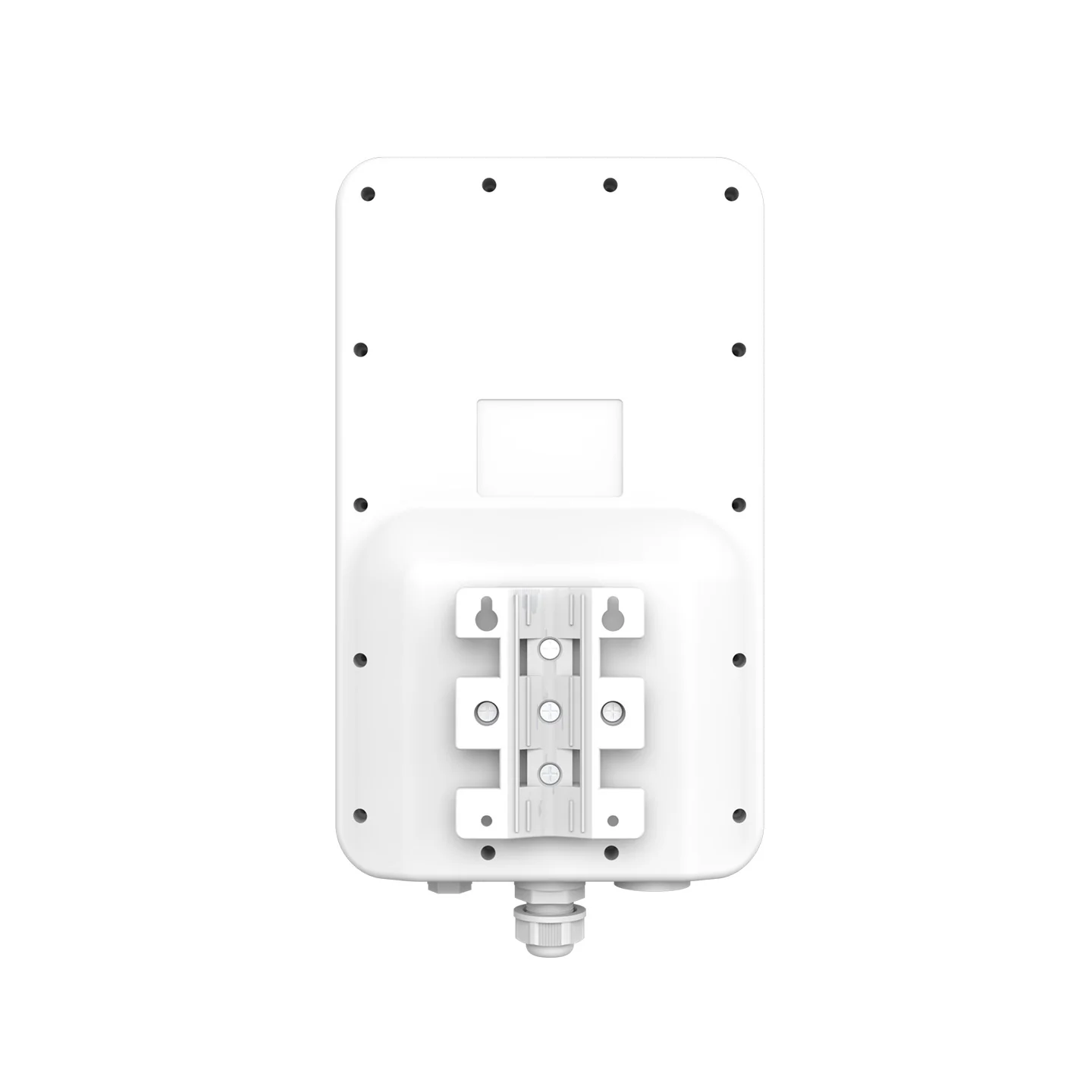

| Installation | Pole-mounted or wall-mounted |
| Application Scenarios | Campuses, parks, factories, outdoor corridors, logistics yards |
