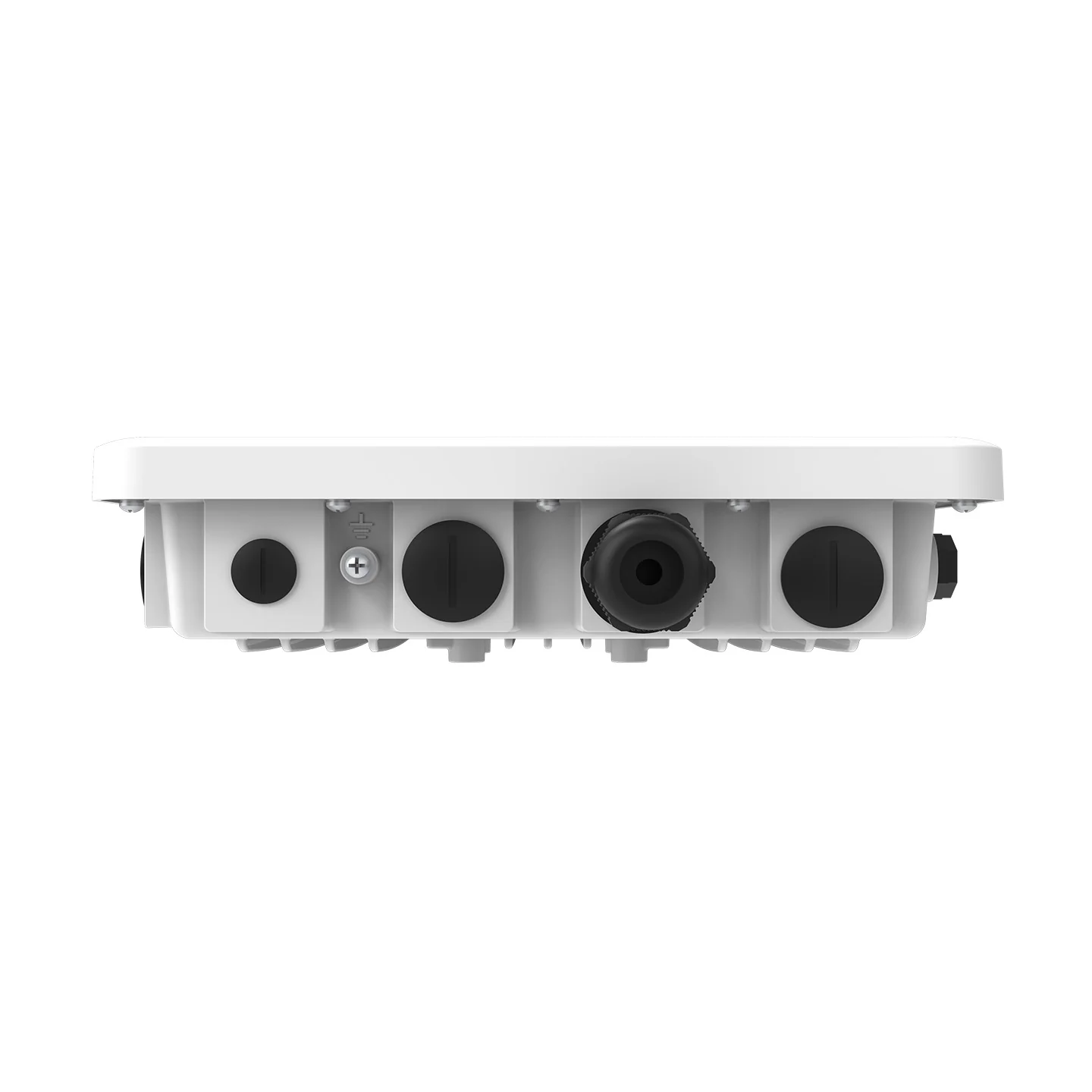

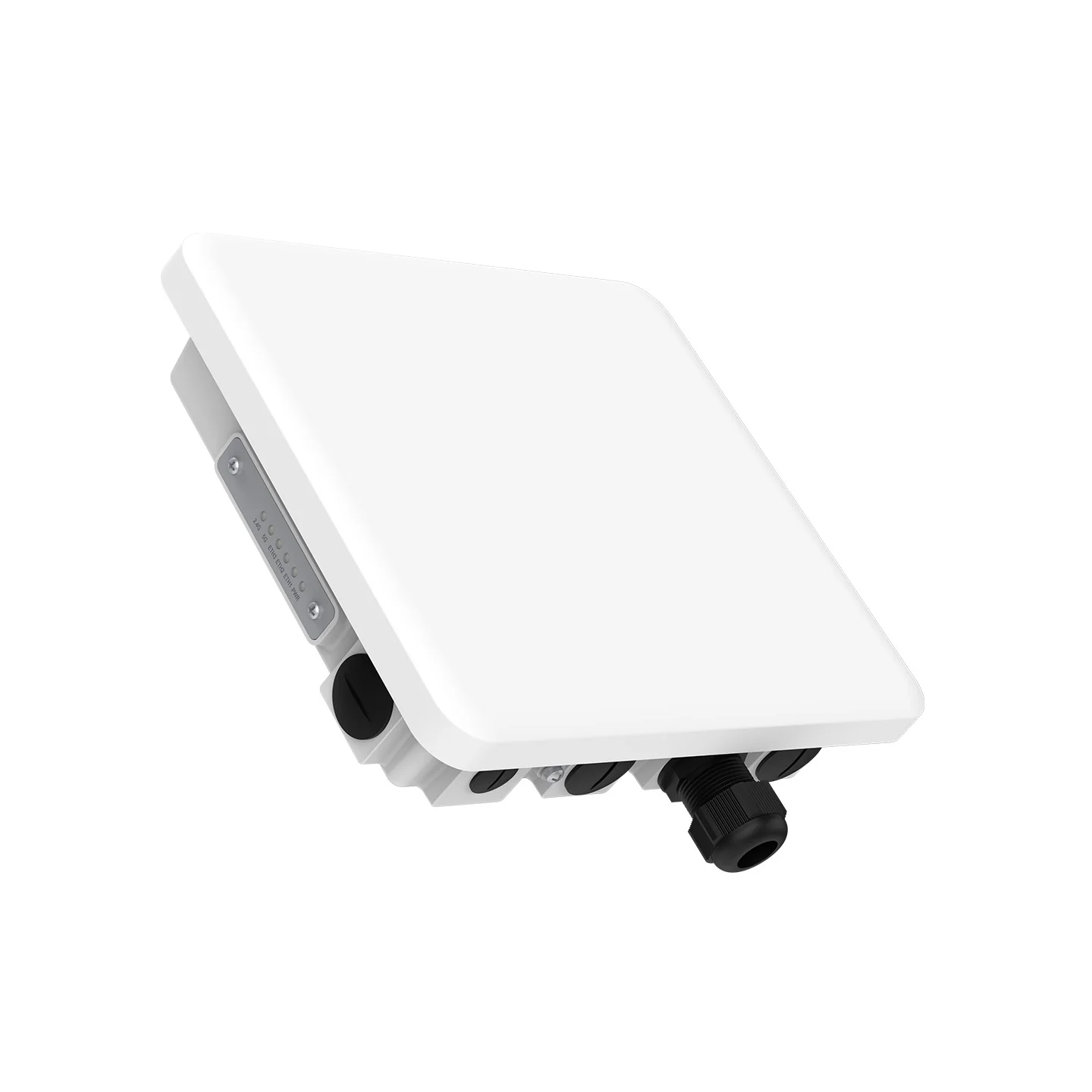

NSComm APH6-BE3600D WiFi 7 Dual-Band 3.6Gbps Outdoor Directional Access Point with 2.5G PoE
NS APH6-BE3600D WiFi 7 BE3600 Directional Outdoor Access Point
The NS APH6-BE3600D is a WiFi 7 (802.11be) dual-band outdoor directional access point designed for long-distance, point-focused wireless coverage in enterprise and industrial environments.
Delivering up to 3.6 Gbps of dual-band wireless throughput, the APH6-BE3600D features built-in high-gain directional antennas, a 2.5 Gbps Ethernet uplink, and an IP67-rated enclosure. With a coverage distance of over 400 meters, it is ideal for roads, railways, industrial parks, ports, mining areas, campus perimeters, and other linear or point-to-area outdoor scenarios.
Overview
Highlights
-
High-Efficiency WiFi 7 Outdoor Performance
Built on the WiFi 7 (802.11be) standard, delivering improved spectral efficiency, lower latency, and stable performance for long-distance outdoor coverage. -
Directional Antenna Design for Extended Reach
Integrated directional antennas with >120° beamwidth, enabling focused signal transmission and reception for coverage distances exceeding 400 meters. -
2.5G Multi-Gigabit Backhaul
Equipped with a 2.5 Gbps Ethernet port and an additional Gigabit Ethernet port, ensuring sufficient wired capacity for high-throughput outdoor wireless traffic. -
Rugged IP67 Outdoor Construction
UV-resistant enclosure with IP67 protection ensures reliable operation under rain, dust, wind, and harsh environmental conditions. -
Dedicated Lightning & Surge Protection
Industrial-grade lightning and surge protection safeguards the device and network stability in exposed outdoor installations. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, unified Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS APH6-BE3600D | NS APH6-BE3600 | H3C WA7xxx-Outdoor (Directional) | Huawei AirEngine 6776-Outdoor-D |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Wireless Rate | BE3600 | BE3600 | BE3600 | BE3600 |
| Antenna Type | Built-in directional | External omnidirectional | Directional | Directional |
| Coverage Distance | >400 m | Up to 150 m | ~300-400 m | ~300-400 m |
| Beamwidth | >120° | 360° | Directional | Directional |
| Uplink Interface | 1×2.5G + 1×GE | 1×2.5G + 1×GE (SFP opt.) | 1×2.5G | 1×Multi-GE |
| Outdoor Protection | IP67 | IP67 | IP67 | IP67 |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Typical Positioning | Long-range directional AP | Wide-area omnidirectional AP | Enterprise directional AP | Enterprise directional AP |
Positioning Summary:
-
APH6-BE3600D: WiFi 7 outdoor AP optimized for long-distance, directional coverage.
-
APH6-BE3600: WiFi 7 outdoor AP designed for wide-area omnidirectional coverage.
-
H3C / Huawei: Comparable enterprise-grade directional outdoor WiFi 7 APs for large-scale deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | BE3600 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | Built-in directional antennas (>120° beamwidth) |
| Coverage Distance | >400 m (typical outdoor environment) |
| Maximum Concurrent Clients | 128 |
| Ethernet Interfaces | 1×2.5 Gbps Ethernet, 1×Gigabit Ethernet |
| Power Supply | 48 V PoE (802.3at) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Protection Rating | IP67, UV-resistant enclosure |
| Installation | Pole-mounted or wall-mounted |
| Application Scenarios | Roads, railways, ports, mining areas, campus perimeters |
