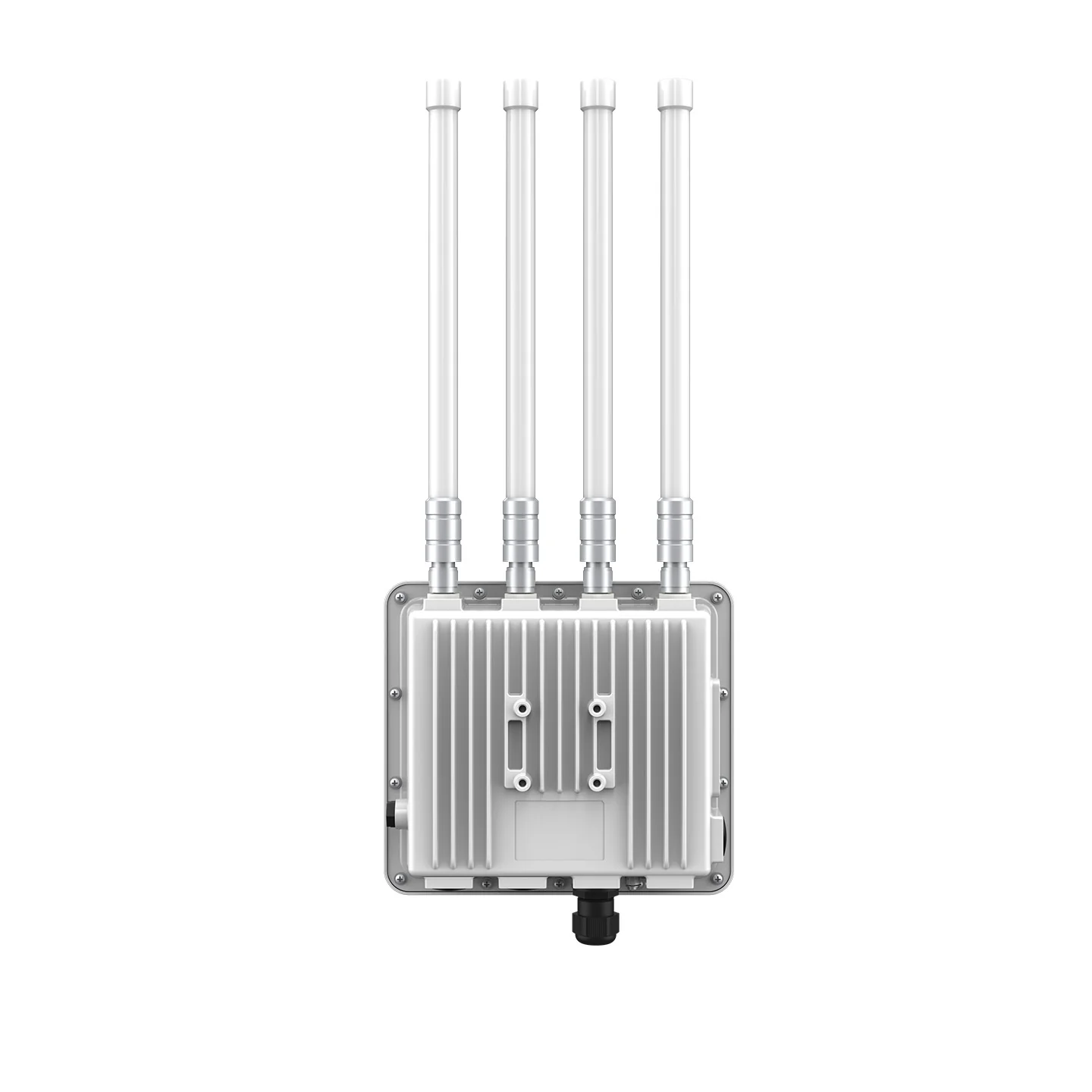

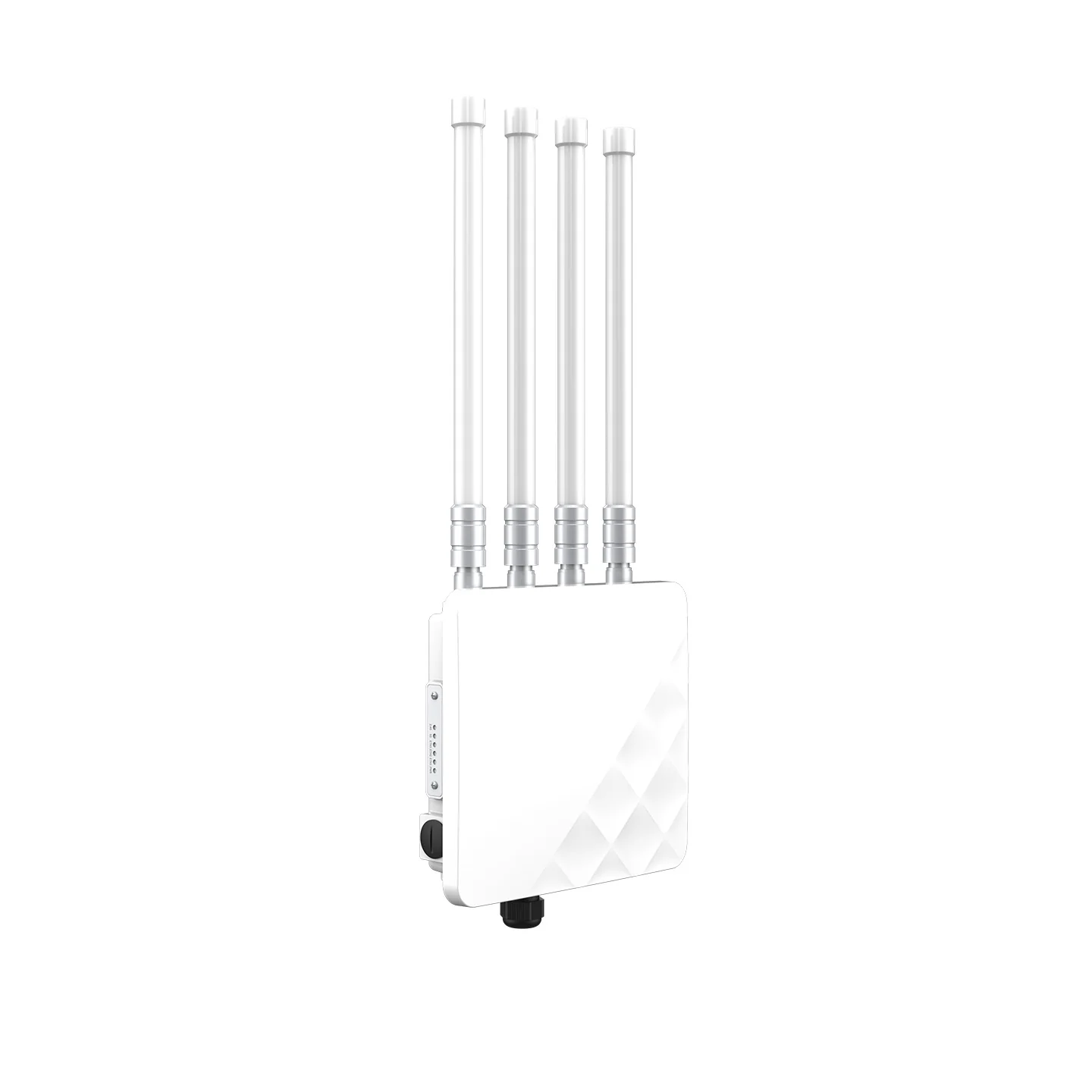

NSComm APH6-AX3000 WiFi 6 AX3000 Dual-Band Outdoor Access Point with SFP and PoE
NS APH6-AX3000 WiFi 6 AX3000 Outdoor Access Point
The NS APH6-AX3000 is a commercial-grade WiFi 6 (802.11ax) outdoor access point designed for wide-area outdoor wireless coverage with high reliability and enterprise-level performance.
Delivering AX3000 dual-band wireless throughput, the APH6-AX3000 features external 360° omnidirectional FRP antennas, fiber + Ethernet uplink options, and a full die-cast aluminum IP67 enclosure. With a typical coverage radius of up to 150 meters, it is ideal for campuses, industrial parks, scenic areas, ports, parking lots, and outdoor enterprise networks.
Overview
Highlights
-
High-Performance WiFi 6 Outdoor Connectivity
Provides AX3000 dual-band WiFi 6 performance with OFDMA and MU-MIMO, supporting stable multi-user access in outdoor environments. -
360° Omnidirectional Coverage
Equipped with 4 external fiberglass omnidirectional antennas, delivering uniform signal coverage with a typical outdoor radius of up to 150 meters. -

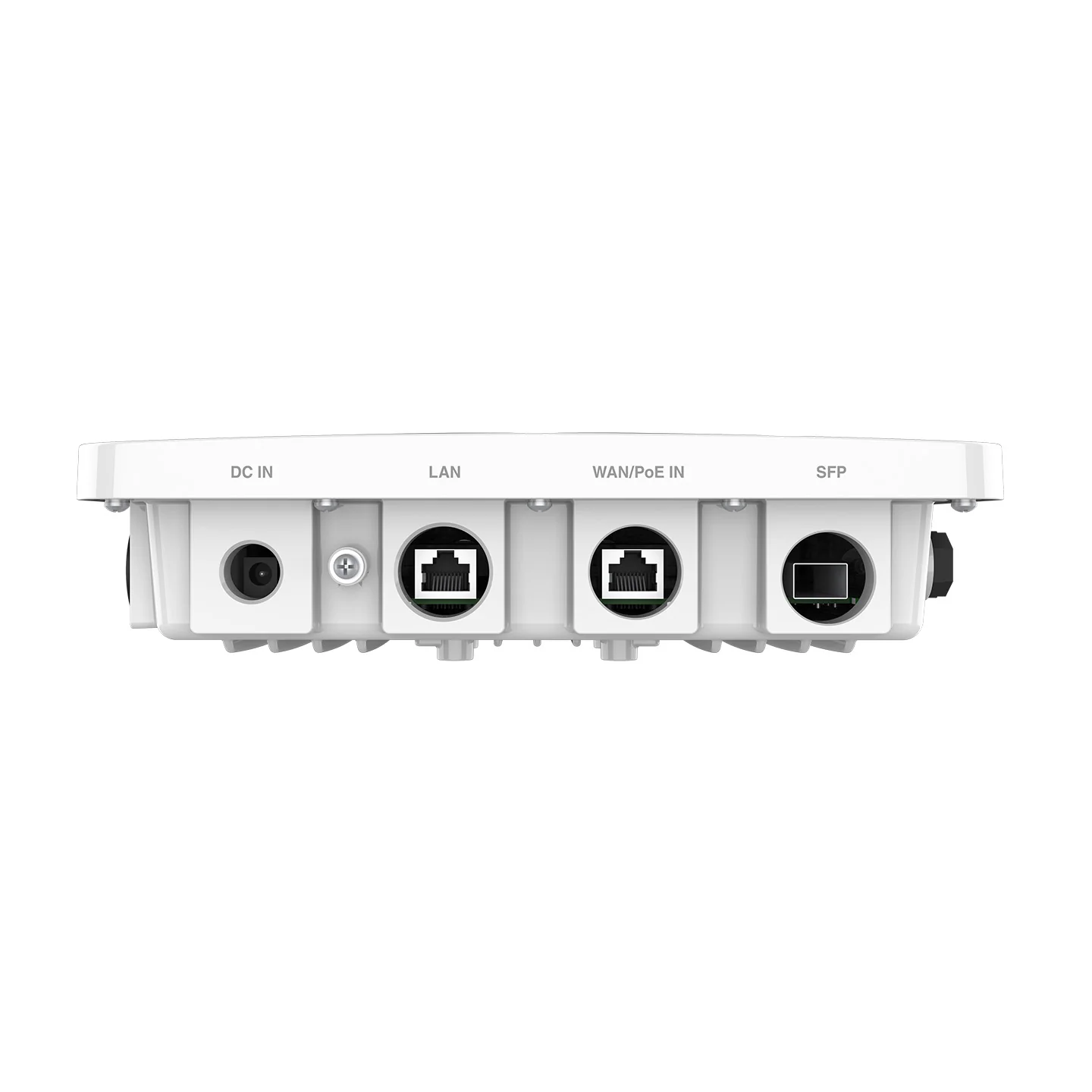

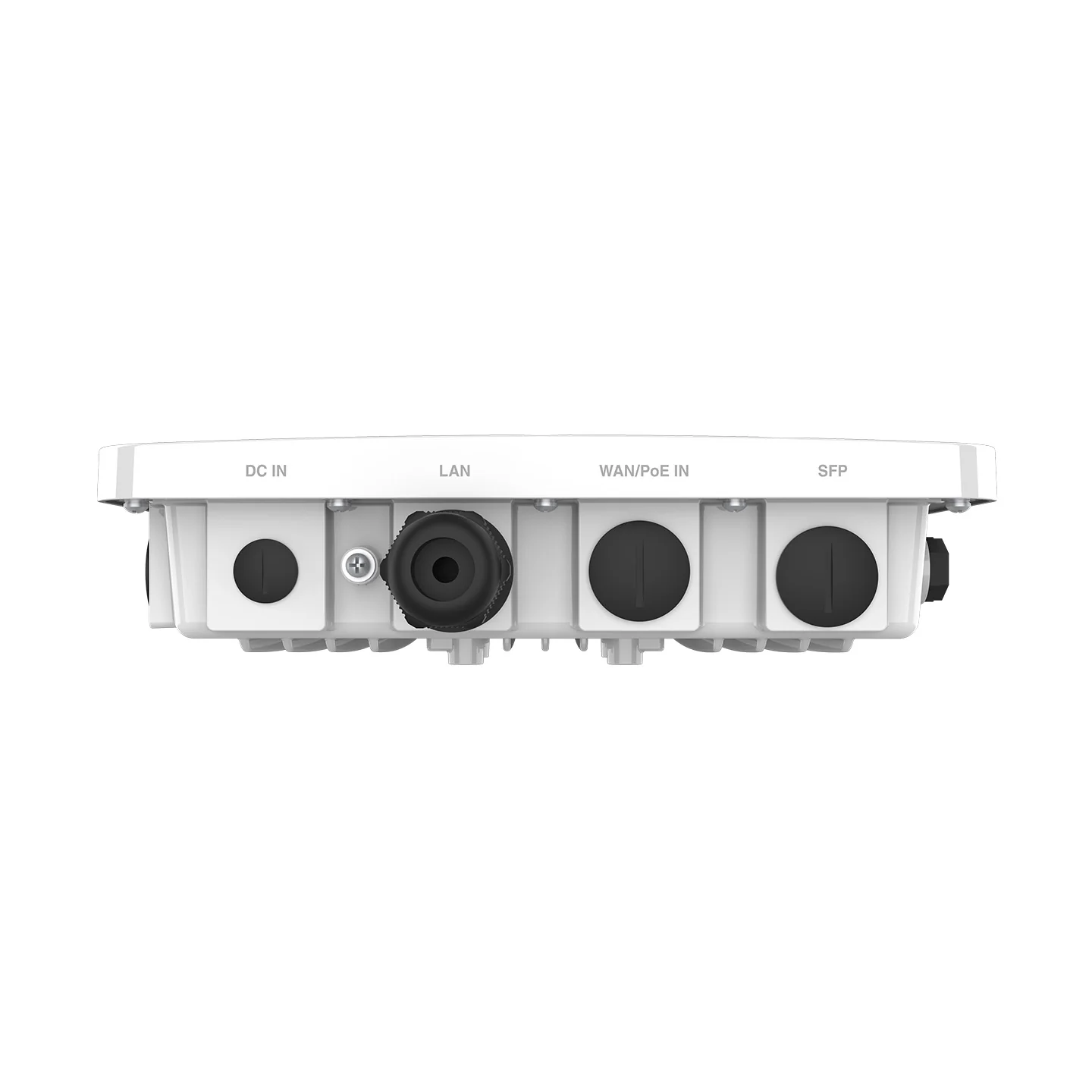

Fiber + Ethernet Flexible Backhaul
Supports 1× Gigabit SFP fiber port and 2× Gigabit Ethernet ports, enabling flexible deployment in fiber-based or traditional Ethernet outdoor networks. -
Industrial-Grade IP67 Protection
Full die-cast aluminum enclosure with IP67 rating ensures resistance to rain, dust, UV exposure, and harsh outdoor conditions. -
Lightning & Surge Protection
Integrated port-level lightning and surge protection safeguards network stability in exposed outdoor installations. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS APH6-AX3000 | NS APH6-AX3000D | H3C WA6320-Outdoor | Huawei AirEngine 5762-Outdoor |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| Antenna Type | External omnidirectional | Directional | Omnidirectional | Omnidirectional |
| Coverage Radius | Up to 150 m | >400 m (directional) | ~120-150 m | ~120-150 m |
| Uplink Interfaces | 1×SFP + 2×GE | 1×SFP + 2×GE | GE | GE |
| Enclosure | Die-cast aluminum | Die-cast aluminum | Industrial housing | Industrial housing |
| Protection Rating | IP67 | IP67 | IP67 | IP67 |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Typical Positioning | Wide-area outdoor AP | Long-range directional AP | Enterprise outdoor AP | Enterprise outdoor AP |
Positioning Summary:
-
APH6-AX3000: WiFi 6 outdoor AP optimized for wide-area omnidirectional coverage.
-
APH6-AX3000D: WiFi 6 outdoor AP designed for long-distance directional coverage.
-
H3C / Huawei: Comparable enterprise-grade outdoor APs for standardized campus deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× external FRP omnidirectional antennas |
| Coverage Radius | Up to 150 m (typical outdoor environment) |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 2× Gigabit Ethernet |
| Fiber Interface | 1× Gigabit SFP |
| Power Supply | 48 V PoE (802.3at) / 12 V DC |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Protection Rating | IP67, full die-cast aluminum housing |

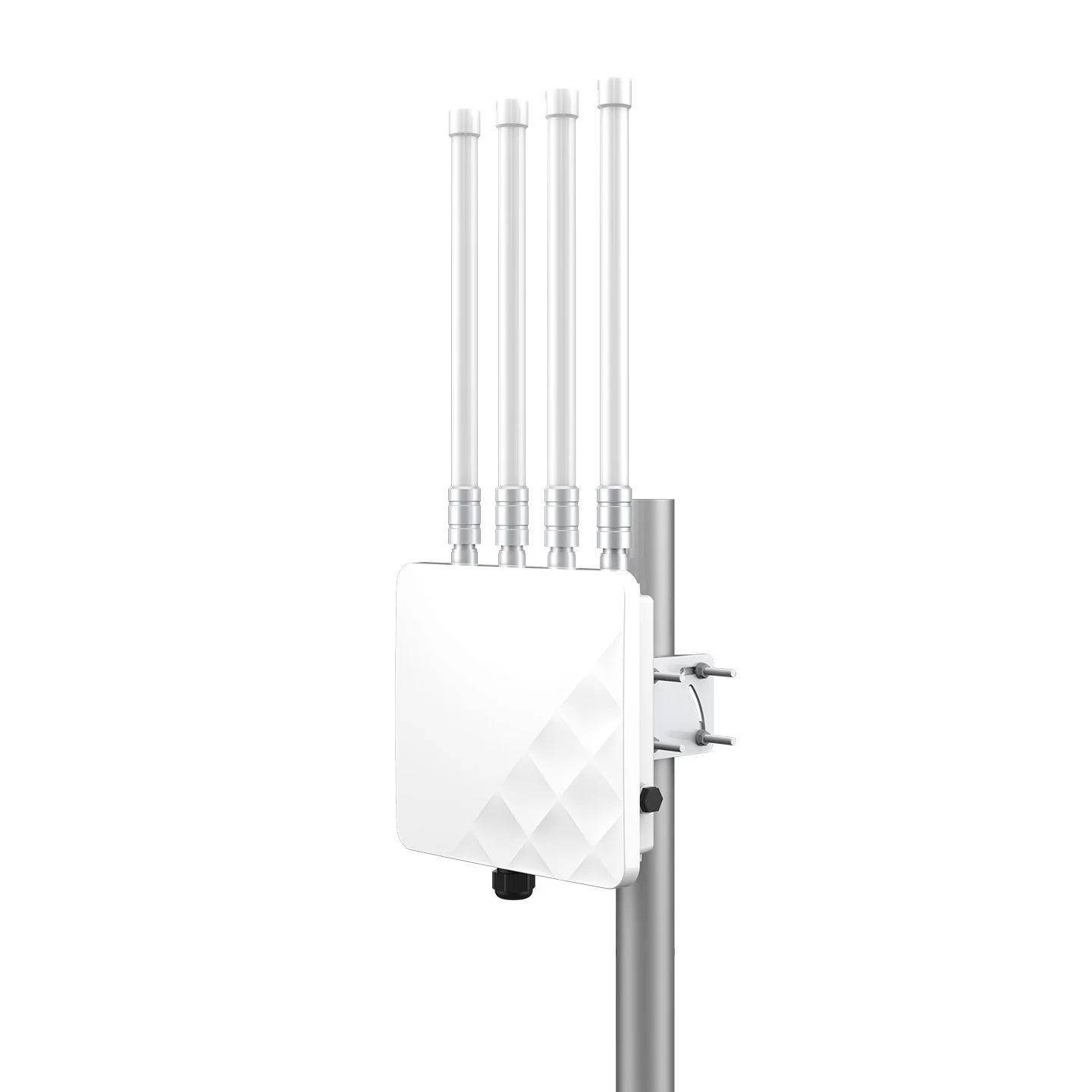

| Installation | Pole-mounted |
| Optional Features | Bluetooth / GPS |
| Application Scenarios | Campuses, factories, ports, scenic areas, outdoor parks |
