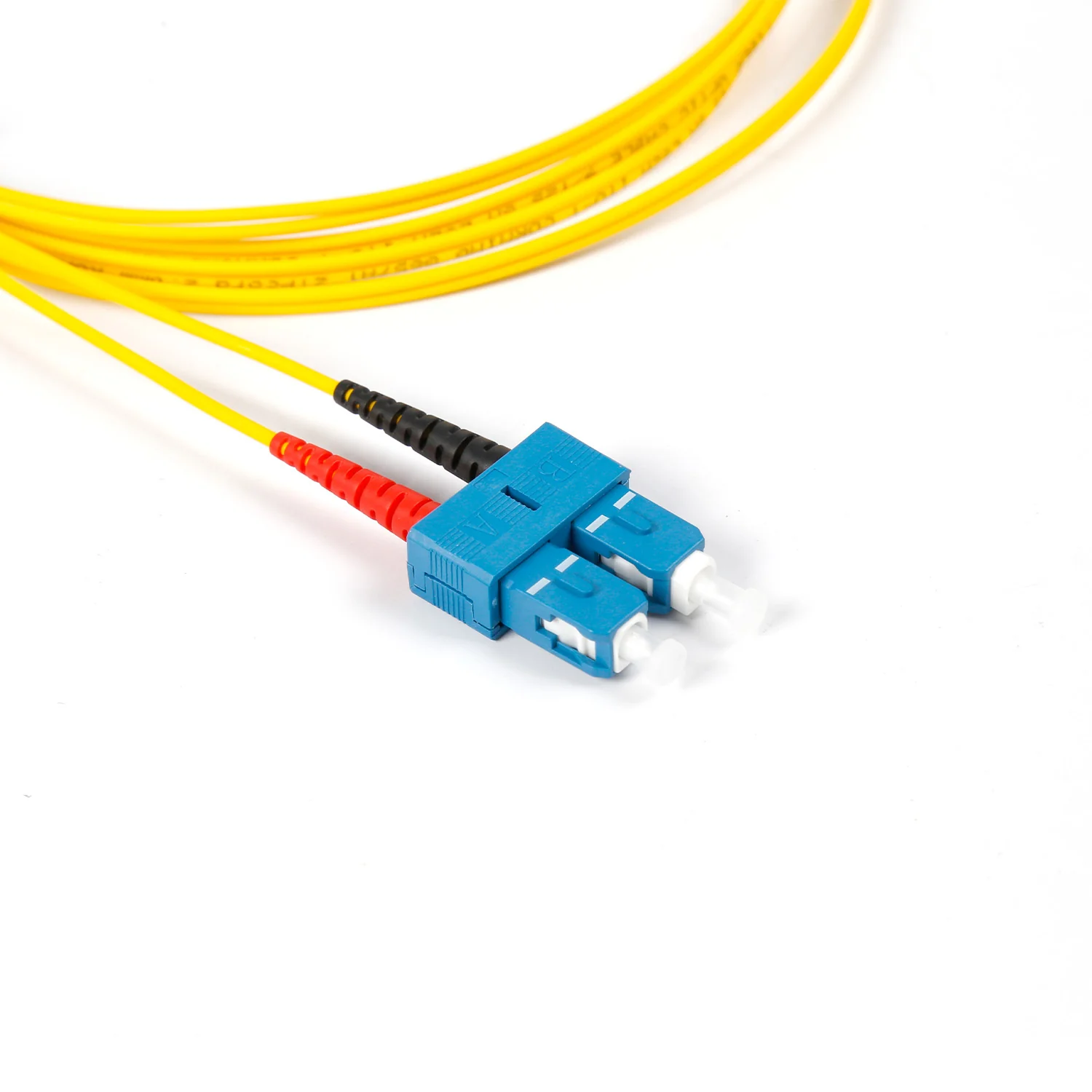

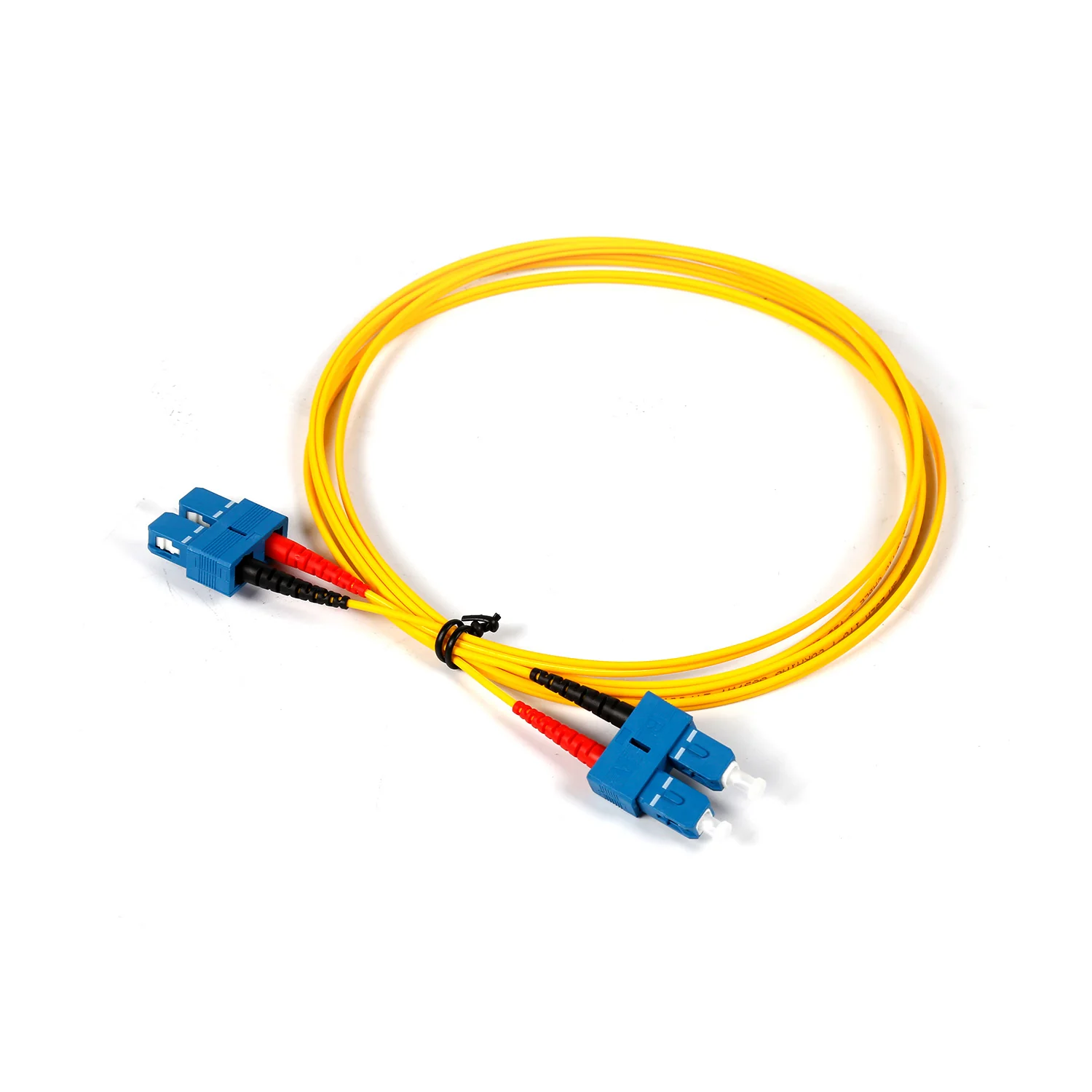

NSComm SC UPC to SC UPC Duplex Single Mode Fiber Patch Cable, 2.0mm OFNR
Overview
The NSComm SC UPC to SC UPC Duplex Single Mode Fiber Patch Cable is a robust OS2 interconnect solution designed for long-distance links in entrance facilities, telecommunications rooms, data centers, and work areas. Featuring SC UPC duplex connectors on both ends, this cable is ideal for environments that standardize on SC interfaces for distribution frames, patch panels, and legacy equipment.
Using bend-insensitive G.657.A1 fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this duplex patch cable delivers low attenuation, high return loss, and excellent mechanical reliability. It supports 1G/10G/25G/40G/100G/400G Ethernet connections and is well-suited for long-reach single mode applications, up to 10 km at 1310 nm or up to 40 km at 1550 nm, while maintaining stable performance even when routed through tight spaces or subjected to routine handling.
Need assistance matching SC patch cords to your rack layout, ODF, or long-haul links? Contact us now and our team will help verify compatibility before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | SC UPC to SC UPC Duplex Single Mode Fiber Patch Cable |
| Connector A | SC UPC Duplex |
| Connector B | SC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 90/150 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Recommended Distance @ 1310 nm | Up to 10 km (application dependent) |
| Recommended Distance @ 1550 nm | Up to 40 km (application dependent) |
| Applications | 1G/10G/25G/40G/100G/400G Ethernet, ODF patching, DC/telecom backbones & cross-connects |
Why Choose NSComm SC UPC to SC UPC Duplex OS2 Patch Cables?
-
SC-to-SC simplicity – Ideal for infrastructures built around SC patch panels, ODFs, and legacy single mode equipment.
-
Long-distance OS2 performance – Supports up to 10 km @ 1310 nm and up to 40 km @ 1550 nm, suitable for campus and metro links.
-
Bend-insensitive G.657.A1 fiber – Reduces attenuation under bends and twists, improving installation flexibility and reliability.
-
Low insertion loss & high return loss – Ensures robust link budgets across high-speed Ethernet services up to 400G.
-
Riser-rated 2.0mm construction – Durable tight-buffered OFNR jacket for use in riser spaces, racks, conduits, and trays.
Length Options
Standard stocked lengths:
Available in a range of common lengths suitable for frame-to-frame, rack-to-rack, and equipment-to-panel connections in telecom rooms and data centers.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options are available on request to match specific cabling standards, ODF layouts, and routing paths.
