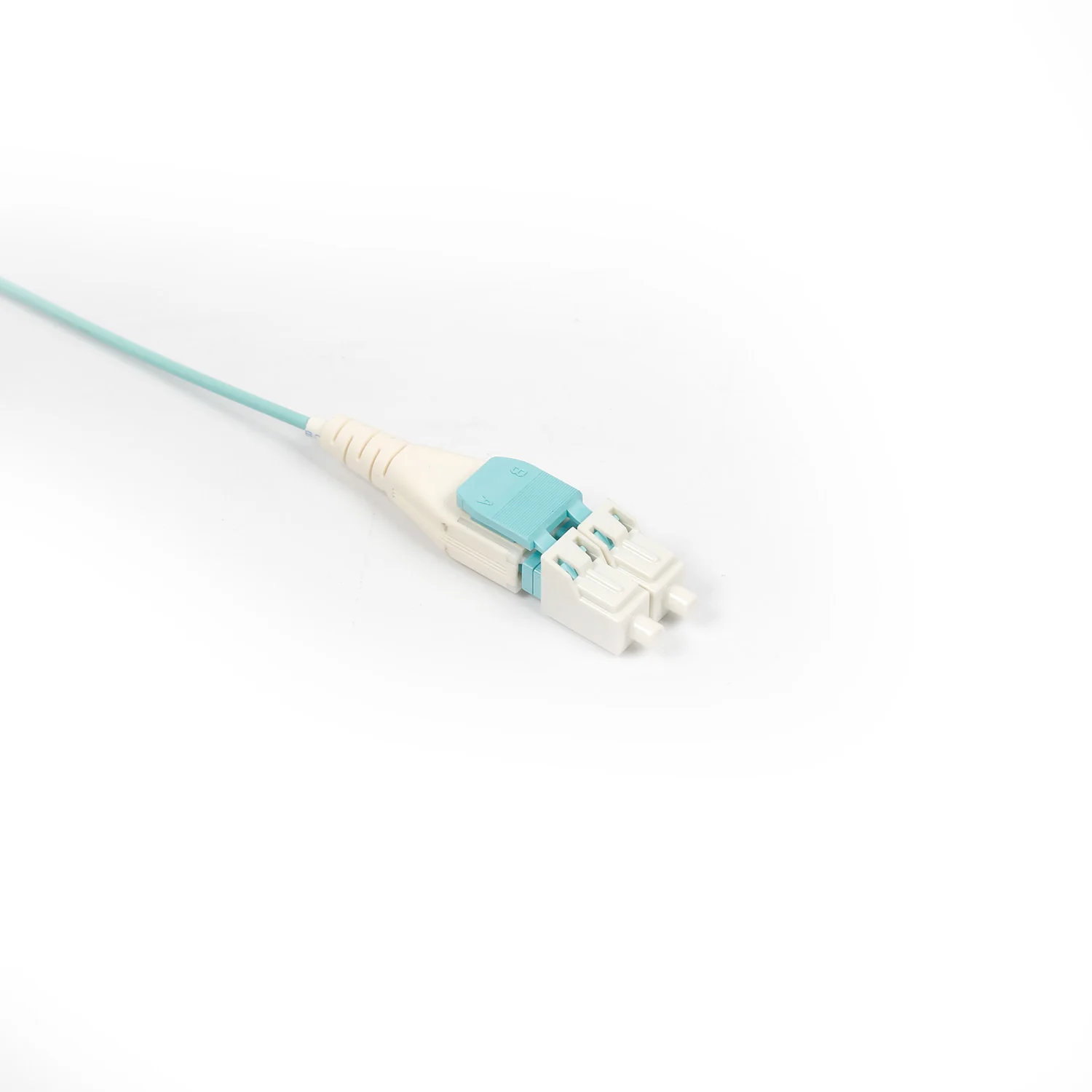

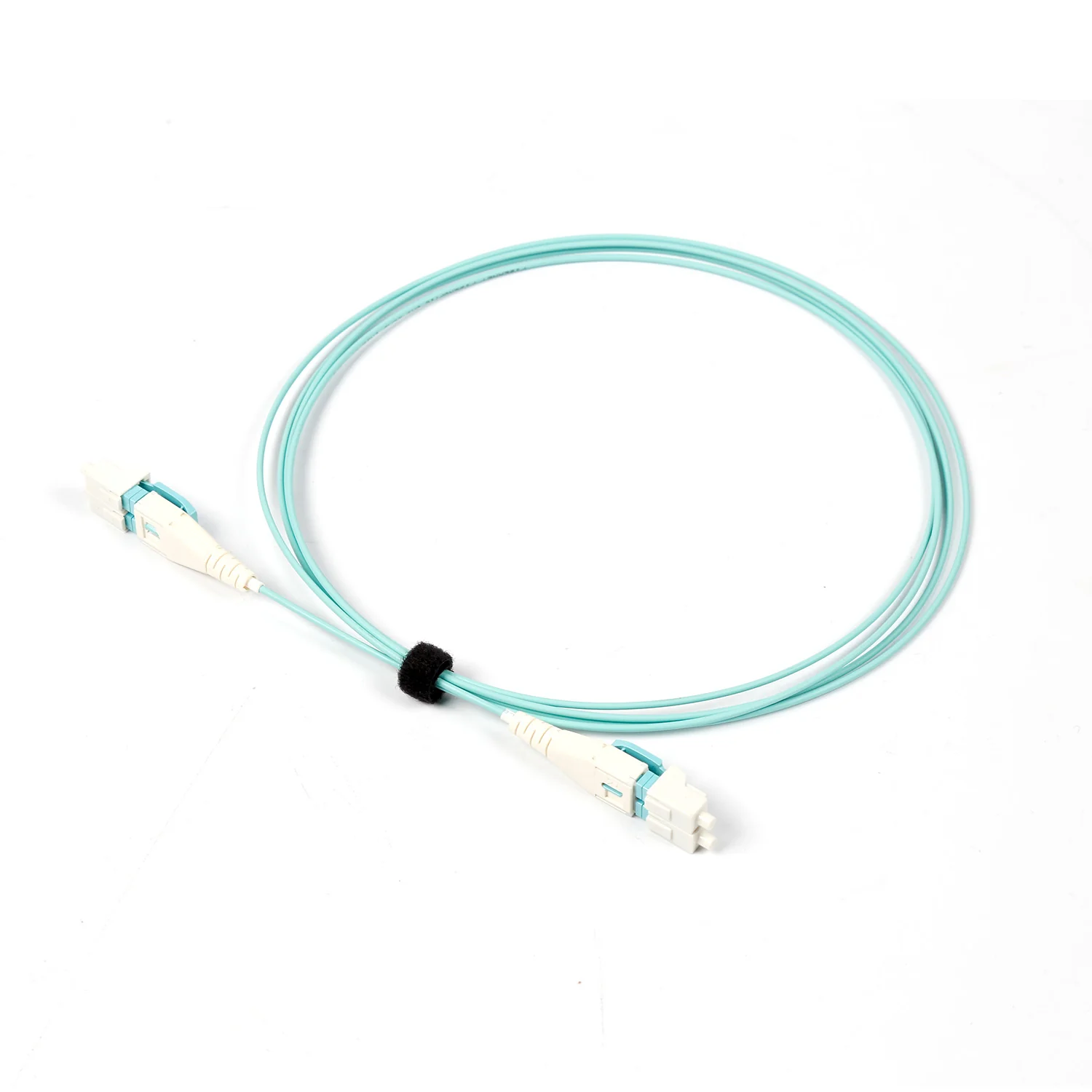

NSComm LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode(OM4) Fiber Patch Cable, 2.0mm OFNR
Overview
The NSComm LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode (OM4) Fiber Patch Cable is a space-saving, high-density cabling solution designed for modern data centers and enterprise networks. Its uniboot structure routes both fibers within a single 2.0mm jacket, significantly reducing cable congestion on front panels, improving airflow, and simplifying cable management in high-port-count environments.
Built with bend-insensitive OM4 50/125 μm multimode fiber and LC UPC connectors at both ends, this patch cable delivers low insertion loss and stable return loss, making it ideal for 10/40/100G short-reach Ethernet applications using SR/SR4 optics, QSFP+/SFP+ transceivers, and high-density LC patching.
The riser-rated (OFNR) jacket and tight-buffered construction ensure mechanical robustness while maintaining the flexibility needed for routing through dense cable managers and narrow pathways.
If you are planning high-density LC uniboot deployments or OM4 upgrades, our team can help validate compatibility, layout, and cable selection before rollout.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode (OM4) Fiber Patch Cable |
| Connector Type | LC UPC to LC UPC |
| Fiber Count | Duplex |
| Fiber Grade | Bend-insensitive multimode fiber |
| Fiber Mode | OM4 50/125 μm Multimode |
| Durability | 1000 cycles |
| Insertion Loss | < 0.20 dB |
| Return Loss | ≥ 30 dB |
| Attenuation @ 850 nm | 3.0 dB/km |
| Attenuation @ 1300 nm | 1.5 dB/km |
| Cable Outside Diameter (OD) | 2.0 mm |
| Min. Bend Radius (Fiber Core) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Tensile Strength (Long/Short Term) | 60/100 N |
| Cable Jacket | Riser (OFNR) |
| Operating Temperature | -10 to 70 °C |
| Storage Temperature | -20 to 70 °C |
| Applications | High-density OM4 LC patching, 10/40/100G SR links, QSFP+/SFP+ MM connections |
Why Choose NSComm LC UPC to LC UPC Duplex Uniboot OM4 Patch Cables?
-
Space-saving uniboot construction – Both fibers share a single 2.0mm jacket, reducing cable bulk and improving rack airflow.
-
Optimized for 40/100G OM4 deployments – OM4 multimode fiber provides higher bandwidth and longer reach than OM3 for SR links.
-
Bend-insensitive multimode fiber – Maintains low attenuation in tight routing paths common in high-density data centers.
-
Low-loss LC UPC terminations – <0.2 dB insertion loss and solid return loss support clean, stable multimode signal delivery.
-
Riser-rated OFNR jacket – Suitable for vertical risers and structured cabling in enterprise and cloud data center environments.
Length Options
Standard stocked lengths:
Available in commonly used uniboot lengths suited for switch-to-switch, switch-to-panel, and panel-to-panel connections in dense LC environments.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options are available on request to align with your specific rack layout, cabling standards, and high-density design.
