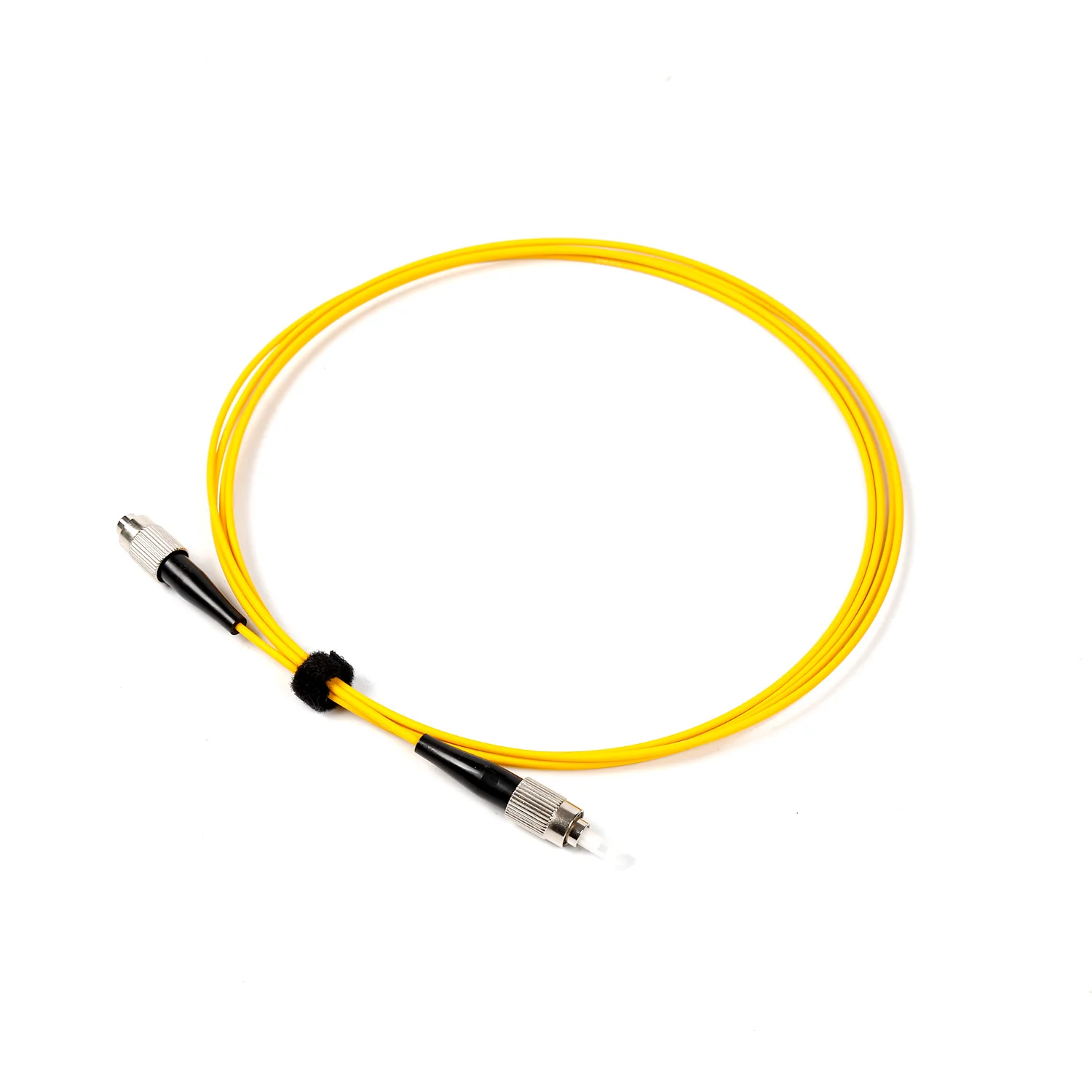

NSComm FC UPC to FC UPC Simplex Single Mode Fiber Patch Cable, 1 Fiber, 2.0mm OFNR
Overview
The NSComm FC UPC to FC UPC Simplex Single Mode Fiber Patch Cable is a robust OS2 interconnect designed for point-to-point links in entrance facilities, telecommunications rooms, data centers, and lab or test environments. Featuring FC UPC simplex connectors on both ends with threaded coupling, this patch cable provides secure, vibration-resistant terminations that are ideal for applications where connector stability is critical.
Built with bend-insensitive G.657.A1 fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this simplex cable delivers low insertion loss, high return loss, and consistent performance in demanding single mode networks. It supports 1G/10G/25G/40G/100G/400G Ethernet connections and is well-suited for long-distance transmission up to 10 km at 1310 nm or up to 40 km at 1550 nm while maintaining lower attenuation under bending compared with traditional OS2 patch cables, making installation and maintenance more efficient.
Need help choosing the right FC simplex patch cable for lab setups, DWDM shelves, or long-reach links? Contact us now and our team will help validate your requirements before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | FC UPC to FC UPC Simplex Single Mode Fiber Patch Cable |
| Connector A | FC UPC Simplex |
| Connector B | FC UPC Simplex |
| Fiber Count | 1 Fiber (Simplex) |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| RoHS Compliancy Status | Compliant |
| Cable Type | Tight-buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10 mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 60/100 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 50 dB |
| Attenuation @ 1310 nm | 0.4 dB/km |
| Attenuation @ 1550 nm | 0.3 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Recommended Distance @ 1310 nm | Up to 10 km (application dependent) |
| Recommended Distance @ 1550 nm | Up to 40 km (application dependent) |
| Applications | 1G/10G/25G/40G/100G/400G Ethernet, lab/test setups, DWDM/OTN shelves, DC/telecom links |
Why Choose NSComm FC UPC to FC UPC Simplex OS2 Patch Cables?
-

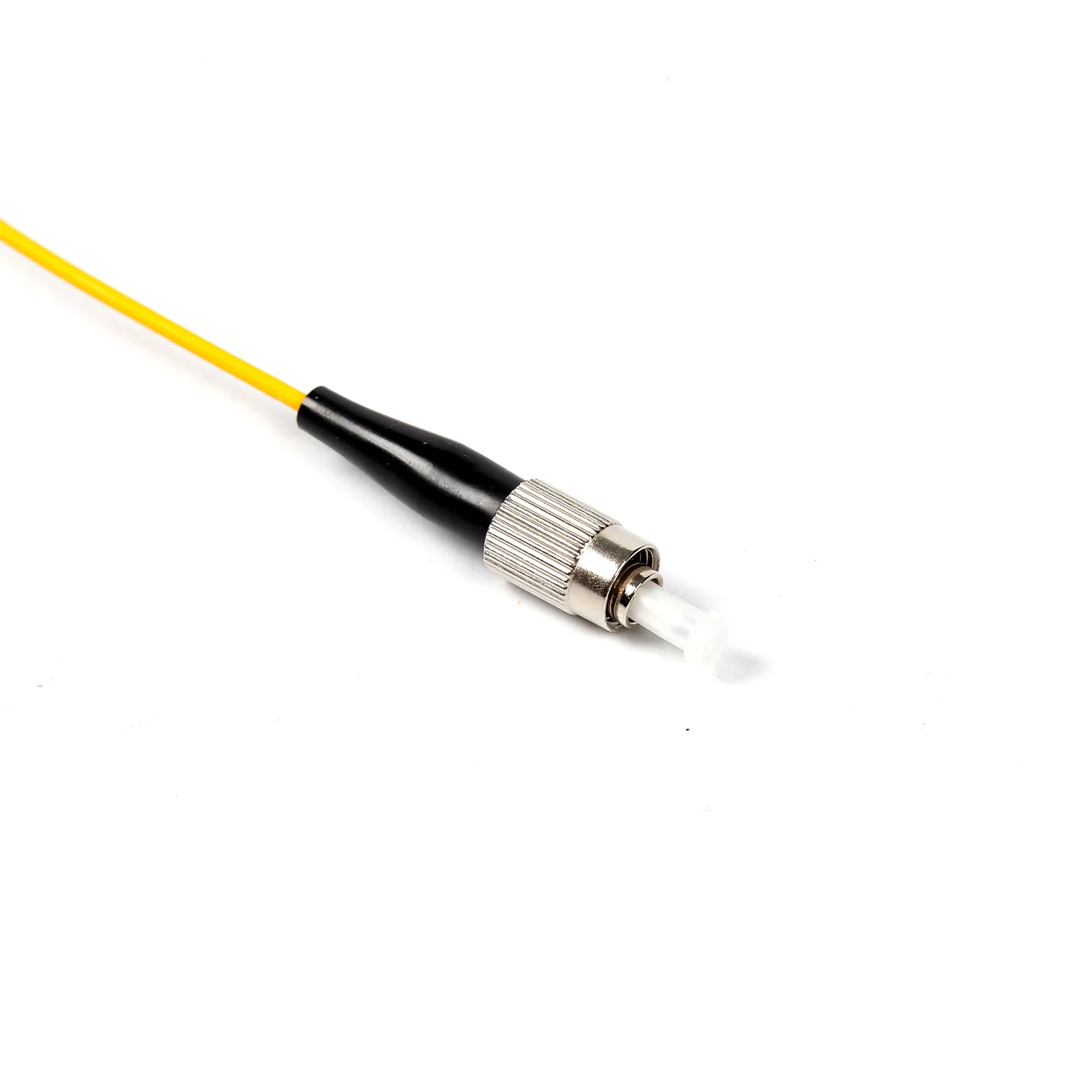

Secure FC threaded connection – Screw-on FC UPC connectors provide excellent vibration resistance for lab, test, and telecom environments.
-
Long-distance OS2 single mode performance – Supports up to 10 km @ 1310 nm and up to 40 km @ 1550 nm for extended reach links.
-
Bend-insensitive G.657.A1 fiber – Reduced attenuation under bends and twists makes routing and maintenance more flexible and reliable.
-
Low insertion loss & high return loss – Tight optical specifications help maintain robust link budgets for high-speed Ethernet services.
-
Riser-rated 2.0mm construction – Tight-buffered OFNR jacket is suitable for riser spaces, racks, patch fields, and conduits.
Length Options
Standard stocked lengths:
Available in a variety of common simplex lengths ideal for equipment-to-frame, panel-to-panel, and lab or test patching scenarios.
Custom lengths:
Custom lengths, jacket colors, labeling, and connector configurations are available on request to match specific test setups, rack layouts, and routing paths.
