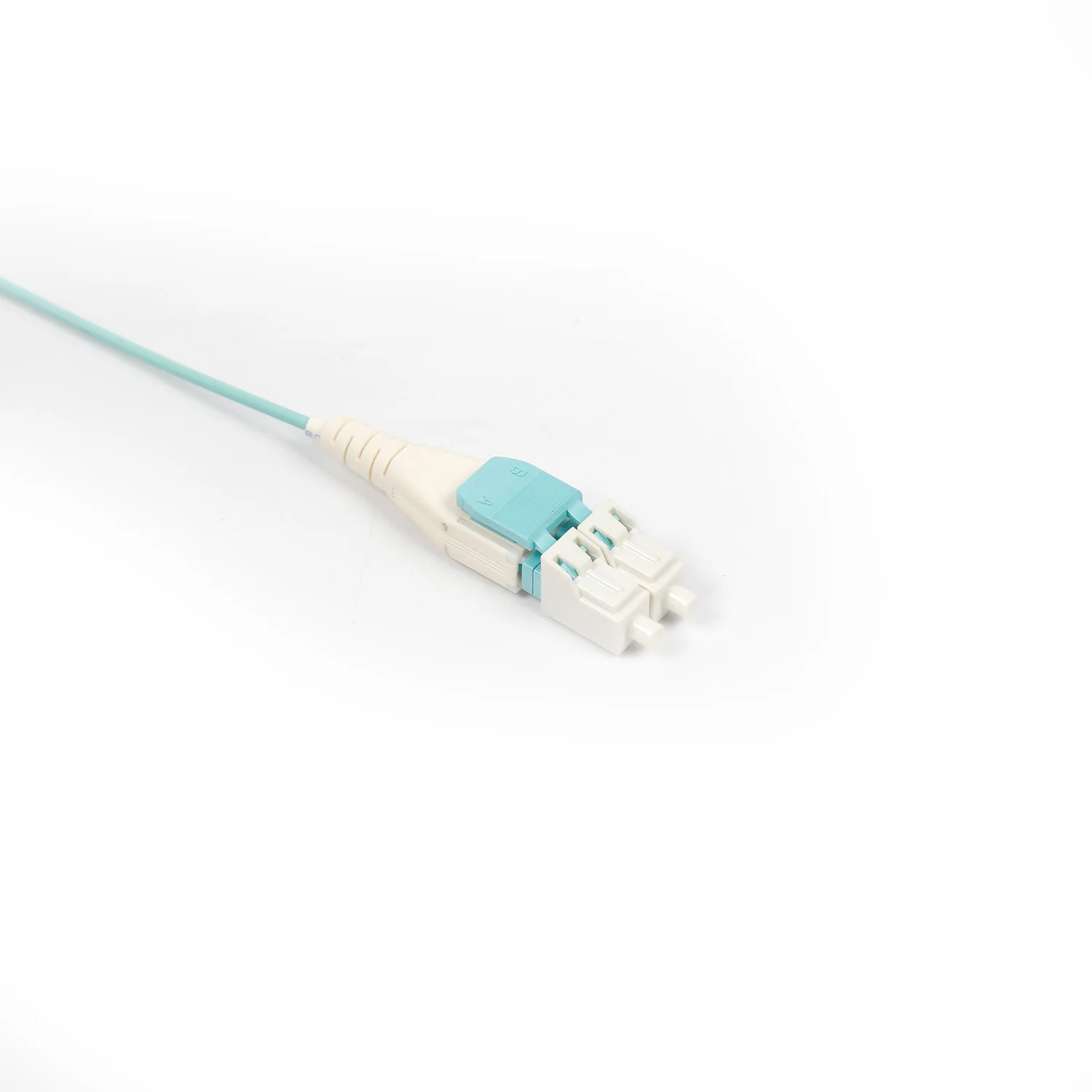

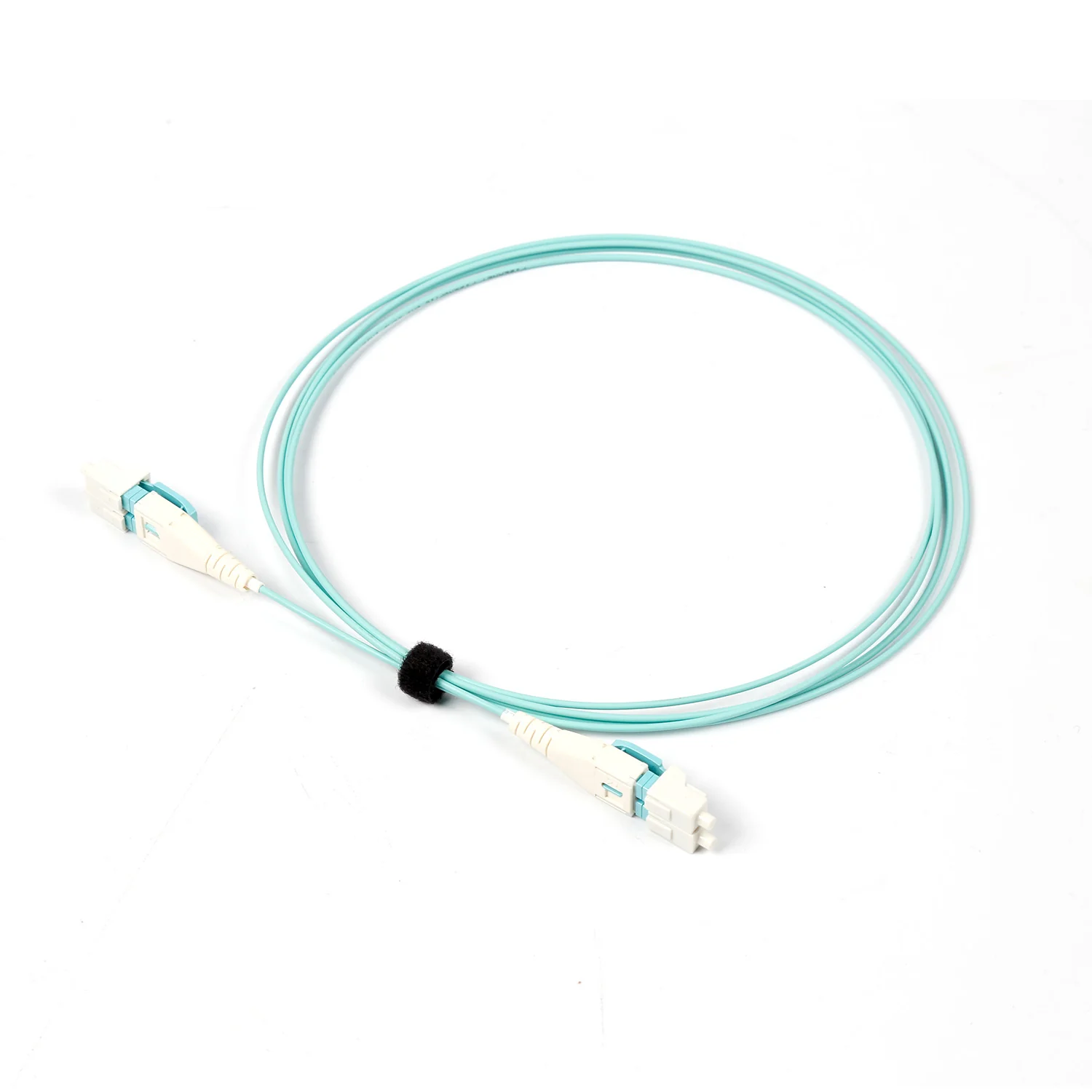

NSComm LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode(OM3) Fiber Patch Cable, 2.0mm OFNR
Overview
The NSComm LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode (OM3) Fiber Patch Cable is a high-density cabling solution designed for short-reach, high-bandwidth connections in modern data centers. Its uniboot design routes both fibers within a single 2.0mm jacket, significantly reducing front-of-rack cable congestion, improving airflow, and simplifying cable tracing in high-port-count environments.
Using bend-insensitive OM3 50/125 μm multimode fiber and LC UPC connectors on both ends, this patch cable delivers low insertion loss and stable multimode performance for 10G SR, 10G LRM, SFP+ links and short-reach 40G/100G Ethernet deployments. The riser-rated (OFNR) jacket and tight-buffered construction provide mechanical robustness while maintaining flexibility, making installation and maintenance more efficient in dense fiber patching scenarios.
If you’re planning a high-density uniboot LC deployment or need to match this cable to specific panels and transceivers, contact us and our team can help validate your design before rollout.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to LC UPC Duplex Standard Clip Uniboot Multimode (OM3) Fiber Patch Cable |
| Connector Type | LC UPC to LC UPC |
| Fiber Count | Duplex |
| Fiber Grade | Bend-insensitive multimode fiber |
| Fiber Mode | OM3 50/125 μm Multimode |
| Durability | 1000 cycles |
| Insertion Loss | ≤ 0.20 dB |
| Return Loss | ≥ 30 dB |
| Attenuation @ 850 nm | 3.0 dB/km |
| Attenuation @ 1300 nm | 1.5 dB/km |
| Cable Outside Diameter (OD) | 2.0 mm |
| Min. Bend Radius (Fiber Core) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Tensile Strength (Long/Short Term) | 60/100 N |
| Cable Jacket | Riser (OFNR) |
| Operating Temperature | -10 to 70 °C |
| Storage Temperature | -20 to 70 °C |
| Applications | High-density 10G SR/LRM, SFP+, short-reach 40G/100G MM links, LC uniboot patching |
Why Choose NSComm LC UPC to LC UPC Duplex Uniboot OM3 Patch Cables?
-
Space-saving uniboot design – Both fibers share a single 2.0mm jacket, reducing cable bulk and improving airflow on crowded panels.
-
Optimized for 10G Ethernet – OM3 multimode fiber is the preferred choice for 10G SR/LRM and supports higher-speed SR links at short reach.
-
Bend-insensitive multimode performance – Maintains low attenuation even in tight routing paths common in high-density data centers.
-
Low-loss LC UPC connectivity – ≤0.2 dB insertion loss and solid return loss ensure clean multimode signal integrity.
-
Riser-rated OFNR construction – Suitable for structured cabling in vertical risers, equipment rooms, and high-density racks.
Length Options
Standard stocked lengths:
Available in popular uniboot lengths tailored for switch-to-switch, switch-to-panel, and panel-to-panel connections in high-density LC environments.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity arrangements are available on request to align with your specific rack layouts and cabling standards.
