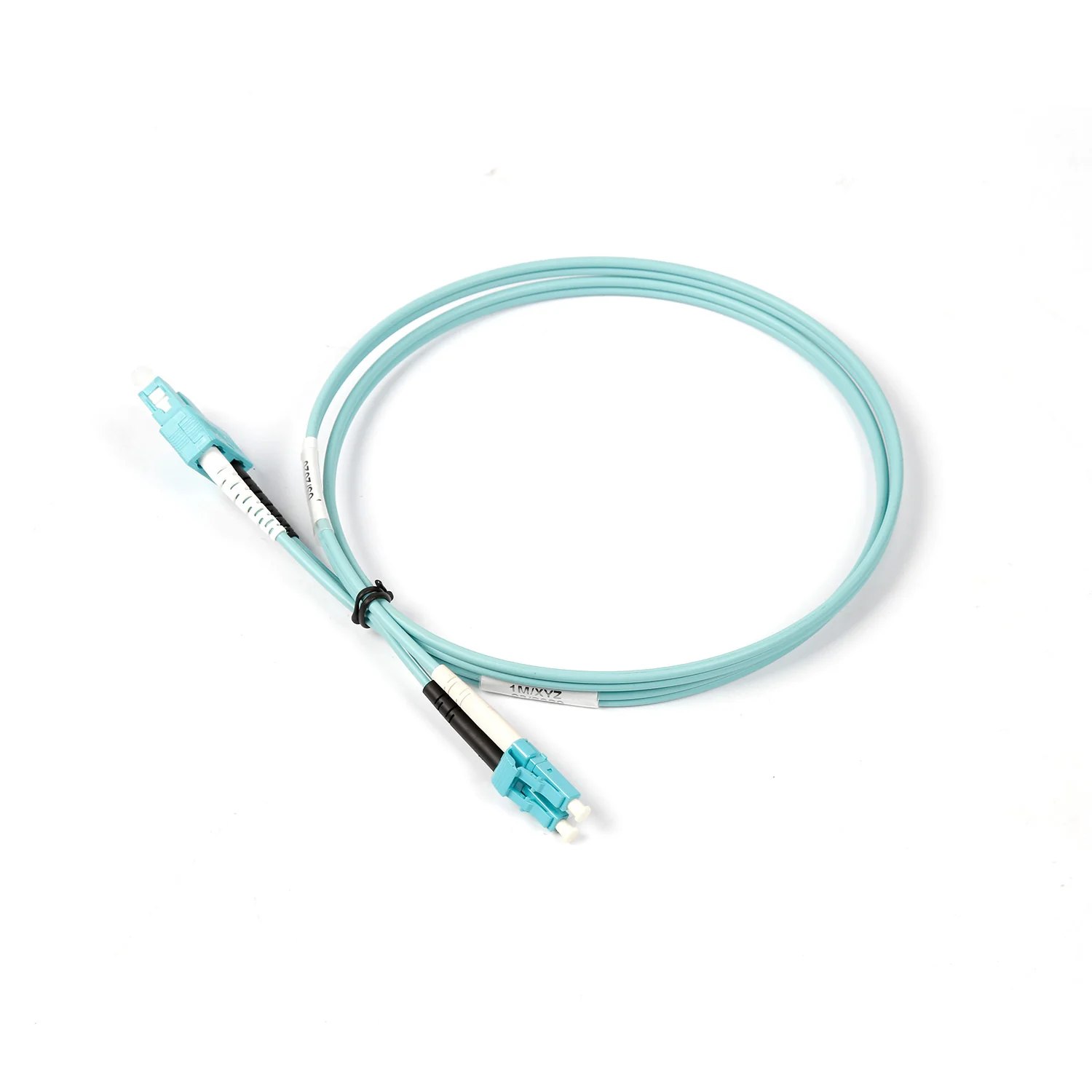

NSComm LC UPC to SC UPC Duplex Multimode(OM3) Fiber Patch Cable, 2 Fibers, 2.0mm OFNR
Overview
The NSComm LC UPC to SC UPC Duplex Multimode (OM3) Fiber Patch Cable is designed for short-reach, high-bandwidth connections across entrance facilities, telecommunications rooms, data centers, and office environments. With LC UPC duplex connectors on one end and SC UPC duplex connectors on the other, this cable provides a convenient interface between modern high-density LC equipment and existing SC-based patch panels or distribution frames.
Built with bend-insensitive OM3 50/125 μm multimode fiber and a 2.0mm riser-rated (OFNR) tight-buffered jacket, this patch cable delivers reliable performance for 10G SR, 10G LRM, SFP+ transceivers, as well as 10/40/100G Ethernet multimode links. Reduced attenuation under bending and twisting makes installation and maintenance easier and more efficient in dense cable pathways and high-port-count environments.
Need help checking interoperability between LC equipment and SC panels or choosing suitable lengths for your patching layout? Contact us now and our team will help validate your configuration before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | LC UPC to SC UPC Duplex Multimode (OM3) Fiber Patch Cable |

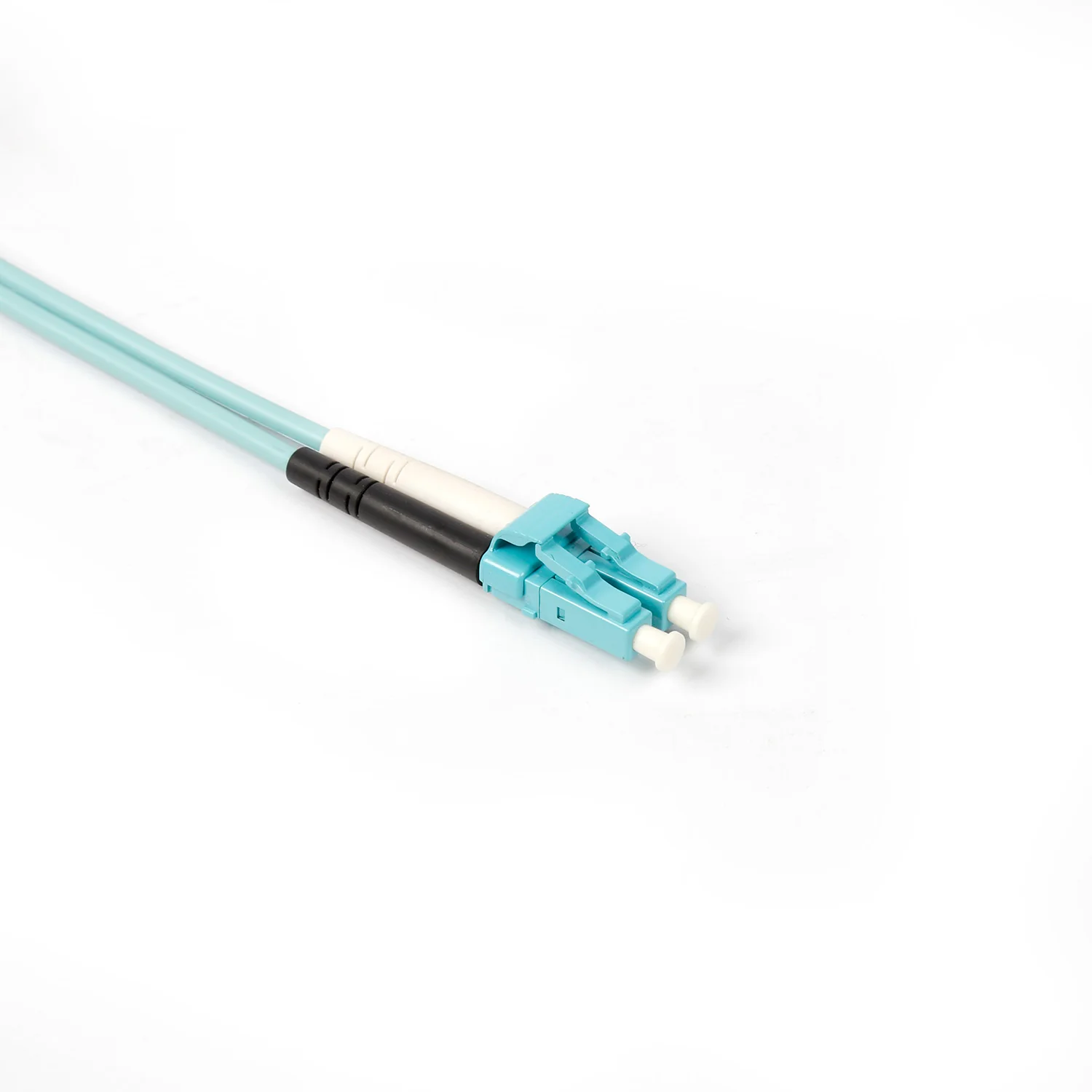

| Connector A | LC UPC Duplex |

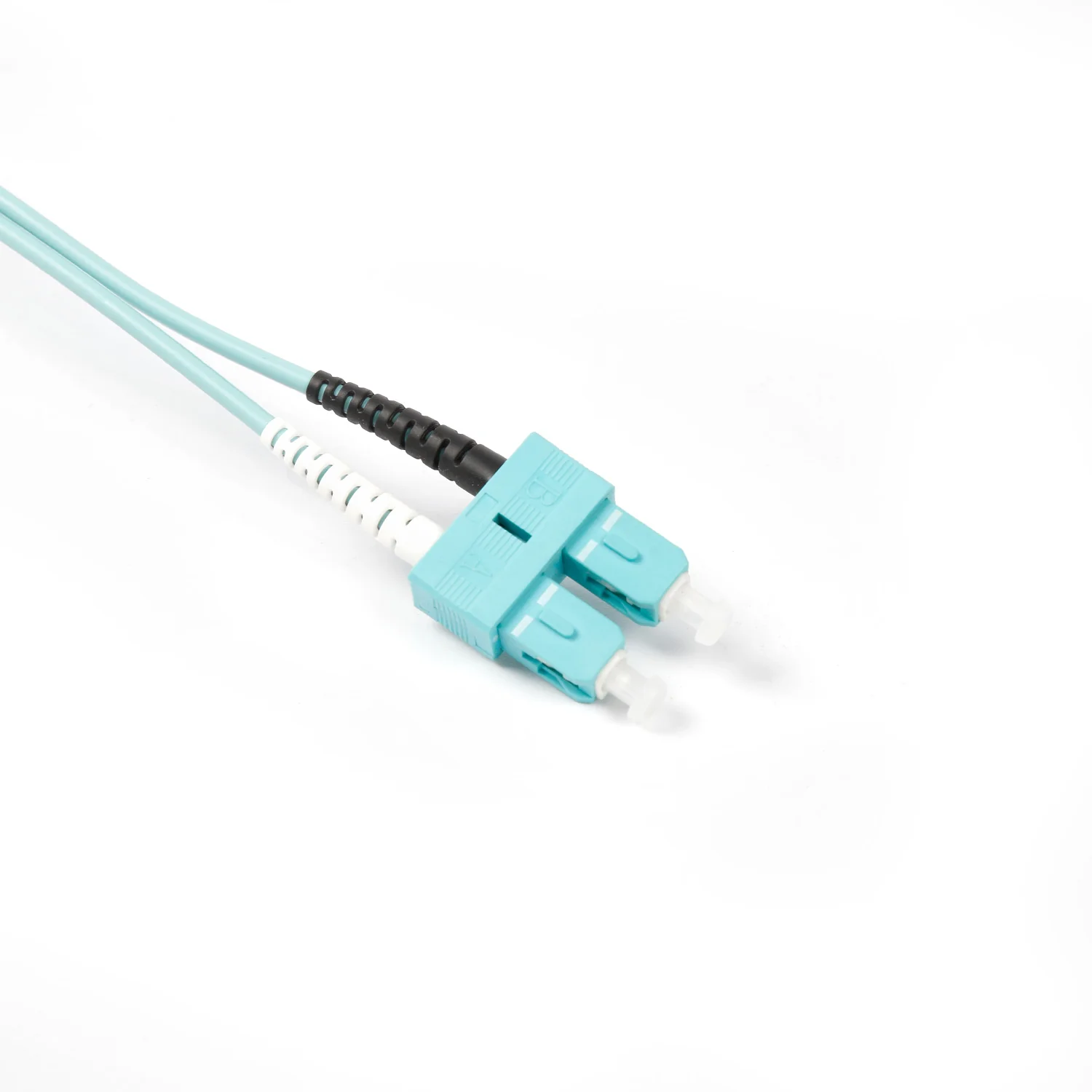

| Connector B | SC UPC Duplex |
| Fiber Count | 2 Fibers (Duplex) |
| Fiber Grade | Bend-insensitive multimode fiber |
| Fiber Mode | OM3 50/125 μm Multimode |
| Wavelength | 850 nm / 1300 nm |
| Polarity | A (Tx) to B (Rx) |
| Cable Type | Tight-buffered |
| Cable Outside Diameter (OD) | 2.0 mm |
| Flame Rating | Riser (OFNR) |
| Min. Bend Radius (Optical Fiber) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 1000 mating cycles |
| Tensile Strength | 90/150 N (Long/Short Term) |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 30 dB |
| Attenuation @ 850 nm | 3.5 dB/km |
| Attenuation @ 1300 nm | 1.5 dB/km |
| Operating Temperature | -10 to 70 °C (14 to 158 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Applications | 10G SR, 10G LRM, SFP+, 10/40/100G MM links, LC device to SC panel/interconnects |
Why Choose NSComm LC UPC to SC UPC Duplex OM3 Patch Cables?
-
LC–SC multimode interoperability – Ideal for connecting LC-based switches, servers, or optics to SC-based patch panels and legacy hardware.
-
Optimized for 10G Ethernet – OM3 is the preferred multimode spec for 10G SR/LRM and supports higher-speed 40G/100G links at short reach.
-
Bend-insensitive OM3 fiber – Reduces attenuation when routed through tight bends, improving reliability in dense cable management systems.
-
Riser-rated 2.0mm design – Durable OFNR jacket suitable for structured cabling in vertical risers and equipment rooms.
-
Pre-terminated and tested – Ensures fast, plug-and-play deployment with consistent optical performance.
Length Options
Standard stocked lengths:
Offered in a variety of common patch cord lengths suitable for switch-to-panel, panel-to-panel, and workstation-to-telecom room connections.
Custom lengths:
Custom lengths, jacket colors, labeling, and polarity options are available on request to match your specific cabling design and deployment standards.
