NSComm S7808C Modular Campus Core Switch 6-Slot(Chassis Only)

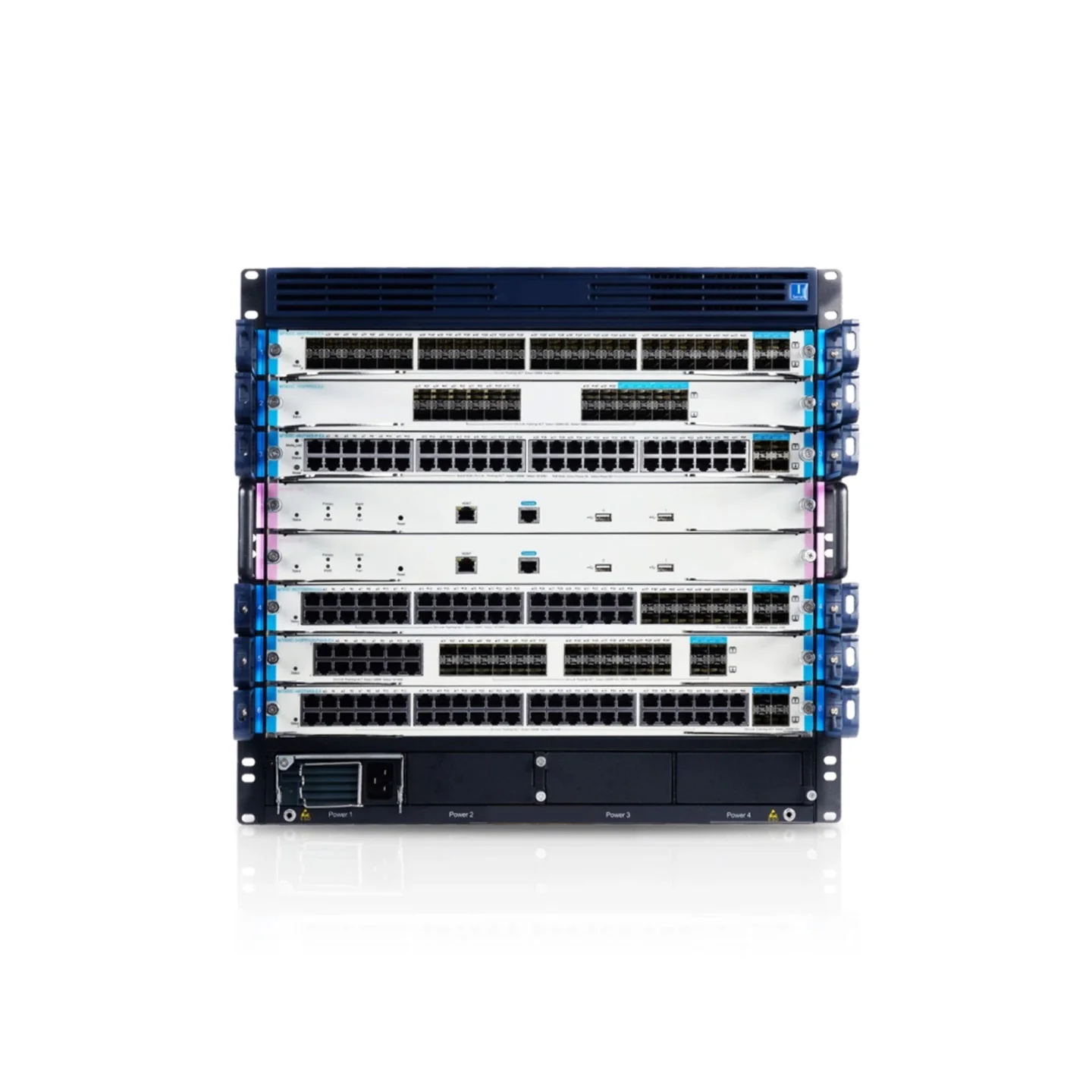

NS-S7808C 8-Slot Modular Campus Core Switch
Overview
The NS-S7808C elevates campus-core performance with an 8-slot, 10 RU modular chassis engineered for maximum flexibility and capacity. It provides two supervisor engine bays and six service-slot bays, accommodating line cards ranging from 1 GbE up to 100 GbE. With up to 40.72 Tbps switching fabric and 14 400 Mpps packet throughput, the NS-S7808C is purpose-built for large-scale enterprise, carrier, and data-center interconnect environments. Its RGOS 11.X OS integrates virtualization (VSU, VSD), SDN (OpenFlow 1.3), and advanced telemetry to simplify O&M at scale.
Highlights
-
Massive Fabric Throughput
• 40.72 Tbps non-blocking switching capacity; up to 14 400 Mpps forwarding -
Scalable Slot Design
• 2 engine + 6 service slots for hot-plug modules: 1/10/25/40/100 GbE mix-and-match -
Unified Virtualization
• VSU for device clustering; VSD for dynamic service allocation
• Ideal for multi-tenant and hybrid SD-WAN architectures -
Comprehensive L2/L3 Services
• MPLS, ERPS, VXLAN/EVPN, extensive ACLs, BGP, OSPF, QoS, multicast -
High Availability
• 1+1 redundant PSUs, 4+2 redundant fan modules, dual-boot flash
• Real-time gRPC telemetry and syslog
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA300IB-F | AC Power Module | 300 W hot-swap PSU (100–240 VAC) |
| NS-PD600IB-F | DC Power Module | –48 V DC, 600 W hot-swap PSU |
| NS-RMK-4U | Rack Mount Kit | 19″ 10 RU mounting brackets |
| Line-Card Modules | Service Slot Cards | 1/10/25/40/100 GbE interface modules |
Compare with Similar Models
| Model | Slots & Port Modules | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S7805C | 2 engines + 3 service slots; mix of 10/25/40/100 GbE cards | 6 Tbps | 4 800 Mpps | 1+1 PSUs; 1+1 flash; redundant fans |
| NS-S7805C | Same | Same | Same | Same |
| Ruijie RG-S7808C | 2 engines + 6 service slots; mix of 1/10/25/40/100 GbE cards | 40.72 Tbps | 14 400 Mpps | 1+1 PSUs; 2+1 flash; 4+2 fans |
| NS-S7808C | Same | Same | Same | Same |
| Ruijie RG-S7810C | 2 engines + 8 service slots; supports up to 400 GbE cards | 47.7 Tbps | 10 065 Mpps | 1+1 PSUs; 2+1 flash; 6+2 fans |
| NS-S7810C | Same | Same | Same | Same |
| Ruijie RG-S7810C-X | Same chassis as S7810C with extended-capacity backplane | 86.4 Tbps | 11 610 Mpps | 2+2 PSUs; 2+1 flash; 8+2 fans |
| NS-S7810C-X | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS-S7808C |
| Chassis Slots | 2 supervisor + 6 service slots |
| Fabric Capacity | 40.72 Tbps |
| Forwarding Rate | 14 400 Mpps |
| Backplane per Slot | Up to 106 Gbps |
| MAC / ARP Tables | 64 K / 20 K entries |
| Virtualization | VSU, VSD |
| SDN & Telemetry | OpenFlow 1.3, gRPC, SNMP, sFlow |
| Redundancy | 1+1 PSUs, 4+2 fans, dual-boot flash |
| Power Consumption | 450 W (base chassis) |
| Dimensions (W×D×H) | 442×465×441.7 mm (10 RU) |
| Weight | 32.35 kg (empty) |
| Operating Environment | 0 °C to 45 °C; up to 90% non-condensing RH |
