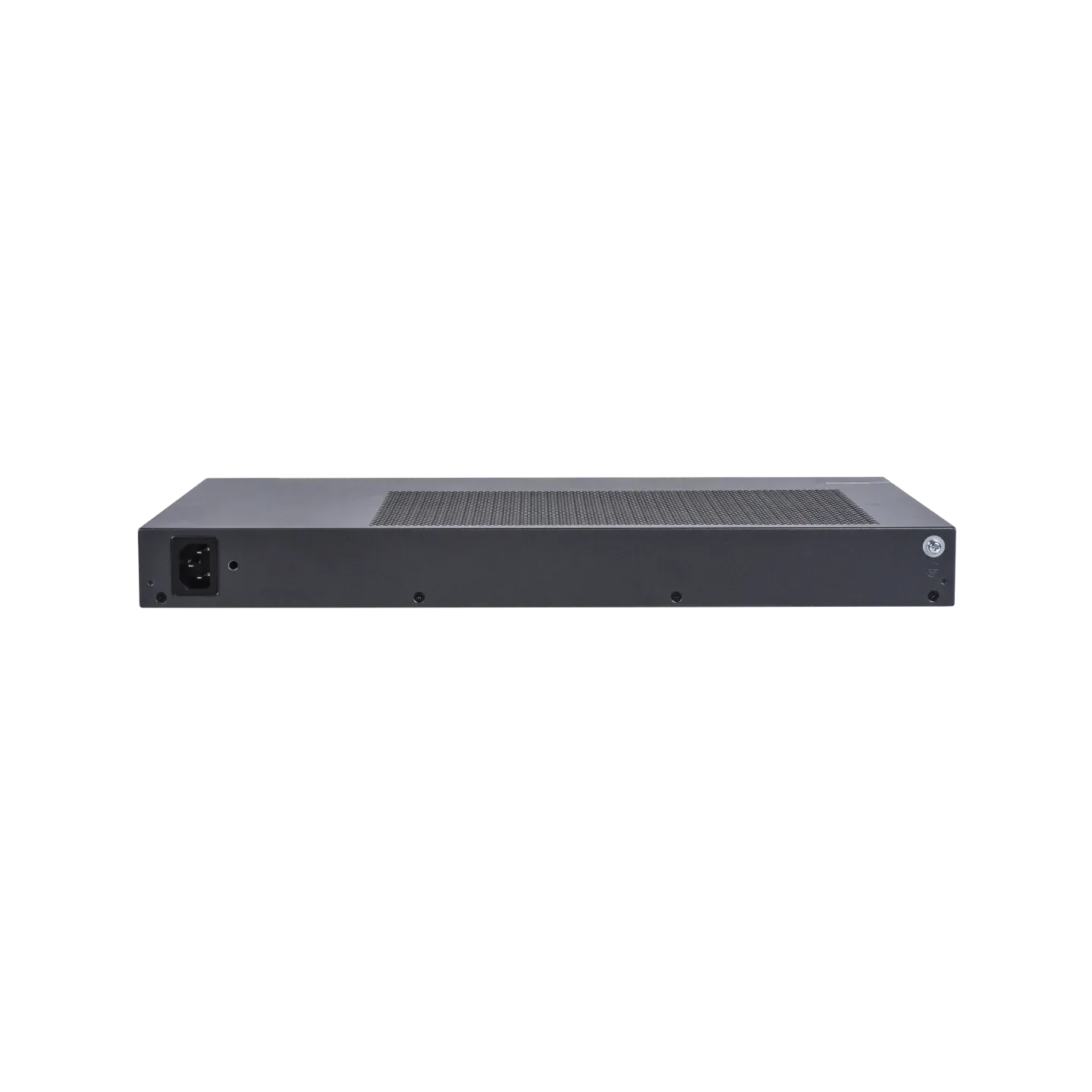

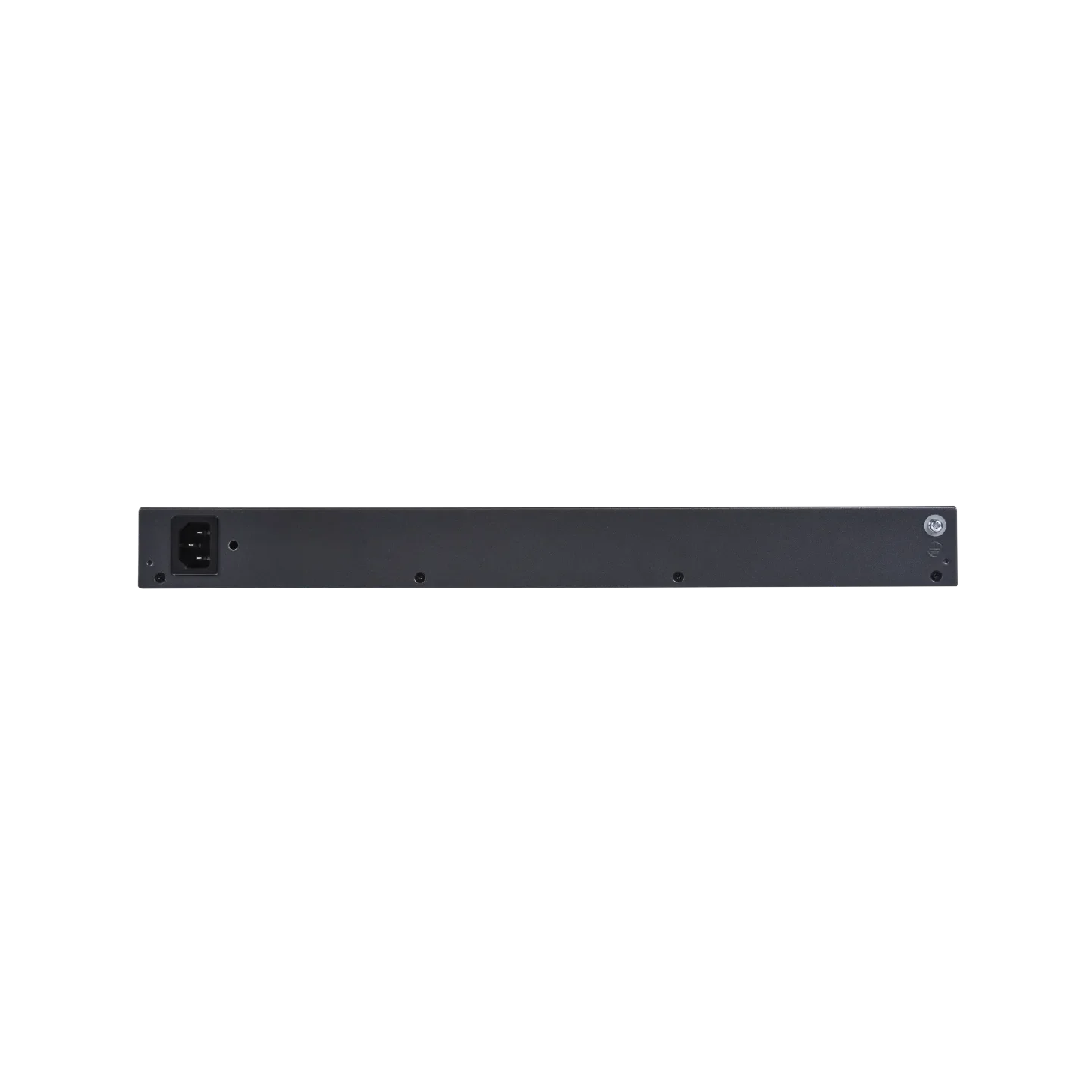

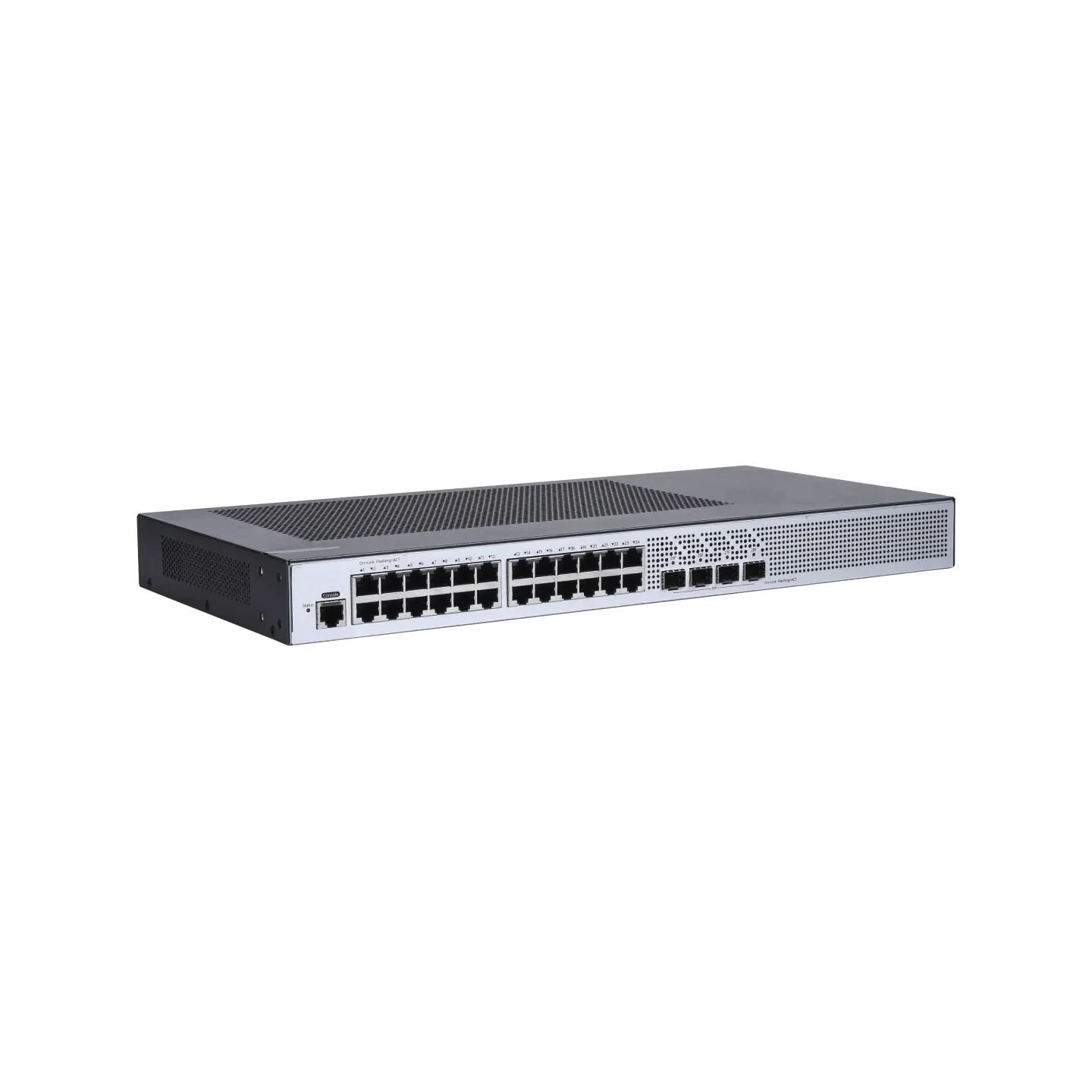

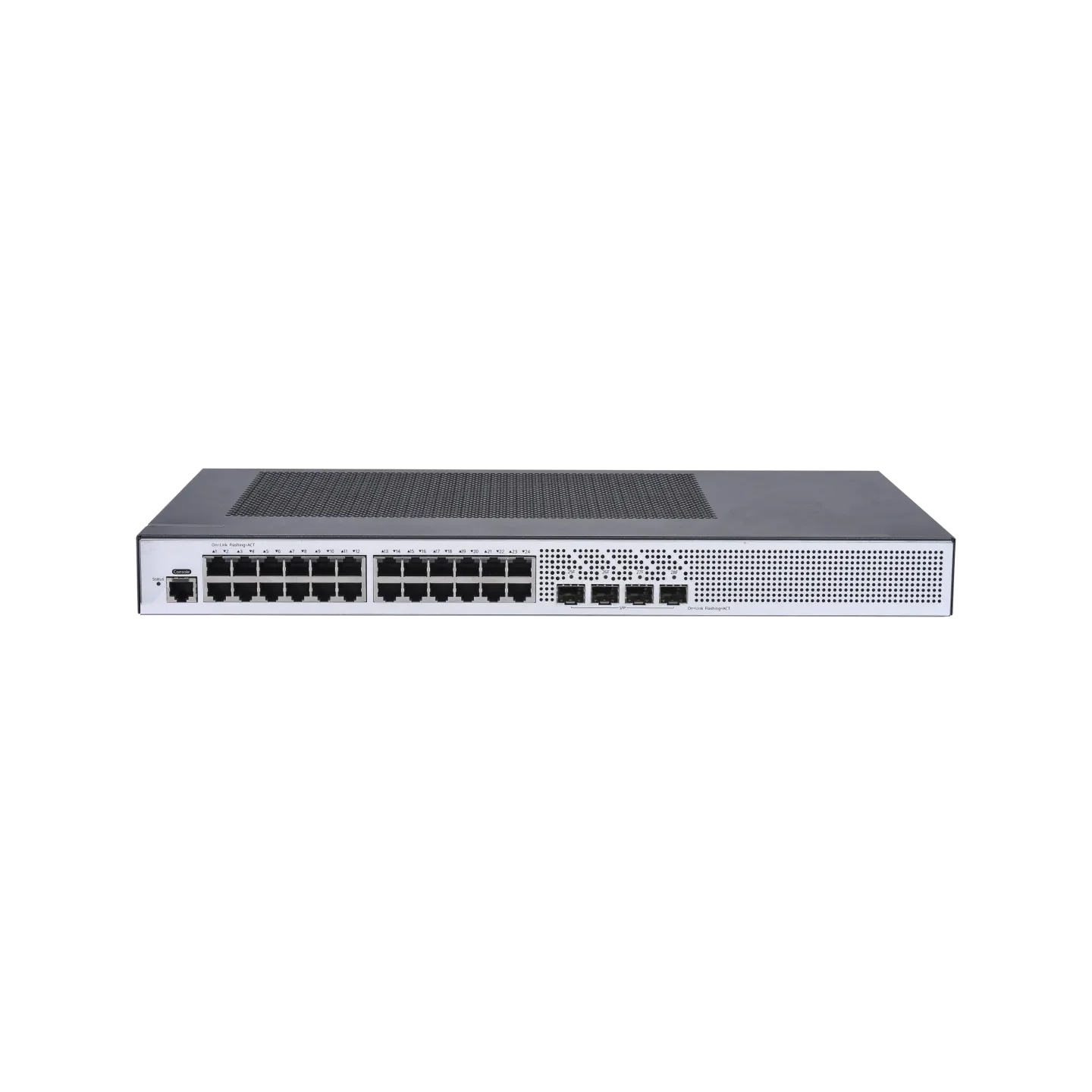

NSComm S2928G-E 24x1G & 4x1G SFP L2+ Managed Switch

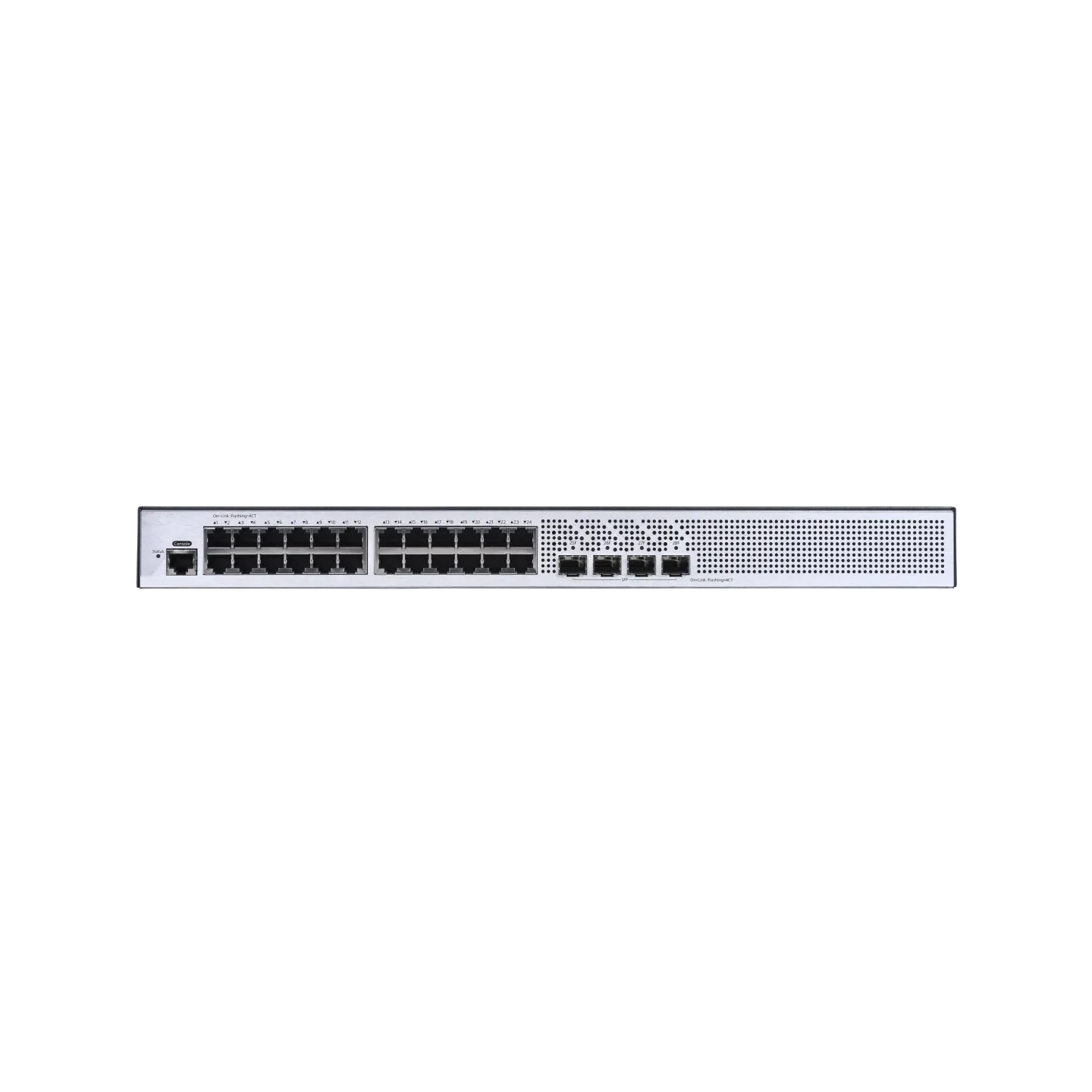

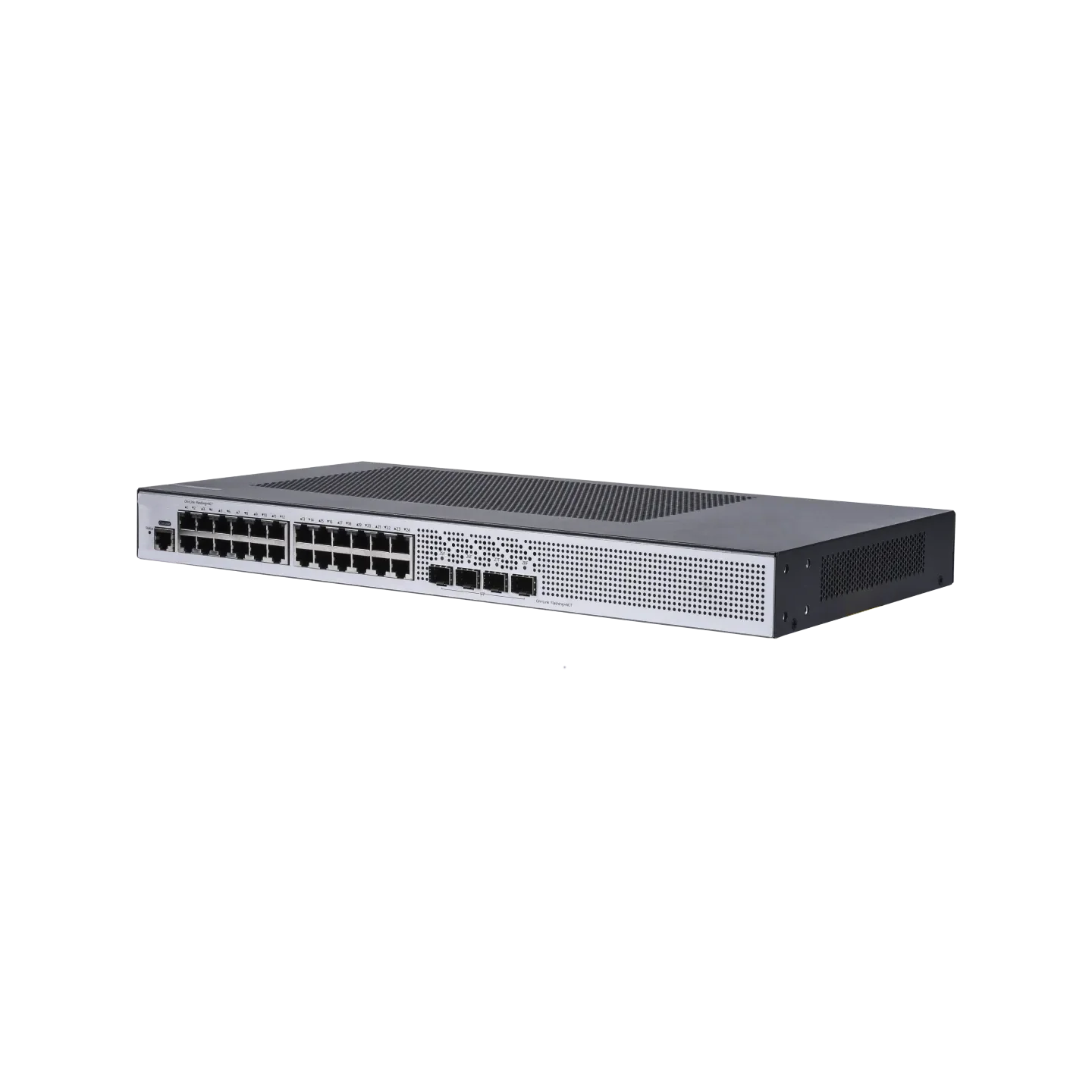

NS‑S2928G‑E, 24‑Port Gigabit Access Switch with 4×1 Gbps SFP Uplinks
As a leading manufacturer alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers identical high‑quality switching hardware under OEM branding. Our NS‑S2900G‑E series delivers the same performance, reliability, and feature set as Ruijie’s RG‑S2900G‑E V3 models—under your own brand with flexible support and pricing options.
Overview
The NS‑S2928G‑E mirrors the Ruijie RG‑S2928G‑E V3 model. It features 24 Gigabit RJ45 access ports and 4 dedicated 1 Gbps SFP uplink ports, ideal for enterprise campus or branch deployments.
It supports Layer 2+ switching with basic Layer 3 routing, VSU virtualization, high security, and energy-efficient design. Fanless for quiet operation, it’s perfect for noise-sensitive environments.
Highlights
-
VSU Virtualization: Allows up to 4 devices (recommended) to operate as a single logical switch.
-
Robust CPU Protection: CPP and NFPP technologies to guard against DoS and CPU degradation.
-
Layer 2+ & Basic L3 Support: VLANs, QinQ, LACP, static IPv4/IPv6 routing, OSPF, and VRRP.
-
Comprehensive Security: DHCP snooping, ARP inspection, IP/MAC binding, ACL (IPv6-ready), SSH, SNMPv3.
-
Energy Efficiency: Fanless chassis (low-power), EEE support, auto-power-down.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA100‑AC | Power Supply Unit | 100–240V AC power input module |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode 850 nm fiber module |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single-mode 1310 nm fiber module |
| NS‑SFP‑10G‑SR | SFP+ Transceiver | 10 Gbps multimode 850 nm fiber module |
| NS‑RMK‑1U | Rack Mount Kit | Kit for installing in standard 19″ rack |
| NS‑Console‑Rj45 | Console Cable | RJ45 to DB9/USB console management cable |
Compare with Similar Models
| Model | Ports (Down/Uplink) | Capacity | Forward Rate | PoE Support | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S2928G‑E V3 | 24 × 1 GbE + 4 × 1 GbE SFP | 256 Gbps | 96 Mpps | None | L2+/L3, VSU, fanless, CPP/NFPP |
| NSComm S2928G‑E | 24 × 1 GbE + 4 × 1 GbE SFP | 256 Gbps | 96 Mpps | None | Same specs under your brand identity |
| Ruijie RG‑S2952G‑E V3 | 48 × 1 GbE + 4 × 1 GbE SFP | 256 Gbps | 132 Mpps | None | Higher port density, L2+/L3, VSU, robust CPU protection |
|

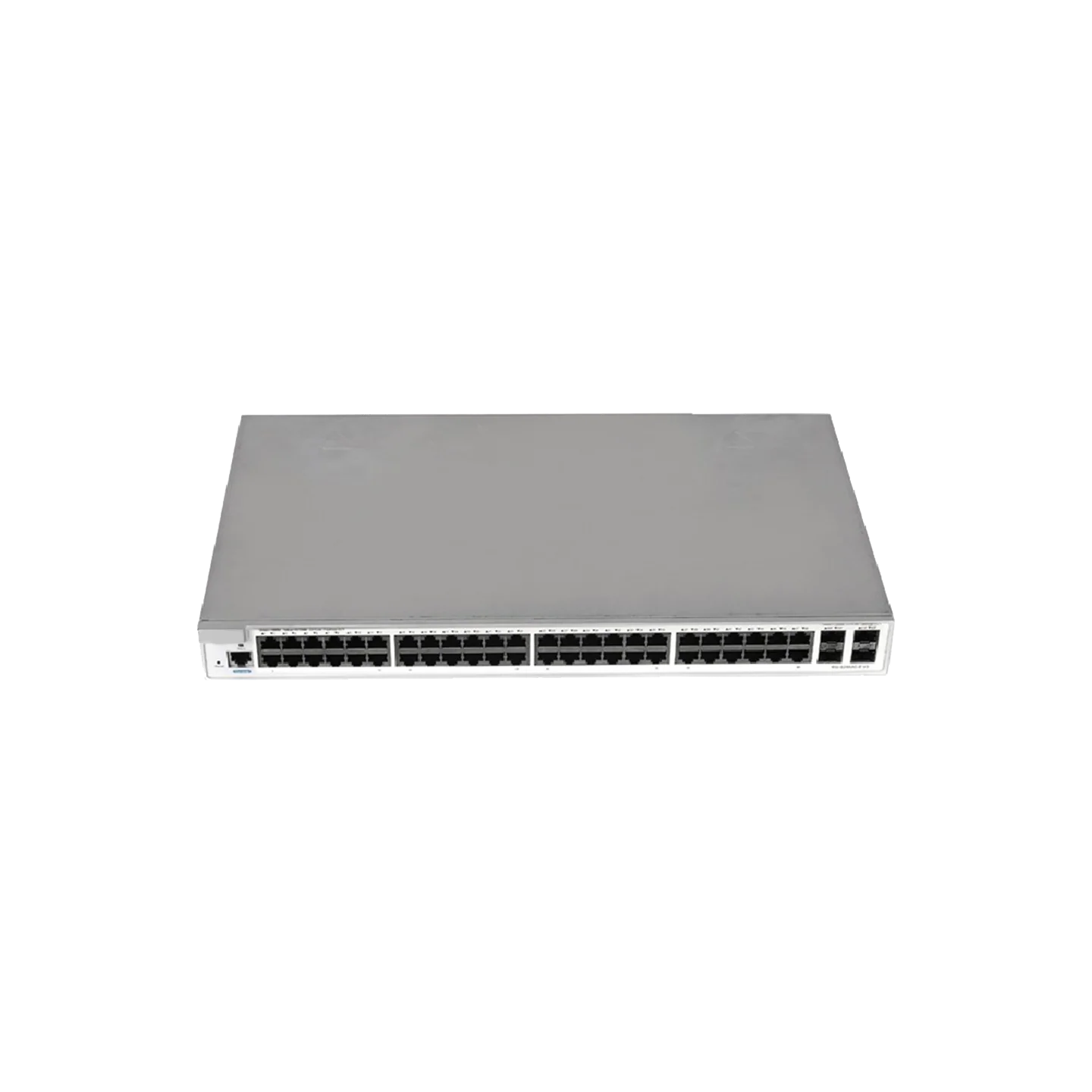

NSComm S2952G‑E |
48 × 1 GbE + 4 × 1 GbE SFP | 256 Gbps | 132 Mpps | None | Equivalent performance under your brand |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S2928G‑E |
| Downlink Ports | 24 × 10/100/1000BASE‑T |
| Uplink Ports | 4 × 1 Gbps SFP (non‑combo) |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | Up to 96 Mpps |
| Port Buffer | 1.5 MB |
| MAC Address Table | ~16,000 entries |
| ARP Table Size | ~1,000 entries |
| Routing Entries | 500 IPv4/IPv6 entries |
| ACL Entries | Up to 1,500 entries |
| VLAN Support | Up to 4,096 (QinQ, Private VLAN, Voice VLAN, etc.) |
| QoS Mechanisms | 802.1p, DSCP, multiple queue scheduling options |
| Virtualization | VSU supported (up to 9 units, 4 recommended) |
| CPU Protection | CPP / NFPP technologies |
| Layer 3 Protocols | Static routing, RIP, OSPF, VRRP |
| SDN Support | OpenFlow 1.0 (future 1.3) |
| Security Features | DHCP snooping, ARP inspection, IP/MAC binding, ACL, SSH, SNMPv3 |
| Fan Design | Fanless (temperature‑controlled) |
| Power Input | AC 100–240V, DC 192–290V optional |
| Power Consumption | ≤ 25 W |
| Operating Temp/Humidity | 0–50 °C, 10–90%RH |
| Dimensions (W×D×H) | 440 × 260 × 43.6 mm |
| Rack Height | 1U |
| Weight | ≤ 3.5 kg |
| MTBF | ~300,000 hours |
| Lightning Protection | 6 KV surge rating |
