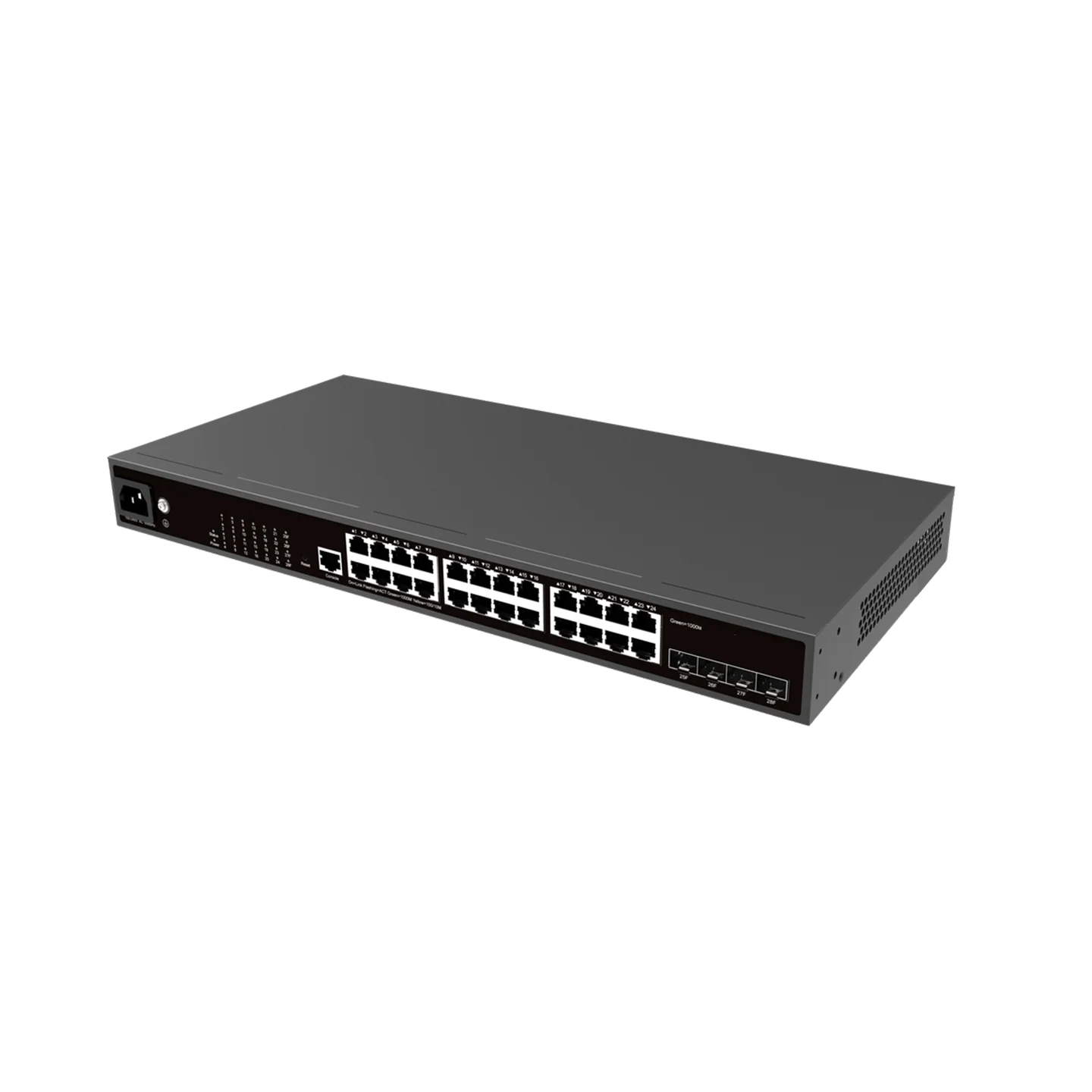

NSComm S2300-24GT4SFP 24x1G & 4x1G SFP Access Switch
NS‑S2300‑24GT4SFP – 24‑Port Gigabit Managed Switch with 4×1 Gbps SFP Uplinks
As one of the trusted manufacturers alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers equivalent high-quality products with the same performance and specifications as leading brands. Our NS‑S2300 series provide identical performance under your own brand label.
Overview
The NS‑S2300‑24GT4SFP is engineered to perform identically to the Ruijie RG‑S2300‑24GT4SFP model, with 24 Gigabit ports and 4 SFP fiber uplinks delivering dependable performance. Ideal for mid-size enterprises or campus deployments requiring efficient Layer 2 switching.
Highlights
-
Stable Performance: 56 Gbps switching capacity and 41.66 Mpps forwarding ensure consistent throughput.
-
Flexible Fiber Uplinks: 4×1 Gbps SFP ports for fiber backbone or aggregation.
-
Quiet & Efficient: Energy-saving IEEE 802.3az and fanless design.
-
Comprehensive L2 Features: VLAN, ACLs, QoS, IGMP snooping, link aggregation, ERPS support.
-
Secure & Manageable: 802.1X, DHCP snooping, IP Source Guard, SNMP/Web/CLI management.
Recommended Accessories
| Accessory | Description |
|---|---|
| NS‑PA600I‑P‑F (Power Module) | 240 W AC power supply module (same footprint as Ruijie RG‑PA600I) |
| Mini‑GBIC‑GT / SX / LX SFP | Compatible 1 Gbps SFP transceivers (copper/fiber options: 850 nm, 1310 nm) |
| XG‑SFP‑SR / LR SFP+ | Compatible 10G SFP+ modules for short‑range & long‑range fiber links |
| 1U Rack Mount Kit | For secure rack installation into standard 19″ enclosures |
Compare with Similar Models
| Model | Downlink Ports | Uplink Ports | Switching Capacity | Forward Rate | Brand |
|---|---|---|---|---|---|
| Ruijie RG‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Ruijie |
| NS‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Network‑Switch (our brand) |
| Ruijie RG‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Ruijie |
| NS‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Network‑Switch |
| Ruijie RG‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Ruijie |
| NS‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Network‑Switch |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S2300‑24GT4SFP |
| Ports | 24×10/100/1000BASE‑T; 4×1 Gbps SFP |
| PoE Support | None |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | ~41.66 Mpps |
| MAC Table Entries | ~16,000 |
| VLANs Supported | Up to 4,094 |
| Operating Temp | 0 °C to 50 °C |
| Dimensions | 440×208×44 mm |
| Weight | ~2.4 kg |
| Ingress Protection | IP40 |
| Management | SNMP / Web / CLI / Cloud-compatible |
| MTBF | ≥200,000 hours |
