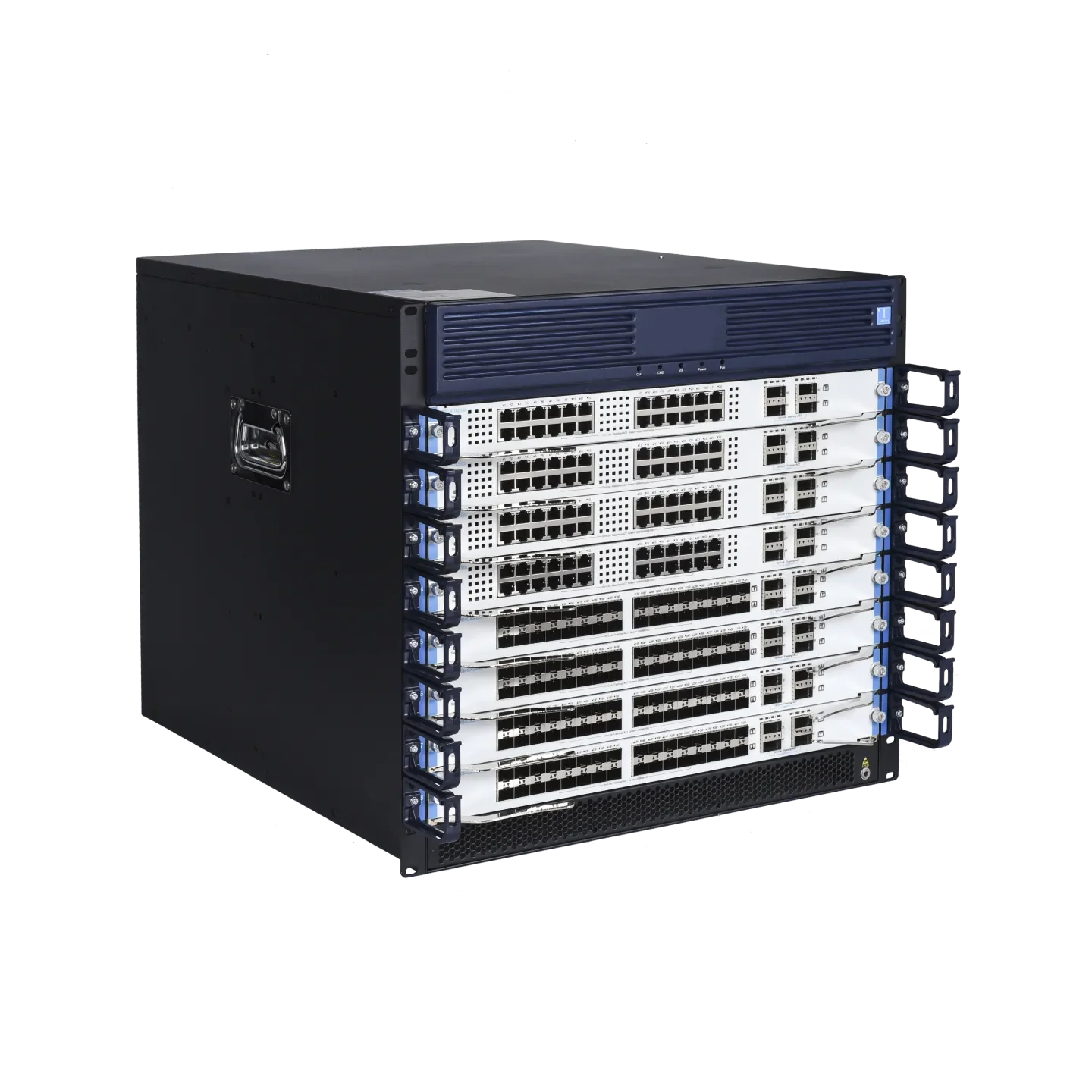

NSComm S7810C Modular Campus Core Switch 10-Slot (Chassis Only)
NS-S7810C 10-Slot Modular Campus Core Switch
Overview
The NS-S7810C is the flagship 4 RU chassis in our portfolio, offering ten module bays (two supervisor + eight service slots) for maximum port scalability and system throughput.
Outfitted with a next-generation RGOS 11.X OS, it supports VSU3.0, VSD, EVPN-VXLAN overlay, OpenFlow SDN, and in-band telemetry.
With 47.7 Tbps of switching capacity and 10 065 Mpps forwarding, the NS-S7810C can handle the most demanding converged networks—whether powering campus cores, service-provider MANs, or data-center leaf-spine fabrics.
Highlights
-
Extreme Slot Density
• 2 supervisor + 8 service slots; supports line cards from 1 GbE to 400 GbE -
High-Capacity Fabric
• 47.7 Tbps switching capacity; 10 065 Mpps forwarding -
Integrated Virtualization & SDN
• VSU3.0, VSD for service pooling; VXLAN/EVPN overlay; OpenFlow 1.3 control plane -
Advanced Network Services
• MPLS, segment routing, BGP, OSPF, ACL/QoS, multicast, telemetry, and analytics -
Unmatched Resilience
• 1+1 PSU redundancy, 6+2 fan redundancy, dual-boot flash modules
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA600II-F | AC Power Module | 600 W hot-swap PSU |
| NS-PA1200II-F | AC Power Module | 1200 W high-capacity hot-swap PSU |
| NS-RMK-4U | Rack Mount Kit | 19″ 4 RU mounting brackets |
| Expansion Cards | Service Slot Modules | 10/25/40/100/200/400 GbE line cards |
Compare with Similar Models
| Model | Slots & Port Modules | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S7805C | 2 engines + 3 service slots; mix of 10/25/40/100 GbE cards | 6 Tbps | 4 800 Mpps | 1+1 PSUs; 1+1 flash; redundant fans |
| NS-S7805C | Same | Same | Same | Same |
| Ruijie RG-S7808C | 2 engines + 6 service slots; mix of 1/10/25/40/100 GbE cards | 40.72 Tbps | 14 400 Mpps | 1+1 PSUs; 2+1 flash; 4+2 fans |
| NS-S7808C | Same | Same | Same | Same |
| Ruijie RG-S7810C | 2 engines + 8 service slots; supports up to 400 GbE cards | 47.7 Tbps | 10 065 Mpps | 1+1 PSUs; 2+1 flash; 6+2 fans |
| NS-S7810C | Same | Same | Same | Same |
| Ruijie RG-S7810C-X | Same chassis as S7810C with extended-capacity backplane | 86.4 Tbps | 11 610 Mpps | 2+2 PSUs; 2+1 flash; 8+2 fans |
| NS-S7810C-X | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS-S7810C |
| Chassis Slots | 2 supervisor + 8 service slots |
| Switching Capacity | 47.7 Tbps |
| Forwarding Rate | 10 065 Mpps |
| VLANs | 4094 |
| MAC / ARP Tables | 512 K / 256 K entries |
| Virtualization | VSU3.0, VSD, EVPN-VXLAN, OpenFlow 1.3 |
| Resilience | 1+1 PSUs, 6+2 fans, dual-flash boot |
| Power Consumption | 650 W (chassis only) |
| Dimensions (W×D×H) | 442×580×177 mm (4 RU) |
| Weight | 29.5 kg (empty) |
| Operating Environment | 0 °C to 45 °C; 10–90% RH non-condensing |
