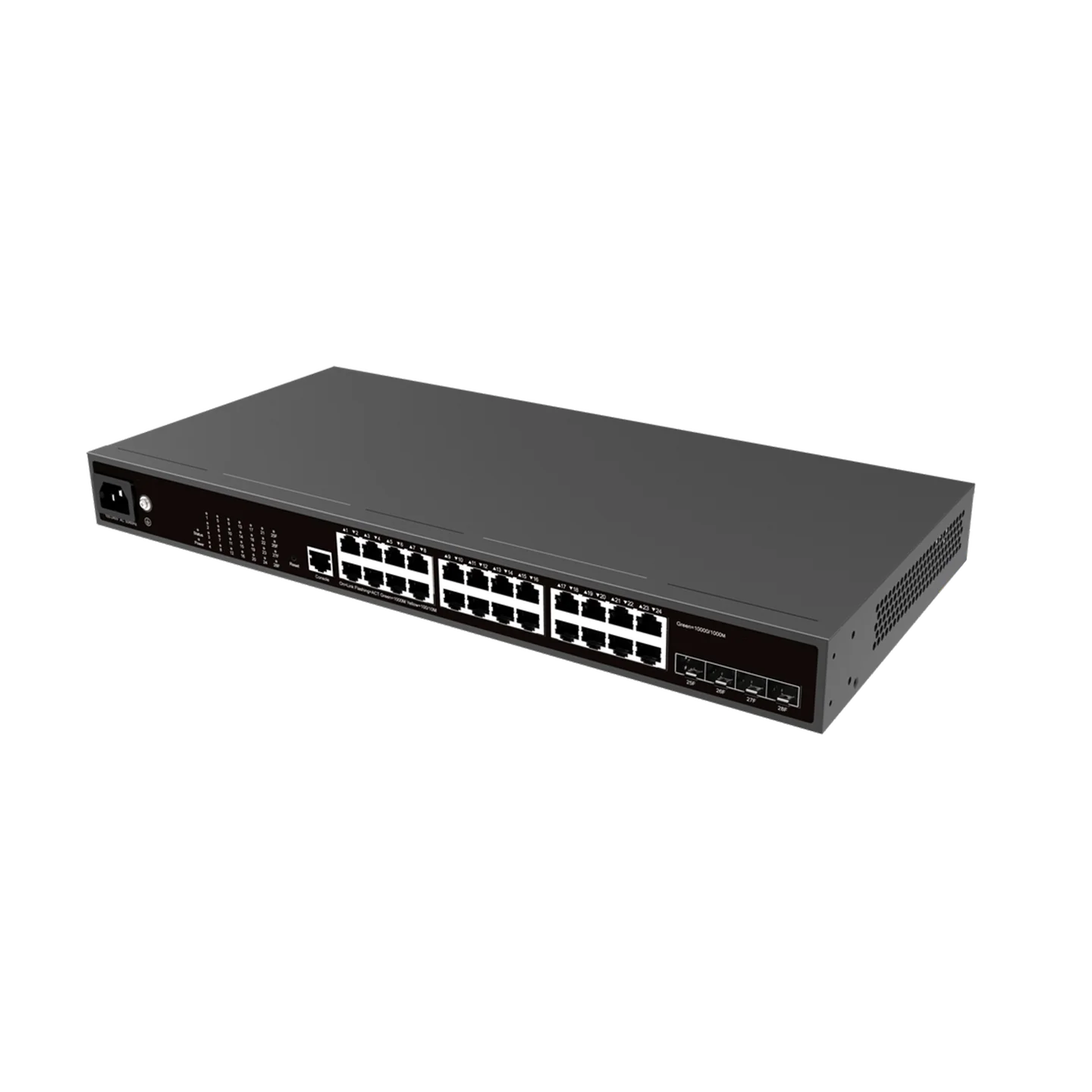

NSComm S2300-24GT4XS 24x1G & 4x10G SFP+ Access Switch
NS‑S2300‑24GT4XS – 24‑Port Gigabit Managed Switch with 4×10 Gbps SFP+ Uplinks
As one of the trusted manufacturers alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers equivalent high-quality products with the same performance and specifications as leading brands. Our NS‑S2300 series provide identical performance under your own brand label.
Overview
The NS‑S2300‑24GT4XS is a premium Layer 2 managed switch. With 24 Gigabit Ethernet ports and four flexible 1/10 Gbps SFP+ uplinks, it’s designed to deliver smooth, high‑throughput networking for enterprise access, campuses, or branch deployments.
As part of our manufacturing alongside top-tier brands, this switch matches the capabilities of Ruijie’s RG‑S2300‑24GT4XS model and ensures excellent reliability and support.
Highlights
-
Ultra‑High Performance: Switching capacity of 128 Gbps and forwarding rate of 96 Mpps—ideal for heavy traffic scenarios.
-
Flexible Connectivity: 4 SFP+ ports support both 1 Gbps and 10 Gbps uplinks for scalable network design.
-
Fanless, Silent Operation: Zero-noise chassis, suitable for office and quiet environments.
-
Advanced Security & L2 Features: Support for IEEE 802.1X, IP Source Guard, ARP Inspection, ACLs, QoS, VLANs, ERPS, STP/RSTP/MSTP.
-
Multi-Method Management: Web GUI, SNMP v1/2/3, CLI, SSH, RMON—with cloud readiness.
Recommended Accessories
| Accessory | Description |
|---|---|
| NS‑PA600I‑P‑F (Power Module) | 240 W AC power supply module (same footprint as Ruijie RG‑PA600I) |
| Mini‑GBIC‑GT / SX / LX SFP | Compatible 1 Gbps SFP transceivers (copper/fiber options: 850 nm, 1310 nm) |
| XG‑SFP‑SR / LR SFP+ | Compatible 10G SFP+ modules for short‑range & long‑range fiber links |
| 1U Rack Mount Kit | For secure rack installation into standard 19″ enclosures |
Compare with Similar Models
| Model | Downlink Ports | Uplink Ports | Switching Capacity | Forward Rate | Brand |
|---|---|---|---|---|---|
| Ruijie RG‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Ruijie |
| NS‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Network‑Switch (our brand) |
| Ruijie RG‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Ruijie |
| NS‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Network‑Switch |
| Ruijie RG‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Ruijie |
| NS‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Network‑Switch |
Specification Summary
|
Specifications
|
|
|
Model
|
NS‑S2300‑24GT4XS
|
|
Size (W x D x H)
|
440 x 208 x 44 mm
|
|
Cache
|
1.5 MB
|
|
Fixed Ports
|
|
|
Switching Capacity
|
128 Gbps
|
|
Packet Forwarding Rate
|
95.23 Mpps
|
|
Energy Saving
|
IEEE 802.3az standard EEE energy saving technology
|
|
MAC Address
|
16K
|
|
|
|
|
802.1Q VLAN
|
|
|
QinQ
|
|
|
Layer 2 Ring Network
|
|
|
AP
|
|
|
Multicast
|
|
|
Routing
|
|
|
DHCP
|
|
|
PPPoE
|
PPPoE Intermediate Agent
|
|
QoS
|
|
|
ACL
|
|
|
Ipv6 Basic Protocol
|
|
|
Security
|
|
|
Management
|
|
|
Power Supply
|
AC input:
100 V to 240 V
90 V to 264 V
DC input:
|
|
Temperature
|
|
|
Humidity
|
|
