NSComm S6920-4C 100G Modular Switch(Basic)

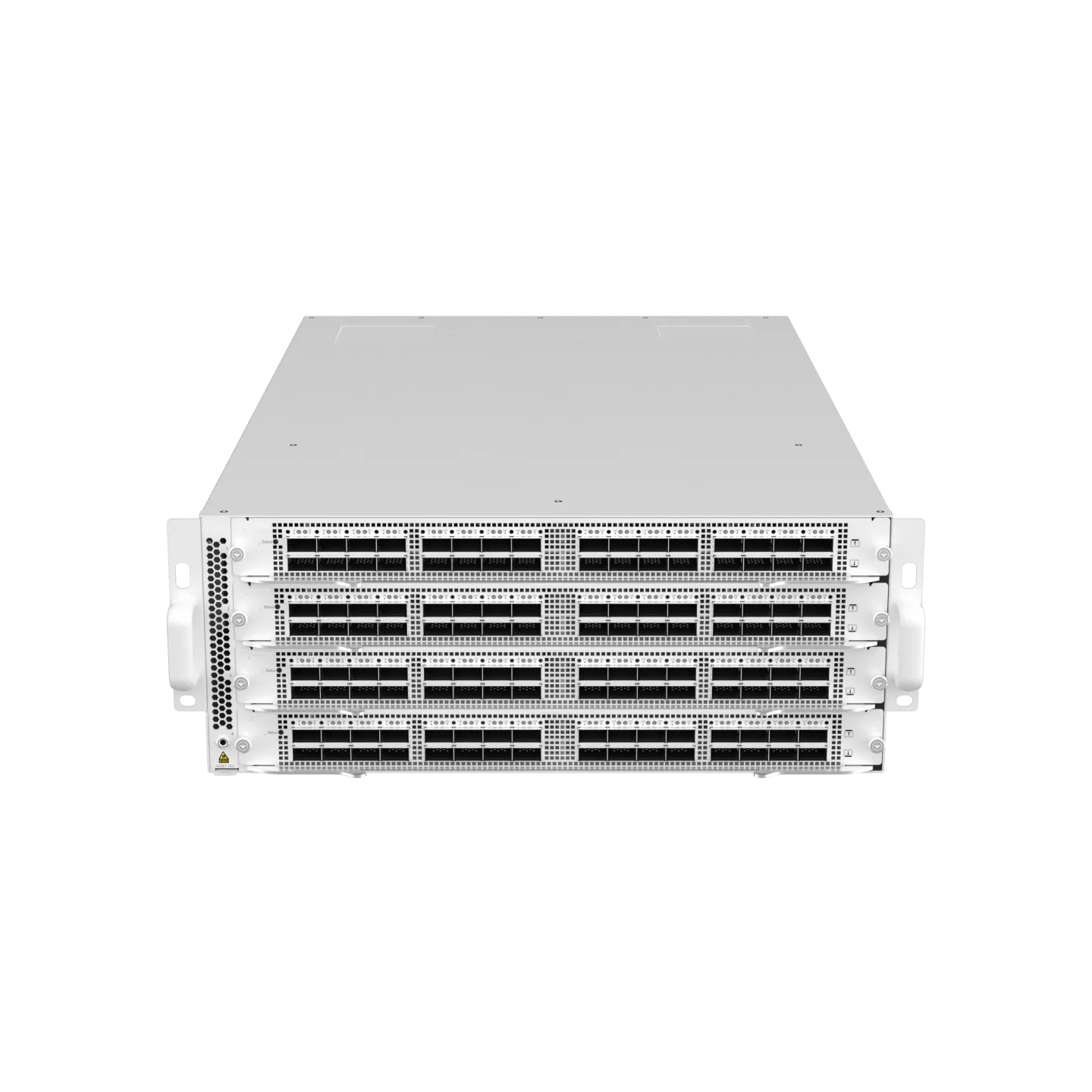

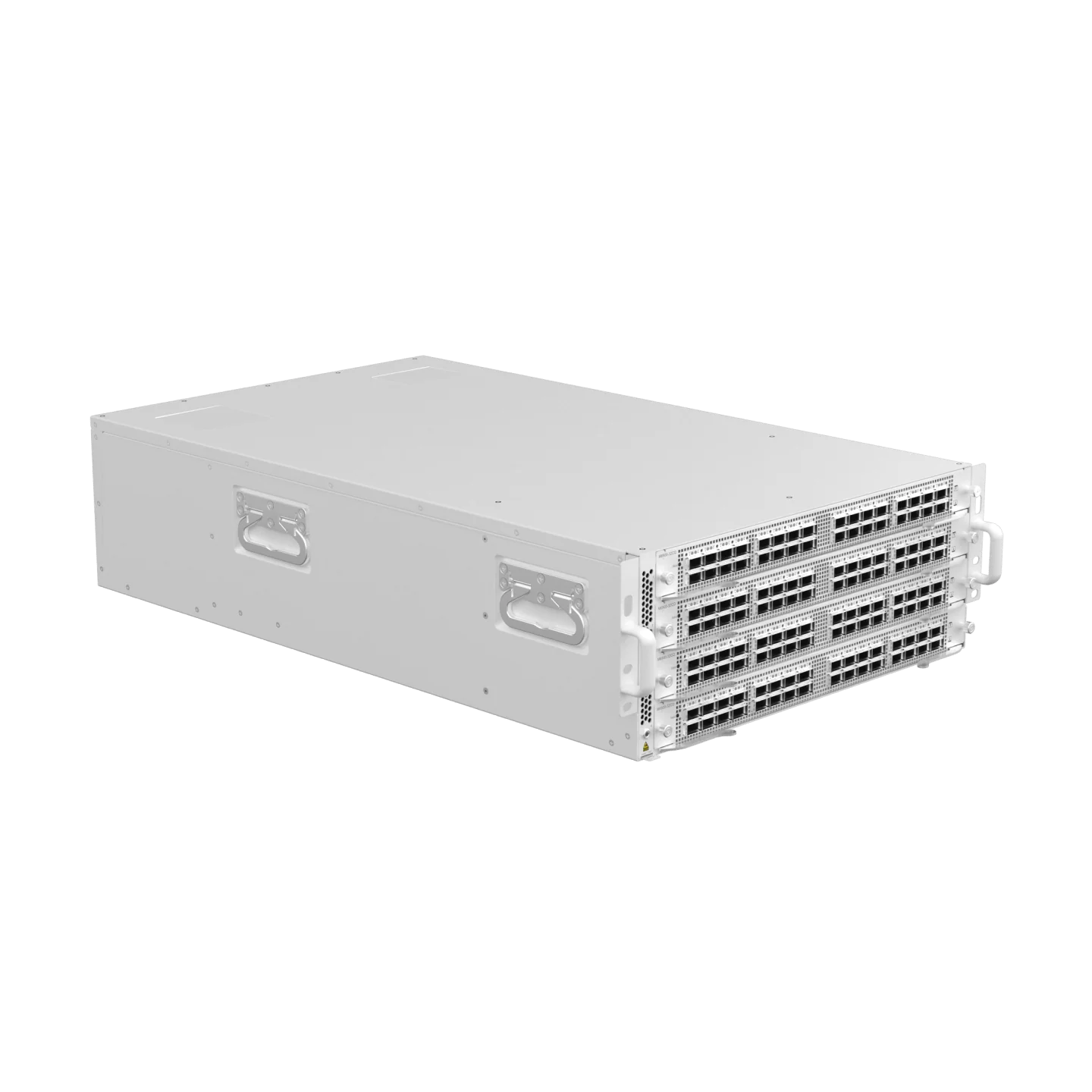

NS-S6920-4C Modular 4-Slot 4 RU Data Center Switch
As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm delivers high-performance data-center and core/aggregation switches under the NS-S6990/6980/6930/6920/6910 series.
These devices match Ruijie’s RG-S6990, RG-S6980, RG-S6930, RG-S6920, and RG-S6910 Series in port density, non-blocking throughput, virtualization (VSU, EVPN-VXLAN), hardware redundancy, and advanced telemetry/management, all under your own branding.
Overview
The NS-S6920-4C supports four line-card slots (up to 128×100 GbE or 64×100 GbE + 16×400 GbE), providing 25.6 Tbps of non-blocking throughput and 8 000 Mpps forwarding for spine-leaf and DCI topologies.
Highlights
-
25.6 Tbps switching capacity
-
8 000 Mpps forwarding rate
-
4× expansion slots: 32×100 GbE each
-
2+2 PSUs; 5+1 fans
-
PFC/ECN, RDMA, M-LAG, VSU
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RG-PA1200I-F | Power Module | 1 200 W hot-swap PSU, 2+2 redundancy |
| M2EFAN I-F | Fan Module | 5+1 hot-swap redundancy |
| NS-RMK-2U | Rack Mount Kit | 19″ 4 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Cap. | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S6990-128QC2XS | 128×400 GbE QSFP112 + 2×10 GbE SFP+ | 102.4 Tbps | 21 000 Mpps | 2+2 PSUs; 4+1 fans |
| NS-S6990-128QC2XS | Same | Same | Same | Same |
| Ruijie RG-S6980-64QC | 64×400 GbE QSFP-DD | 51.2 Tbps | 10 300 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6980-64QC | Same | Same | Same | Same |
| Ruijie RG-S6980-128DC | 128×200 GbE QSFP56 | 51.2 Tbps | 10 300 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6980-128DC | Same | Same | Same | Same |
| Ruijie RG-S6930-2C | 2 slots (72×100 GbE or 36×200 GbE each) | 28.8 Tbps | 5 400 Mpps | 2+2 PSUs; 7+1 fans |
| NS-S6930-2C | Same | Same | Same | Same |
| Ruijie RG-S6920-4C | 4 slots (32×100 GbE each; up to 128×100 GbE) | 25.6 Tbps | 8 000 Mpps | 2+2 PSUs; 5+1 fans |
| NS-S6920-4C | Same | Same | Same | Same |
| Ruijie RG-S6910-3C | 3 slots (32×100 GbE each; up to 96×100 GbE) | 19.2 Tbps | 4 000 Mpps | 2+2 PSUs; 5+1 fans |
| NS-S6910-3C | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS-S6920-4C |
| Expansion Slots | 4 slots (32×100 GbE per module) |
| Switching Capacity | 25.6 Tbps |
| Forwarding Rate | 8 000 Mpps |
| PSUs & Fans | 4×PSU (2+2); 6×fans (5+1) |
| Dimensions (W×D×H) | 442×173.5×735 mm (4 RU) |
| Weight | ≈ 43.5 kg fully loaded |
| Power Consumption | Max 1 950 W; AC 100–240 VAC / DC 192–288 VDC |
| Operating Conditions | 0 °C–40 °C; 10%–90% RH non-condensing |
