NSComm S6580-48CQ8QC 48x100G DSFP + 8x400G QSFP-DD Access Switch
48 × 100 Gbps DSFP + 8 × 400 Gbps QSFP-DD Layer 3 Data Center Switch
Overview
Your OEM variant of Ruijie’s RG-S6580-48CQ8QC, engineered for next-generation AI/ML and HPC fabrics. It packs 48 DSFP 100 Gbps downlinks and eight 400 Gbps QSFP-DD uplinks into a 1 RU chassis, delivering ultra-low-latency, non-blocking forwarding with advanced overlay virtualization and telemetry.
Highlights
-
16.0 Tbps switching capacity / 5 350 Mpps forwarding
-

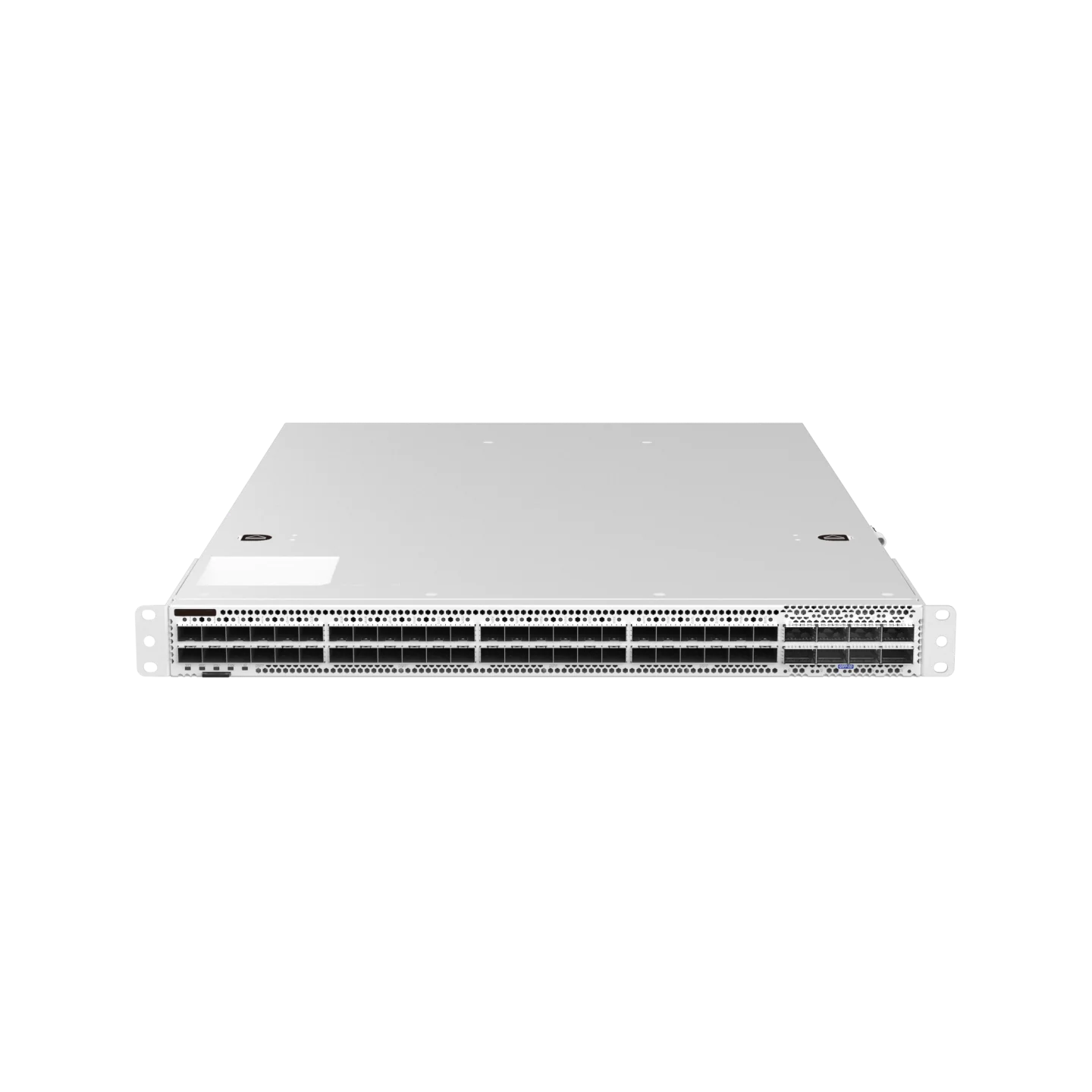

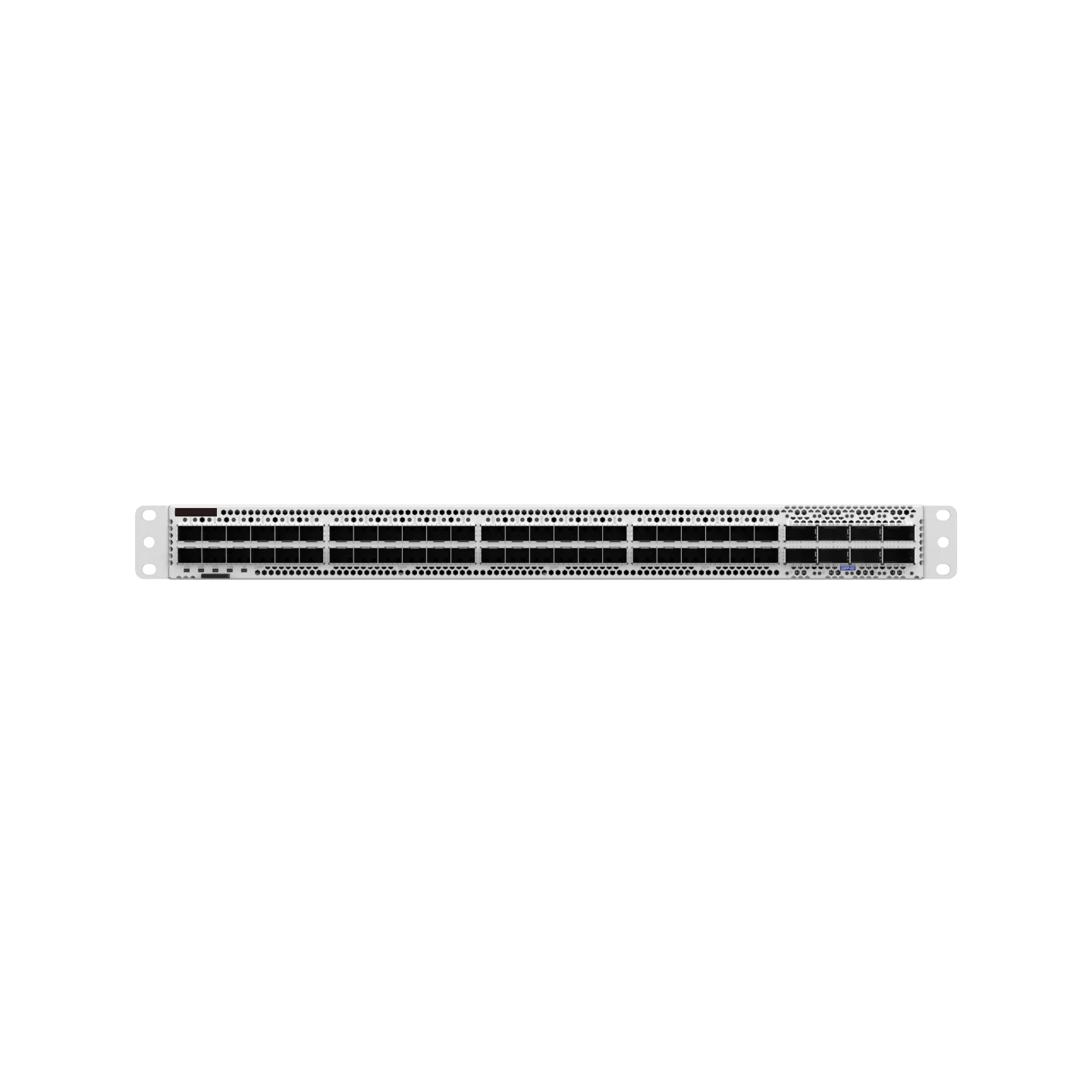

48×100 GbE DSFP + 8×400 GbE QSFP-DD for maximum spine/leaf density
-
EVPN-VXLAN, De-stacking, M-LAG & VSU for sub-200 ms failover and seamless scale
-
Lossless Ethernet: PFC & ECN for RDMA zero-loss transport
-

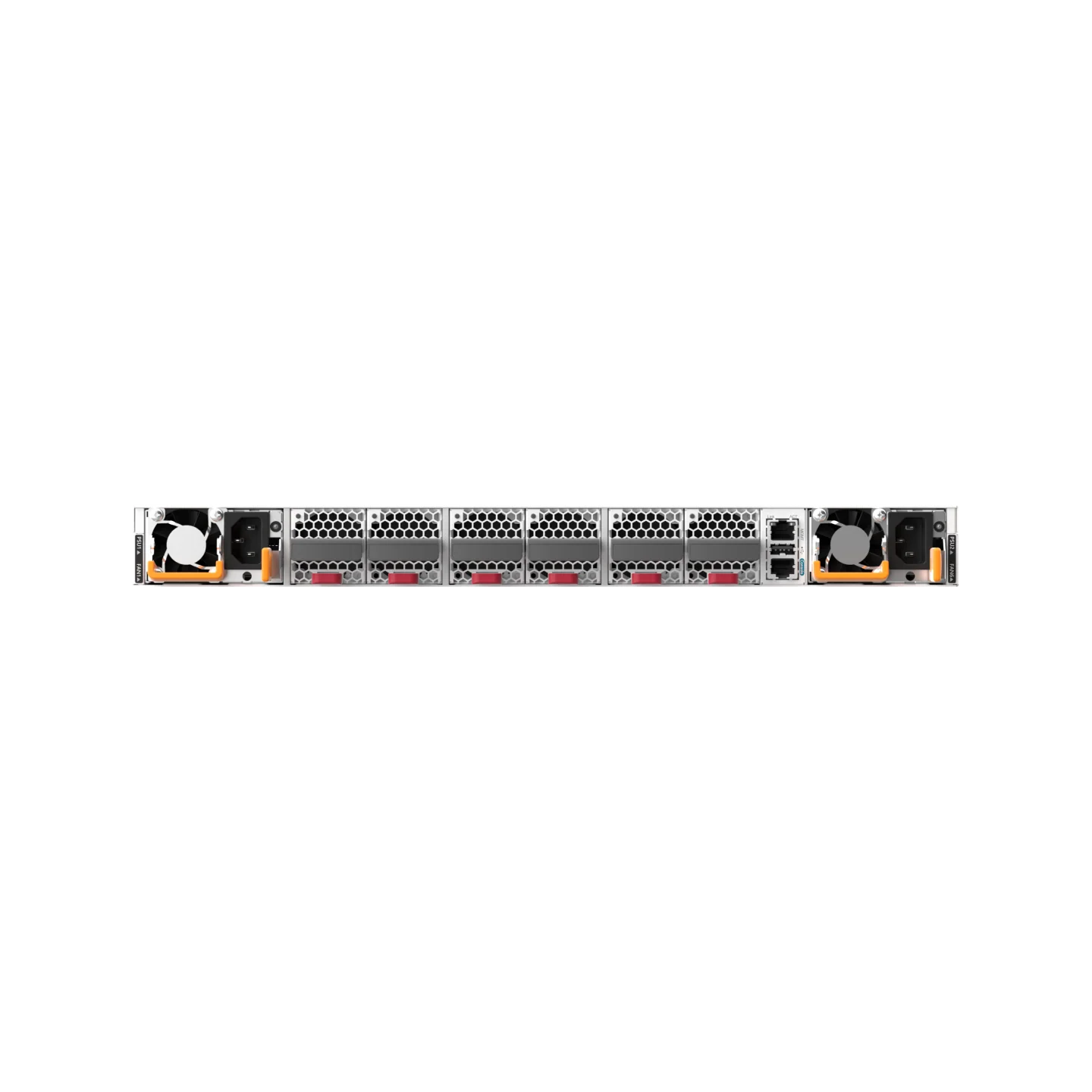

Hardware Redundancy: 1+1 hot-swap PSUs; 5+1 fan modules
-
Real-time Telemetry & gRPC for sub-second analytics
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA550I-F | AC Power Module | 550 W hot-swap PSU (AC/HVDC) |
| NS-PD800I-F | DC Power Module | –48 V DC, 800 W hot-swap PSU |
| NS-FAN-6580-F | Fan Module | Hot-swappable fan for the S6580 series |
| NS-RMK-1U | Rack Mount Kit | 19″ 1 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | Redundancy Features |
|---|---|---|---|---|
| Ruijie RG-S6580-48CQ8QC | 48×100 GbE DSFP + 8×400 GbE QSFP-DD | 16.0 Tbps | 5 350 Mpps | 1+1 PSUs; 5+1 fans |
| NS-S6580-48CQ8QC | Same | Same | Same | Same |
| Ruijie RG-S6580-24DC8QC | 24×200 GbE QSFP56 + 8×400 GbE QSFP-DD | 16.0 Tbps | 5 350 Mpps | 1+1 PSUs; 5+1 fans |
| NS-S6580-24DC8QC | Same | Same | Same | Same |
| Ruijie RG-S6520-64CQ | 64×100 GbE QSFP28 | 12.8 Tbps | 4 482 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6520-64CQ | Same | Same | Same | Same |
| Ruijie RG-S6510-4C | Modular 4 slots (max 96×25 GbE or 32×100 GbE) | 6.4 Tbps | 4 800 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-4C | Same | Same | Same | Same |
| Ruijie RG-S6510-48VS8CQ | 48×25 GbE SFP28 + 8×100 GbE QSFP28 | 4.0 Tbps | 2 000 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-48VS8CQ | Same | Same | Same | Same |
| Ruijie RG-S6510-32CQ | 32×100 GbE QSFP28 | 6.4 Tbps | 2 030 Mpps | 1+1 PSUs; 2+1 fans |
| NS-S6510-32CQ | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS-S6580-48CQ8QC |
| Downlinks / Uplinks | 48×100 GbE DSFP, 8×400 GbE QSFP-DD |
| Switching Capacity | 16.0 Tbps |
| Forwarding Rate | 5 350 Mpps |
| MAC Address Table | 256 K entries |
| IPv4 Host Routes | 740 K entries |
| Packet Buffer | > 64 MB on-chip |
| Virtualization | EVPN-VXLAN, M-LAG, VSU |
| Redundancy | 1+1 PSUs; 5+1 fans |
| Dimensions (W×D×H) | 442×387×44 mm; weight ~8.2 kg |
| Power Input | AC 100–240 V & –48 V DC hybrid |
| Operating Temperature | 0 °C – 50 °C |
