NSComm S6232-48XS8CQ 48x25G SFP28 & 8x100G QSFP28 Data Center Switch
48×10 Gbps SFP+ + 8×100 Gbps QSFP28 Layer 3 TOR Data Center Switch
As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm delivers high-performance data-center and aggregation switches under the NS-S6232/6231/6250 series.
These devices match Ruijie’s RG-S6232, RG-S6231, and RG-S6250 Series in throughput, port density, virtualization (VSU), uplink flexibility, redundancy features, and advanced telemetry, all under your own branding.
Overview

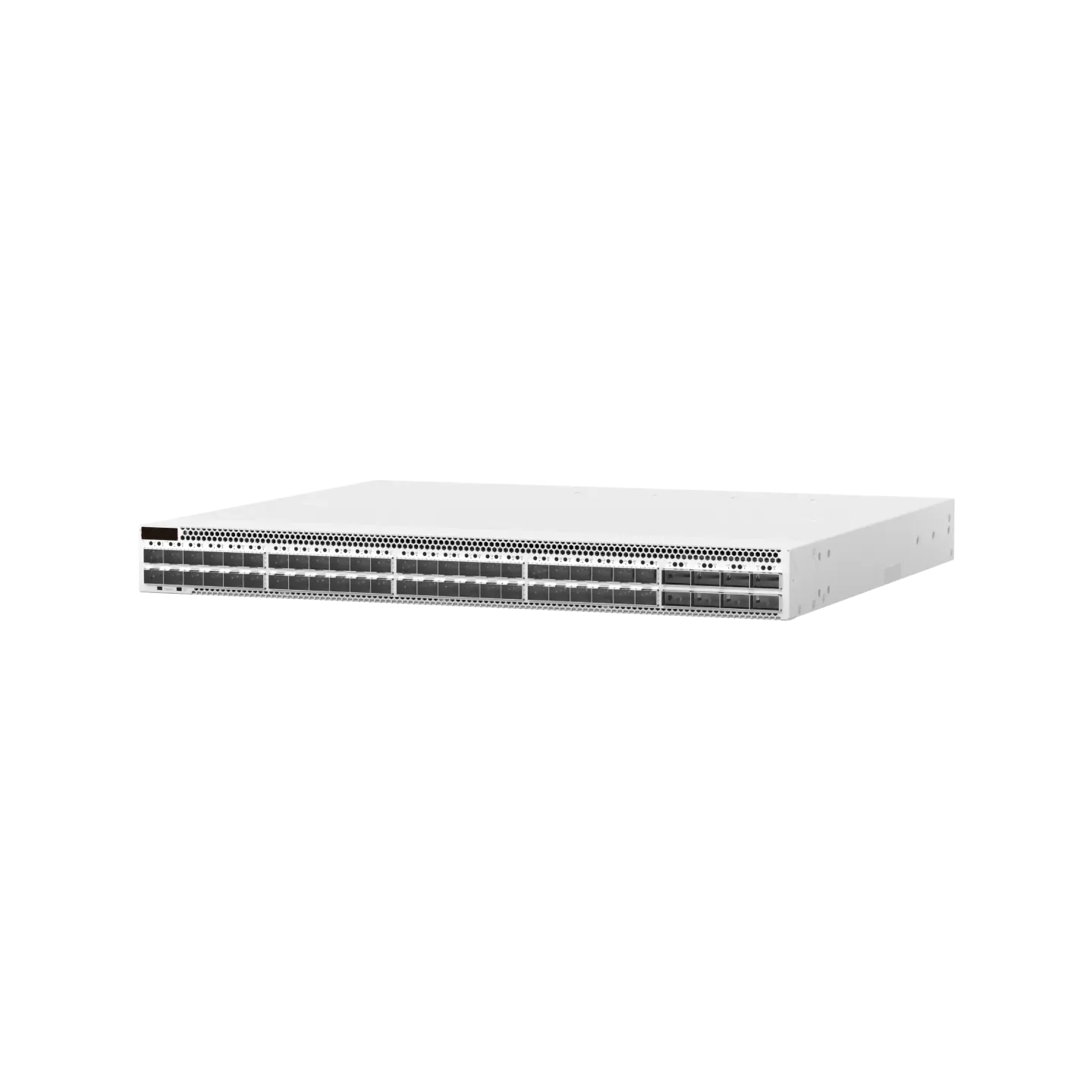

The NS-S6232-48XS8CQ delivers high-density Top-of-Rack connectivity with 48 × 10 Gbps SFP+ downlinks and 8 × 100 Gbps QSFP28 uplinks, backed by a non-blocking 4.8 Tbps switching fabric and 2 000 Mpps forwarding rate.
It supports EVPN-VXLAN for overlay virtualization, de-stacking, M-LAG, and VSU for sub-200 ms failover, plus hardware-level redundancy (1+1 hot-swap PSUs, 3+1 fan modules).
Highlights
-
4.8 Tbps switching / 2 000 Mpps forwarding for uncompromised performance
-
48×10 Gbps SFP+ & 8×100 Gbps QSFP28 for flexible ToR uplinks
-
EVPN-VXLAN, De-stacking, M-LAG & VSU for scalable virtualization and fast failover
-
Hardware Redundancy: Dual hot-swap PSUs (1+1) and fans (3+1) ensure continuous operation
-
Telemetry & gRPC for real-time, sub-second network monitoring
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA550I-F | AC Power Module | 550 W hot-swap PSU (AC & HVDC) |
| NS-PD800I-F | DC Power Module | –48 V DC, 800 W hot-swap PSU |
| NS-FAN-6232-F | Fan Module | Hot-swappable fan for RG-S6232 series |
| NS-RMK-1U | Rack Mount Kit | 19″ 1 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6232-48XS8CQ | 48×10 Gbps SFP+ & 8×100 Gbps QSFP28 | 4.8 Tbps | 2 000 Mpps | None | Dual hot-swap PSUs, 3+1 hot-swap fan modules |
| NS-S6232-48XS8CQ | Same | Same | Same | Same | Same |
| Ruijie RG-S6231-48XT8CQ | 48×10 Gbps BASE-T & 8×100 Gbps QSFP28 | 4.8 Tbps | 2 000 Mpps | None | 2 PSU slots (1+1), 4 fan slots (3+1) |
| NS-S6231-48XT8CQ | Same | Same | Same | Same | Same |
| Ruijie RG-S6250-48XS8CQ | 48×10 Gbps SFP+ & 8×100 Gbps QSFP28 | 2.56 Tbps | 1 920 Mpps | None | Dual hot-swap PSUs, 3+1 hot-swap fan modules |
| NS-S6250-48XS8CQ | Same | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS-S6232-48XS8CQ |
| Downlink Ports | 48×10 Gbps SFP+ |
| Uplink Ports | 8×100 Gbps QSFP28 (auto-negotiates 40/100 Gbps) |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2 000 Mpps |
| MAC Address Table | 320 K entries |
| IPv4/IPv6 Host Routes | 740 K / 140 K entries |
| Packet Buffer | 36 MB |
| Virtualization | EVPN-VXLAN, De-stacking, M-LAG, VSU |
| Redundancy | Dual PSU slots (1+1), Triple fan modules (3+1) |
| Dimensions (W×D×H) | 442 × 387 × 44 mm |
| Weight | ~8.2 kg (with PSUs & fans) |
| Power Input | AC 100–240 V / –48 V DC hybrid |
| Operating Temperature | 0 °C – 45 °C, non-condensing |
