NSComm S6231-48XT8CQ 48x10GBASE-T & 8x100G QSFP28 ToR Switch
48×10 Gbps BASE-T + 8×100 Gbps QSFP28 Layer 3 TOR Data Center Switch
Overview

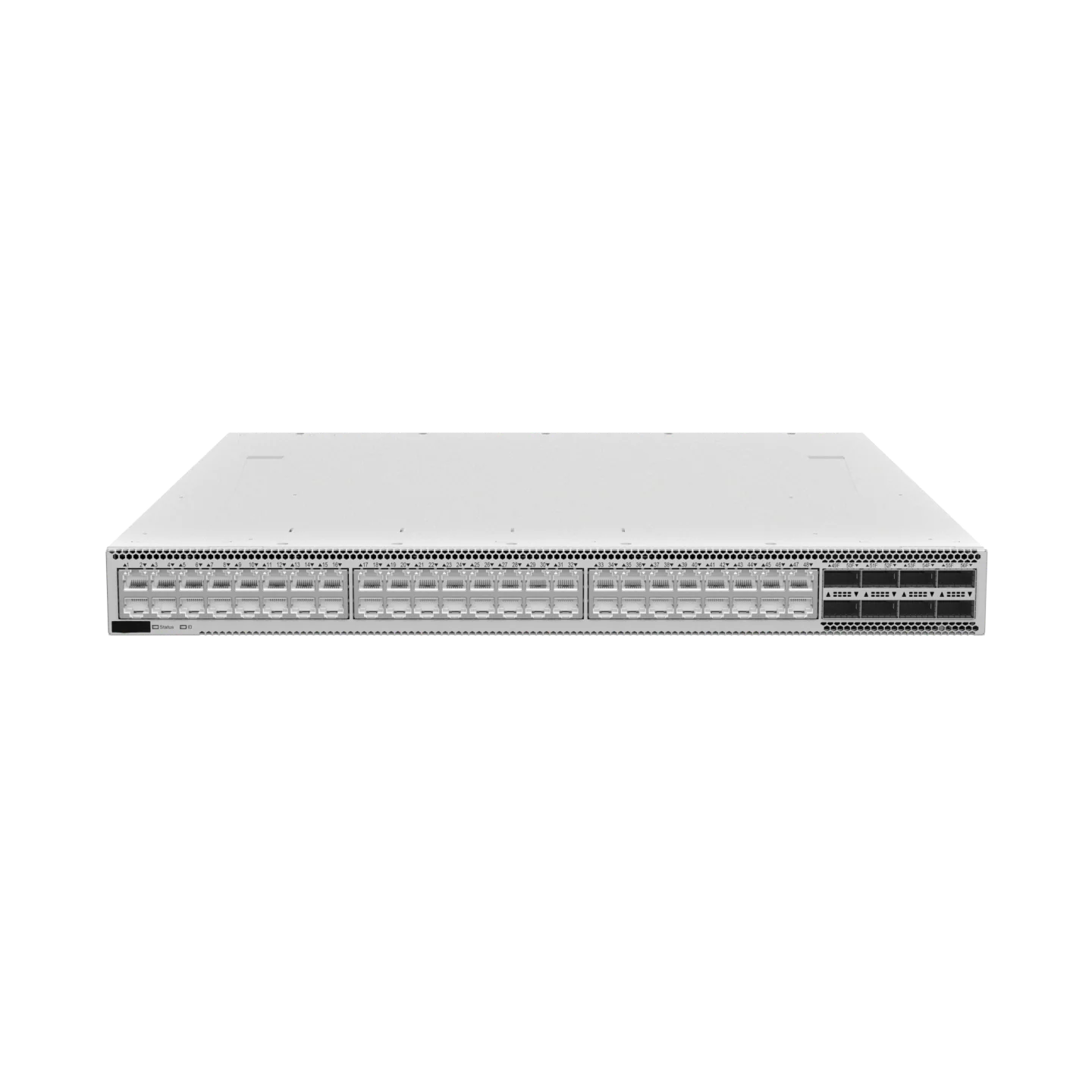

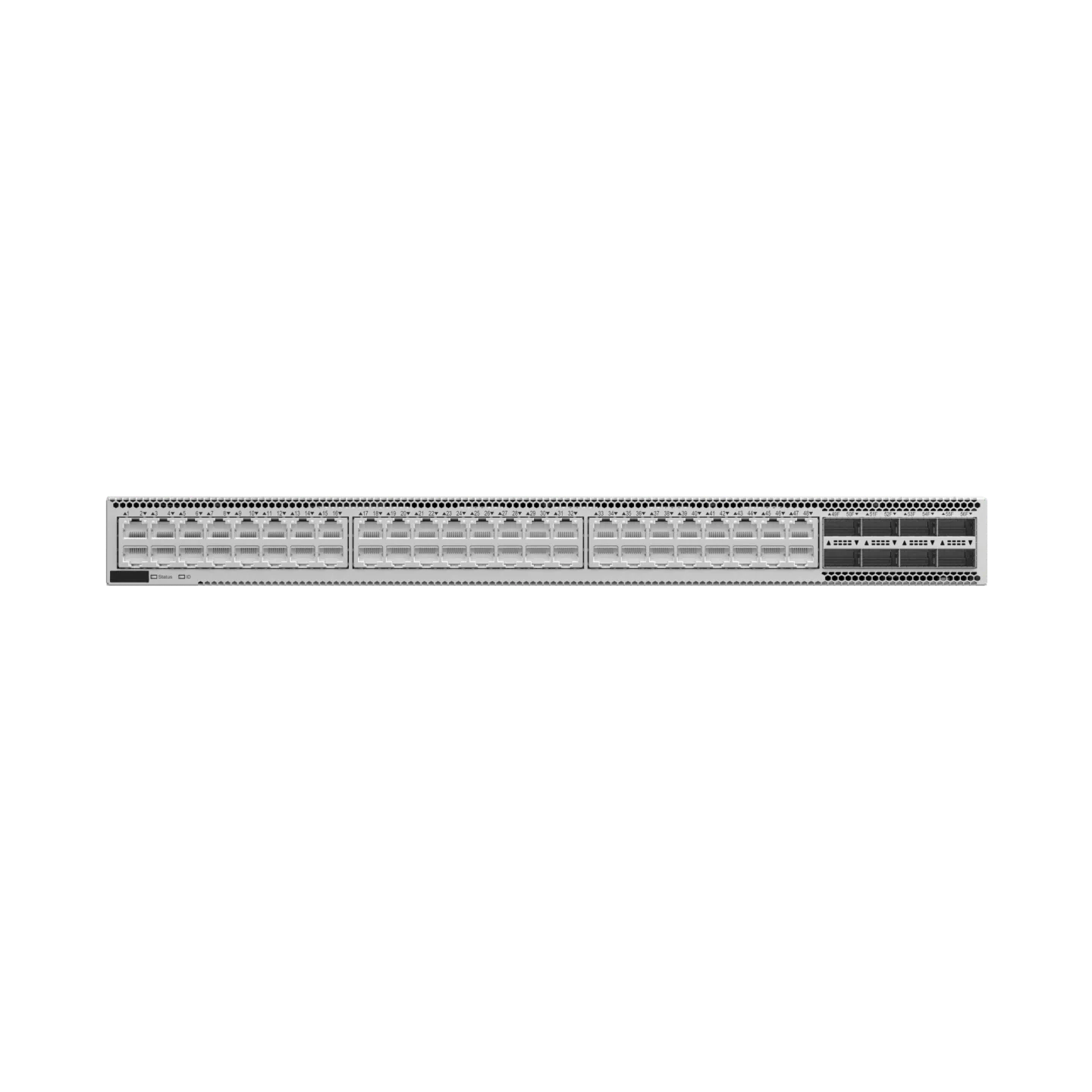

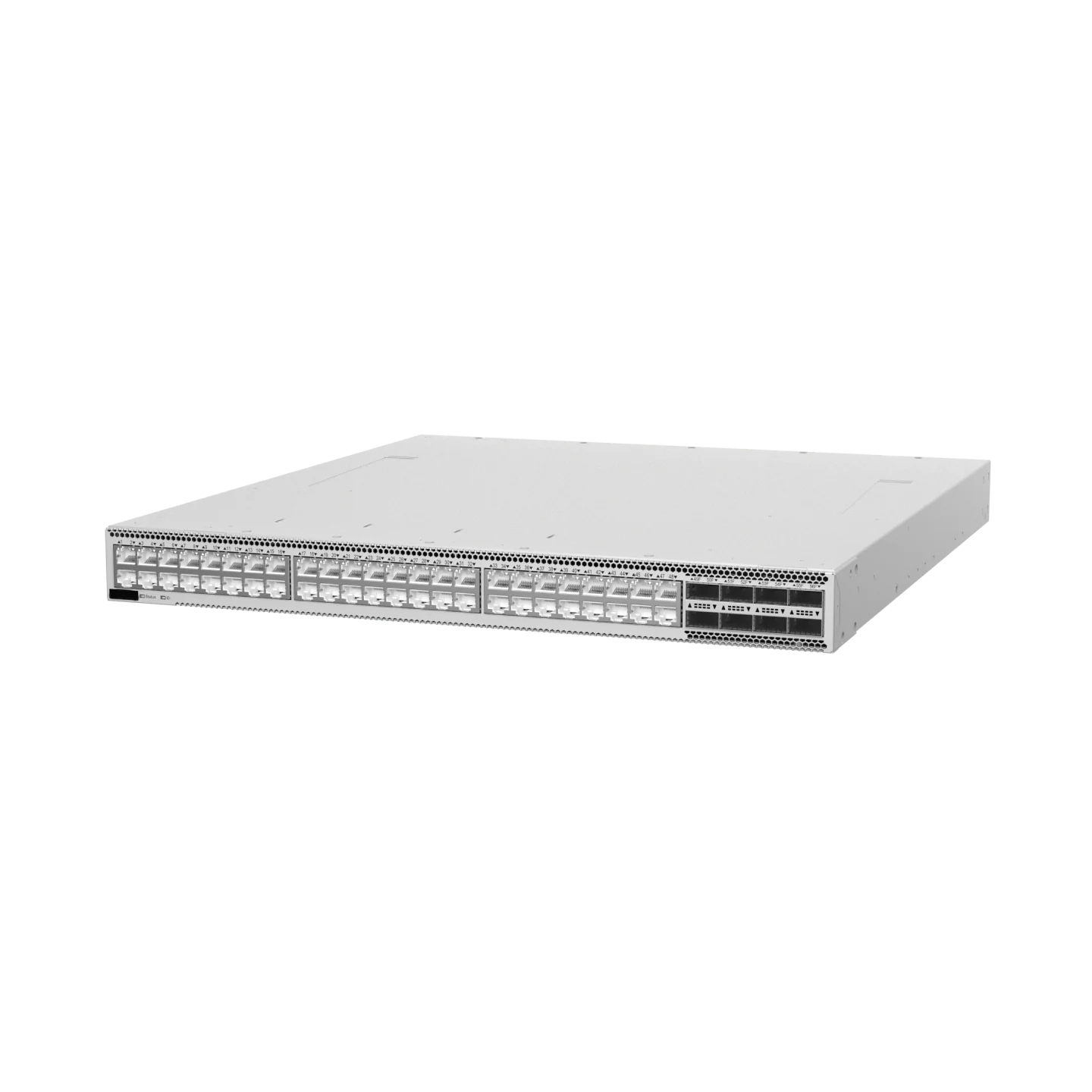

The NS-S6231-48XT8CQ pairs 48 × 10 Gbps BASE-T copper ports with 8 × 100 Gbps QSFP28 uplinks, delivering a non-blocking 4.8 Tbps fabric and 2 000 Mpps forwarding rate.
It includes the same EVPN-VXLAN overlay, de-stacking, M-LAG, and VSU features, plus 1+1 PSU and 3+1 fan redundancy.
Highlights
-
48×10 Gbps BASE-T & 8×100 Gbps QSFP28 for mixed copper/fiber deployments
-
4.8 Tbps / 2 000 Mpps switching performance
-
Enterprise Virtualization: EVPN-VXLAN, De-stacking, M-LAG, VSU
-

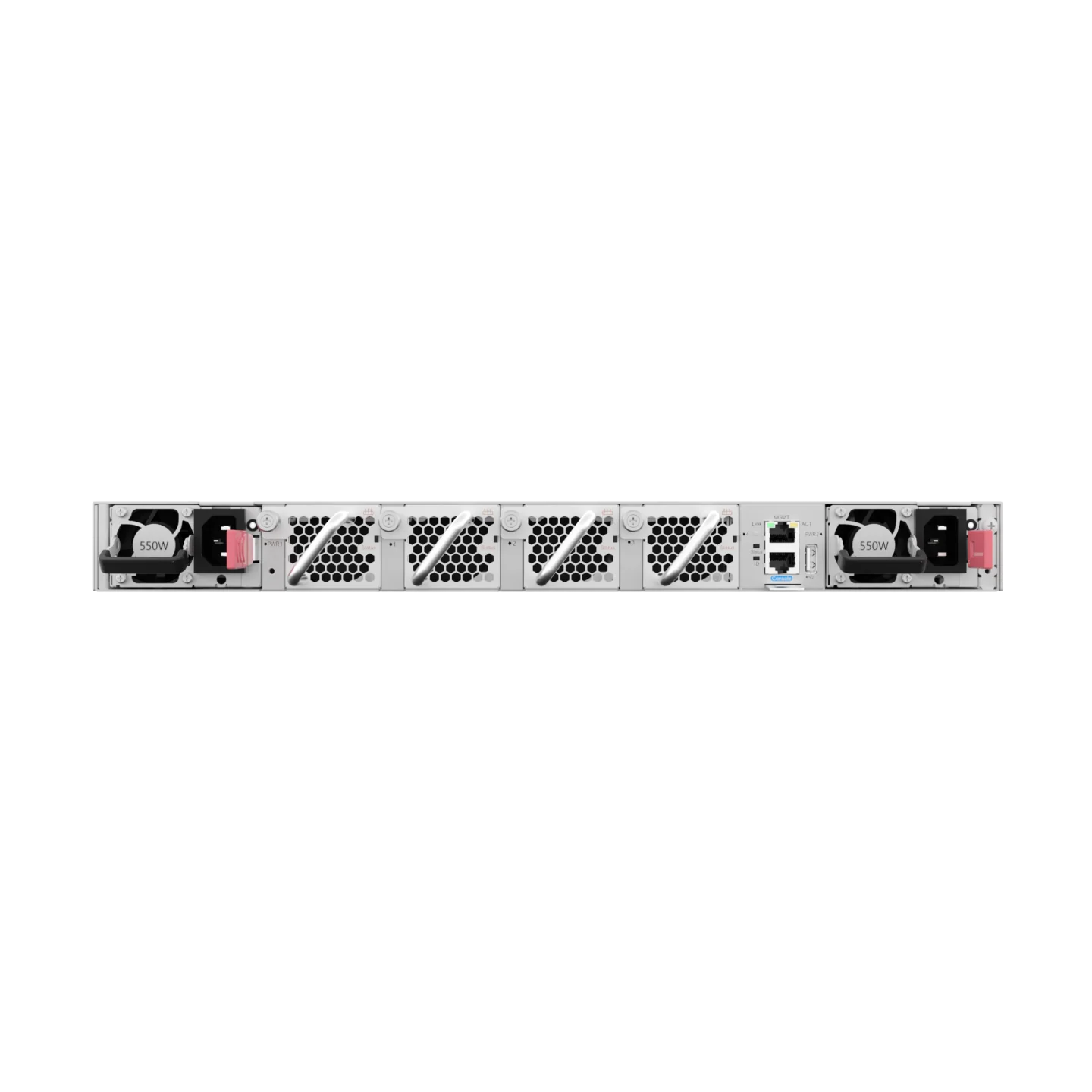

Hot-swap Redundancy: PSUs (1+1) & fans (3+1)
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA550I-F | AC Power Module | 550 W hot-swap PSU (AC & HVDC) |
| NS-PD800I-F | DC Power Module | –48 V DC, 800 W hot-swap PSU |
| NS-FAN-6231-F | Fan Module | Hot-swappable fan for RG-S6231 series |
| NS-RMK-1U | Rack Mount Kit | 19″ 1 RU mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6232-48XS8CQ | 48×10 Gbps SFP+ & 8×100 Gbps QSFP28 | 4.8 Tbps | 2 000 Mpps | None | Dual hot-swap PSUs, 3+1 hot-swap fan modules |
| NS-S6232-48XS8CQ | Same | Same | Same | Same | Same |
| Ruijie RG-S6231-48XT8CQ | 48×10 Gbps BASE-T & 8×100 Gbps QSFP28 | 4.8 Tbps | 2 000 Mpps | None | 2 PSU slots (1+1), 4 fan slots (3+1) |
| NS-S6231-48XT8CQ | Same | Same | Same | Same | Same |
| Ruijie RG-S6250-48XS8CQ | 48×10 Gbps SFP+ & 8×100 Gbps QSFP28 | 2.56 Tbps | 1 920 Mpps | None | Dual hot-swap PSUs, 3+1 hot-swap fan modules |
| NS-S6250-48XS8CQ | Same | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model | NS-S6231-48XT8CQ |
| Downlink Ports | 48×10 Gbps BASE-T RJ45 |
| Uplink Ports | 8×100 Gbps QSFP28 (auto-negotiates 40/100 Gbps) |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | 2 000 Mpps |
| MAC Address Table | 320 K entries |
| IPv4/IPv6 Host Routes | 740 K / 140 K entries |
| Packet Buffer | 36 MB |
| Virtualization | EVPN-VXLAN, De-stacking, M-LAG, VSU |
| Redundancy | Dual PSU slots (1+1), Triple fan slots (3+1) |
| Dimensions (W×D×H) | 442 × 480 × 44 mm ﹙chassis only﹚ |
| Weight | ~13 kg (with 2 PSUs & 4 fans) |
| Power Input | AC 100–240 V / –48 V DC hybrid |
| Operating Temperature | 0 °C – 45 °C, non-condensing |
