NSComm S5350-24GT4XS-E 24x1G & 4x10G SFP+ L3 Managed Switch
NS‑S5350‑24GT4XS‑E – 24×1 GbE + 4×10 Gbps SFP+ Layer 3 Access Switch
As a top OEM partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers the exact same hardware, software, and reliability of Ruijie’s RG‑S5350‑E series - with your brand label.
Our NS‑S5350‑E switches deliver enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, high switching capacity, and PoE options across 12‑, 24‑, and 48‑port variants.
Overview

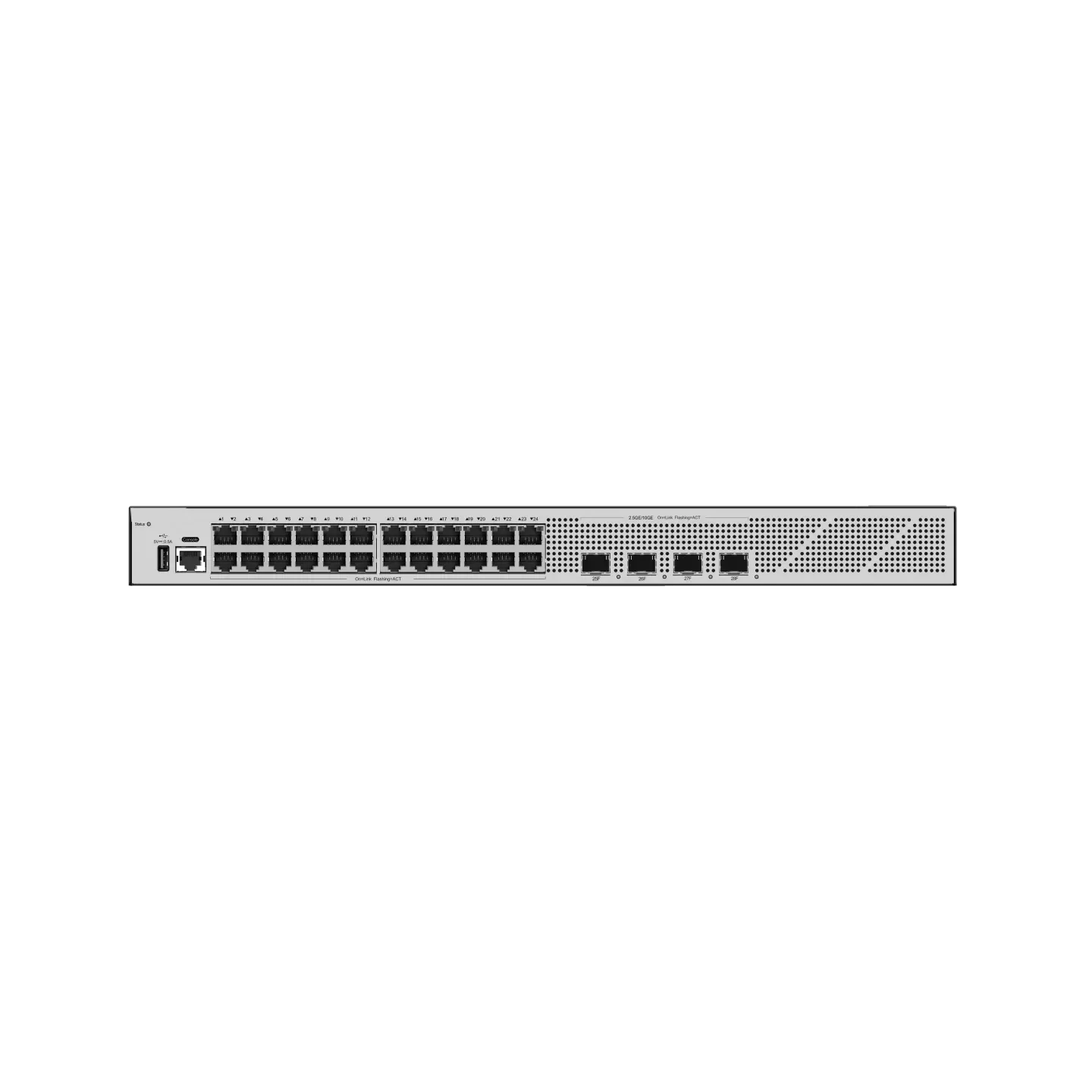

The NS‑S5350‑24GT4XS‑E is a compact Layer 3 managed switch with 24 Gigabit RJ45 downlinks and four 10 Gbps SFP+ uplinks, delivering up to 154 Gbps switching capacity and 115 Mpps forwarding rate for campus or branch networks. It supports IPv4/IPv6 dual‑stack routing (static, RIP, OSPF, IS‑IS, BGP4), VXLAN overlays, VSU stacking (up to 8 units), advanced security (CPP, NFPP, DHCP snooping, dynamic ARP inspection), and energy‑efficient design with variable‑speed fans.
Highlights
-
154 Gbps / 115 Mpps: Wire‑speed performance for 24/4 port density
-
Rich L3 Protocols: Static, RIP/RIPng, OSPFv2/v3, IS‑IS, BGP4/+ (IPv6 dual‑stack)
-
VSU Virtualization: Stack up to 8 switches as one logical device
-
Robust Security: CPP/NFPP, 802.1X, IP Source Guard, ACLs, IGMP/MLD snooping
-
Energy‑Smart: EEE support and temperature‑based fan control for lower power/noise
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA150IB‑F | AC Power Module | 150 W hot‑swap AC PSU slot |
| NS‑PD150IB‑F | DC Power Module | 150 W hot‑swap DC PSU slot |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode (850 nm, 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode (1310 nm, 10 km) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 for CLI management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE | Capacity/Forwarding |
|---|---|---|---|
| Ruijie RG‑S5350‑24GT4XS‑E | 24 × 1 GbE + 4 × 10 Gbps SFP+ | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4XS‑E | 48 × 1 GbE + 4 × 10 Gbps SFP+ | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑12GT4XS‑P‑E | 12 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 125 Gbps / 94 Mpps |
| NS‑S5350‑12GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4XS‑P‑E | 24 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4XS‑P‑E | 48 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4SFP‑E | 24 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4SFP‑E | 48 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑24GT4SFP‑P‑E | 24 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4SFP‑P‑E | 48 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5350‑24GT4XS‑E |
| Downlink Ports | 24 × 10/100/1000 BASE‑T |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 154 Gbps |
| Forwarding Rate | 115 Mpps |
| CPU | Dual‑core 1.0 GHz |
| Memory | DDR4 1 GB |
| Flash | 512 MB |
| BootROM | 16 MB |
| Switch Buffer | 4 MB |
| MAC Address Table | 16,000 entries |
| ARP Table | 4,000 entries |
| IPv4 Routes | 6,000 |
| IPv6 Routes | 2,000 |
| Multicast Routes | IPv4: 1,000 IPv6: 750 |
| ACL Entries | Ingress 1,750 Egress 800 |
| VSU Members | Up to 8 |
| Security Features | CPP, NFPP, DHCP Snooping, ARP Inspection, ACLs |
| Power Input | AC 100–240 V |
| Operating Temp. | 0 °C – 45 °C |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | ~3.1 kg |
| Mounting | Rack / Wall / Desktop |
| MTBF | > 200,000 hours |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
