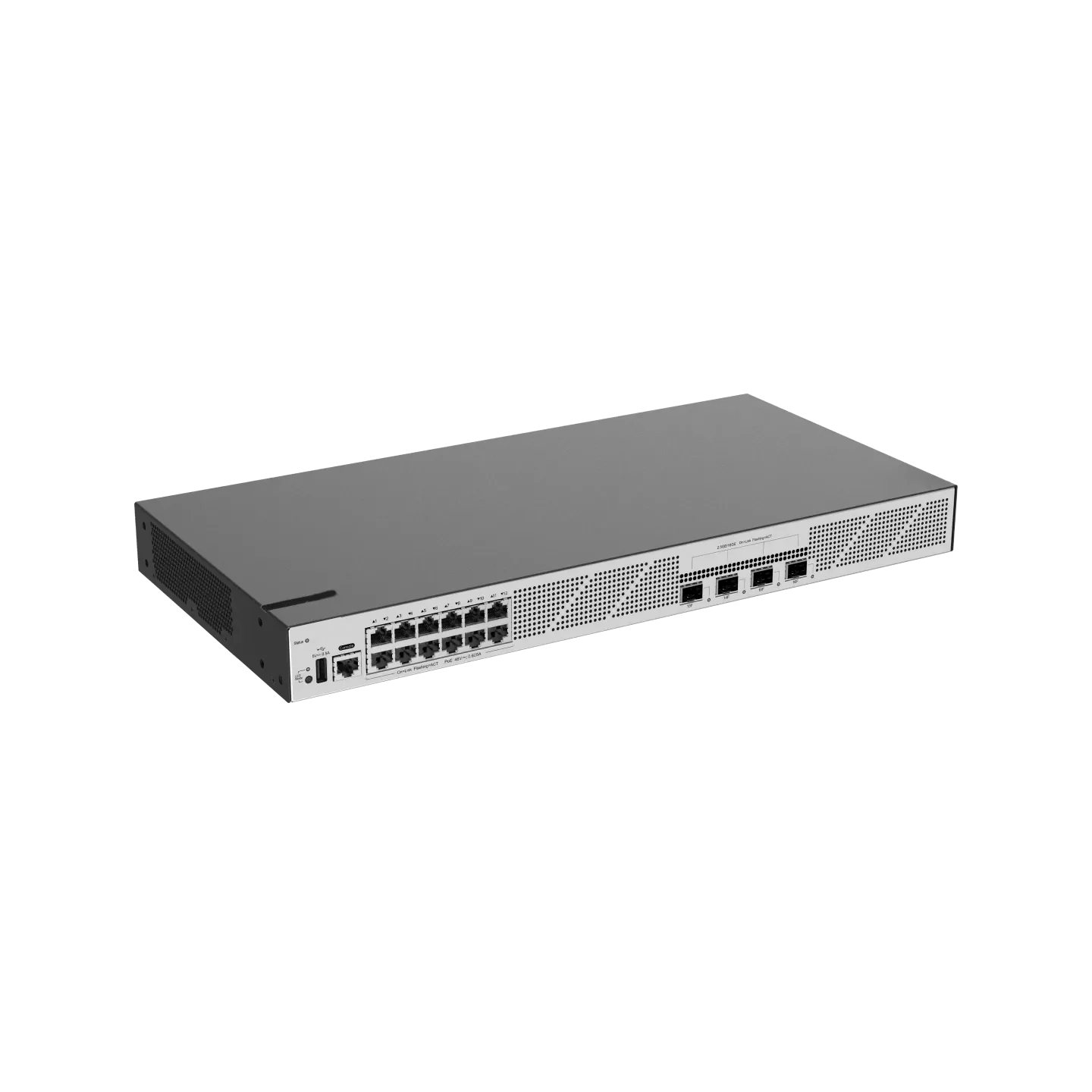

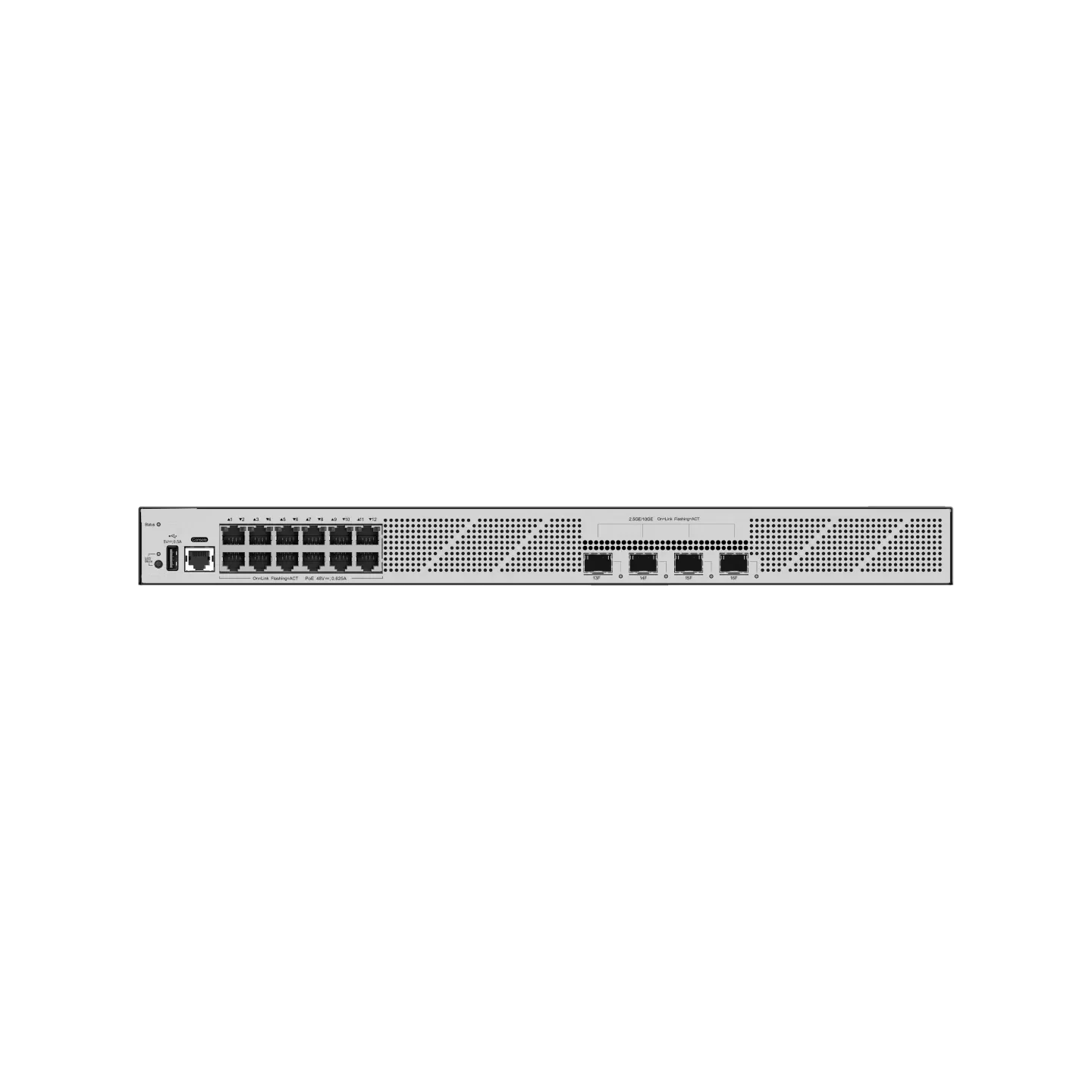

NSComm S5350-12GT4XS-P-E 12x1G (PoE+) & 4x10G SFP+ L3 PoE Switch
NS‑S5350‑12GT4XS‑P‑E, 12×1 GbE PoE+ + 4×10 Gbps SFP+ Layer 3 PoE Switch
As a top OEM partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers the exact same hardware, software, and reliability of Ruijie’s RG‑S5350‑E series - with your brand label.
Our NS‑S5350‑E switches deliver enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, high switching capacity, and PoE options across 12‑, 24‑, and 48‑port variants.
Overview
The NS‑S5350‑12GT4XS‑P‑E combines 12 Gigabit PoE+ ports (IEEE 802.3af/at) with four 10 Gbps SFP+ uplinks, offering 125 Gbps capacity and 94 Mpps forwarding. Ideal for small‑scale access requiring PoE devices and L3 routing.
Highlights
-
125 Gbps / 94 Mpps: Optimized for 12/4 port PoE deployments
-
PoE+ on all 12 ports: Up to 30 W per port, 370 W total power budget
-
Layer 3 Feature Set: Static, RIP, OSPF, BGP4, IPv6 dual‑stack
-
VSU & RLDP: Fast failover and loop detection for resilient networks
-
Compact & Efficient: Variable‑speed cooling and low‑power design
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA370I‑P‑F | PoE AC Module | 370 W AC PSU slot module for PoE power |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode (850 nm, 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode (1310 nm, 10 km) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 for CLI management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE | Capacity/Forwarding |
|---|---|---|---|
| Ruijie RG‑S5350‑24GT4XS‑E | 24 × 1 GbE + 4 × 10 Gbps SFP+ | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4XS‑E | 48 × 1 GbE + 4 × 10 Gbps SFP+ | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑12GT4XS‑P‑E | 12 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 125 Gbps / 94 Mpps |
| NS‑S5350‑12GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4XS‑P‑E | 24 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4XS‑P‑E | 48 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4SFP‑E | 24 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4SFP‑E | 48 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑24GT4SFP‑P‑E | 24 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4SFP‑P‑E | 48 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5350‑12GT4XS‑P‑E |
| Downlink Ports | 12 × 10/100/1000 BASE‑T (PoE+) |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | Up to 370 W total |
| Switching Capacity | 125 Gbps |
| Forwarding Rate | 94 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table | 4,000 entries |
| IPv4 Routes | 6,000 |
| IPv6 Routes | 2,000 |
| Multicast Routes | IPv4: 1,000 IPv6: 750 |
| ACL Entries | Ingress 1,750 Egress 800 |
| VSU Members | Up to 8 |
| Power Input | AC 100–240 V |
| Operating Temp. | 0 °C – 45 °C |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | ~3.3 kg |
| Mounting | Rack / Wall / Desktop |
| MTBF | > 200,000 hours |
