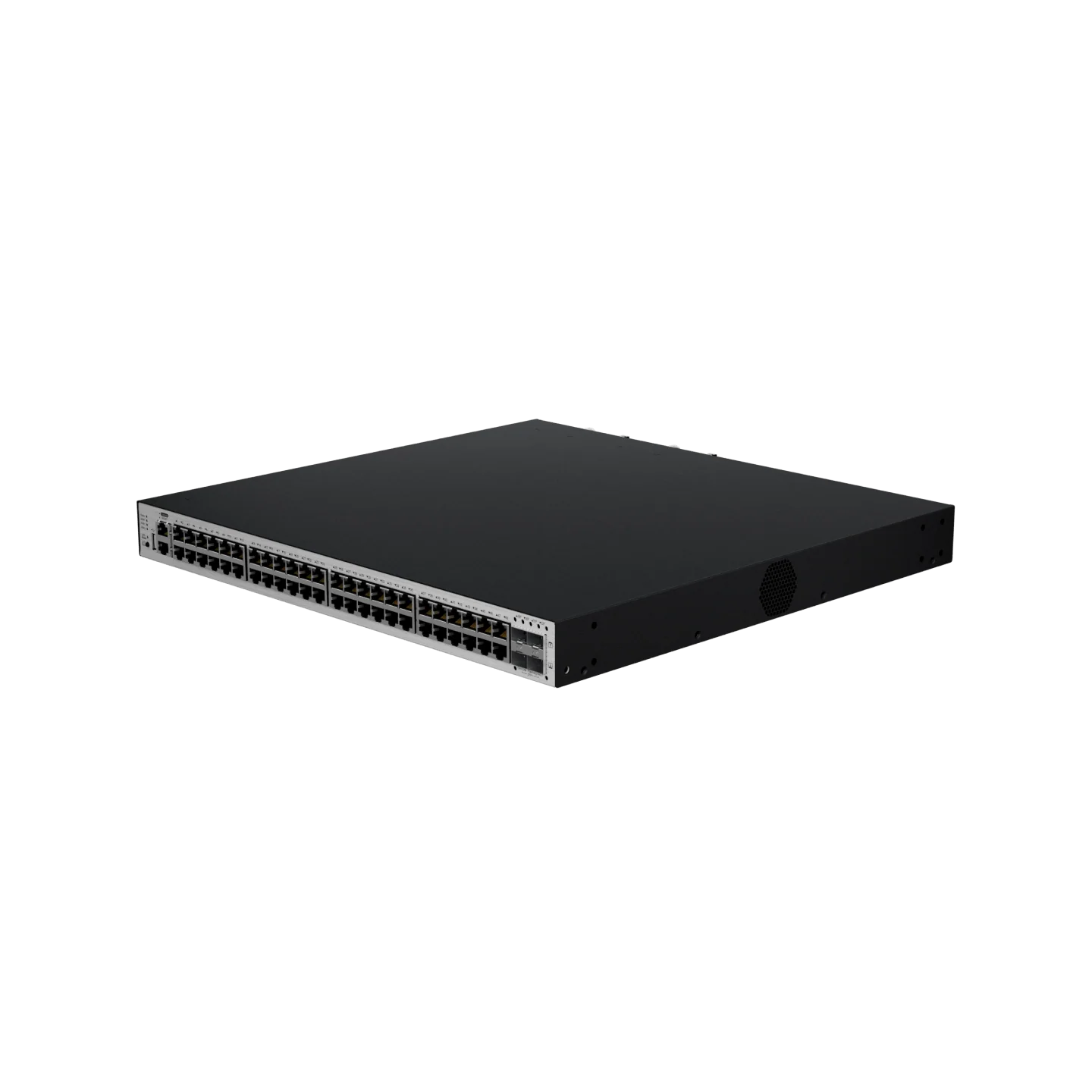

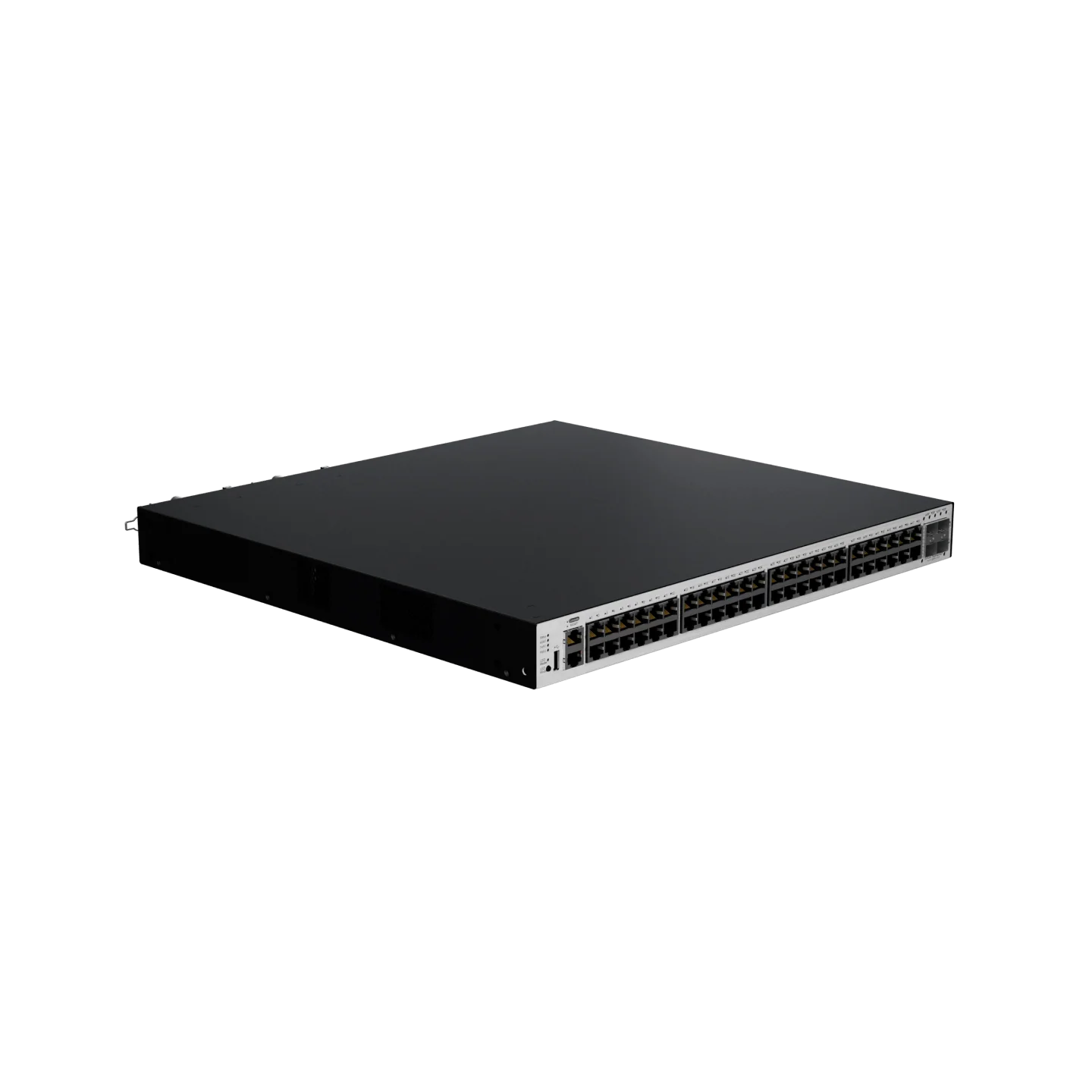

NSComm S5310-48GT4XS-P-E 48x1G (PoE+) & 4x10G SFP+ L3 PoE Switch
NS‑S5310‑48GT4XS‑P‑E – 48×Gigabit PoE+ + 4×10 Gbps SFP+ Layer 3 PoE Switch
As one of the world’s leading OEM manufacturers alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers the same enterprise‑grade performance, reliability, and feature sets - under your own brand.
Our NS‑S5310‑E series fully mirrors Ruijie’s RG‑S5310‑E lineup in port densities, Layer 3 routing, virtualization (VSU), industrial‑grade surge protection, PoE capabilities, and energy‑efficient design.
Overview

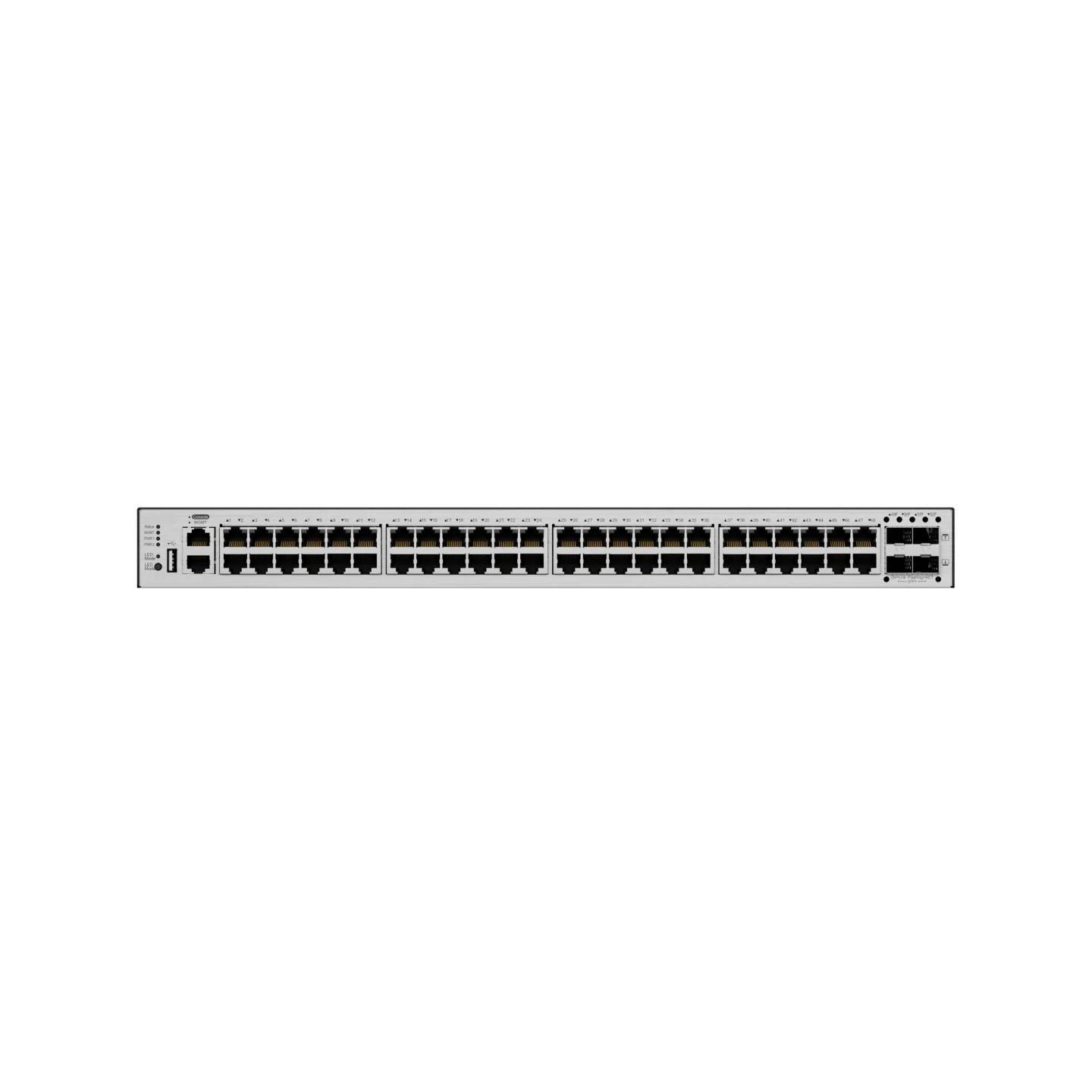

The NS‑S5310‑48GT4XS‑P‑E delivers 48 PoE+ ports alongside 4 × 10 Gbps uplinks, with a 211 Gbps backplane and 158 Mpps forwarding. It supports up to 1,480 W PoE budget via two RG‑PA1000I‑P‑F modules, perfect for high‑density PoE deployments.
Highlights
-
48 PoE+ ports with up to 30 W each, 1,480 W total budget via dual modules.
-
211 Gbps switching & 158 Mpps forwarding even under full PoE load.
-
VSU & RLDP for millisecond failover and loop prevention.
-
Layer 3 routing & VXLAN identical to non‑PoE models.
-
Advanced PoE management: scheduling, priority, hot‑start.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA1000I‑P‑F | PoE AC Power Module | 740 W AC module (up to 48 × 30 W PoE+) |
| NS‑PA600I‑P‑F | PoE AC Power Module | 370 W AC module |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode fiber |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode fiber |
| NS‑RMK‑1U | Rack Mount Kit | 1U bracket |
| NS‑Console‑Cable | Console Cable | RJ45 console management |
Compare with Similar Models
| Model | Downlinks | Uplinks | PoE | Capacity | Forwarding | Brand |
|---|---|---|---|---|---|---|
| Ruijie RG‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch (OEM) |
| Ruijie RG‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Network‑Switch |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5310‑48GT4XS‑P‑E |
| Downlink Ports | 48 × 10/100/1000 BASE‑T (all ports IEEE 802.3af/at PoE+) |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | Up to 1,480 W total (via two NS‑PA1000I‑P‑F modules) |
| MAC Address Table | 128,000 entries |
| VLAN Support | Up to 4,094 VLANs |
| Layer 3 Protocols | Static, RIP, OSPFv2/3, IS‑IS, BGP4/+ (IPv4/IPv6 dual‑stack) |
| VSU Virtualization | Yes |
| Security Features | 802.1X, DHCP snooping, IGMP/MLD snooping, ARP inspection, ACLs |

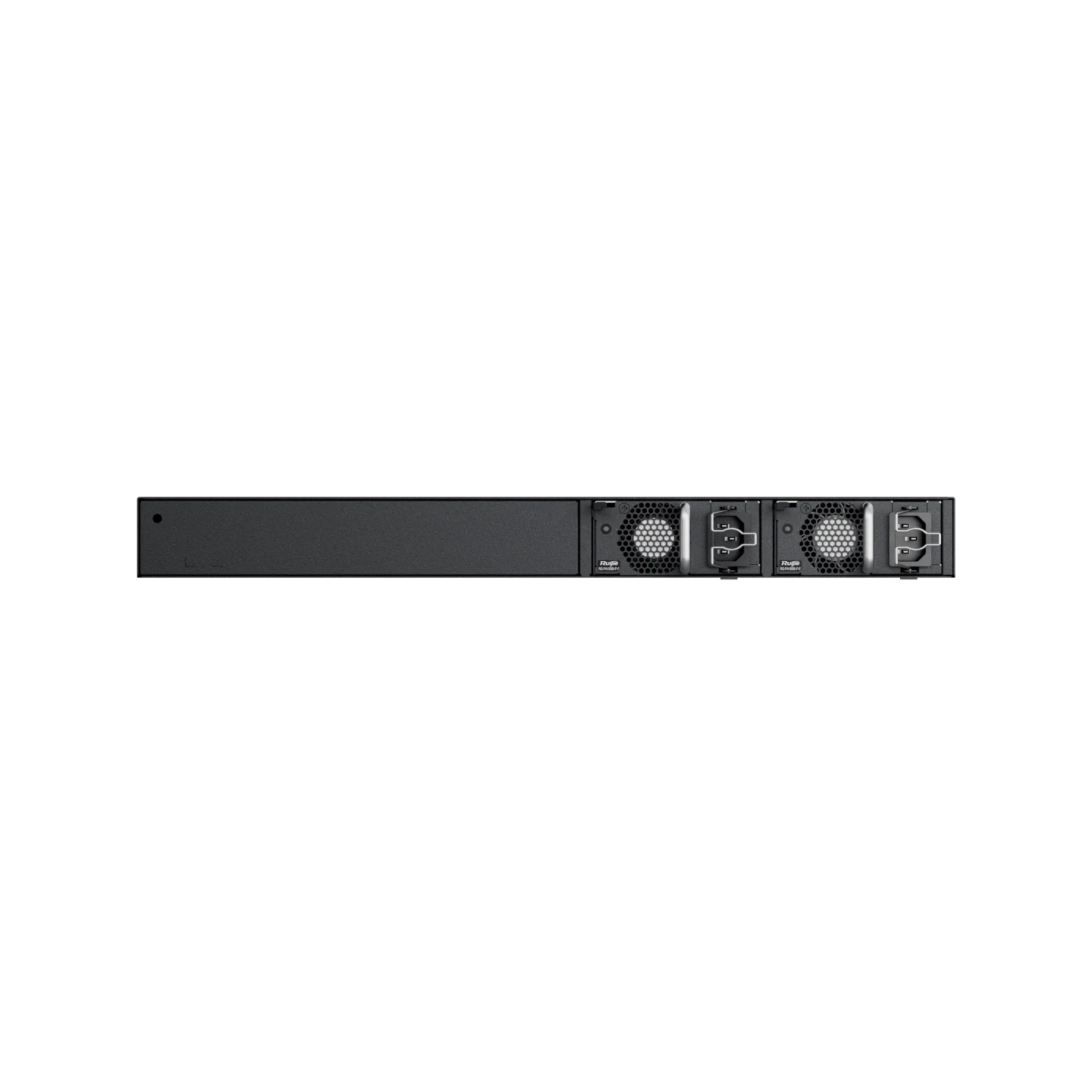

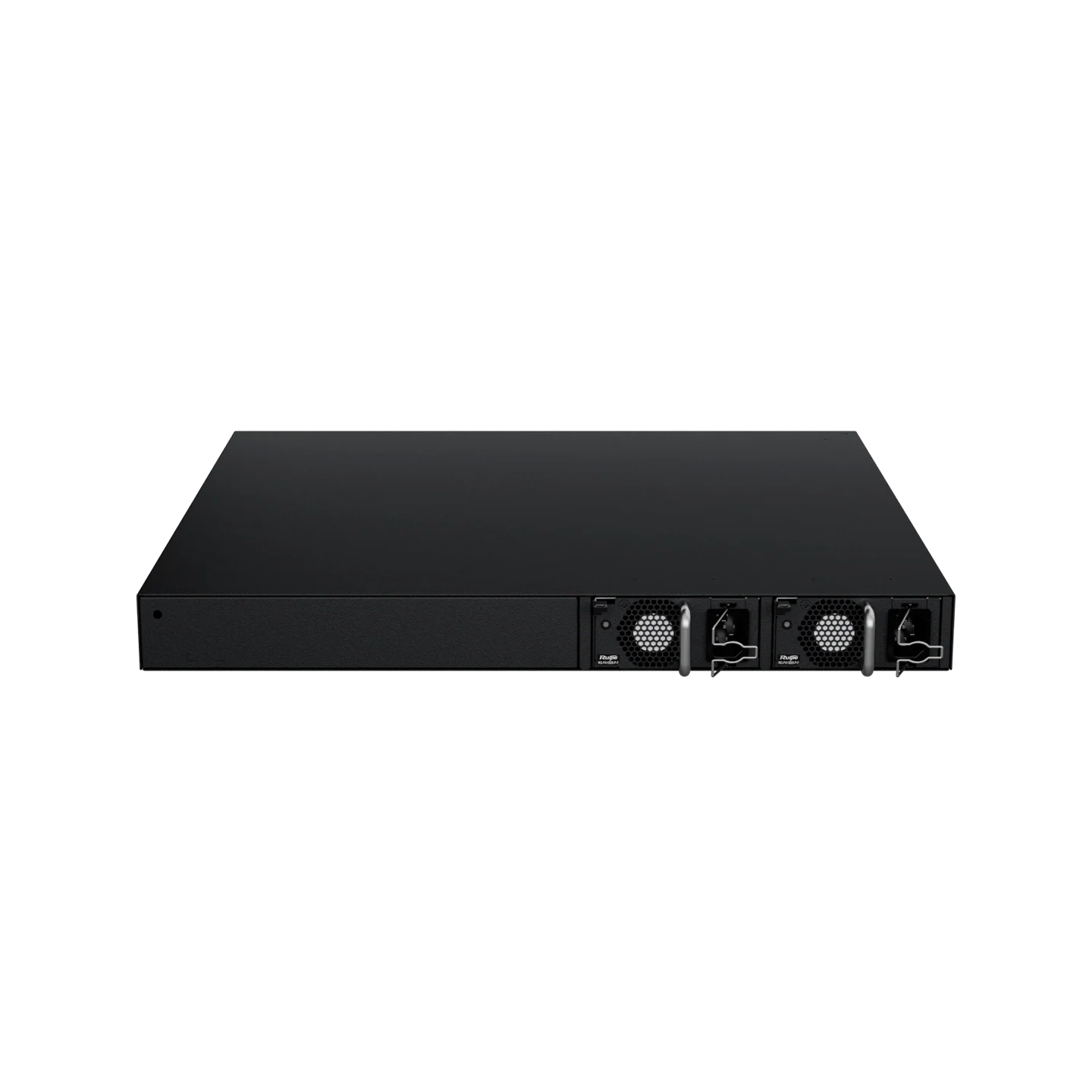

| Power Slots | 2 × hot‑swappable PSUs |
| Power Input | AC 100–240 V |
| Operating Temp. | –10 °C to +55 °C |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | Approx. 5.1 kg |
| MTBF |
> 200,000 hours |
