NSComm S5310-24GT4XS-E 24x1G & 4x10G SFP+ L3 Managed Switch
NS‑S5310‑24GT4XS‑E – 24×Gigabit RJ45 + 4×10 Gbps SFP+ Layer 3 Access Switch
As one of the world’s leading OEM manufacturers alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers the same enterprise‑grade performance, reliability, and feature sets - under your own brand.
Our NS‑S5310‑E series fully mirrors Ruijie’s RG‑S5310‑E lineup in port densities, Layer 3 routing, virtualization (VSU), industrial‑grade surge protection, PoE capabilities, and energy‑efficient design.
Overview

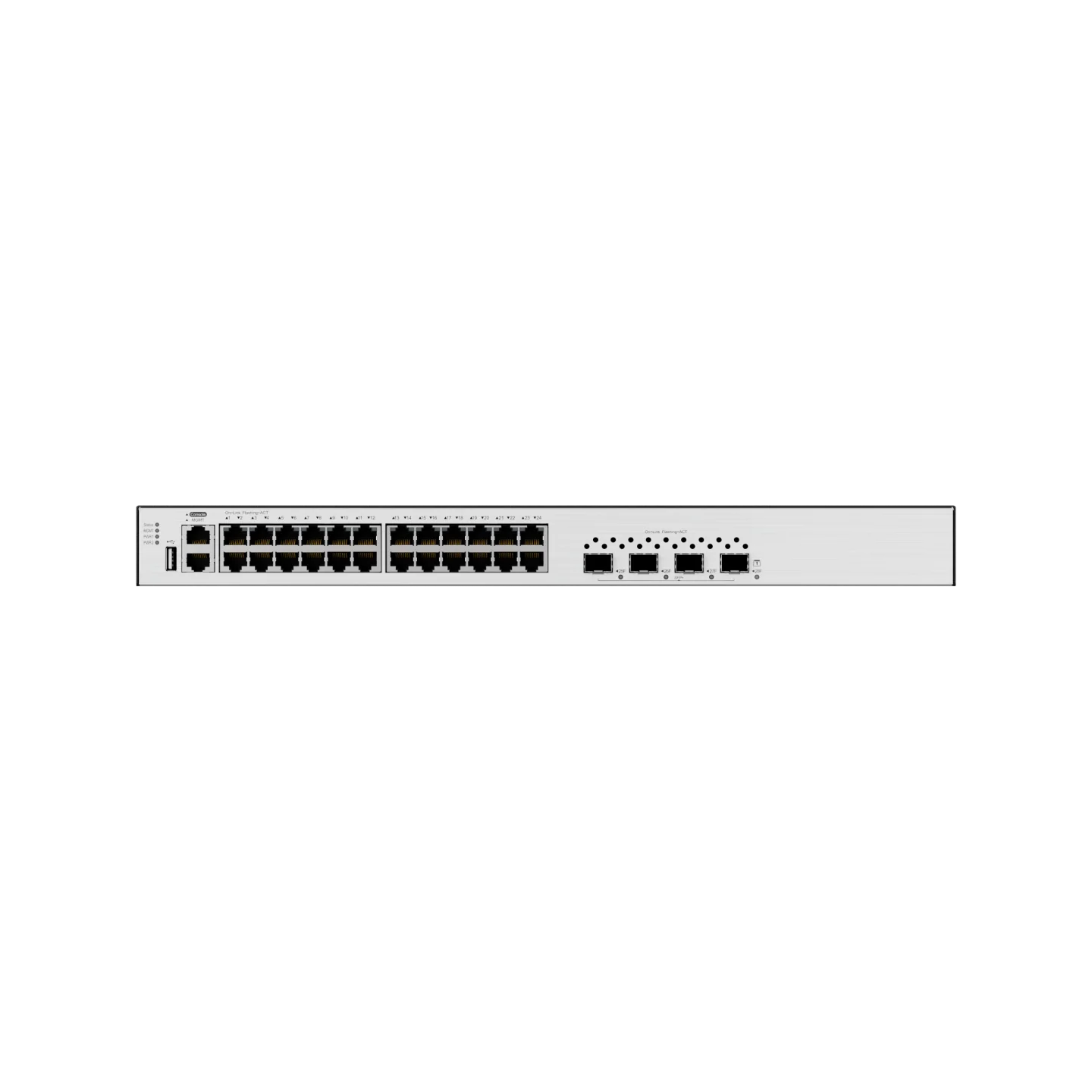

The NS‑S5310‑24GT4XS‑E is a high‑efficiency Layer 3 managed switch with 24 Gigabit Ethernet downlinks and 4 × 1/10 Gbps SFP+ uplinks. It supports IPv4/IPv6 dual‑stack routing, VXLAN overlay, and VSU virtualization for simplified management.

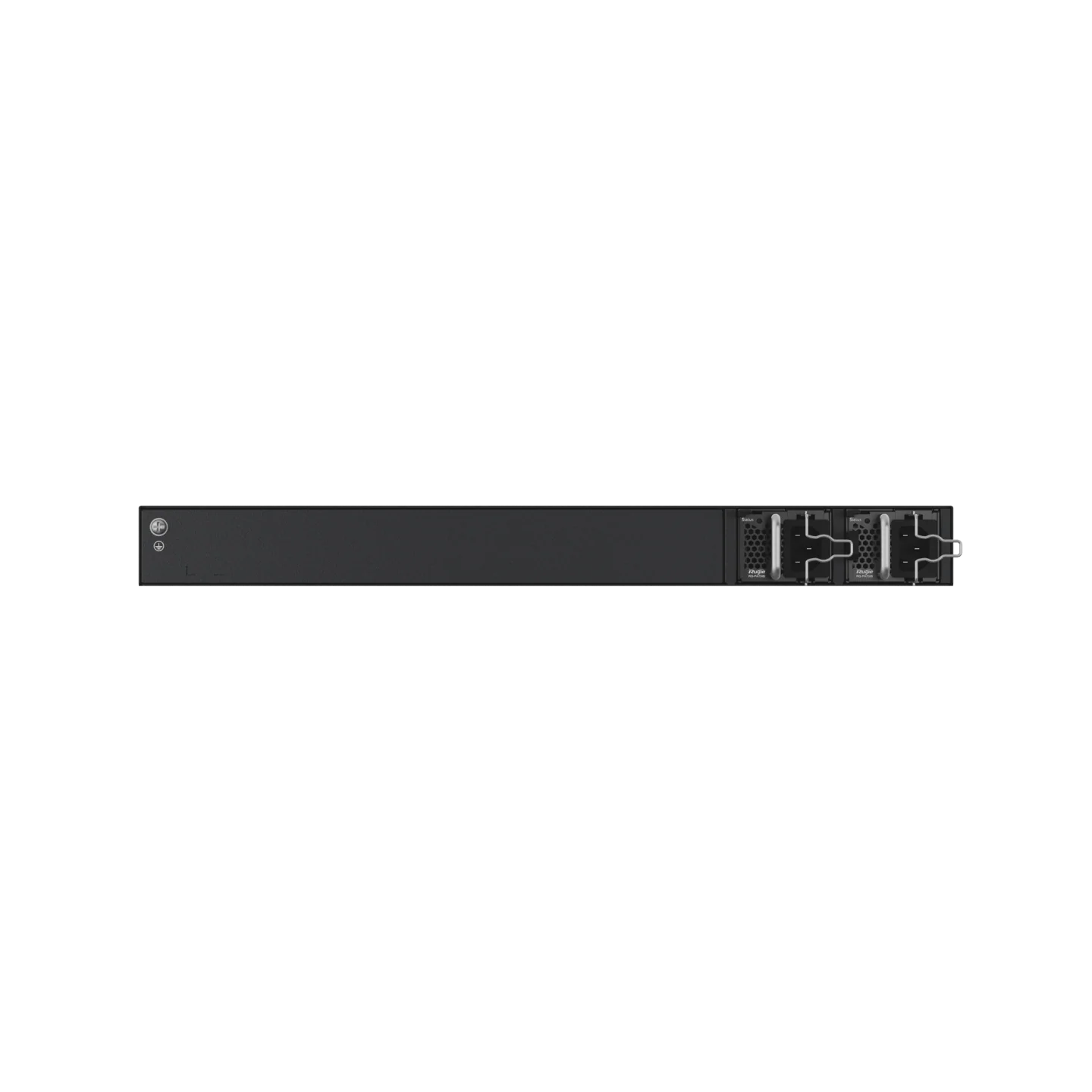

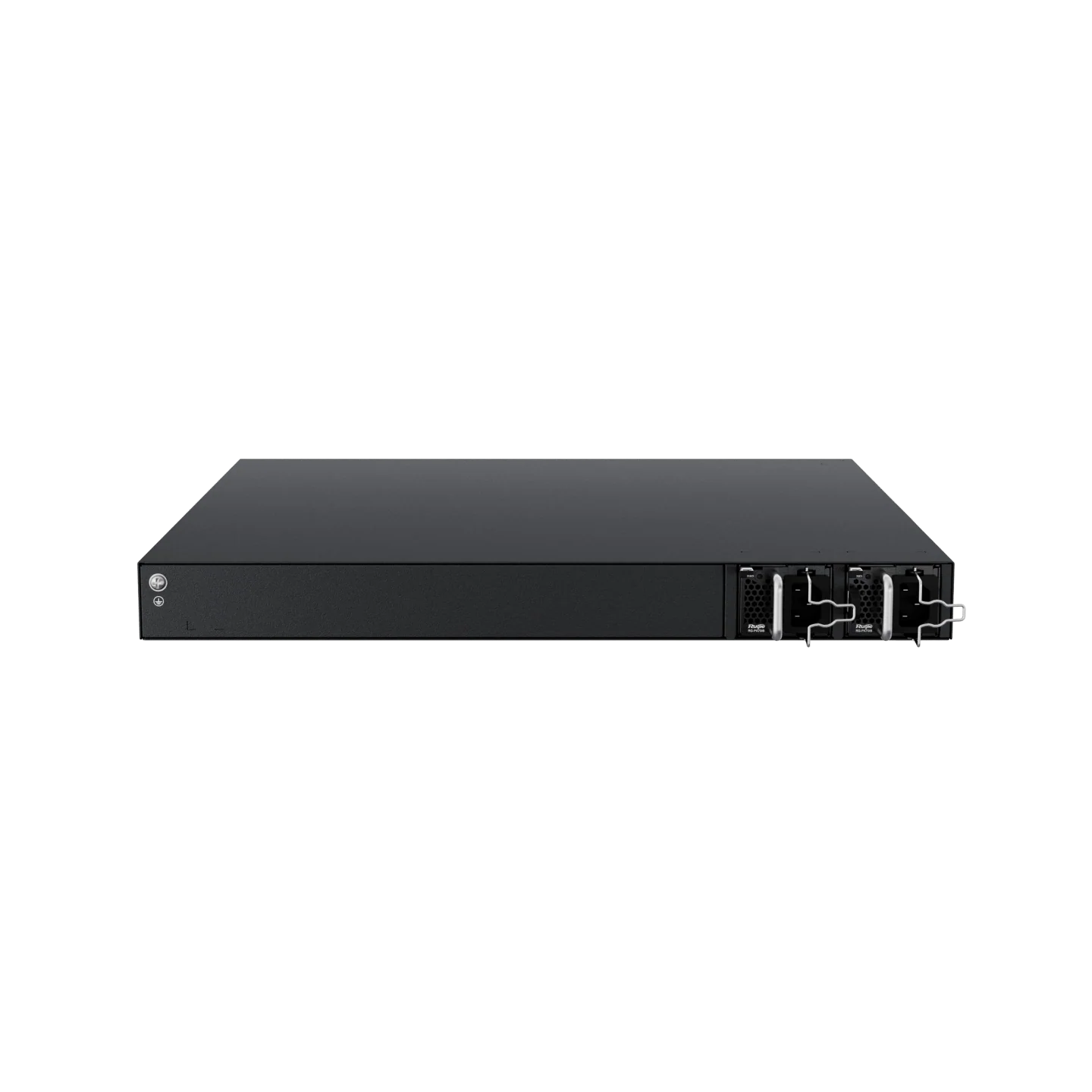

Dual hot‑swappable power slots and variable‑speed fans ensure both redundancy and energy savings.
Highlights
-
208 Gbps switching capacity & 155 Mpps forwarding for wire‑speed performance under heavy loads.
-
IPv4/IPv6 multi‑layer routing: Static, RIP, OSPFv2/3, IS‑IS, BGP4/+ support.
-
Virtual Switching Unit (VSU): Stack up to 9 units into one logical device.
-
Advanced security: 802.1X, DHCP snooping, IGMP/MLD snooping, ARP inspection, ACLs.
-
Energy‑efficient design: Variable‑speed fans, EEE support, intelligent heat management.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA150IB‑F | AC Power Module | 150 W AC slot module (non‑PoE) |
| NS‑PD150IB‑F | DC Power Module | 150 W DC slot module (non‑PoE) |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode fiber (850 nm, 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode fiber (1310 nm, 10 km) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting bracket |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 for CLI management |
Compare with Similar Models
| Model | Downlinks | Uplinks | PoE | Capacity | Forwarding | Brand |
|---|---|---|---|---|---|---|
| Ruijie RG‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch (OEM) |
| Ruijie RG‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| NSComm NS‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Ruijie |
| NSComm NS‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Ruijie |
| NSComm NS‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Network‑Switch |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5310‑24GT4XS‑E |
| Downlink Ports | 24 × 10/100/1000 BASE‑T |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 208 Gbps |
| Forwarding Rate | 155 Mpps |
| Power Slots | 2 (hot‑swappable) |
| MAC Address Table | 128,000 entries |
| VLAN Support | 4,094 VLANs |
| Layer 3 Protocols | Static, RIP/OSPF, IS‑IS, BGP4, IPv6 static/RIPng/OSPFv3/IS‑ISv6/BGP4+ |
| Virtualization (VSU) | Yes |
| Security Features | 802.1X, DHCP snooping, IGMP snooping, ARP inspection, ACLs |
| Power Input | AC 100–240 V |
| Operating Temp. | –10 °C to +55 °C |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | ~4.0 kg |
| MTBF | > 200,000 hours |
