NSComm S5000-48GT4MS-E 48x1G & 4x1G/2.5G SFP L2+ Managed Switch
NS‑S5000‑48GT4MS‑E, 48 Gigabit Ports + 4 × 1/2.5 Gbps SFP Uplinks (non‑PoE)
As a trusted manufacturer alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers identical hardware and performance under your own brand.
Our NS‑S5000 series fully matches Ruijie RG‑S5000‑E models, featuring the same port configurations, surge protection, uplink speeds, L2+ routing, PoE capabilities, and enterprise‑grade reliability.
Overview
High‑density version of the 24‑port model. Provides 48 auto-negotiating Gigabit ports and four 1/2.5 GbE SFP uplinks, supporting L2+/static routing, surge protection, RLDP, and energy-saving features. Equivalent to RG‑S5000‑48GT4MS‑E.
Highlights
-
High-density 48-port design with 139 Gbps switching and 104 Mpps forwarding for heavy-load campus access.
-
2.5 GbE uplinks eliminate bandwidth constraints in large deployments.
-
Same robust surge, CPU and loop protection as smaller models—ensuring enterprise-grade reliability.
-
VSU and cloud-based management means easy scaling, automated deployment, and efficient O&M.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA240‑48 | Power Supply Unit | Standard external AC module |
| NS‑SFP‑1G‑SX | SFP Transceiver | MMF fiber module |
| NS‑SFP‑1G‑LX | SFP Transceiver | SMF fiber module |
| NS‑SFP‑2.5G‑04 | SFP Transceiver | 2.5 Gbps fiber uplink capacity |
| NS‑RMK‑1U | Rack Mount Kit | 19″ rack installation bracket |
| NS‑Console‑Cable | Console Cable | RJ45 management console cable |
Compare with Similar Models
| Model | Ports (Access / Uplink) | PoE Support | Capacity | Forward Rate | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5000‑10GT2MS‑E | 10 × 1 GbE, 2 × 2.5 GbE SFP | None | 36 Gbps | ~27 Mpps | L2+, RLDP, 10 kV protection |
| NS‑S5000‑10GT2MS‑E | Same | None | Same | Same | Same specs under your brand |
| Ruijie RG‑S5000‑10GT2MS‑P‑E | 10 × 1 GbE (8 PoE+), 2× SFP | PoE+ (125 W) | 36 Gbps | ~27 Mpps | L2+, PoE+, RLDP, surge protect |
| NS‑S5000‑10GT2MS‑P‑E | Same | Same | Same | Same | Brand equivalent PoE model |
| Ruijie RG‑S5000‑24GT4MS‑E | 24 × 1 GbE, 4 × 2.5 GbE SFP | None | ~68 Gbps | ~51 Mpps | High-density, fanless, L2+/RIP |
| NS‑S5000‑24GT4MS‑E | Same | None | Same | Same | Voice identical, brand-labeled |
| Ruijie RG‑S5000‑48GT4MS‑E | 48 × 1 GbE, 4 × 2.5 GbE SFP | None | ~139 Gbps | ~104 Mpps | Larger port count, high throughput |
| NS‑S5000‑48GT4MS‑E | Same | None | Same | Same | Equivalent 48‑port version |
| Ruijie RG‑S5000‑24GT4MS‑P‑E | 24 × 1 GbE PoE+, 4×2.5 GbE SFP | PoE+ (370 W) | ~68 Gbps | ~51 Mpps | High-power PoE, RLDP, L2+, surge protect |
| NS‑S5000‑24GT4MS‑P‑E | Same | Same | Same | Same | PoE budget high, under your label |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5000‑48GT4MS‑E |

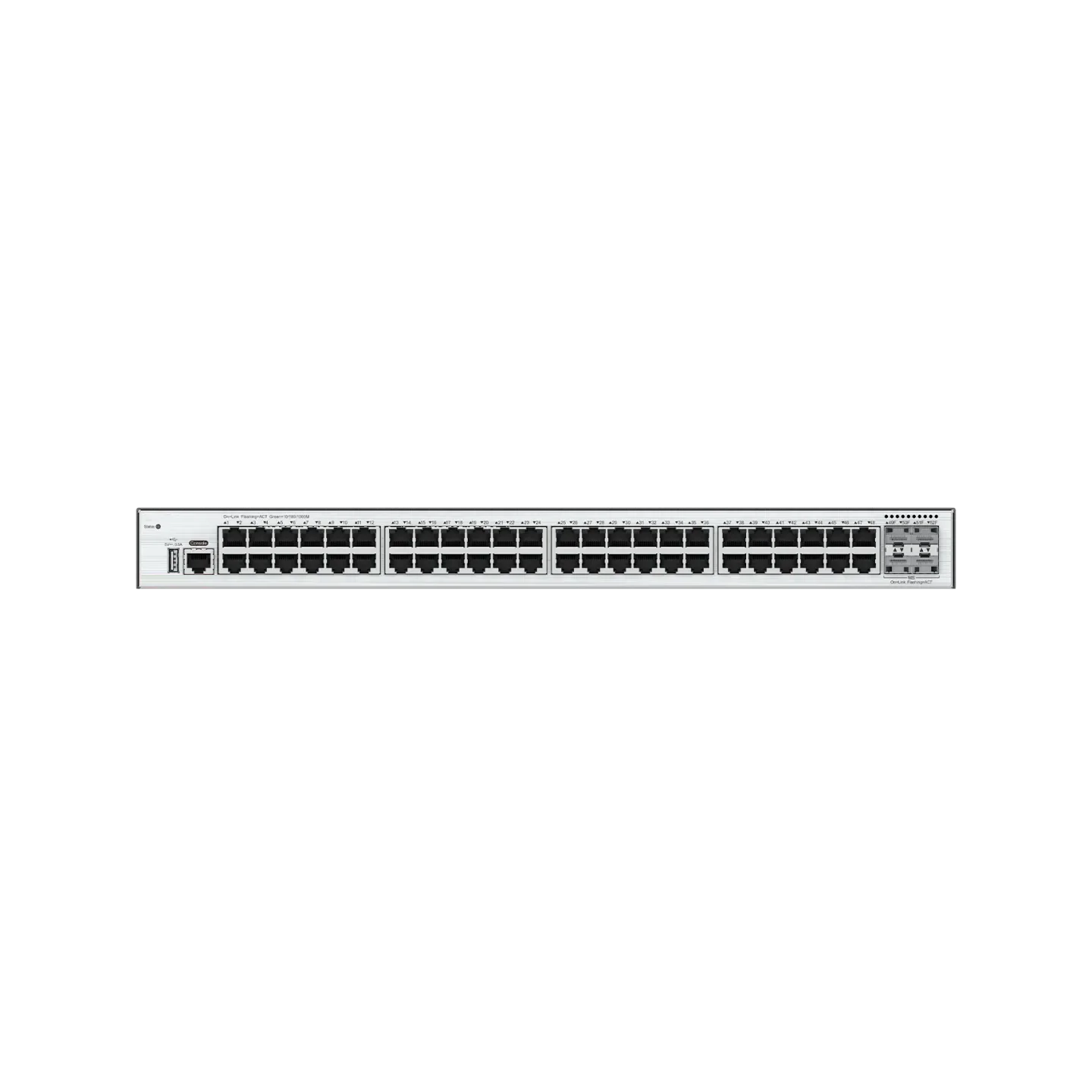

| Downlink Ports | 48 × 10/100/1000 BASE‑T |
| Uplink Ports | 4 × 1 GbE/2.5 GbE SFP |
| Switching Capacity | ~139 Gbps |
| Forwarding Rate | ~104 Mpps |
| MAC Table | 16,000 entries |
| Routing Support | Static, RIP |
| Surge Protection | Up to 10 kV |
| RLDP / ERPS | Yes |
| Operating Temp | 0–45 °C |
| Noise | ≤ 40 dB |
| Dimensions | 440 × 220 × 43.6 mm (1 U) |
| Weight | ~2.8 kg |
| Management | CLI/Web/SNMP/Syslog/Cloud |
