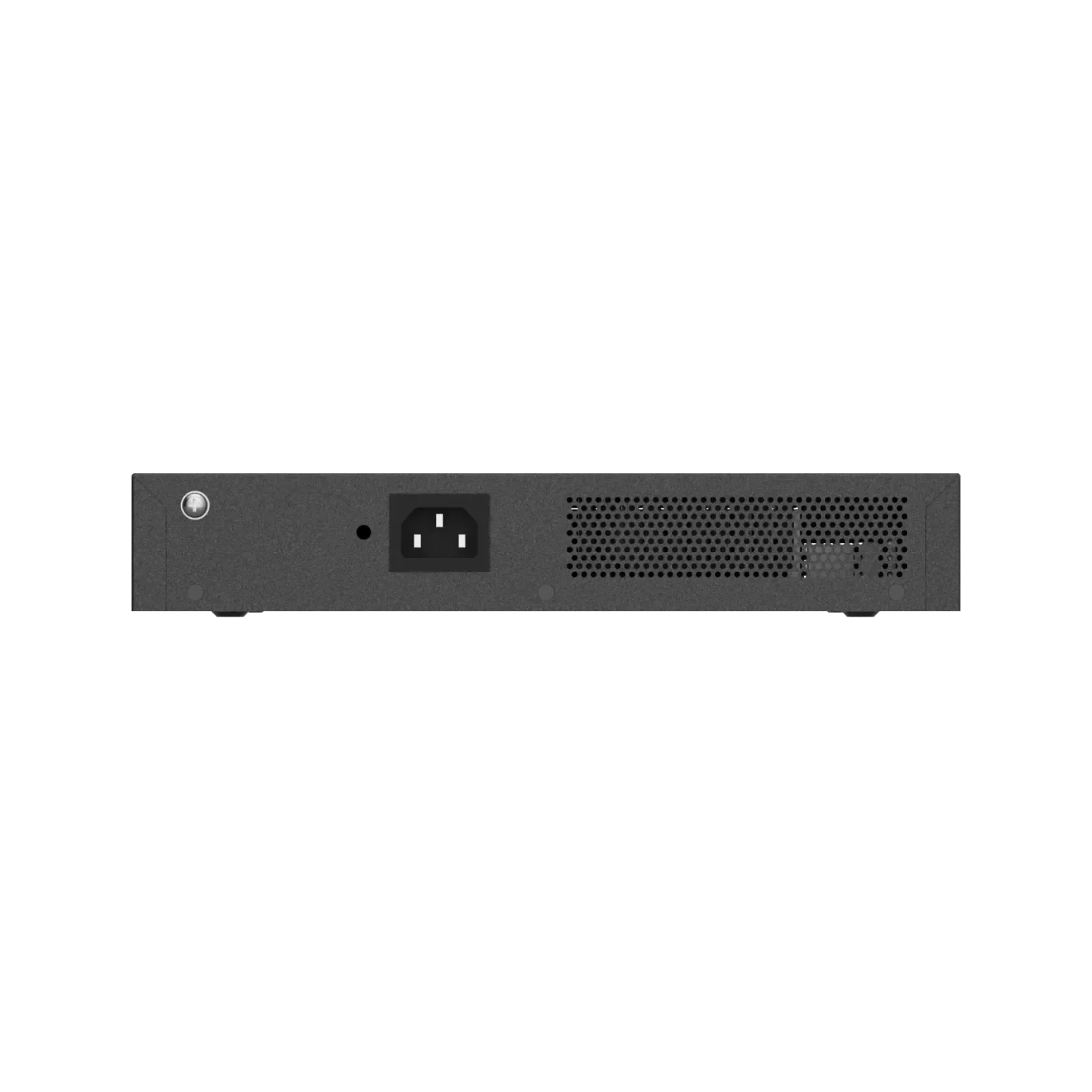

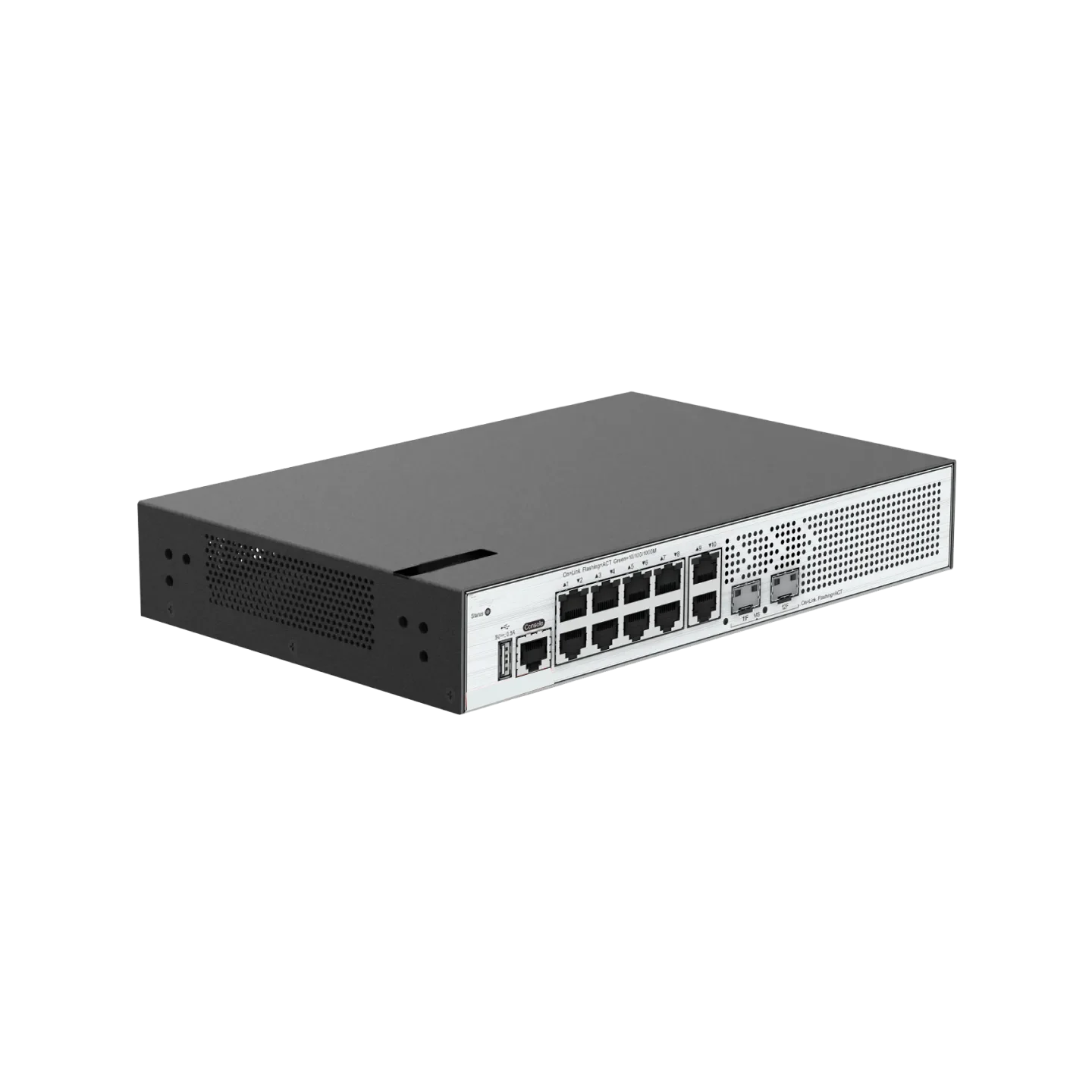

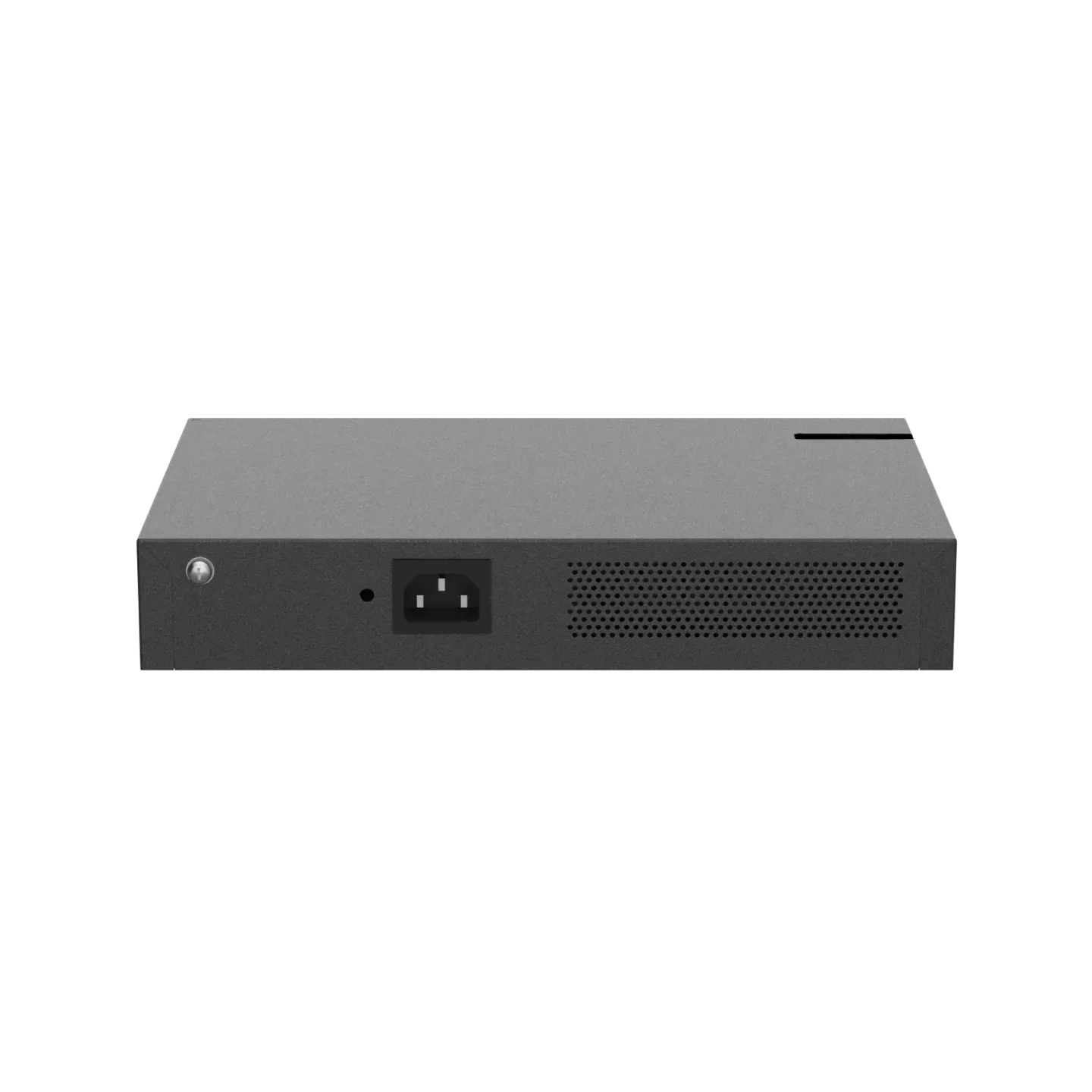

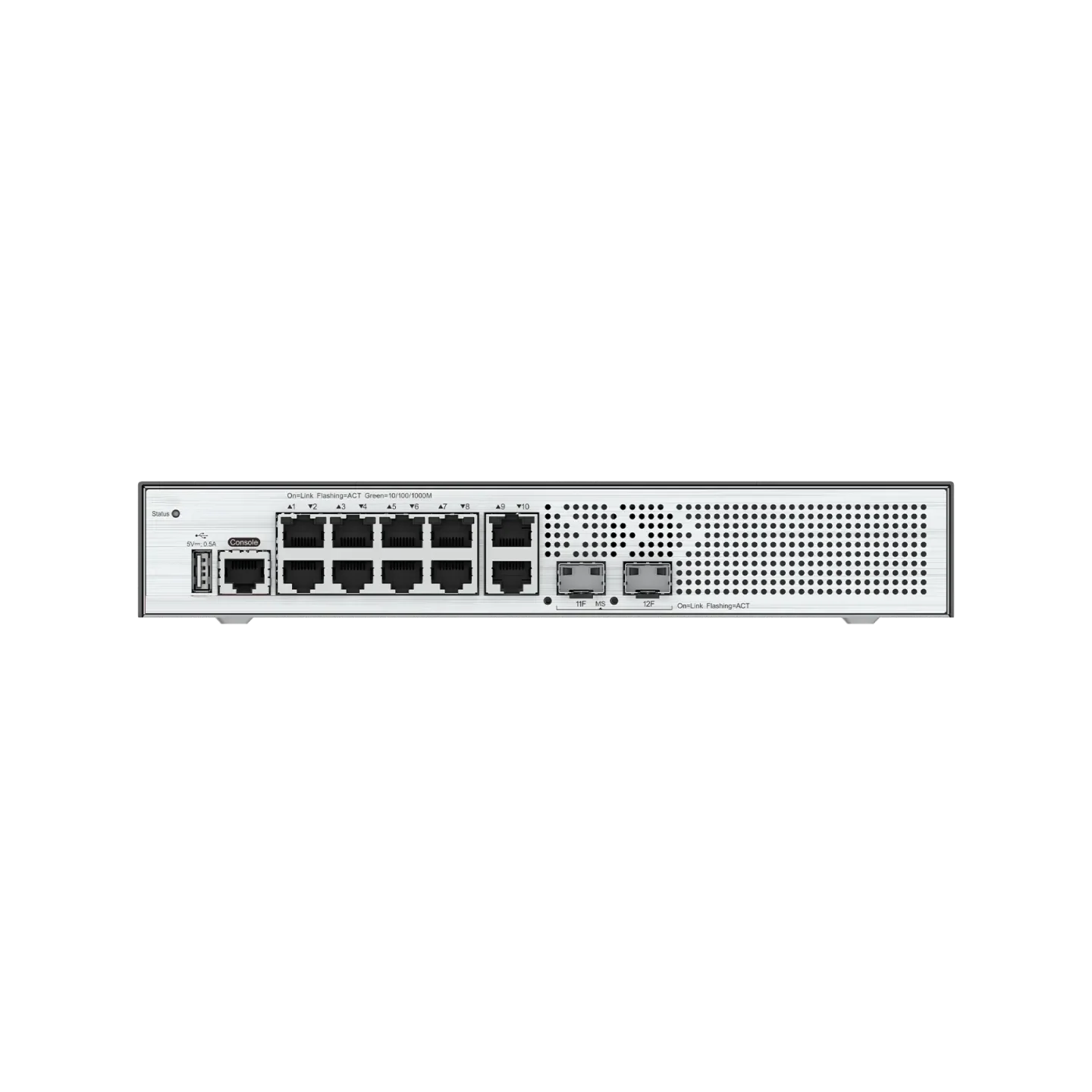

NSComm S5000-10GT2MS-E 8x1G & 2x2.5G SFP L2+ Managed Access Switch
NS‑S5000‑10GT2MS‑E, 10 Gigabit Ports + 2 × 2.5 Gbps SFP Uplinks (non‑PoE)
As a trusted manufacturer alongside Cisco, H3C, Huawei, and Ruijie, NSComm delivers identical hardware and performance under your own brand.
Our NS‑S5000 series fully matches Ruijie RG‑S5000‑E models—featuring the same port configurations, surge protection, uplink speeds, L2+ routing, PoE capabilities, and enterprise‑grade reliability.
Overview
This fanless, high‑reliability access switch supports 10 × 1 GbE downlinks and 2 × 1/2.5 GbE SFP uplinks. L2+ with static routing and RIP. 10 kV surge protection, RLDP for fiber loop detection, and energy‑efficient design. Fully equivalent to Ruijie RG‑S5000‑10GT2MS‑E.
Highlights
-
2.5 GbE uplinks eliminate gigabit bottlenecks—support smooth burst data transfer and greater terminal density.
-
Industry‑leading 10 kV surge protection on each port for robust performance in harsh environments.
-
Proprietary CPU Protection Policy (CPP) safeguards device control planes from DOS attacks and abnormal traffic.
-
Rapid Link Detection Protocol (RLDP) quickly detects and isolates network loops to prevent broadcast storms.
-
Fanless, compact design with Energy‑Efficient Ethernet (EEE) support ensures ultra‑quiet and low‑power operation suitable for offices.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA240‑48 | Power Supply Unit | Fixed external AC PSU, 100–240 V AC |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode fiber (850 nm) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single-mode fiber (1310 nm) |
| NS‑SFP‑2.5G‑02 | SFP Transceiver | 2.5 Gbps fiber uplink support |
| NS‑RMK‑1U | Rack Mount Kit | Bracket kit for 1U installation |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 console management accessory |
Compare with Similar Models
| Model | Ports (Access / Uplink) | PoE Support | Capacity | Forward Rate | Key Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5000‑10GT2MS‑E | 10 × 1 GbE, 2 × 2.5 GbE SFP | None | 36 Gbps | ~27 Mpps | L2+, RLDP, 10 kV protection |
| NS‑S5000‑10GT2MS‑E | Same | None | Same | Same | Same specs under your brand |
| Ruijie RG‑S5000‑10GT2MS‑P‑E | 10 × 1 GbE (8 PoE+), 2× SFP | PoE+ (125 W) | 36 Gbps | ~27 Mpps | L2+, PoE+, RLDP, surge protect |
| NS‑S5000‑10GT2MS‑P‑E | Same | Same | Same | Same | Brand equivalent PoE model |
| Ruijie RG‑S5000‑24GT4MS‑E | 24 × 1 GbE, 4 × 2.5 GbE SFP | None | ~68 Gbps | ~51 Mpps | High-density, fanless, L2+/RIP |
| NS‑S5000‑24GT4MS‑E | Same | None | Same | Same | Voice identical, brand-labeled |
| Ruijie RG‑S5000‑48GT4MS‑E | 48 × 1 GbE, 4 × 2.5 GbE SFP | None | ~139 Gbps | ~104 Mpps | Larger port count, high throughput |
| NS‑S5000‑48GT4MS‑E | Same | None | Same | Same | Equivalent 48‑port version |
| Ruijie RG‑S5000‑24GT4MS‑P‑E | 24 × 1 GbE PoE+, 4×2.5 GbE SFP | PoE+ (370 W) | ~68 Gbps | ~51 Mpps | High-power PoE, RLDP, L2+, surge protect |
| NS‑S5000‑24GT4MS‑P‑E | Same | Same | Same | Same | PoE budget high, under your label |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5000‑10GT2MS‑E |
| Downlink Ports | 10 × 10/100/1000 BASE‑T |
| Uplink Ports | 2 × 1 GbE / 2.5 GbE SFP |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | ~27 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table | 512 entries |
| Routing Support | Static routing, RIP/RIPng |
| VLAN Support | 4,096 VLANs, QinQ |
| Surge Protection | Up to 10 kV on ports |
| RLDP / ERPS | Enabled for loop detection & redundancy |
| Operating Temp | 0–45 °C |
| Noise | Fanless, ≤ 40 dB |
| Power Input | AC 100–240 V |
| Power Consumption | ~16 W fully loaded |
| Dimensions (W×D×H) | 260 × 170 × 43.6 mm (1 U) |
| Weight | ~2.0 kg |
| Mounting | Desk/wall/rack |
| Management | CLI, Web, SNMP, Syslog, USB upgrade, Cloud‑ready |
| MTBF |
200,000 hours |
| Certifications | RoHS, CE, FCC |
