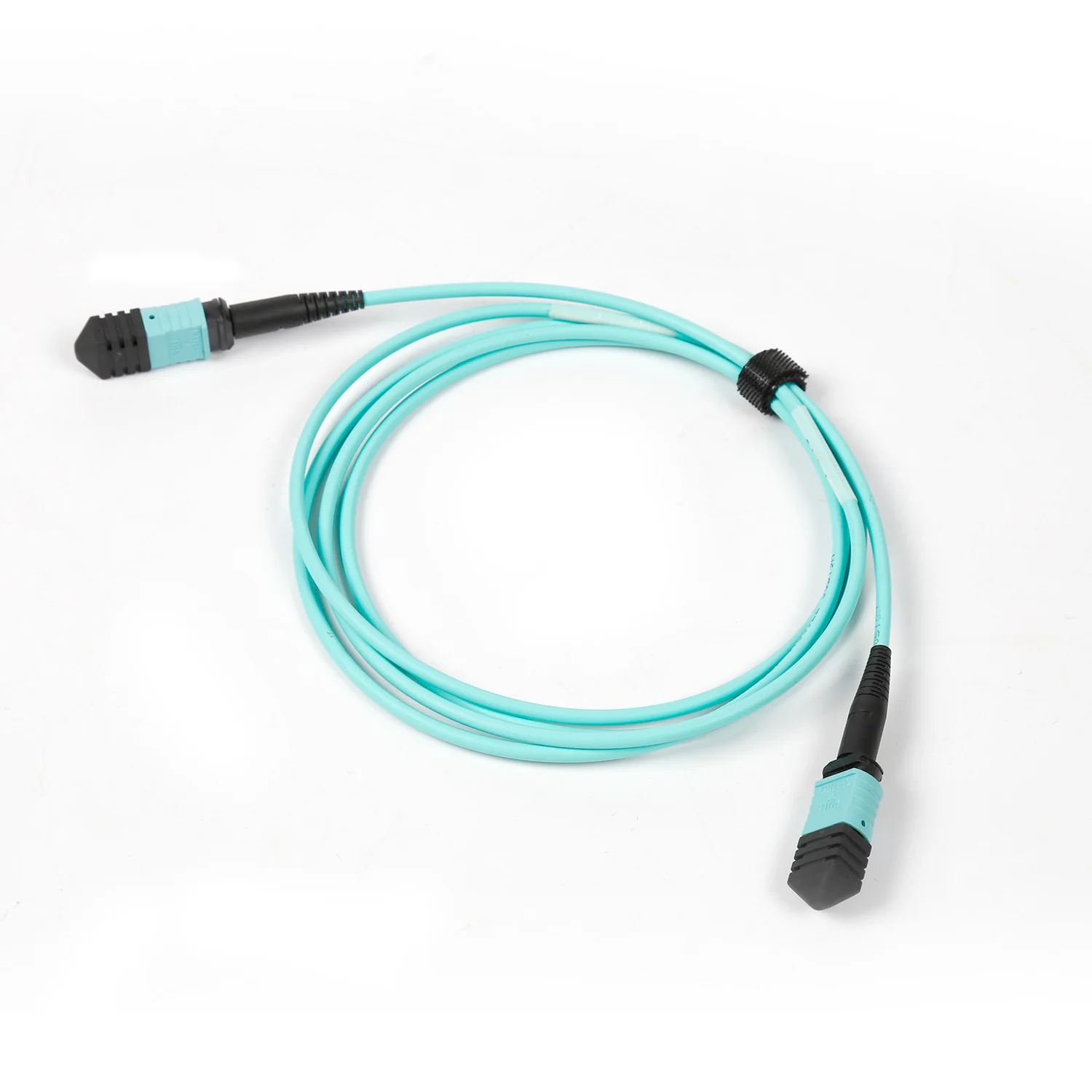

NSComm MPO Jumper Cables, MPO-12 UPC (Female) to MPO-12 UPC (Female), 12 Fibers, Multimode (OM3), OFNR, Low Loss, Polarity Type B
Overview
The NSComm MPO-12 UPC (Female) to MPO-12 UPC (Female) low loss jumper cable is a high-density multimode interconnect designed for short-reach 40G/100G Ethernet links in modern data centers. Built with 12-fiber OM3 50/125 μm multimode fiber and UPC-polished MTP/MPO connectors, this jumper provides reliable high-bandwidth connectivity for in-cabinet patching, cross-connects, and structured cabling systems where space efficiency and low insertion loss are essential.
Engineered with bend-insensitive multimode fiber and a riser-rated OFNR jacket, the MPO-12 OM3 jumper supports both Base-12 cabling systems and Base-8 parallel optics deployments. Because the MPO-12 interface also supports MTP-8 fiber systems, it is fully compatible with 8-fiber SR4 applications such as 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 transceiver connections, enabling smooth migration to higher data rates without extensive recabling.
Need assistance verifying polarity or compatibility with your MTP/MPO modules and multimode transceivers? Contact us now and our team will help validate your setup before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | MPO-12 UPC (Female) to MPO-12 UPC (Female) Multimode Jumper Cable |

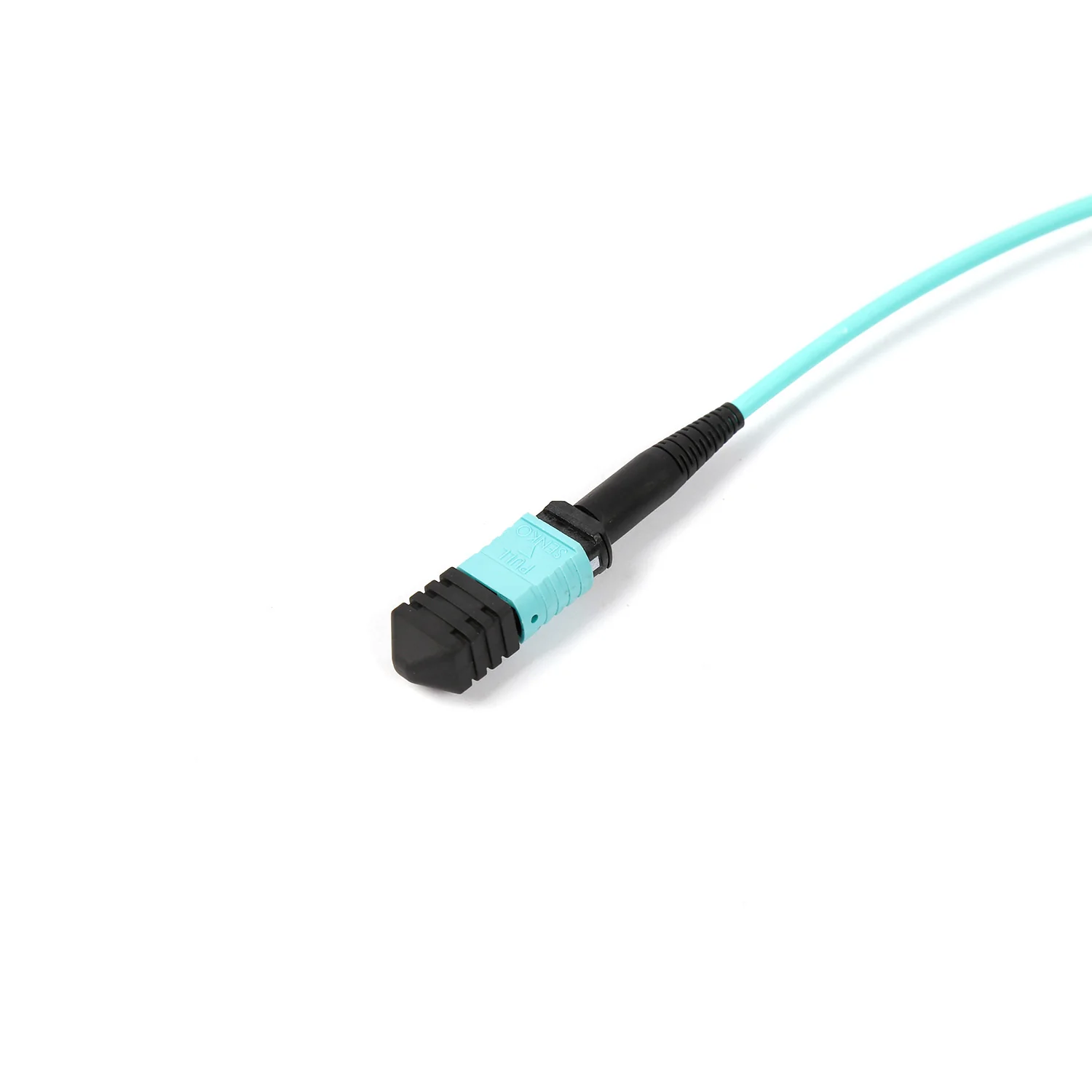

| Connector A | MPO-12 UPC Female (Pinless), Low Loss |
| Connector B | MPO-12 UPC Female (Pinless), Low Loss |
| Polish Type | UPC to UPC |
| Fiber Mode | OM3 50/125 μm Multimode |
| Glass Fiber | Bend-insensitive multimode fiber |
| Wavelength | 850 nm / 1300 nm |
| Fiber Count | 12 Fibers |
| Polarity | Type B |
| Cable Outside Diameter (OD) | 3.0 mm |
| Cable Jacket | Riser-rated, OFNR |
| Min. Bend Radius (Optical Fiber) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 mating cycles |
| Tensile Strength | 90/180 N (Long/Short Term) |
| Insertion Loss | ≤ 0.35 dB Max |
| Return Loss | ≥ 27 dB |
| Attenuation @ 850 nm | ≤ 3.5 dB/km |
| Attenuation @ 1300 nm | ≤ 1.5 dB/km |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Standards Compliance | MPO interface standards, OM3/MMF, RoHS compliant |
| Applications | 40G SR4/CSR4, 100G SR4, MPO trunks, in-cabinet patching, short-reach multimode links |
Why Choose NSComm MPO-12 UPC Low Loss Jumper?
-
Ideal for 40G/100G SR4 multimode links – Fully compatible with QSFP+ SR4, CSR4, and QSFP28 SR4 transceivers.
-
High-density OM3 multimode design – Compact Base-12 jumper optimized for leaf–spine and in-rack patching.
-
Cost-effective & low-loss connectivity – Reduces the need for time-consuming field terminations.
-
Bend-insensitive multimode fiber – Maintains performance in tight pathways and high-density cable trays.
-
Type B polarity for predictable mapping – Simplifies multimode parallel optics deployment.
-
Riser-rated OFNR jacket – Suitable for data center pathways and equipment room installations.
Length Options
Standard stocked lengths:
Available in common MPO jumper lengths tailored for short-reach 40G/100G multimode deployments within cabinets and between adjacent racks.
Custom lengths:
Custom lengths, labeling, and configurations are available on request to match your patch panels, trunk designs, and transceiver locations.
