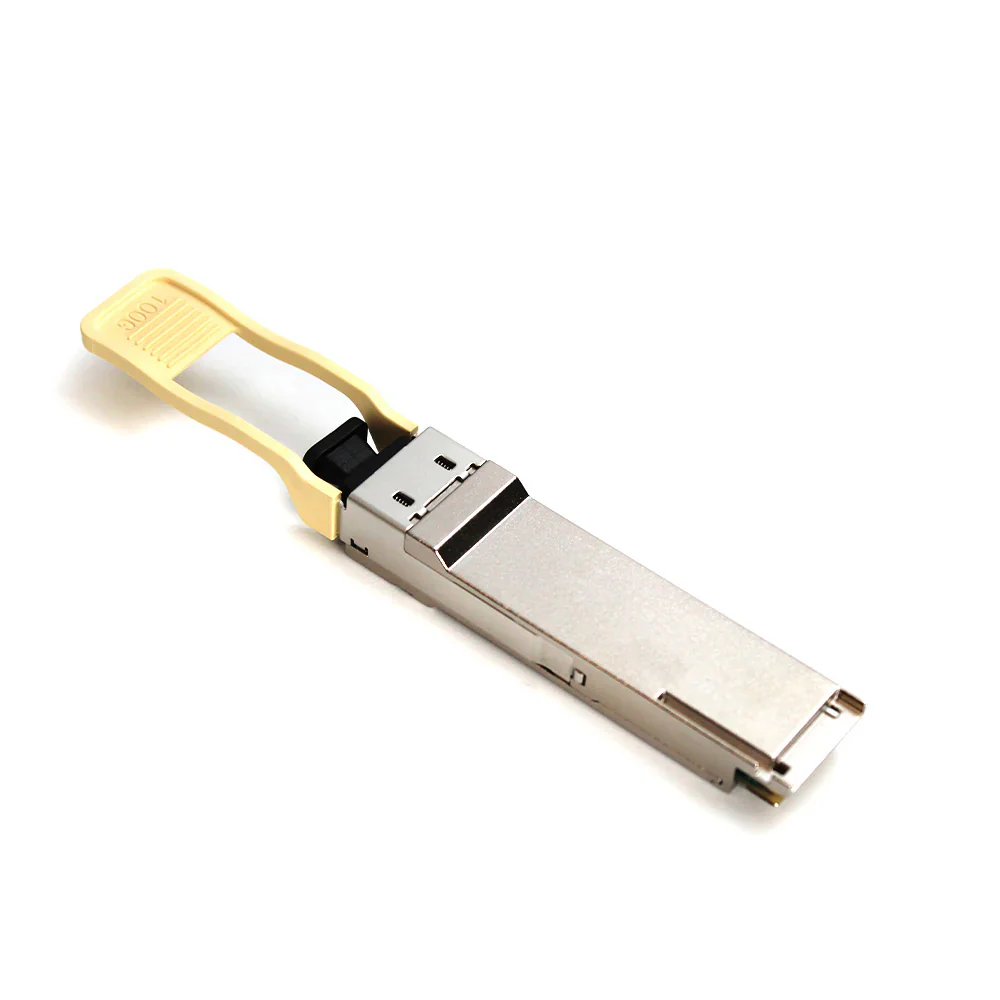

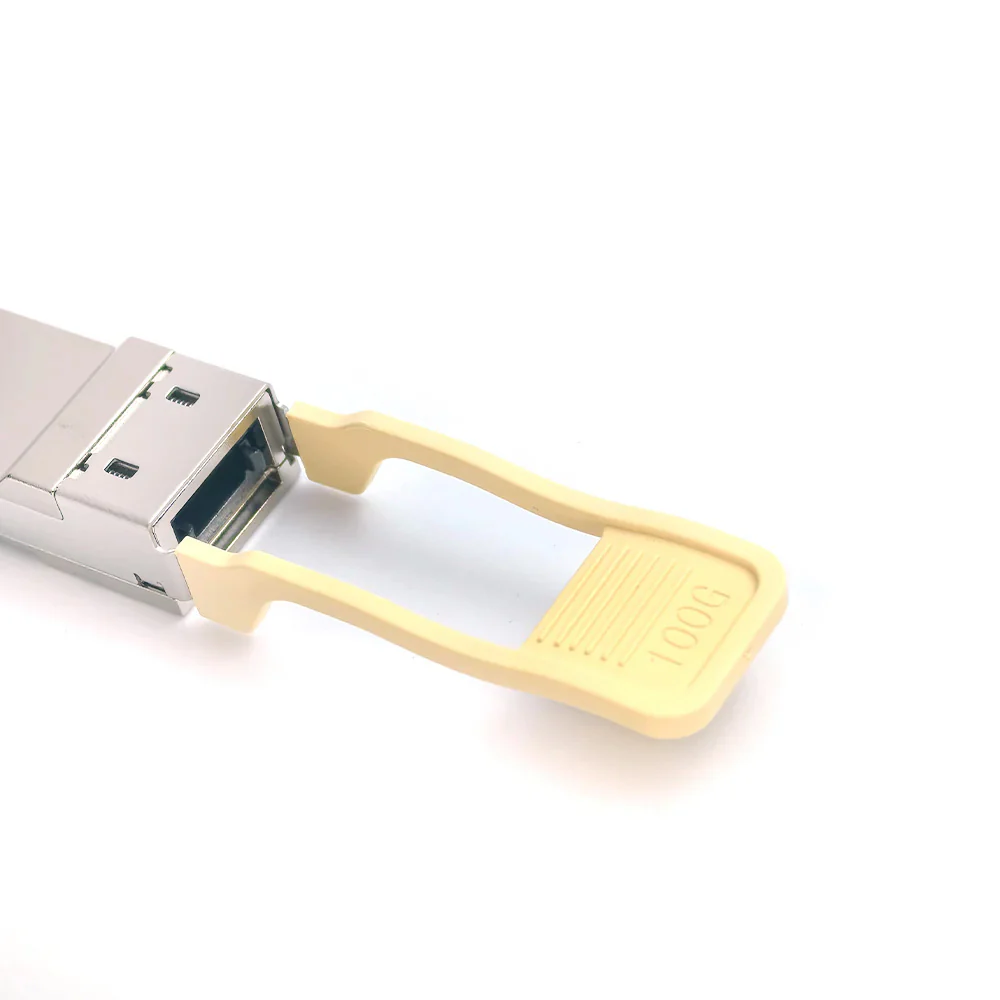

NSComm NS-QSFP28-100G-SR4 100G Base-SR4 QSFP28 850nm 100m MTP/MPO-12 MMF DOM Optical Transceiver Module
NS-QSFP28‑100G‑SR4 Transceiver Module | 100 Gbps, 850 nm, MPO‑12 Connector, 70 m/100 m
Product Overview
The NSComm QSFP28‑100G‑SR4 is a high-density, parallel-optical module engineered for 100 Gigabit Ethernet over multimode fiber. It aggregates four independent 25 Gbps channels via an 850 nm VCSEL array, delivering full 100 Gbps throughput over parallel fiber via a 12‑fiber MPO/MTP interface.
This hot‑pluggable module supports reach of up to 70 m on OM3 and 100 m on OM4 multimode fiber, adhering to IEEE 802.3bm (100GBASE‑SR4) and QSFP28 MSA specifications. It includes Digital Diagnostic Monitoring (DDM) for real‑time link diagnostics.
Universally compatible, the NSComm QSFP28‑100G‑SR4 module integrates seamlessly with hardware from Cisco, Juniper, Arista, Dell, Huawei, HPE Aruba, and other top networking brands.
Compatible Brands
The NS-QSFP28-100G-SR4 is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | QSFP28 |
| Max. Data Rate | Up to 103.1 Gbps (4×25 Gbps lanes) |
| Wavelength | 850 nm VCSEL array |
| Max. Cable Distance | 70 m on OM3 / 100 m on OM4 MMF |
| Connector | MPO‑12 |
| Optical Components | VCSEL transmitter / PIN photodiode receiver |
| Media Type | Multimode Fiber (MMF) |
| Digital Diagnostics (DDM) | Supported |
| TX Power | –8.4 to +2.4 dBm |
| Receiver Sensitivity | < –10.3 dBm |
| Power Consumption | < 3.5 W |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Protocol Compliance | IEEE 802.3bm SR4, CAUI‑4, QSFP28 MSA |
