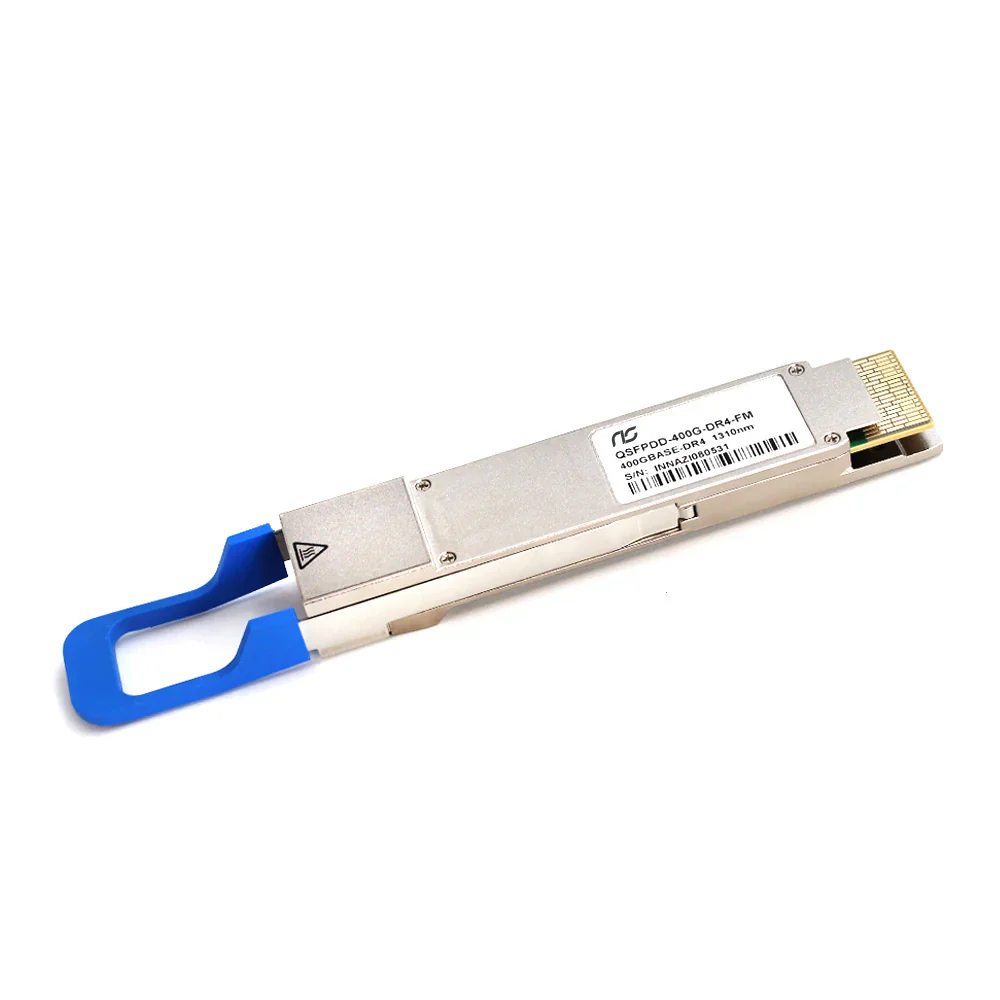

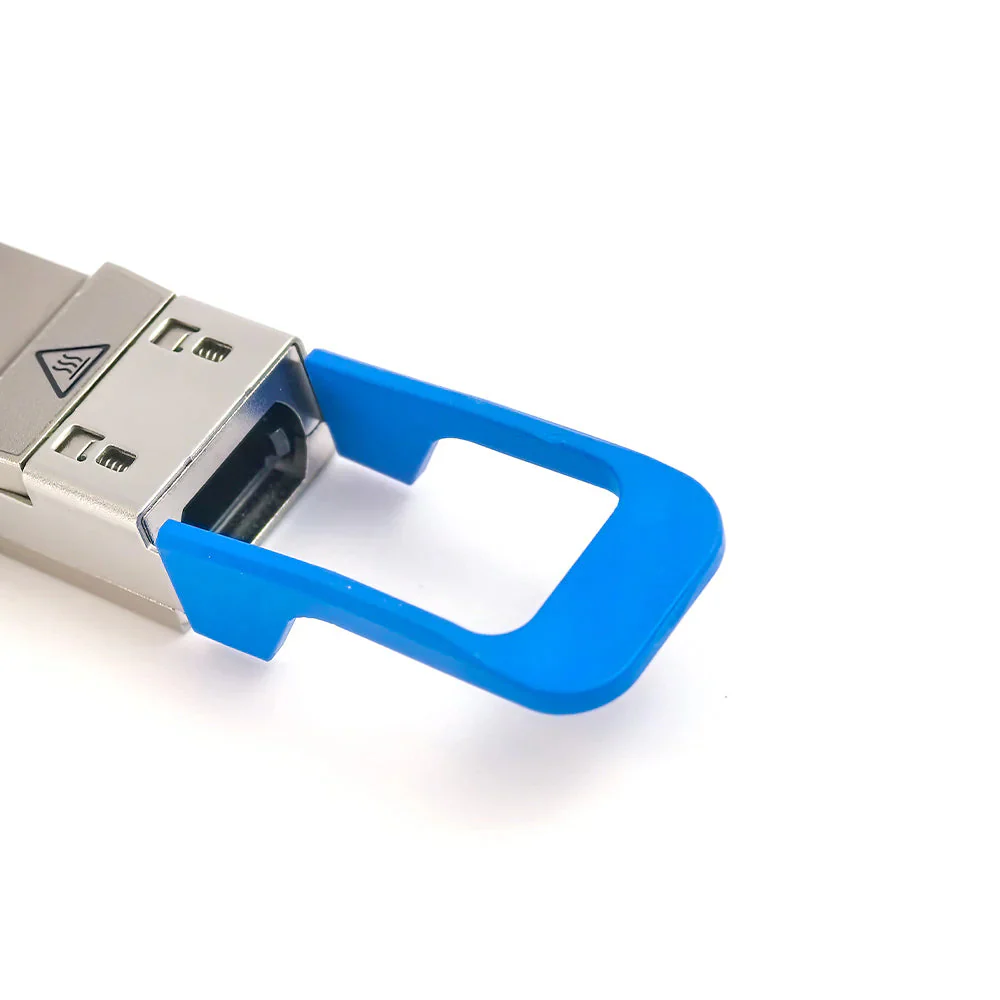

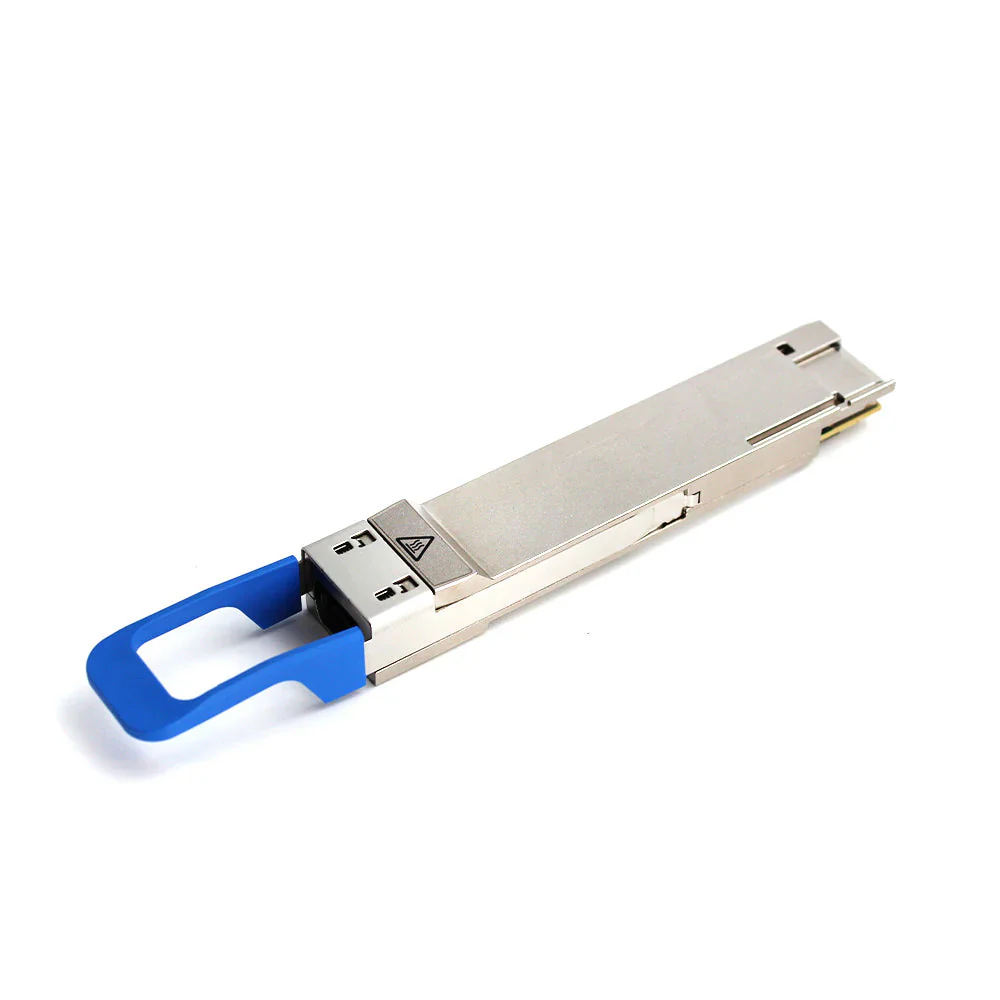

NSComm NS-QDD-400G-DR4-S 400G Base-DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO SMF FEC Optical Transceiver Module
NS-QDD‑400G‑DR4‑S Transceiver Module | 400 Gbps, 1310 nm PAM4, MPO‑12 APC, 500 m
Product Overview
The NSComm QDD‑400G‑DR4‑S is a high-performance QSFP‑DD transceiver engineered for 400 Gigabit Ethernet over single‑mode fiber (SMF). It sends four parallel 100 Gbps optical lanes (1310 nm PAM4) via an MPO‑12 APC connector, delivering reliable transmission up to 500 meters.
This hot‑swappable module includes host‑side Forward Error Correction (FEC) and Digital Optical Monitoring (DOM) support for real-time diagnostics. It fully complies with IEEE 802.3bs, QSFP‑DD MSA, CMIS 4.0 and 100G Lambda MSA standards.
Designed for universal compatibility, this module works across major networking brands including Cisco, Juniper, Arista, Dell, Huawei, HPE Aruba, and more.
Compatible Brands
The NS-QDD-400G-DR4-S is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Product Details
The NS-QDD‑400G‑DR4‑S module converts eight 50 Gbps electrical PAM4 lanes into four single‑wavelength 100 Gbps optical channels, using high-performance EML lasers and PIN receivers.
It offers breakdown support for 4×100G DR QSFP28 modules. Host‑side FEC ensures reliable operation, and power consumption remains within ≤ 12 W. It is tested and validated for full OEM interoperability.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | QSFP‑DD |
| Max. Data Rate | Up to 425 Gbps (4×100 Gbps PAM4 lanes) |
| Wavelength | 1310 nm |
| Max. Cable Distance | 500 m over SMF |
| Connector | MPO‑12 APC |
| Optical Components | EML lasers / PIN photodiode receivers |
| Modulation Format | PAM4 |
| Media Type | Single‑Mode Fiber (SMF) |
| Digital Diagnostics (DDM/DOM) | Supported |
| Transmit Power (per lane) | -2.9 to +4.0 dBm |
| Receiver Sensitivity | Typically < -5.9 dBm |
| Power Consumption | ≤ 12 W |
| Operating Temperature Range | 0 °C to 70 °C (Commercial) |
| Protocols Compliance | IEEE 802.3bs, QSFP‑DD MSA, CMIS 4.0, 100G Lambda MSA |
