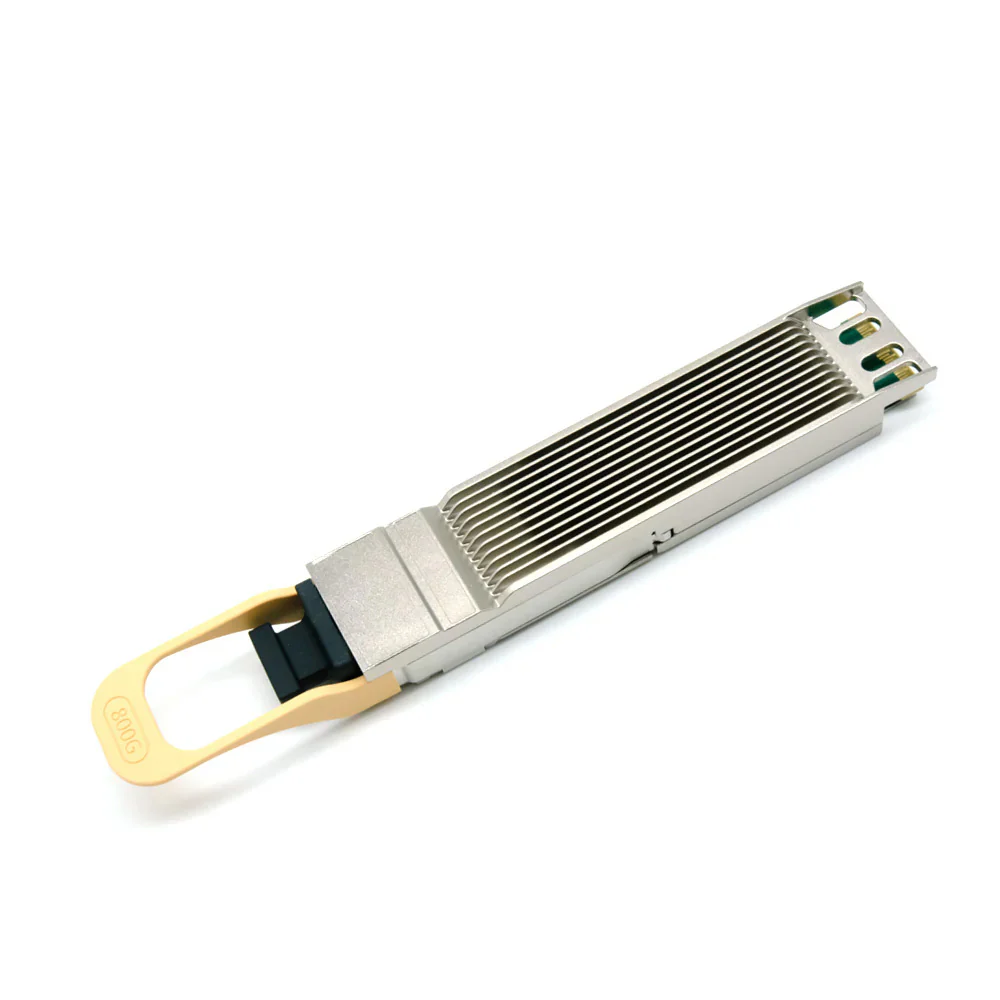

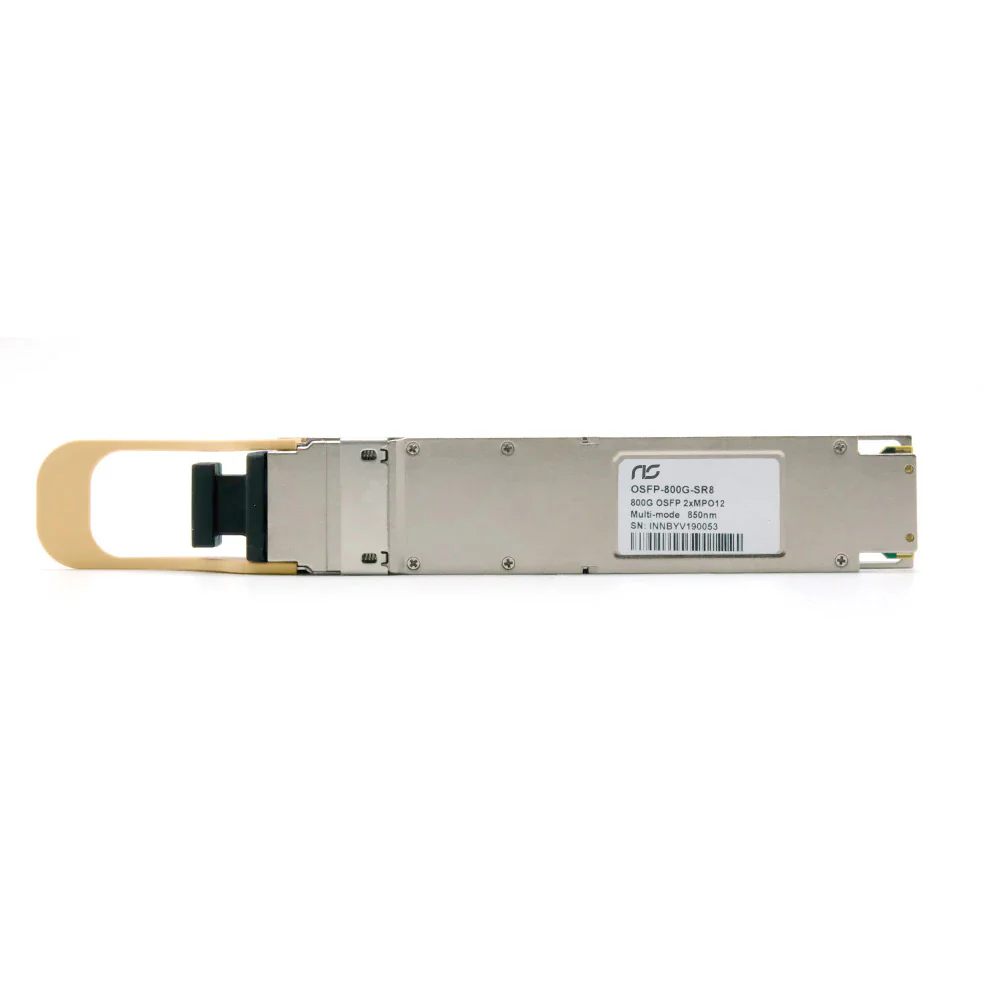

NSComm NS-OSFP-800G-SR8 OSFP PAM4 850nm MTP/MPO 50m OM4 MMF FEC Transceiver Module Finned Top
NS-OSFP‑800G‑SR8 Transceiver Module | 800 Gbps, 850 nm PAM4, MPO‑16 APC, 100 m
Product Overview
The NSComm NS-OSFP-800G-SR8 is a high-performance optical transceiver module designed to support 800 Gigabit Ethernet over multimode fiber. It uses eight parallel PAM4-modulated 100 Gbps lanes carried by an 850 nm VCSEL array, delivering aggregate throughput of ~ 800 Gbps via a dual MPO‑16 APC connector system.
The module supports zero-disruption hot plugging and features Digital Diagnostic Monitoring (DDM/DOM) for real-time optical feedback. It complies fully with OSFP MSA, IEEE 802.3bs 800GBASE‑SR8, and OIF CMIS 5.1/5.2 standards.
Compatible Brands
The NSComm NS-OSFP-800G-SR8 is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Product Details
Engineered for NS-OSFP-800G-SR8 port types, the transceiver supports 8×100 Gbps PAM4 channels (800GAUI‑8 electrical interface). It achieves up to 60 m over OM3 and 100 m over OM4 multimode fiber, powered efficiently at < 13.5 W.
It supports host-side FEC for reliable operation across demanding data center deployments.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | OSFP Finned‑Top |
| Max. Data Rate | ~800 Gbps (8 × 100 Gbps PAM4 lanes) |
| Wavelength | 850 nm VCSEL array |
| Max. Cable Distance | 60 m (OM3) / 100 m (OM4 MMF) |
| Connector | Dual MPO‑16 APC |
| Optical Components | VCSEL transmitters / PIN photodiode receivers |
| Media Type | Multimode Fiber (MMF) |
| Modulation Format | PAM4 |
| Digital Diagnostics (DDM/DOM) | Supported |
| Transmit Power (per lane) | –6 dBm to +4 dBm |
| Receiver Sensitivity | Typically < –7.9 dBm |
| Power Consumption | ≤ 13.5 W |
| Operating Temperature Range | 0 °C to 70 °C (Commercial) |
| Protocol Compliance | IEEE 802.3bs SR8, OSFP MSA, OIF CMIS 5.x |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
