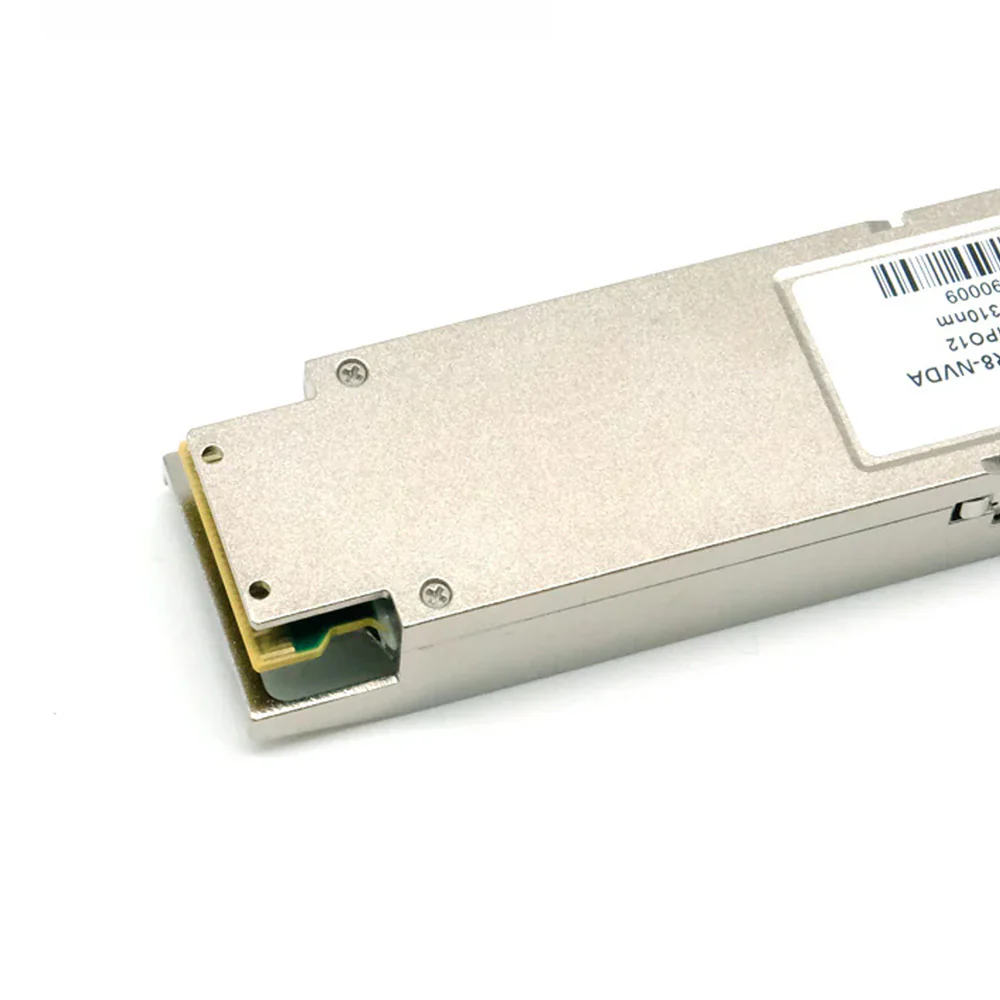

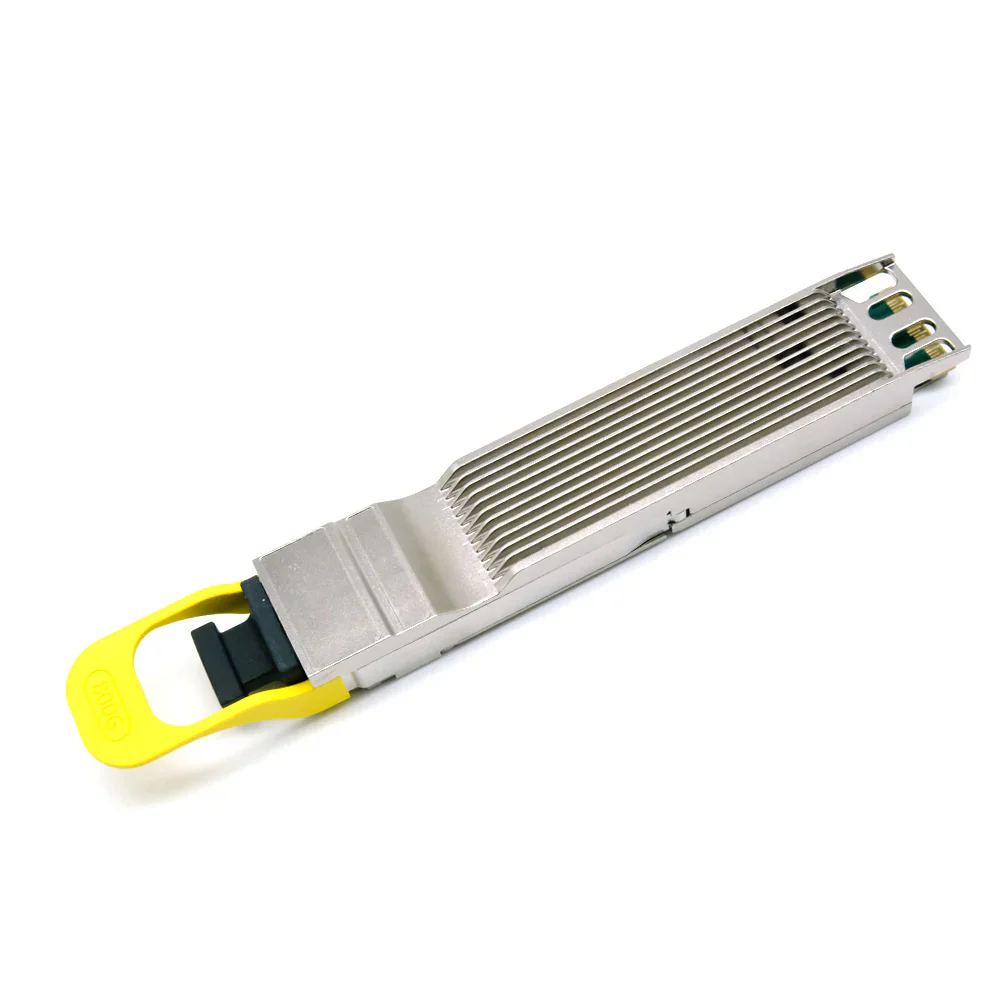

NSComm NS-OSFP-800G-DR8 800G Base-DR8/2xDR4 OSFP PAM4 1310nm Finned Top MTP/MPO-12 APC 500m SMF Optical Transceiver Module
NS-OSFP‑800G‑DR8 Transceiver Module | 800 Gbps, 1310 nm PAM4, MPO‑12 or Dual MPO‑12 APC, 500 m
Product Overview
The NSComm NS-OSFP-800G-DR8 is a high‑density optical transceiver designed to deliver 800 Gbps Ethernet over single‑mode fiber (SMF).
Utilizing eight parallel lanes of 100 Gbps PAM4 modulation at 1310 nm, this module supports data transmission over distances up to 500 meters using dual MPO‑12 APC ports - or optionally MPO‑12 APC - for wide compatibility.
It follows IEEE 802.3ck & 802.3cu, OSFP MSA, and CMIS 5.x standards, and includes integrated Digital Diagnostic Monitoring (DDM/DOM).
Compatible Brands
The NSComm NS-OSFP-800G-DR8 is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Product Details
This transceiver converts eight electrical PAM4 lanes at up to 106.25 Gbps (≈850 Gbps aggregate) into optical signals using EML transmitters paired with SiPhotonics or silicon PD arrays, with embedded PAM4 retimers and stabilization logic.
It supports 2×400G DR4 breakout, host‑side KP4 FEC, and advanced thermal management. Power usage remains within <16 W and operating range spans 0 °C to 70 °C.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | OSFP (Integrated heat sink) |
| Max. Data Rate | Up to ~850 Gbps (8 × 106.25 Gbps PAM4 lanes) |
| Wavelength | 1310 nm |
| Max. Cable Distance | Up to 500 m over SMF (G.652) |
| Connector | Dual MPO‑12 APC (or MPO‑16 APC variant) |
| Optical Components | EML lasers / PIN photodiodes |
| Modulation Format | PAM4 |
| Media Type | Single‑Mode Fiber (SMF) |
| Digital Diagnostics (DDM/DOM) | Supported |
| Transmit Power (per lane) | –2.9 to +4.0 dBm |
| Receiver Sensitivity | Typically < –5.9 dBm |
| Power Consumption | ≤ 16 W |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Standards Compliance | IEEE 802.3ck, IEEE 802.3cu, OSFP MSA, CMIS 5.x |
