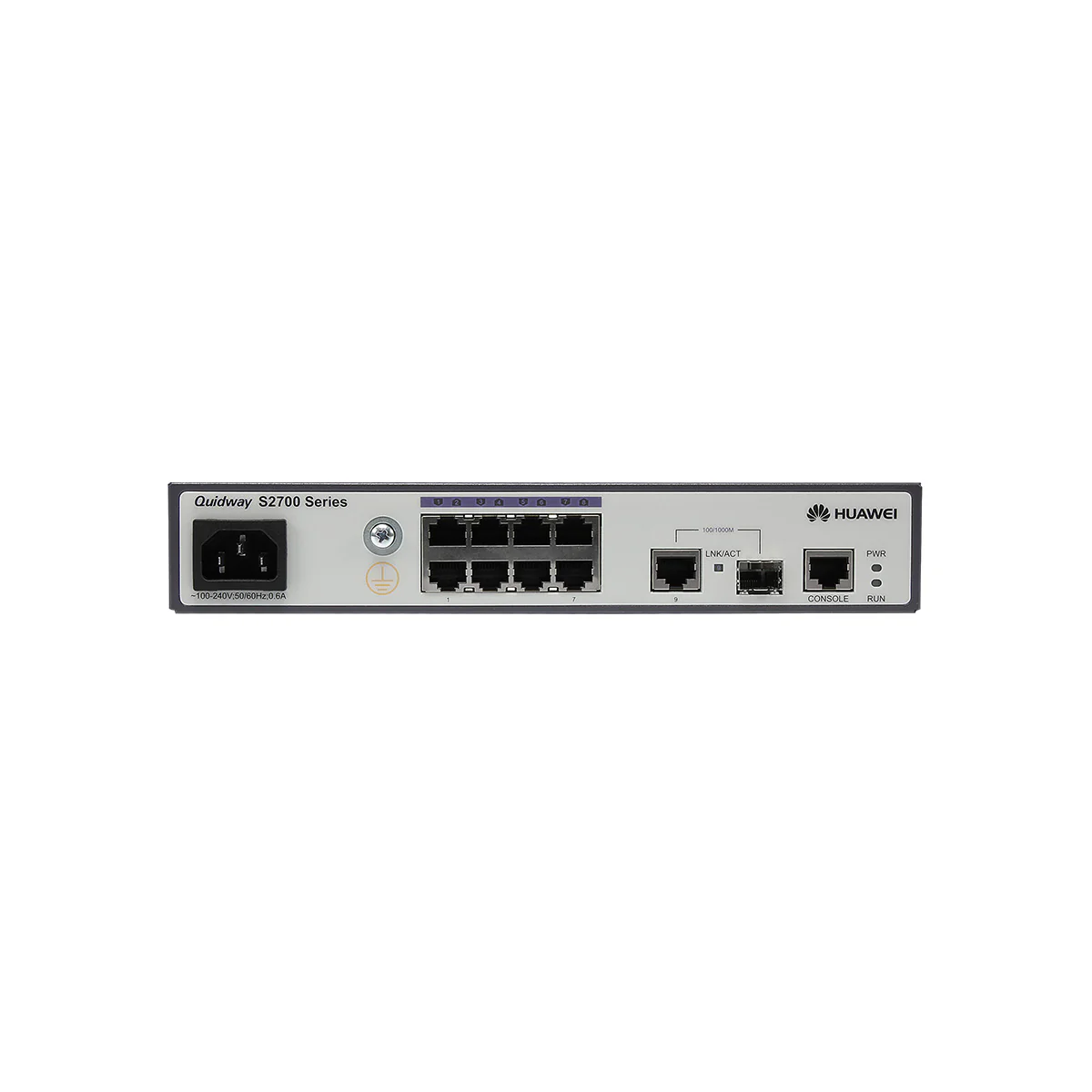

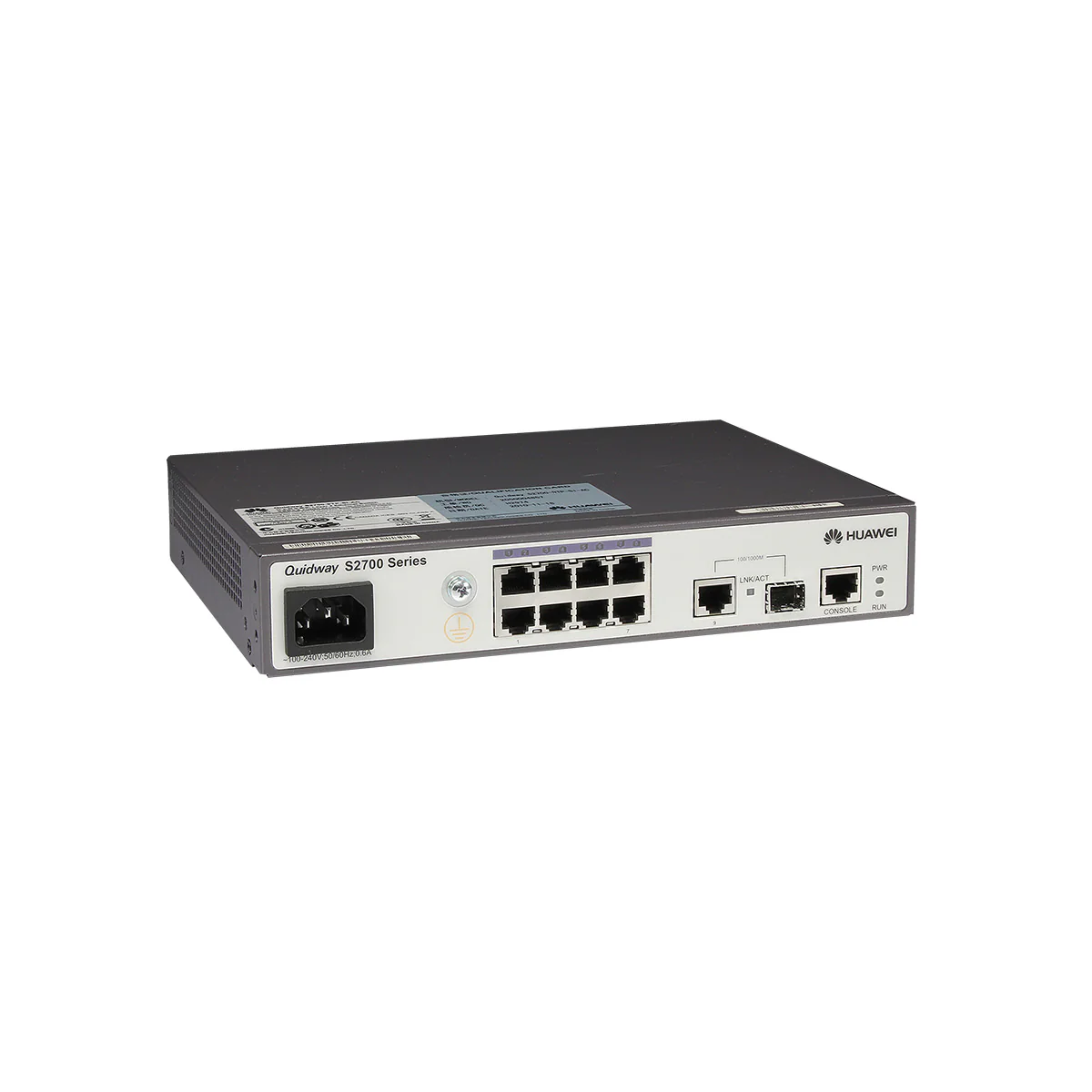

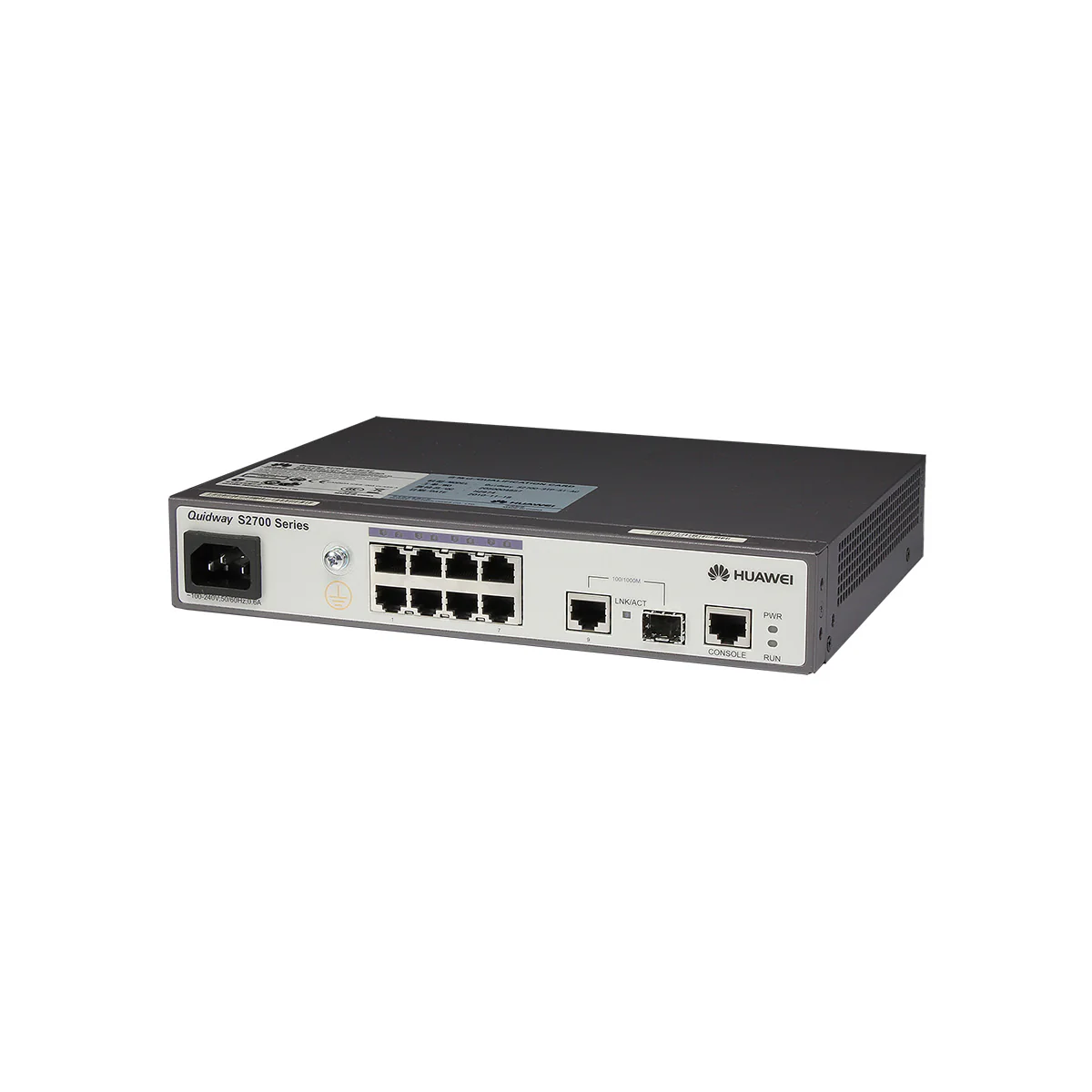

Huawei S2700-9TP-EI-AC 8×10/100 + 1×Gig Combo AC Ethernet Switch
Huawei S2700-9TP-EI-AC Layer 2 Fast Ethernet Switches
The Huawei S2700-9TP-EI-AC is a Layer 2 Fast Ethernet switch designed for small to medium-sized enterprise networks. It features 8 10/100BASE-TX ports and one dual-purpose 10/100/1000BASE-T or SFP uplink port, providing flexible deployment options.
With a switching capacity of 32 Gbps and a forwarding rate of 2.68 Mpps, this fanless switch ensures reliable performance with low power consumption. Its comprehensive security features, QoS capabilities, and IPv6 support make it a versatile solution for various networking needs.
Overview
Highlights
-
Flexible Port Configuration: 8 10/100BASE-TX ports and 1 dual-purpose 10/100/1000BASE-T or SFP uplink port.
-
High Performance: 32 Gbps switching capacity and 2.68 Mpps forwarding rate ensure efficient data handling.
-
Fanless Design: Natural heat dissipation for silent operation and reduced power consumption.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, and port isolation.
-
Advanced QoS: Supports traffic classification, rate limiting, and multiple queue scheduling algorithms.
-
IPv6 Support: Includes IPv6 host, static routes, and MLD snooping for future-proof networking.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-FE-SX-MM1310 | SFP Transceiver | 100BASE-FX SFP, 1310nm, multimode fiber, up to 2 km |
| eSFP-FE-LX-SM1310 | SFP Transceiver | 100BASE-LX SFP, 1310nm, single-mode fiber, up to 15 km |
| S-SFP-FE-LH40-SM1310 | SFP Transceiver | 100BASE-LH SFP, 1310nm, single-mode fiber, up to 40 km |
| SFP-1000BaseT | SFP Transceiver | 1000BASE-T SFP, RJ45 interface, up to 100 m over Cat5e cable |
| eSFP-GE-SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550 m |
| SFP-GE-LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10 km |
| S-SFP-GE-LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40 km |
| S-SFP-GE-LH40-SM1550 | SFP Transceiver | 1000BASE-LH SFP, 1550nm, single-mode fiber, up to 40 km |
Comparison with Similar Items
| Feature | S2700-9TP-EI-AC | S2700-18TP-EI-AC | S2700-26TP-EI-AC |
|---|---|---|---|
| Downlink Ports | 8 × 10/100BASE-TX | 16 × 10/100BASE-TX | 24 × 10/100BASE-TX |
| Uplink Ports | 1 × combo GE/SFP | 2 × combo GE/SFP | 2 × combo GE/SFP |
| Switching Capacity | 32 Gbps | 32 Gbps | 32 Gbps |
| Forwarding Rate | 2.68 Mpps | 5.36 Mpps | 8.96 Mpps |
| Power Supply | AC | AC | AC |
| PoE Support | No | No | No |
| Management | Web, CLI, SNMP | Web, CLI, SNMP | Web, CLI, SNMP |
| Ideal Use Case | Small networks | Medium networks | Larger networks |
Specifications
| Parameter | Specification |
|---|---|
| Model | S2700-9TP-EI-AC |
| Downlink Ports | 8 × 10/100BASE-TX ports |
| Uplink Ports | 1 × combo port (10/100/1000BASE-T or 100/1000BASE-X SFP) |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 2.68 Mpps |
| MAC Address Table | 8K entries |
| VLANs | Supports up to 4,000 VLANs (IEEE 802.1Q) |
| QoS | 4 or 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, MLD v1/v2 snooping |
| Security Features | 802.1X, MAC filtering, DHCP snooping, port isolation, storm control |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption | <12.8 W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (W×D×H) | 250 mm × 180 mm × 43.6 mm (9.84 in. × 7.09 in. × 1.72 in.) |
| Weight | <1.4 kg (3.09 lbs) |
| Warranty | Limited lifetime warranty |
