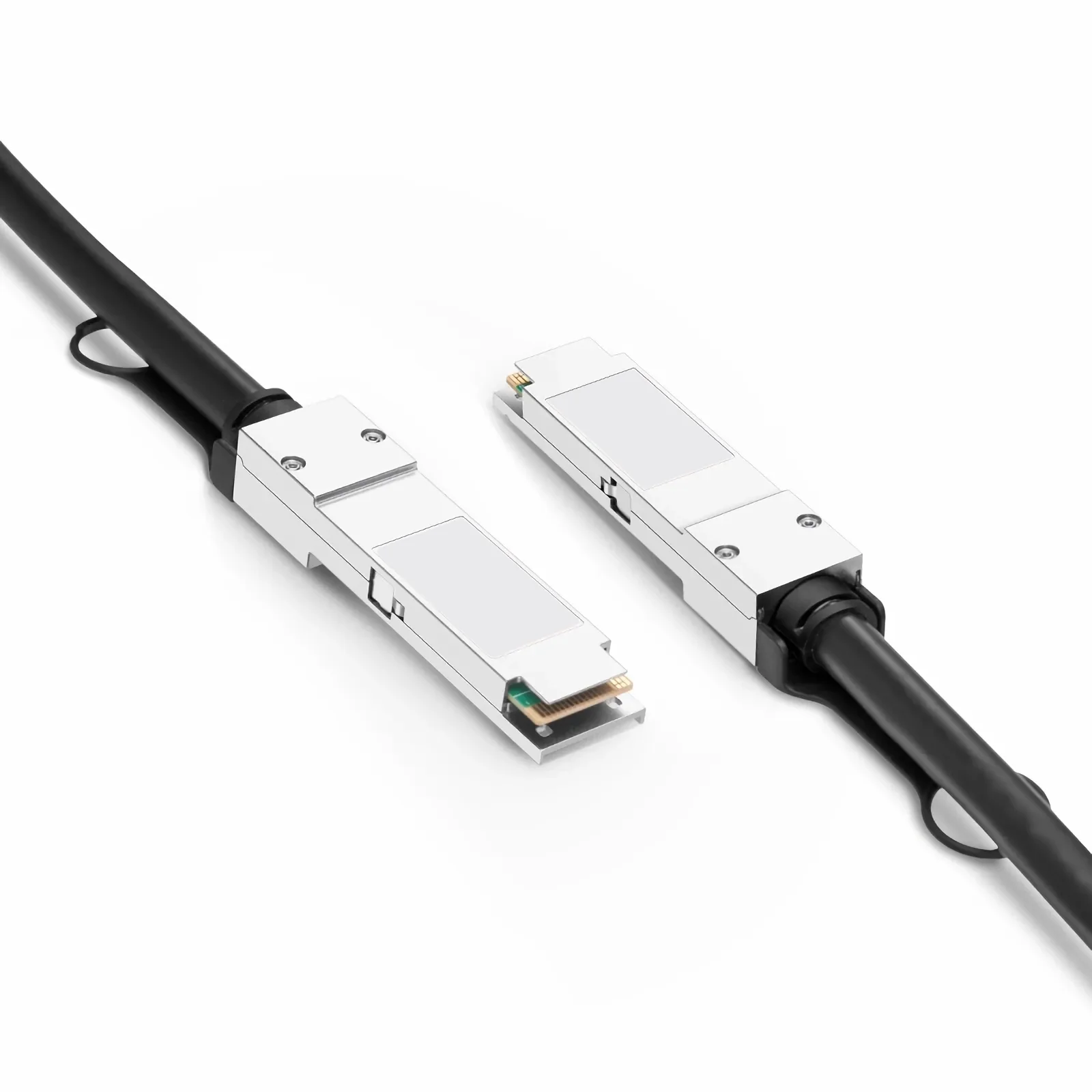

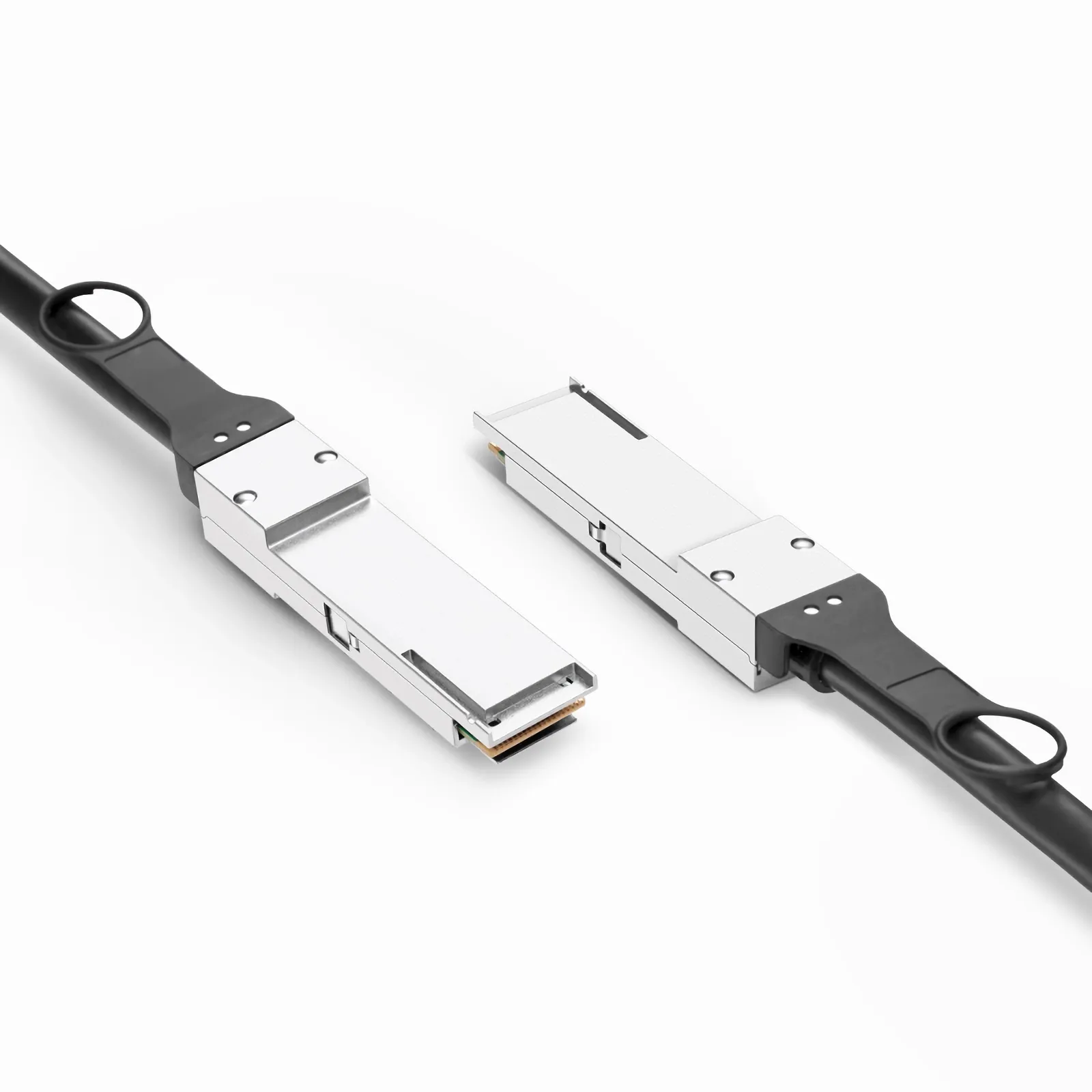

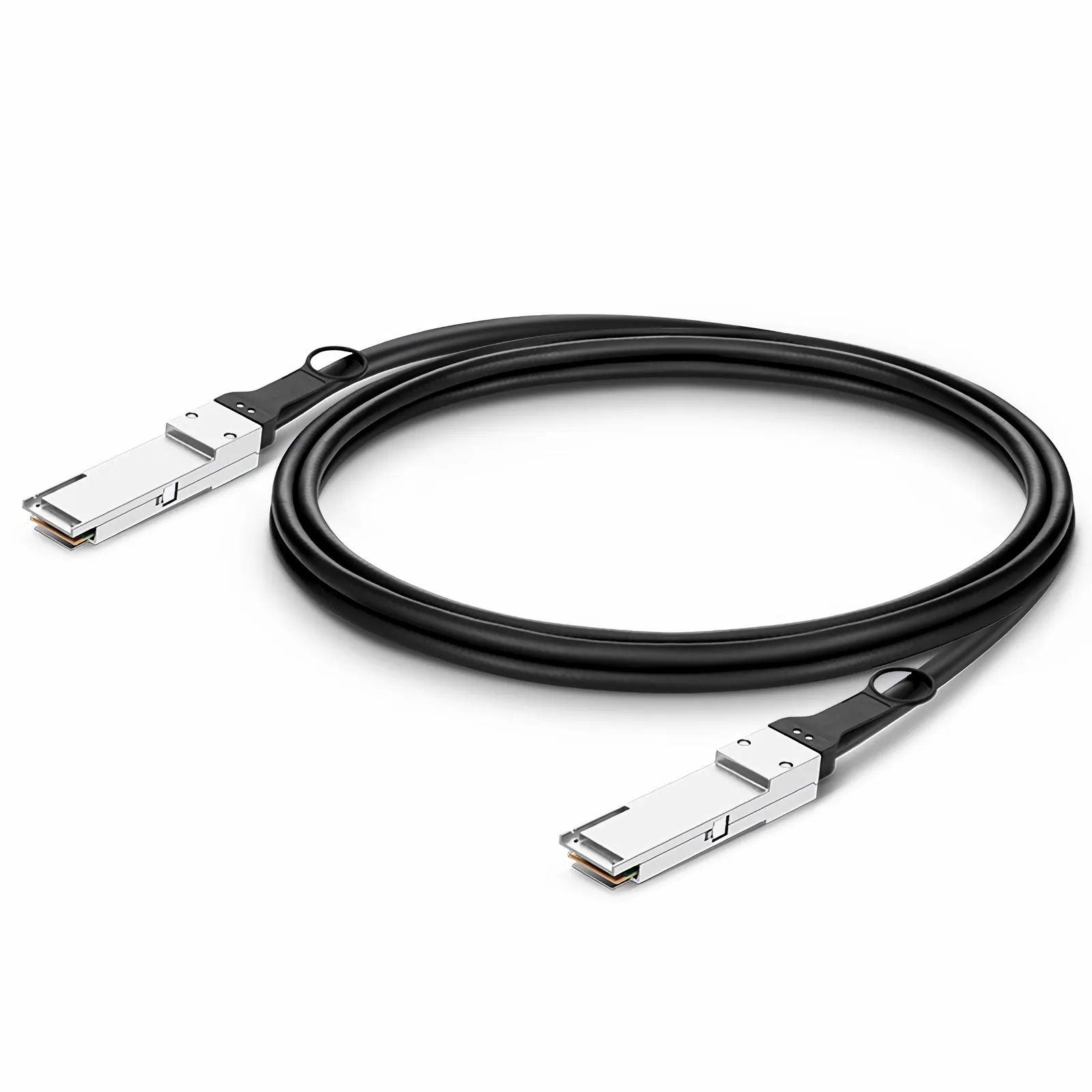

NSComm 40G QSFP+ to QSFP+ Direct Attach Copper Cable, PVC, up to 7m
40G QSFP+ to QSFP+ Direct Attach Copper Cable (DAC), Passive, up to 7 m (23 ft)
Overview
The NSComm 40G QSFP+ to QSFP+ Direct Attach Copper Cable (DAC) is a low-cost, low-latency interconnect designed for short-distance 40 Gigabit Ethernet links. Built with twinax copper cable and factory-terminated QSFP+ connectors, it provides a plug-and-play alternative to optical transceivers and patch cords for in-rack and adjacent-rack deployments.
The passive version supports lengths up to 7 m (23 ft) without requiring additional power. For longer reaches, active copper versions can extend connectivity with minimal power consumption (< 1.5 W). The cable ensures stable signal integrity, consistent latency, and excellent EMI immunity for dense data center environments.
Compatible Brands
The NSComm 40G QSFP+ DAC is validated for use with devices from Cisco, Huawei, Juniper, Arista, Dell, Intel, Extreme, and more.
Need model-specific compatibility confirmation? [Contact Us Now] for assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 40G QSFP+ to QSFP+ Direct Attach Copper Cable (DAC) |
| Data Rate | 40 Gbps |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 7 m (23 ft); Active: up to 10 m (33 ft) |
| Conductor AWG Options | 30 AWG (≤ 3 m), 26 AWG (≤ 5 m), 24 AWG (≤ 7–10 m) |
| Connector Type | QSFP+ to QSFP+ with integrated latch |
| Power Consumption | Passive ≈ 0 W, Active ≤ 1.5 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP+ MSA (SFF-8436), IEEE 802.3ba, RoHS |
| Applications | ToR/MoR data center links, switch-to-switch, server uplinks |
Why Choose NSComm 40G DAC?
-
Cost-efficient: Lower cost than optical solutions.
-
Ultra-low latency: Direct electrical path with no optical conversion.
-
Energy-saving: Passive designs consume virtually no power.
-
Proven interoperability: Tested with major vendor platforms.
-
Flexible options: Passive up to 7 m (23 ft), active up to 10 m (33 ft).
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft)
Extended (active) lengths:
10 m (33 ft)
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
