NSComm 40G QSFP+ to 4x10G SFP+ Direct Attach Copper Cable, PVC, up to 7m
40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC), Passive, up to 7 m (23 ft)
Overview

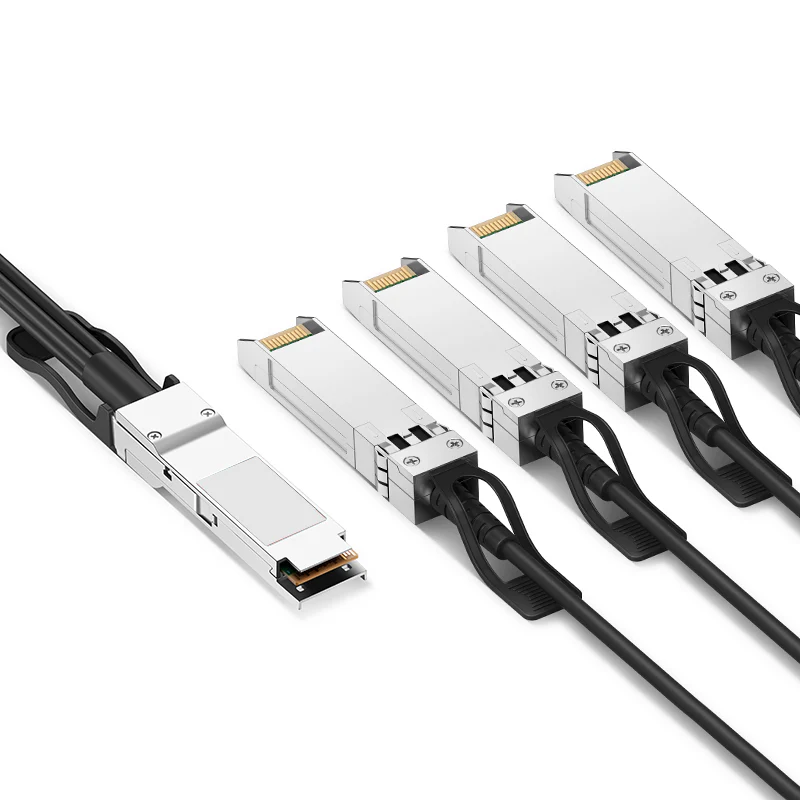

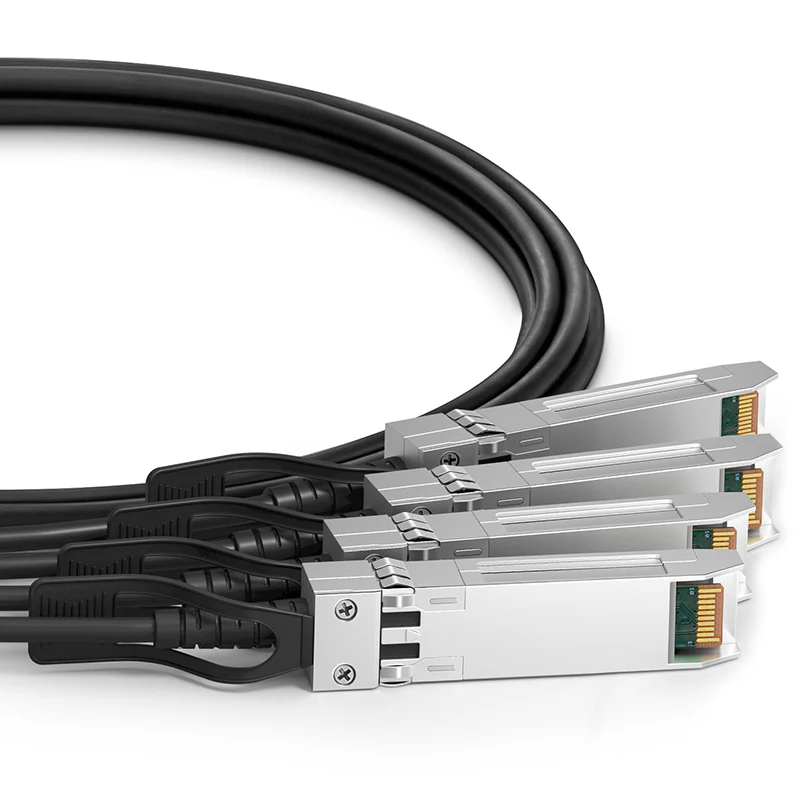

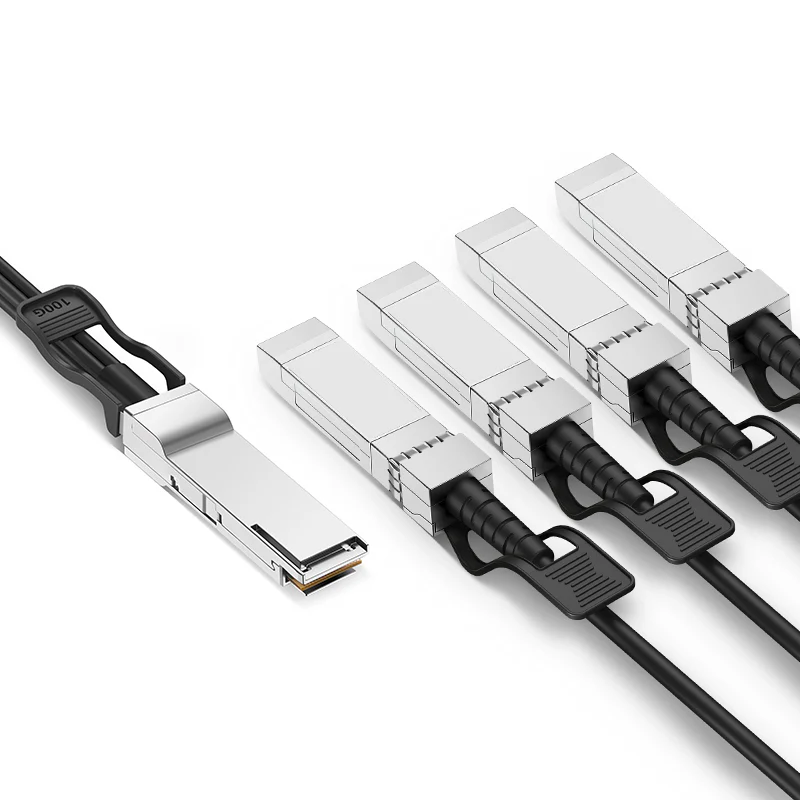

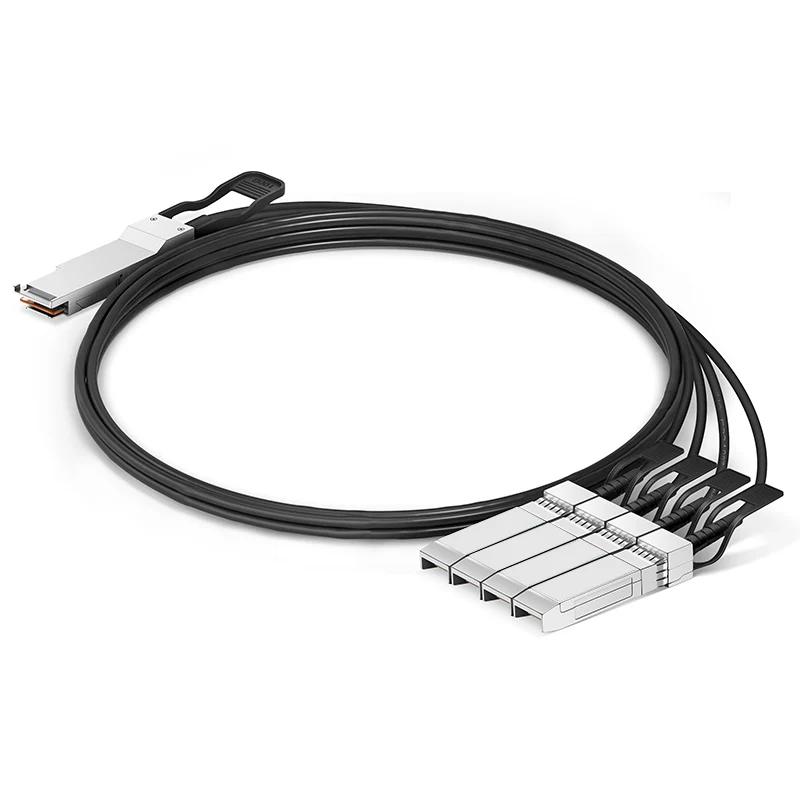

The NSComm 40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC) is a breakout copper interconnect designed for short-reach 40 Gigabit Ethernet to 4×10 Gigabit Ethernet connections.
With one QSFP+ connector on one end and four SFP+ connectors on the other, it enables seamless 40G-to-10G port breakout for top-of-rack (ToR) or middle-of-row (MoR) deployments.
Constructed with twinax copper cable, this DAC provides ultra-low latency and a cost-effective alternative to optical transceivers. The passive version supports lengths up to 7 m (23 ft), consuming virtually no power. Active versions extend reach to up to 10 m (33 ft) while keeping power consumption below 1.5 W.
Compatible Brands
The NSComm 40G QSFP+ to 4×10G SFP+ DAC is compatible with switches and servers from Cisco, Huawei, Juniper, Arista, Dell, Intel, and Extreme.
Need help confirming compatibility with your exact model? [Contact Us Now] for direct assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC) |
| Data Rate | 40 Gbps (4×10 Gbps breakout) |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 7 m (23 ft); Active: up to 10 m (33 ft) |
| Conductor AWG Options | 30 AWG (≤ 3 m), 26 AWG (≤ 5 m), 24 AWG (≤ 7–10 m) |
| Connector Type | 1× QSFP+ to 4× SFP+ |
| Power Consumption | Passive ≈ 0 W, Active ≤ 1.5 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP+ MSA (SFF-8436), SFP+ MSA (SFF-8431/8432), IEEE 802.3ba, RoHS |
| Applications | 40G-to-10G breakout links, server-to-switch uplinks, aggregation nodes |
Why Choose NSComm 40G Breakout DAC?
-
Breakout efficiency: Maps one 40G port into four 10G channels.
-
Ultra-low latency: Direct copper design, no optical conversion.
-
Cost-effective: Cheaper than optical breakout modules + patch cords.
-
Flexible length options: Passive up to 7 m (23 ft); active up to 10 m (33 ft).
-
Wide compatibility: Tested across all major switch and server platforms.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft)
Extended (active) lengths:
10 m (33 ft)
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
