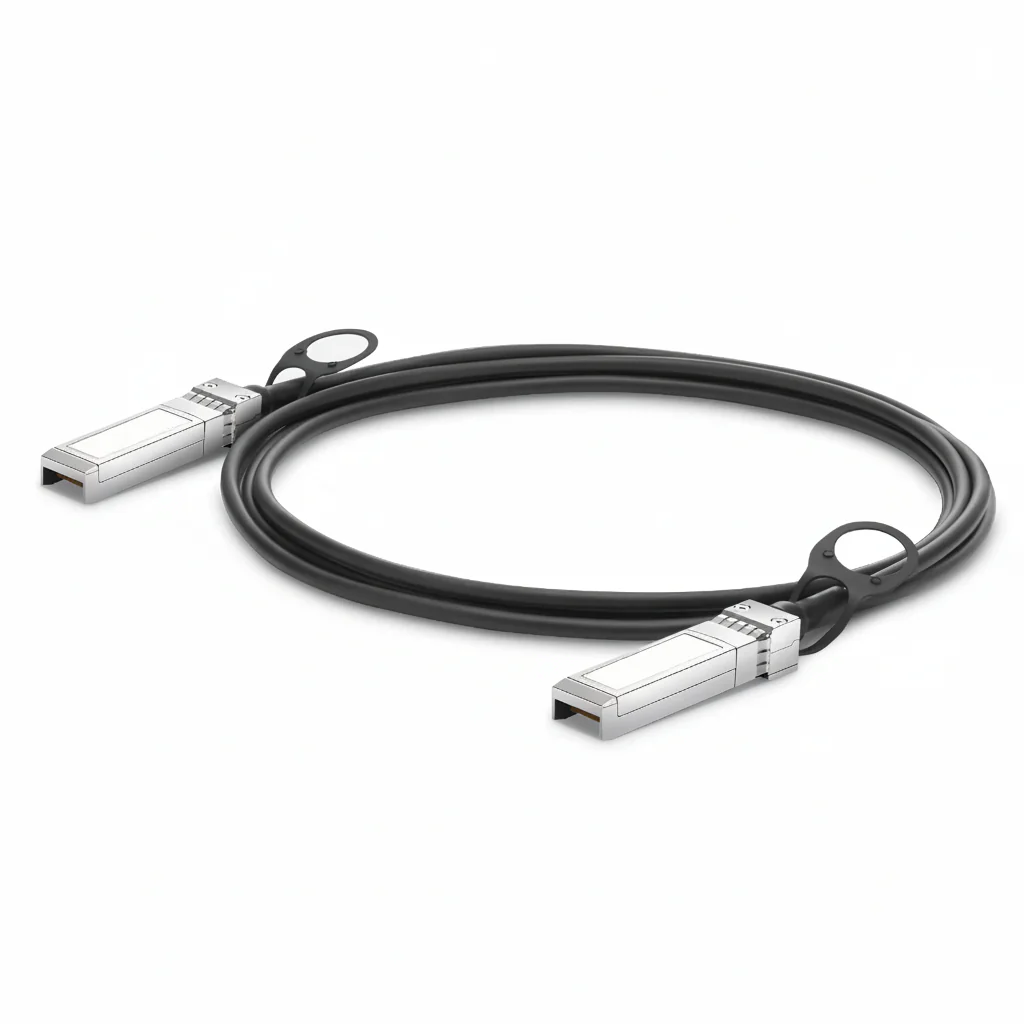

NSComm 25G SFP28 to SFP28 Direct Attach Copper Cable, PVC, up to 5m
25G SFP28 to SFP28 Direct Attach Copper Cable (DAC), Passive, up to 5 m (16 ft)
Overview
The NSComm 25G SFP28 to SFP28 Direct Attach Copper Cable (DAC) is a low-cost, low-latency solution for 25 Gigabit Ethernet short-reach interconnects. Built with twinax copper cable and integrated SFP28 connectors, it eliminates the need for separate transceivers and patch cords, providing a plug-and-play option for high-speed connections inside racks and across adjacent racks.
The passive version supports lengths up to 5 m (16 ft), consuming virtually no power (< 0.1 W). For applications requiring slightly longer distances, active copper variants can extend reach while keeping power consumption minimal (< 0.5 W). The cable ensures excellent signal integrity and consistent latency performance.
Compatible Brands
The NSComm 25G SFP28 DAC works seamlessly with devices from Cisco, Huawei, Juniper, Arista, Dell, Extreme and more.
Need to verify your switch or NIC model? [Contact Us Now] and weāll confirm compatibility.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 25G SFP28 to SFP28 Direct Attach Copper Cable (DAC) |
| Data Rate | 25 Gbps |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 5 m (16 ft); Active: up to 7 m (23 ft) |
| Conductor AWG Options | 30 AWG (ā¤ 3 m), 26 AWG (ā¤ 5 m), 24 AWG (ā¤ 7 m) |
| Connector Type | SFP28 to SFP28 with integrated latch |
| Power Consumption | Passive < 0.1 W, Active < 0.5 W |
| Temperature Range | 0 Ā°C to 70 Ā°C |
| Standards Compliance | SFP28 MSA (SFF-8402, SFF-8432), IEEE 802.3by, RoHS |
| Applications | 25G ToR/MoR links, NIC-to-switch, switch-to-switch |
Ā
Why Choose NSComm 25G DAC?
-
Cost-effective: Cheaper than optical transceiver + patch cord solutions.
-
Low latency: Direct copper link with no optical conversion.
-
Energy efficient: Passive designs consume near-zero power.
-
Proven interoperability: Validated with leading vendorsā switches and NICs.
-
Flexible deployment: Passive up to 5 m (16 ft), active up to 7 m (23 ft).
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft)
Extended (active) lengths:
7 m (23 ft)
