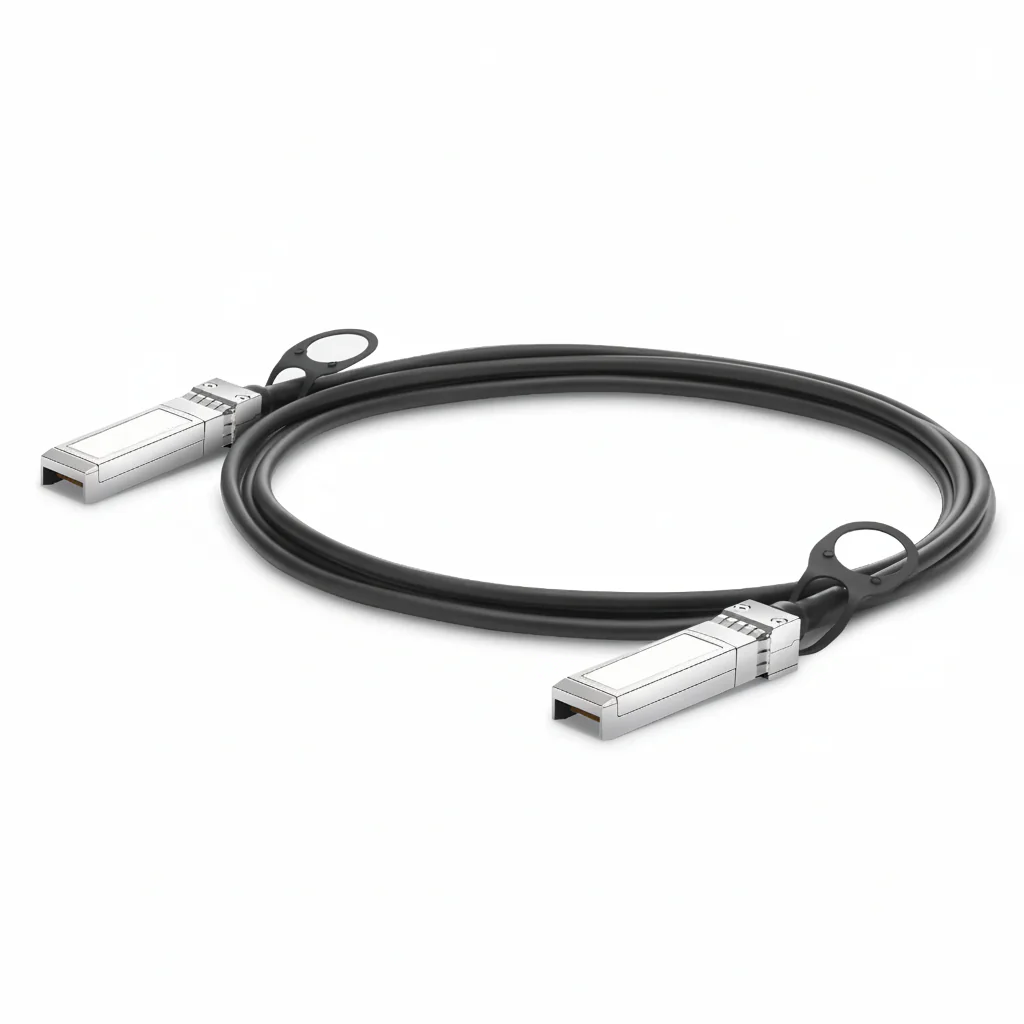

NSComm 10G SFP+ to SFP+ Direct Attach Copper Cable, up to 10m
10G SFP+ to SFP+ Direct Attach Copper Cable (DAC), Passive, up to 10 m (33 ft)
Overview
The NSComm 10G SFP+ to SFP+ Direct Attach Copper Cable (DAC) is a cost-effective, low-latency interconnect solution for 10 Gigabit Ethernet short-distance connections. Unlike AOCs, DACs use twinax copper cable assemblies with integrated SFP+ connectors, offering a plug-and-play alternative to optical transceivers and patch cords.
This DAC is available in passive designs up to 7 m (23 ft) and active versions up to 10 m (33 ft), enabling flexibility across in-rack and adjacent rack deployments. It supports hot-pluggable SFP+ interfaces, requires no additional power (passive < 0.1 W, active < 0.5 W), and provides consistent low-latency performance.
Compatible Brands
The NSComm 10G SFP+ DAC is broadly compatible with network equipment from Cisco, Huawei, Juniper, Arista, Dell, Extreme and others.
Need to confirm compatibility with your switch model? [Contact Us Now] and we’ll assist.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 10G SFP+ to SFP+ Direct Attach Copper Cable (DAC) |
| Data Rate | 10 Gbps |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 7 m (23 ft); Active: up to 10 m (33 ft) |
| Conductor AWG Options | 30 AWG (≤ 3 m), 26 AWG (≤ 5 m), 24 AWG (≤ 7 m–10 m) |
| Connector Type | SFP+ to SFP+ with integrated latch |
| Power Consumption | Passive < 0.1 W, Active < 0.5 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | SFP+ MSA (SFF-8431/8432), IEEE 802.3ae, RoHS |
| Applications | ToR/MoR data center links, server-to-switch, switch-to-switch |
Why Choose NSComm 10G DAC?
-
Ultra-low latency: Direct copper link with no optical conversion.
-
Cost-effective: Lower price than fiber AOCs and optical modules.
-
Energy efficient: Passive versions consume virtually no power.
-
Flexible deployment: Passive up to 7 m (23 ft), active up to 10 m (33 ft).
-
Broad compatibility: Tested with all major switch and server vendors.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft)
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified CCIE / HCIE / RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
