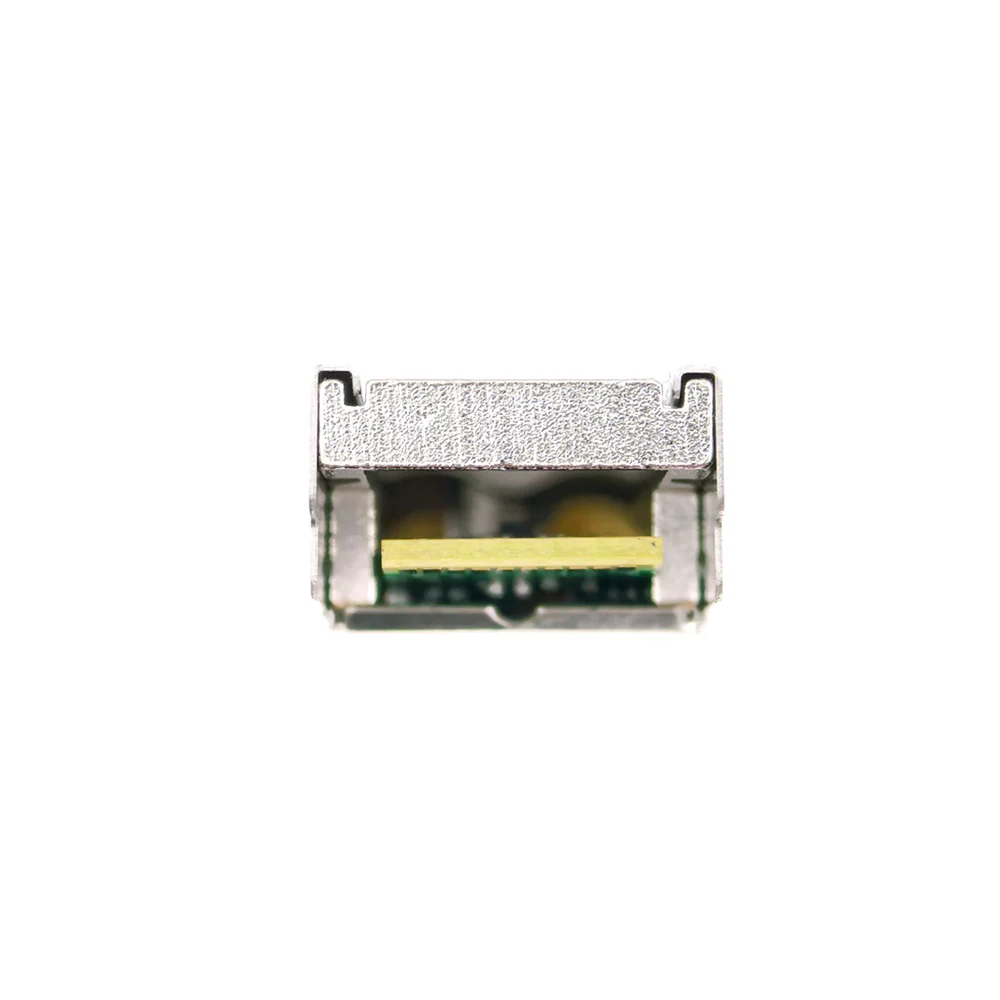

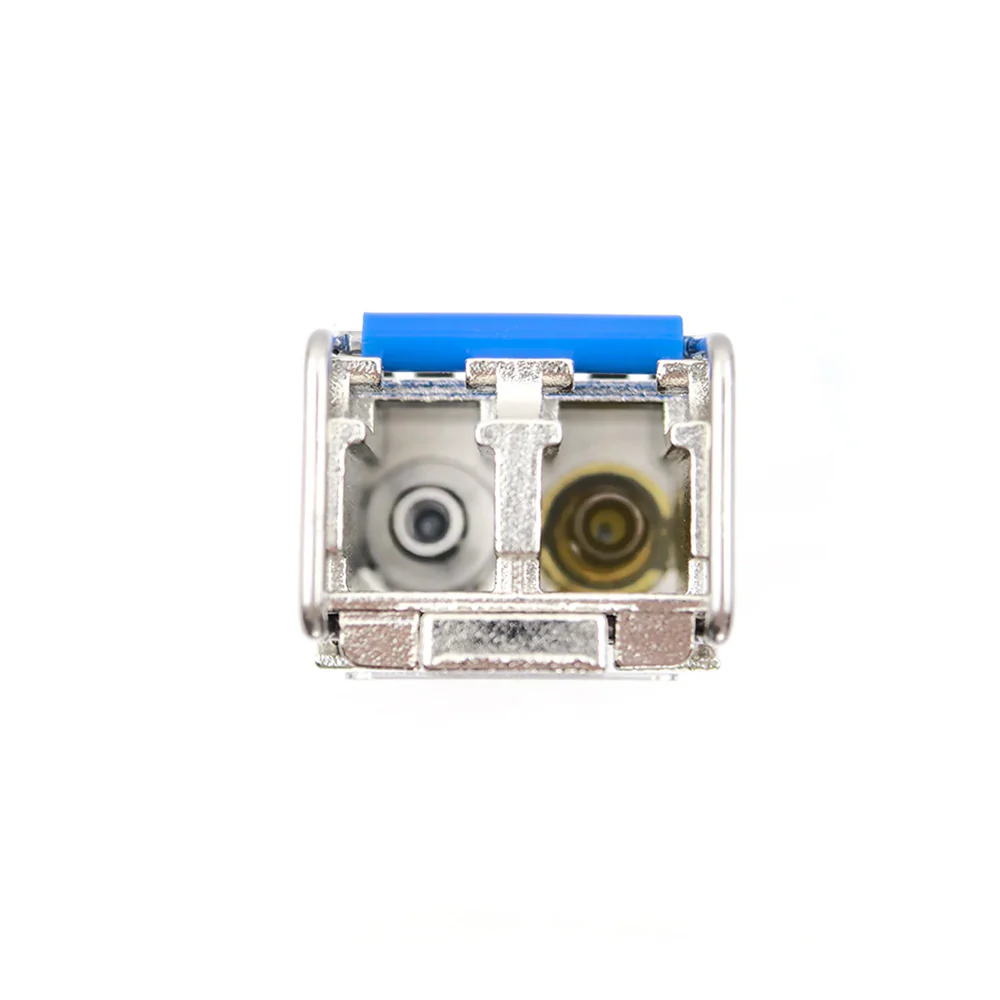

NSComm NS-SFP-1G-SX 1000Base-SX SFP 850nm 550m DOM LC MMF Optical Transceiver Module
1000Base-SX SFP 850nm 550m DOM LC MMF Optical Transceiver Module
Overview
The NS-SFP-1G-SX is a versatile and cost-effective Small Form-Factor Pluggable (SFP) transceiver module designed for Gigabit Ethernet applications. Operating over multimode fiber (MMF) with a wavelength of 850nm, it supports link distances up to 550 meters using a duplex LC connector.
This module is hot-swappable, ensuring ease of installation and maintenance without disrupting network operations. It is compliant with the SFP Multi-Source Agreement (MSA) and supports Digital Optical Monitoring (DOM) for real-time diagnostics.
The NS-SFP-1G-SX is compatible with a wide range of networking equipment from various manufacturers, ensuring broad interoperability and seamless integration across diverse network environments.
Compatible Brands
The NS-SFP-1G-SX is universally compatible across all brands. If you need to verify compatibility with your specific switch model, please click Contact Us Now for assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Max. Data Rate | 1.25 Gbps |
| Wavelength | 850nm |
| Max. Cable Distance | 550m over OM2 MMF |
| Connector | Duplex LC |
| Optical Components | VCSEL 850nm |
| Media | MMF (Multimode Fiber) |
| DOM Support | Yes |
| TX Power | -9.5 ~ -3 dBm |
| Receiver Sensitivity | < -17 dBm |
| Industrial Temperature Range | 0°C to 70°C (Commercial) |
| Protocols | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA |
