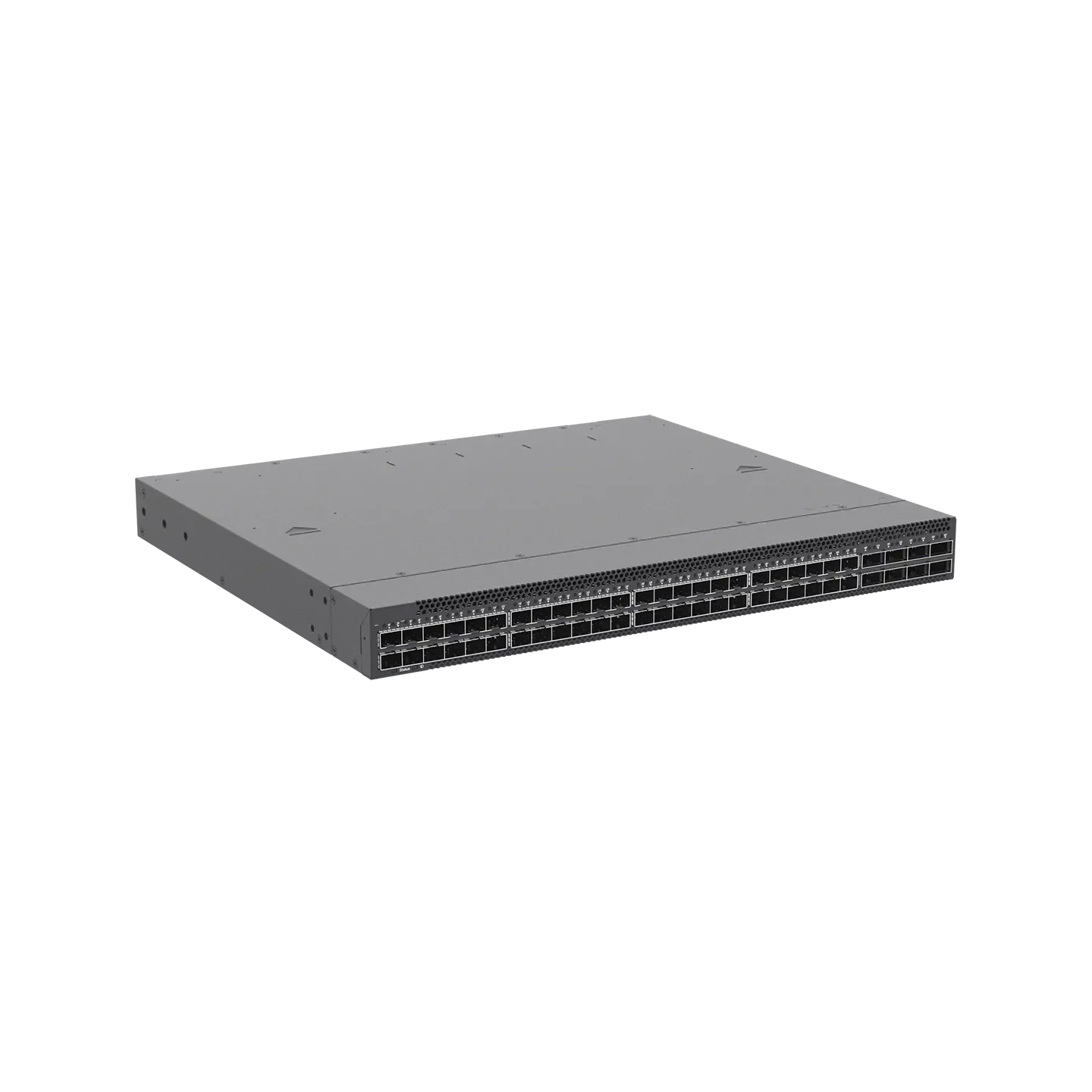

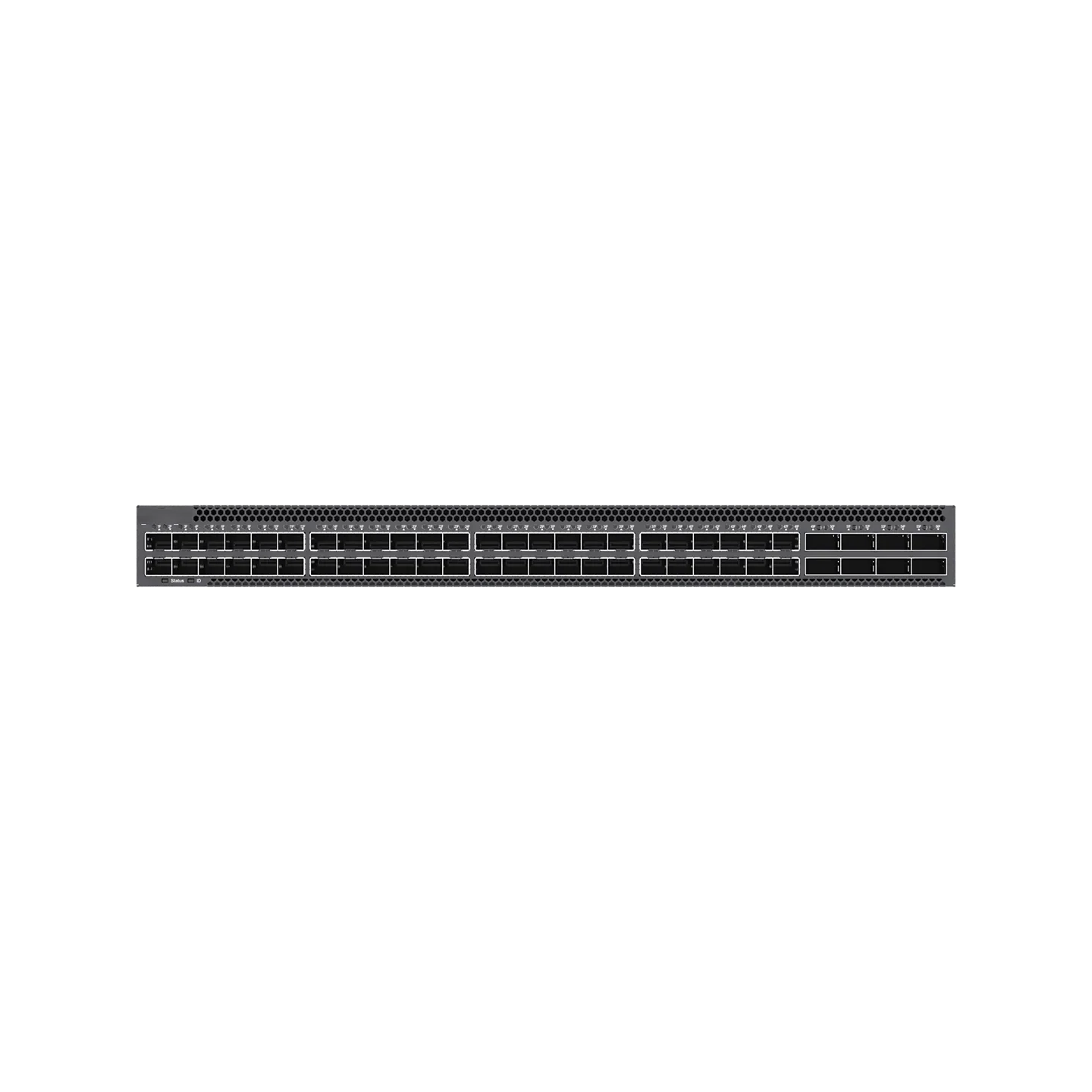

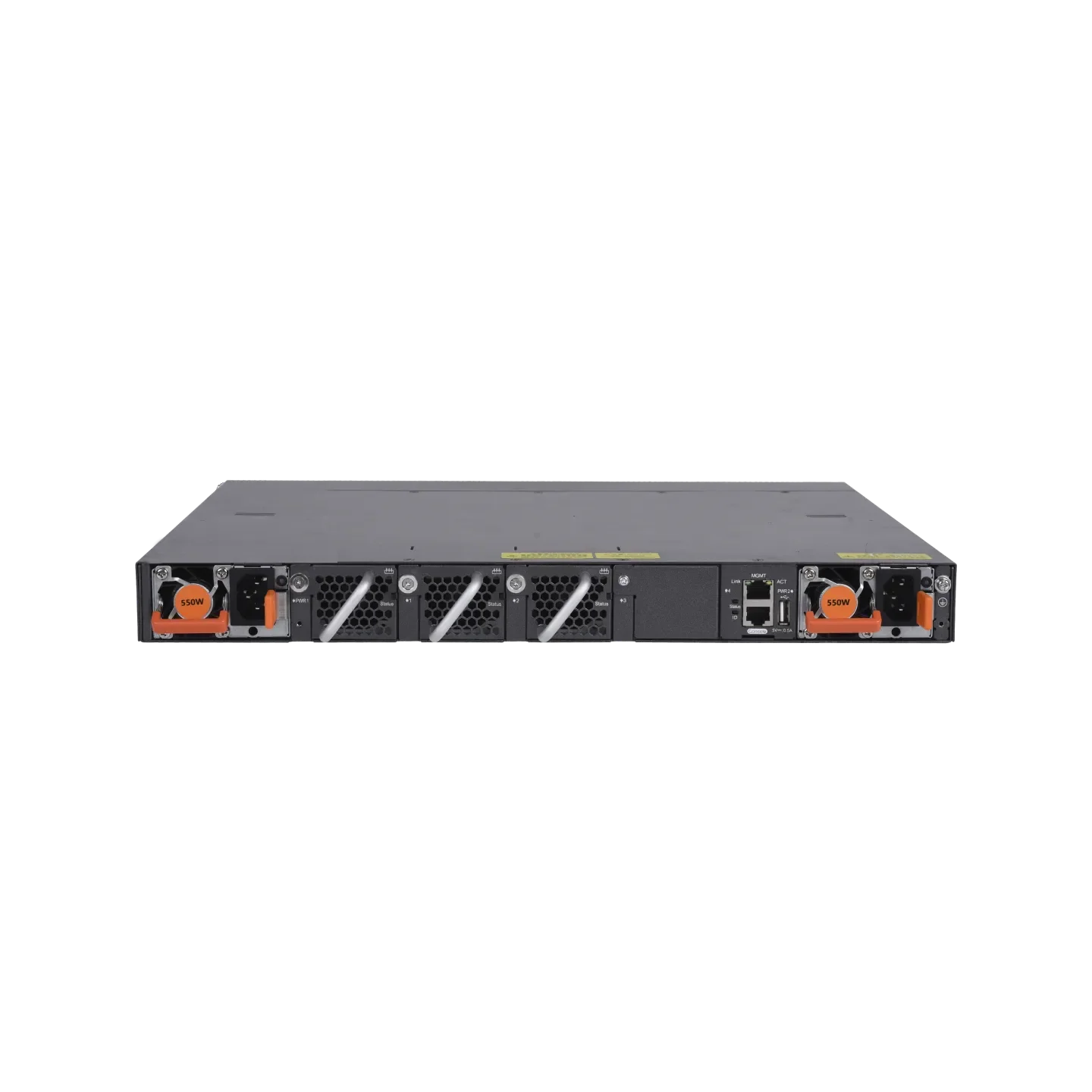

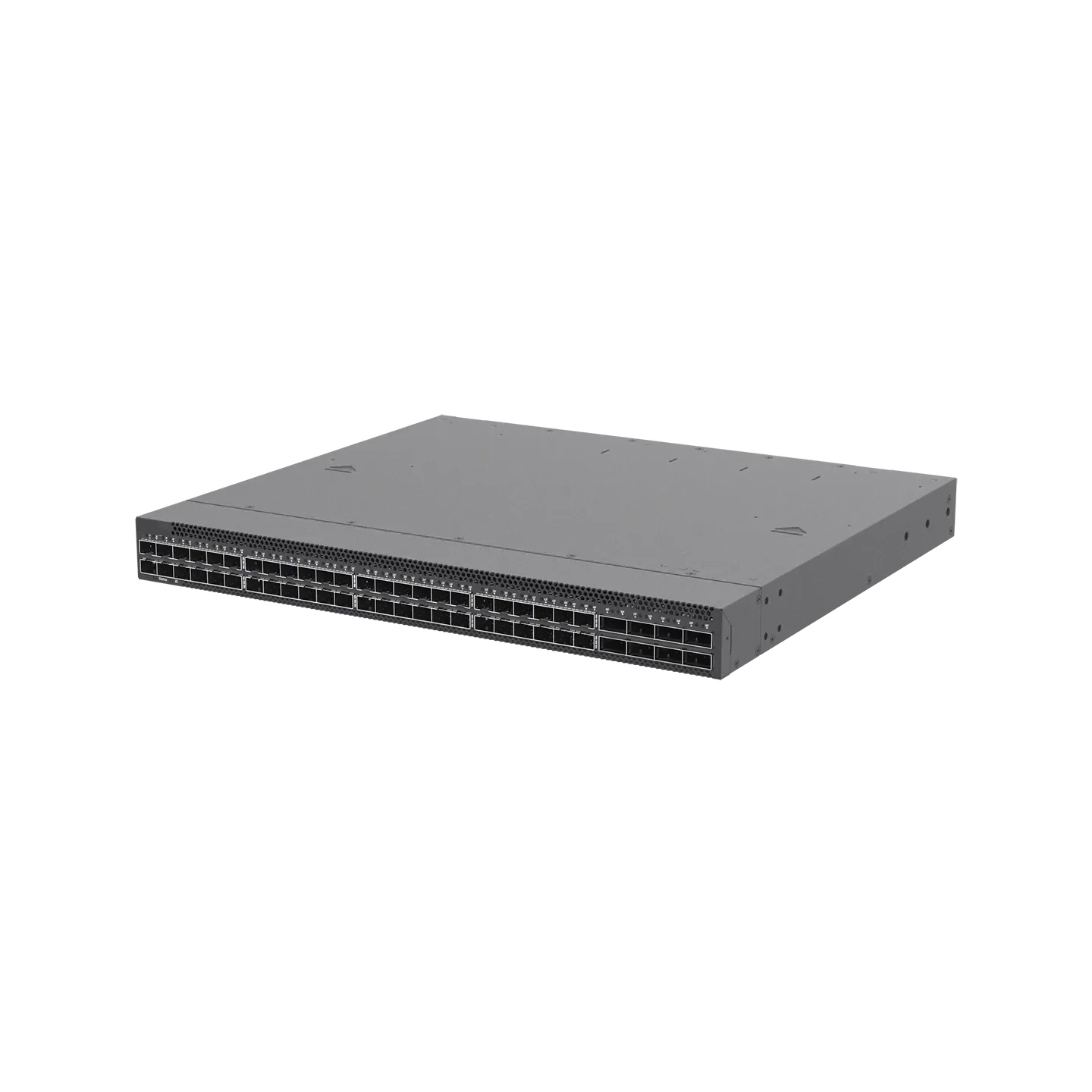

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

NSComm S6150-48VS8CQ-X 48x10/25G Optical & 8x40/100G Uplink Core Switch

NSComm S6150-48VS8CQ-X 48x10/25G Optical & 8x40/100G Uplink Core Switch

48×1/10/25 Gbps SFP28 + 8×40/100 Gbps QSFP28 Core & Aggregation Switch

As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm delivers high-performance aggregation and core switches under the NS-S6000/6150/6110/6120 series.

These devices exactly match Ruijie’s RG-S6000C, RG-S6150, RG-S6110, and RG-S6120 Series in throughput, port density, virtualization (VSU), uplink flexibility, redundancy features, and PoE/PoE++ capabilities, all under your own branding.

Overview

The NS-S6150-48VS8CQ-X scales up to 48 SFP28 ports plus eight 40/100 GbE QSFP28 uplinks, yielding 4 Tbps switching capacity, robust Layer 3 routing, and the same virtualization, security, and hardware-redundancy features as its 24-port sibling.

Highlights

  • 4 Tbps Switching with quad-core 2.2 GHz CPU, 4 GB DDR4

  • 48×1/10/25 GbE SFP28 + 8×40/100 GbE QSFP28

  • VSU & VxLAN virtualization, sub-50 ms switchover

  • Enterprise-Grade O&M: SNMPv3, SSH, RMON, USB, INC/cloud management

Recommended Accessories

Product Name Category Description
NS-PA550II-F AC Power Module 550 W hot-swappable PSU
NS-RMK-1U Rack Mount Kit 19″ 1U mounting brackets
NS-48VS-LIC 25GE Port License Enables full-rate 25 GbE on all SFP28 ports



Compare with Similar Models

Model Ports & Uplinks Switching Capacity Forwarding Rate PoE/PoF Capability Redundancy Features
Ruijie RG-S6000C-48GT4XS-E 48×1 GbE RJ45, 4×10 GbE SFP+ 256 Gbps 192 Mpps None Dual PSU slots, dual-boot flash, 1 fan slot
NS-S6000C-48GT4XS-E Same Same Same None Same
Ruijie RG-S6150-24VS8CQ-X 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 2.8 Tbps — None Dual PSU, 4 fan modules, dual-boot flash
NS-S6150-24VS8CQ-X Same Same Same None Same
Ruijie RG-S6150-48VS8CQ-X 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 4 Tbps — None Dual PSU, 4 fan modules, dual-boot flash
NS-S6150-48VS8CQ-X Same Same Same None Same
Ruijie RG-S6110-48MG4VS2QXS-UP 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 840 Gbps 625 Mpps Up to 1 600 W PoE++ Dual PSU slots, 3 fan slots
NS-S6110-48MG4VS2QXS-UP Same Same Same Same Same
Ruijie RG-S6120-24XMG4XS4VS-UP-H 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 760 Gbps 565 Mpps Up to 1 650 W PoE++ Dual PSU slots, 3 fan slots
NS-S6120-24XMG4XS4VS-UP-H Same Same Same Same Same
Ruijie RG-S6120-20XS4VS2QXS 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ 912 Gbps 678 Mpps None Dual PSU slots, 2 fan slots
NS-S6120-20XS4VS2QXS Same Same Same None Same


Specification Summary

Parameter NS-S6150-48VS8CQ-X
Service Ports 48×1/10/25 Gbps SFP28 (license required)
Uplink Ports 8×40/100 Gbps QSFP28
Switching Capacity 4 Tbps
Packet Forwarding Rate —
CPU / Memory / Flash Quad-core 2.2 GHz / 4 GB DDR4 / 8 GB
Table Capacities MAC: 128 K; ARP: 96 K; ND: 80 K; IPv4 routes: 350 K; IPv6: 65 K
ACEs Ingress: 28 K; Egress: 4 K
Dimensions (W×D×H) 442×387×44 mm; 8.5 kg
Power Supply & Consumption 2×RG-PA550II-F; 300 W max
Operating Temp. 0 °C – 45 °C
Redundancy 1+1 PSU, 3+1 fan hot-swap
