NSComm S6150-24VS8CQ-X 24x10/25G Optical & 8x40/100G Uplink Core Switch

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

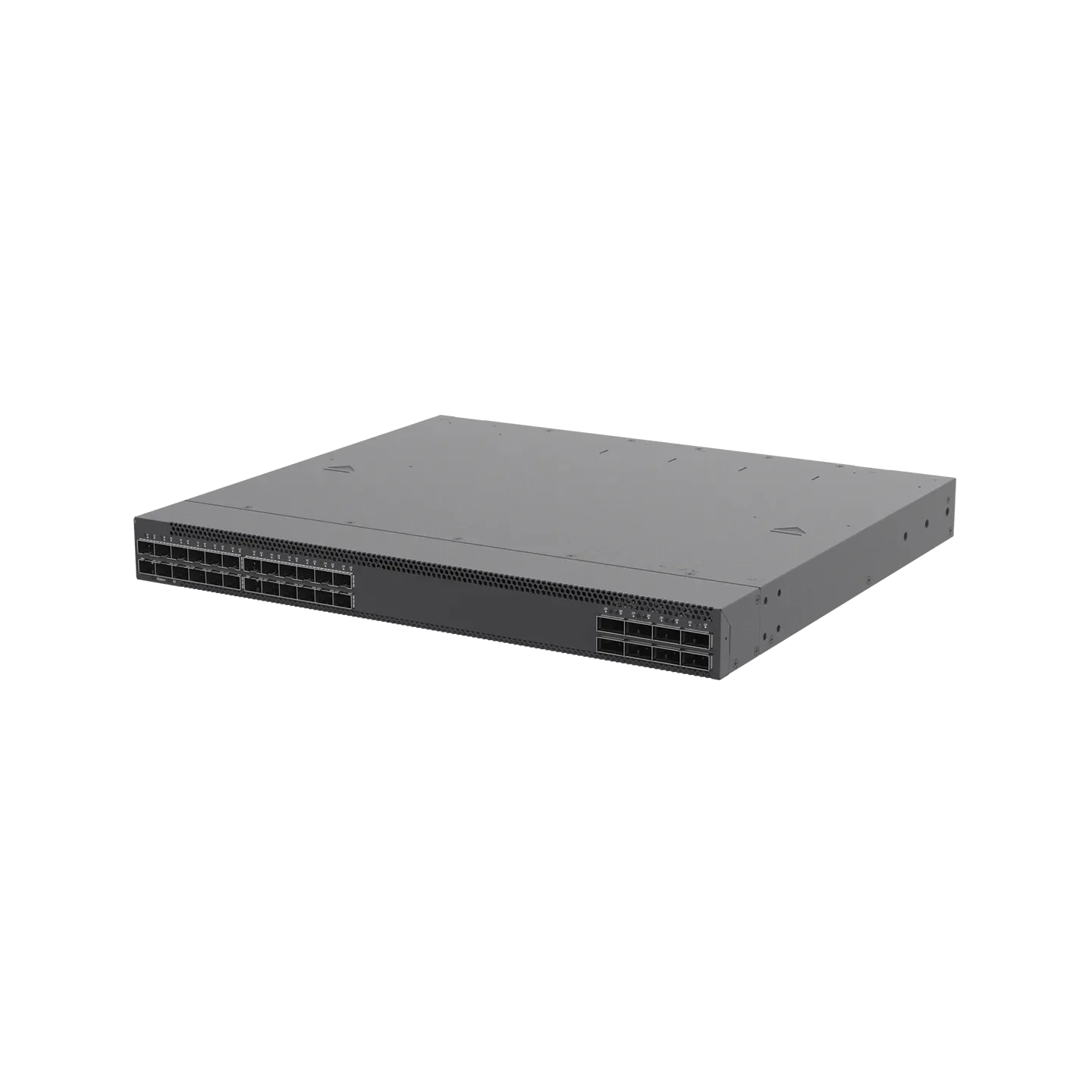

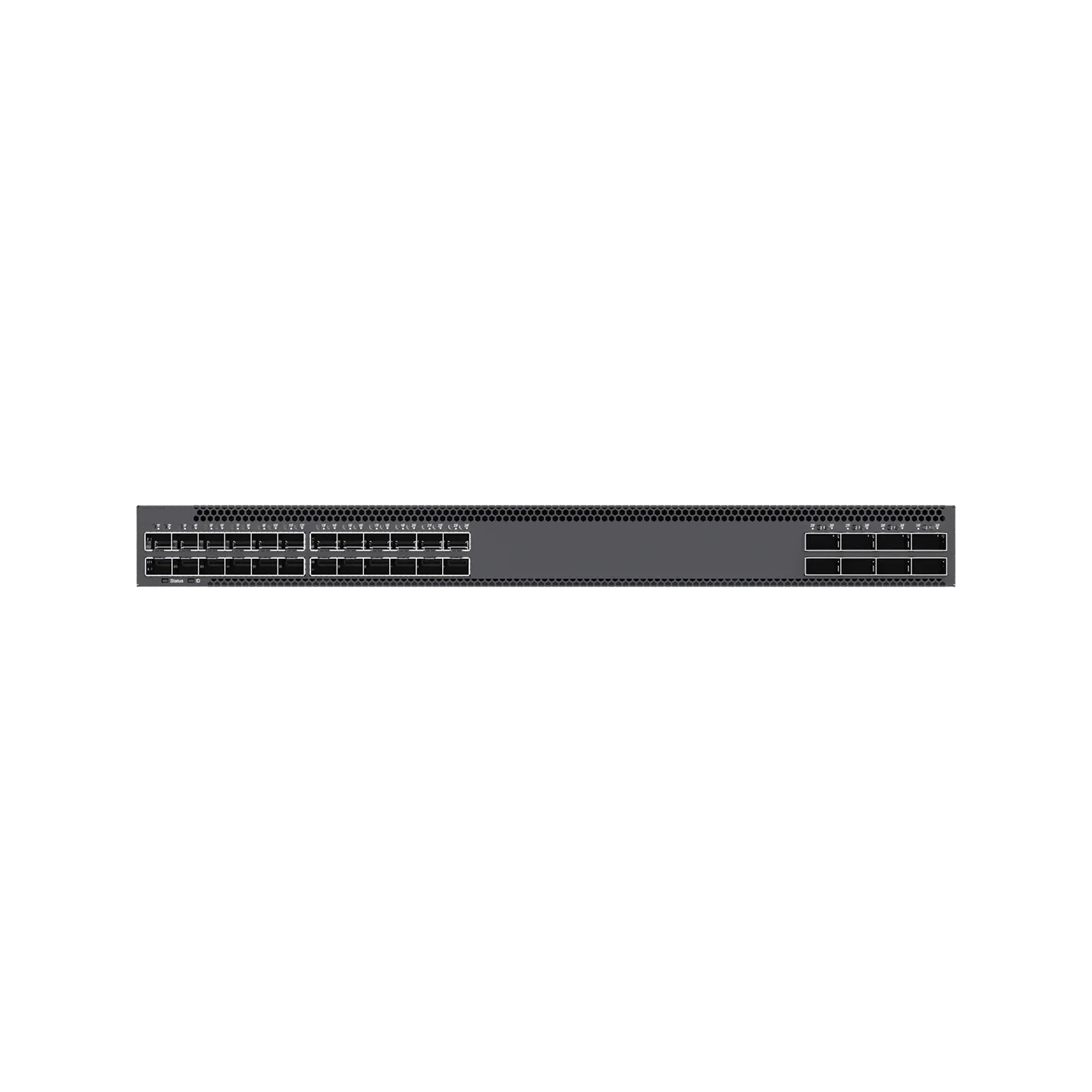

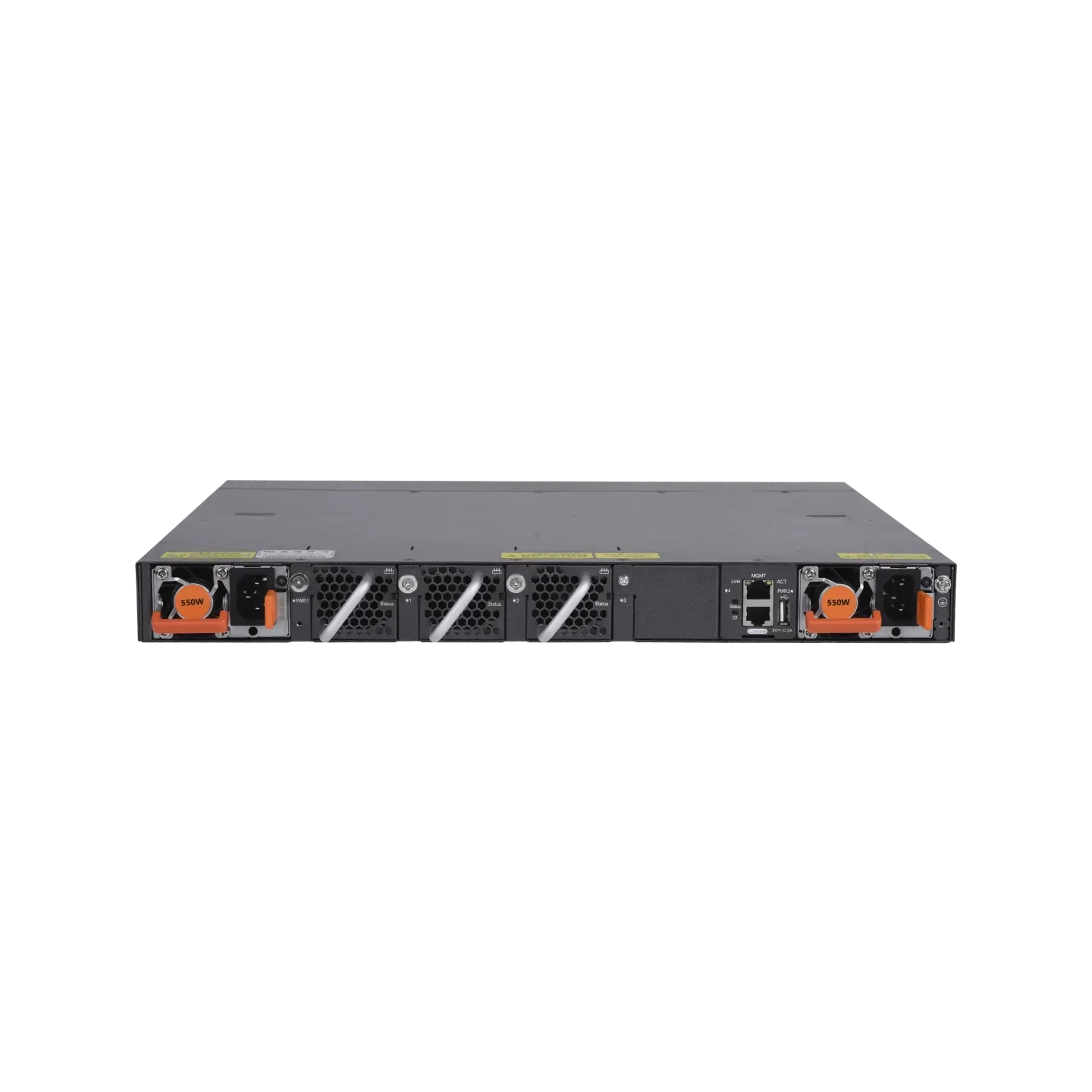

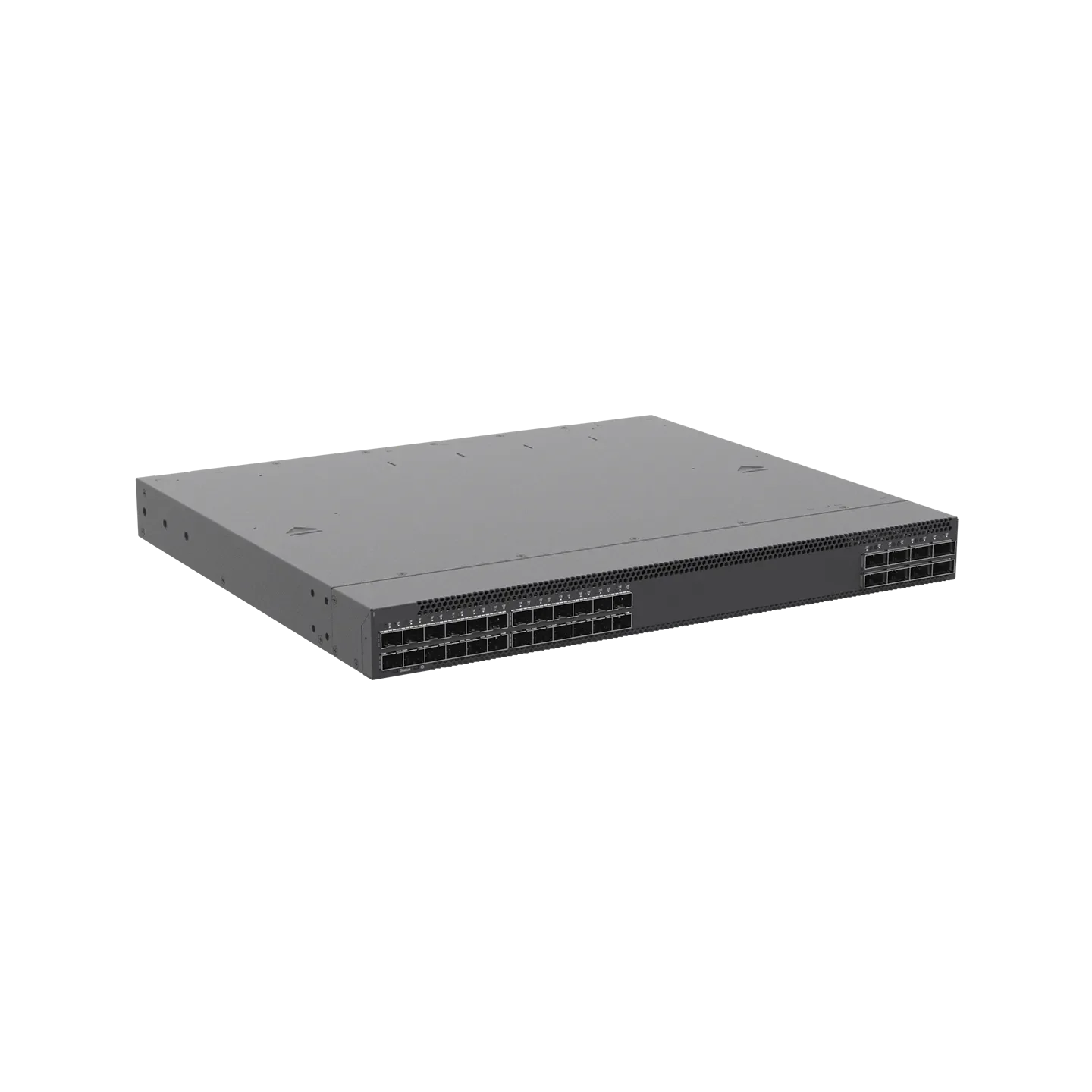

NSComm S6150-24VS8CQ-X 24x10/25G Optical & 8x40/100G Uplink Core Switch

NSComm S6150-24VS8CQ-X 24x10/25G Optical & 8x40/100G Uplink Core Switch

24×1/10/25 Gbps SFP28 + 8×40/100 Gbps QSFP28 Core & Aggregation Switch

As a manufacturer alongside leading brands like Cisco, H3C, Huawei, and Ruijie, NSComm delivers high-performance aggregation and core switches under the NS-S6000/6150/6110/6120 series.

These devices exactly match Ruijie’s RG-S6000C, RG-S6150, RG-S6110, and RG-S6120 Series in throughput, port density, virtualization (VSU), uplink flexibility, redundancy features, and PoE/PoE++ capabilities, all under your own branding.

Overview

Built for evolving to 25 GbE campus networks, the NS-S6150-24VS8CQ-X offers 24 all-optical SFP28 ports (1/10/25 GbE) plus eight 40/100 GbE QSFP28 uplinks, delivering 2.8 Tbps of switching capacity and millisecond-level VSU failover.

Highlights

  • High-Density Optical Access: 24×1/10/25 GbE SFP28 & 8×40/100 GbE QSFP28

  • 2.8 Tbps Switching with quad-core 2.2 GHz CPU, 4 GB DDR4, 8 GB flash

  • VSU Virtualization for unified management and sub-50 ms failover

  • Hardware Redundancy: Dual pluggable PSUs, 4 pre-installed fan modules, dual-flash boot

Recommended Accessories

Product Name Category Description
NS-PA550II-F AC Power Module 550 W hot-swappable PSU
NS-RMK-1U Rack Mount Kit 19″ 1U mounting brackets
NS-24VS-LIC 25GE Port License Enables full-rate 25 GbE on SFP28 ports



Compare with Similar Models

Model Ports & Uplinks Switching Capacity Forwarding Rate PoE/PoF Capability Redundancy Features
Ruijie RG-S6000C-48GT4XS-E 48×1 GbE RJ45, 4×10 GbE SFP+ 256 Gbps 192 Mpps None Dual PSU slots, dual-boot flash, 1 fan slot
NS-S6000C-48GT4XS-E Same Same Same None Same
Ruijie RG-S6150-24VS8CQ-X 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 2.8 Tbps — None Dual PSU, 4 fan modules, dual-boot flash
NS-S6150-24VS8CQ-X Same Same Same None Same
Ruijie RG-S6150-48VS8CQ-X 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 4 Tbps — None Dual PSU, 4 fan modules, dual-boot flash
NS-S6150-48VS8CQ-X Same Same Same None Same
Ruijie RG-S6110-48MG4VS2QXS-UP 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 840 Gbps 625 Mpps Up to 1 600 W PoE++ Dual PSU slots, 3 fan slots
NS-S6110-48MG4VS2QXS-UP Same Same Same Same Same
Ruijie RG-S6120-24XMG4XS4VS-UP-H 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 760 Gbps 565 Mpps Up to 1 650 W PoE++ Dual PSU slots, 3 fan slots
NS-S6120-24XMG4XS4VS-UP-H Same Same Same Same Same
Ruijie RG-S6120-20XS4VS2QXS 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ 912 Gbps 678 Mpps None Dual PSU slots, 2 fan slots
NS-S6120-20XS4VS2QXS Same Same Same None Same


Specification Summary

Parameter NS-S6150-24VS8CQ-X
Service Ports 24×1/10/25 Gbps SFP28 (25 GbE license required)
Uplink Ports 8×40/100 Gbps QSFP28 (4×10G/4×25G breakout)
Switching Capacity 2.8 Tbps
CPU / Memory / Flash Quad-core 2.2 GHz / 4 GB DDR4 / 8 GB
MAC / ARP / ND Tables 128 K / 96 K / 80 K entries
IPv4 / IPv6 Unicast Routes 350 K / 65 K
Multicast Routes IPv4: 4 K, IPv6: 2 K
ACEs Ingress: 28 K, Egress: 4 K
VSU Members Up to 8
Power Supply & Consumption 2×RG-PA550II-F (550 W each); 270 W
Dimensions (W×D×H) 442×387×44 mm; 8.5 kg
Operating Temp. 0 °C – 45 °C
Redundancy 1+1 PSU, 3+1 fan hot-swap



More Details

Quality Certifications

product_iso14001   product_iso9001   product_rohs   product_reach    product_ce      product_fcc

Do you have any question about the NSComm S6150-24VS8CQ-X Switch?

Please Chat with us now!

or leave us an message on [email protected]

Warranty

100% Low Price Guarantee

Network-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified Engineers.

Free Technical Support

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy

Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year

The Support Contacts

If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
