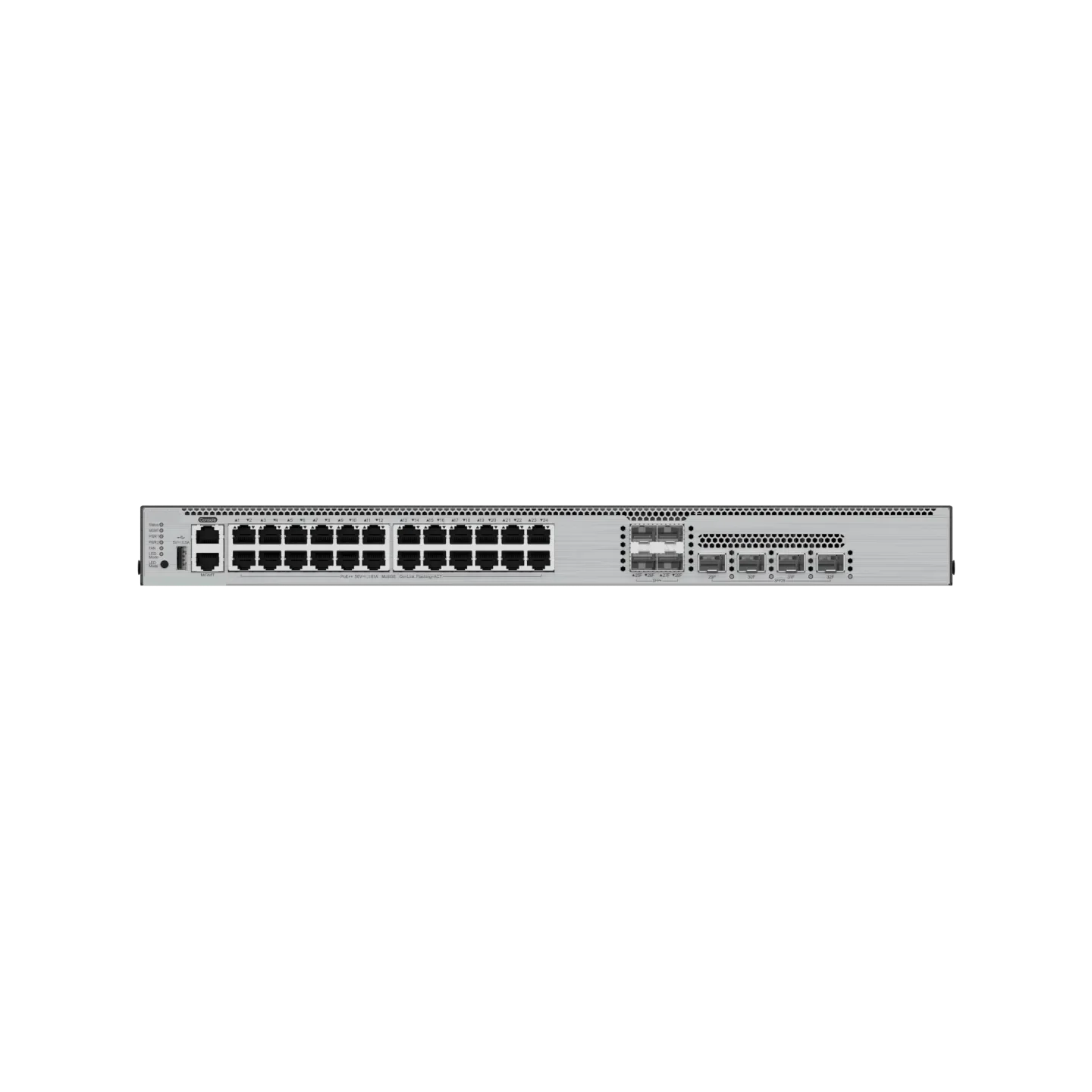

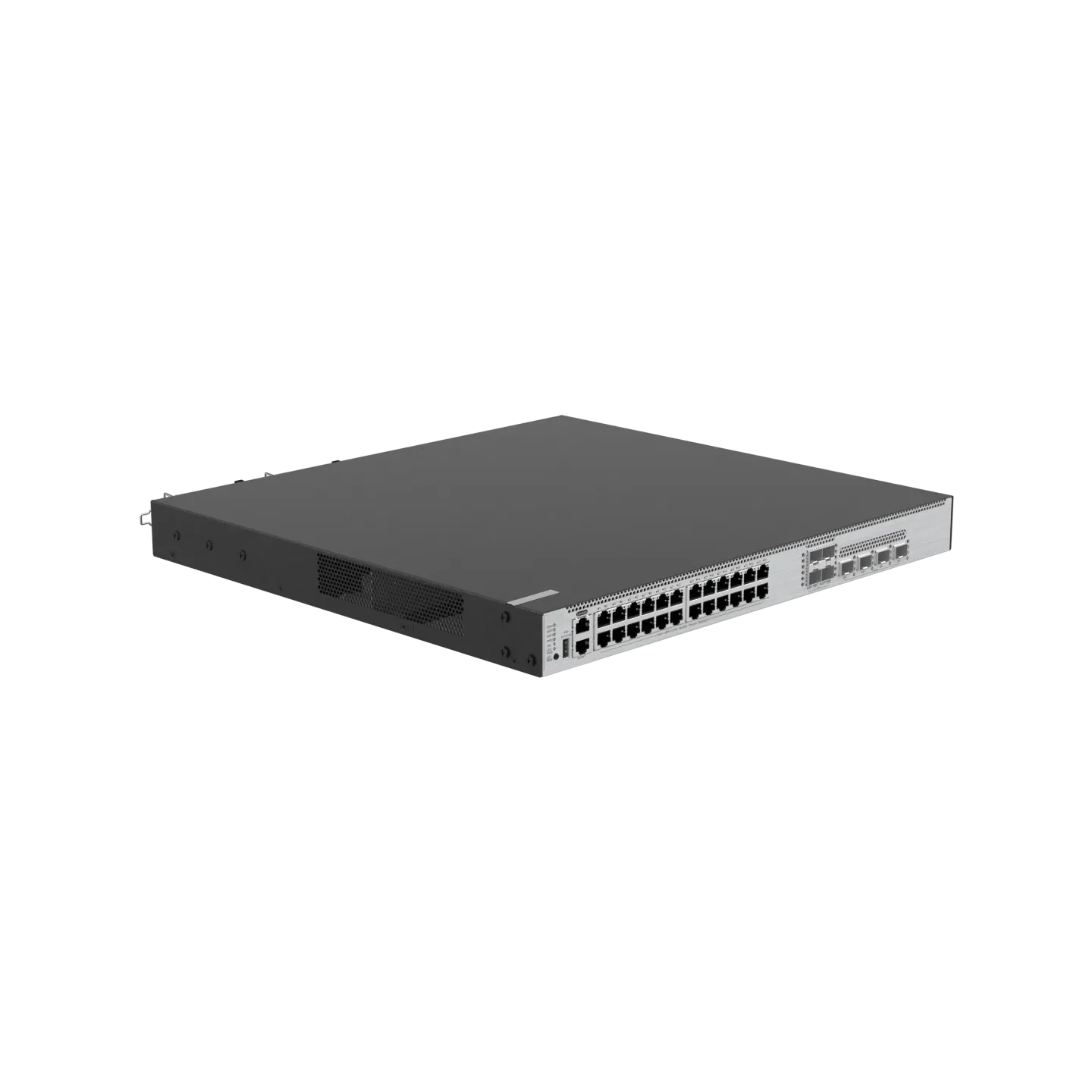

NSComm S6120-24XMG4XS4VS-UP-H Multi-GE PoE++ Access Campus Switch
24×1/2.5/5/10 Gbps Multi-Gig + 4×10 Gbps SFP+ + 4×25 Gbps SFP28 PoE++ Core Switch
Overview
The NS-S6120-24XMG4XS4VS-UP-H blends 24 multi-gig copper (up to 10 GbE) PoE++ ports, 4×10 Gbps SFP+, and 4×25 Gbps SFP28 uplinks with VSU clustering and ISP-grade routing/security, all backed by hot-swap PSUs/fans for resilient campus cores
Highlights
-
760 Gbps Capacity / 565 Mpps forwarding
-
24×100 Mb/1/2.5/5/10 GbE PoE/PoE+/PoE++ (90 W HPoE on 1–24)
-
4×10 GbE SFP+ & 4×25 GbE SFP28 uplinks
-
Dual-Stack L3 Routing, ACLs, QoS, multicast, VRF
-

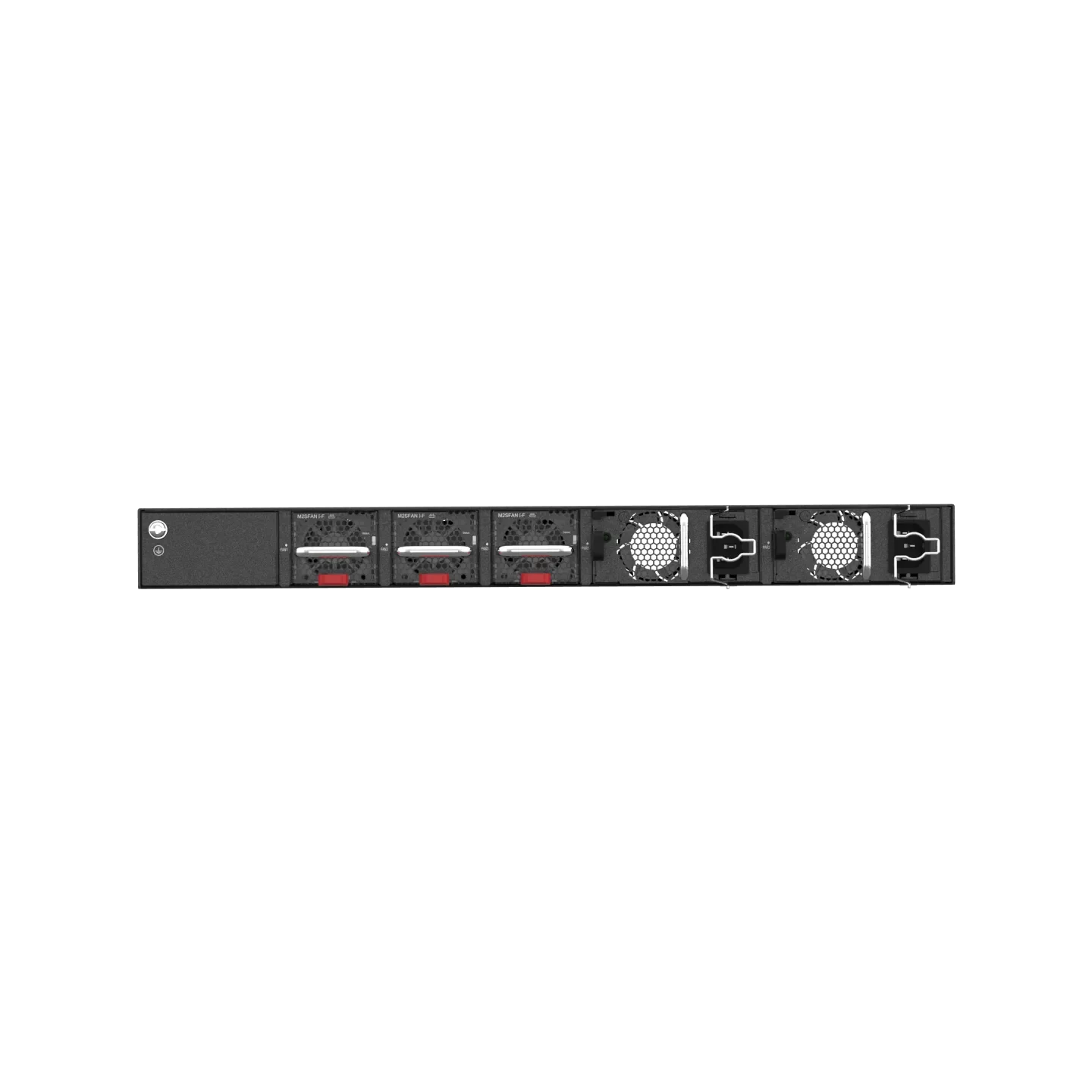

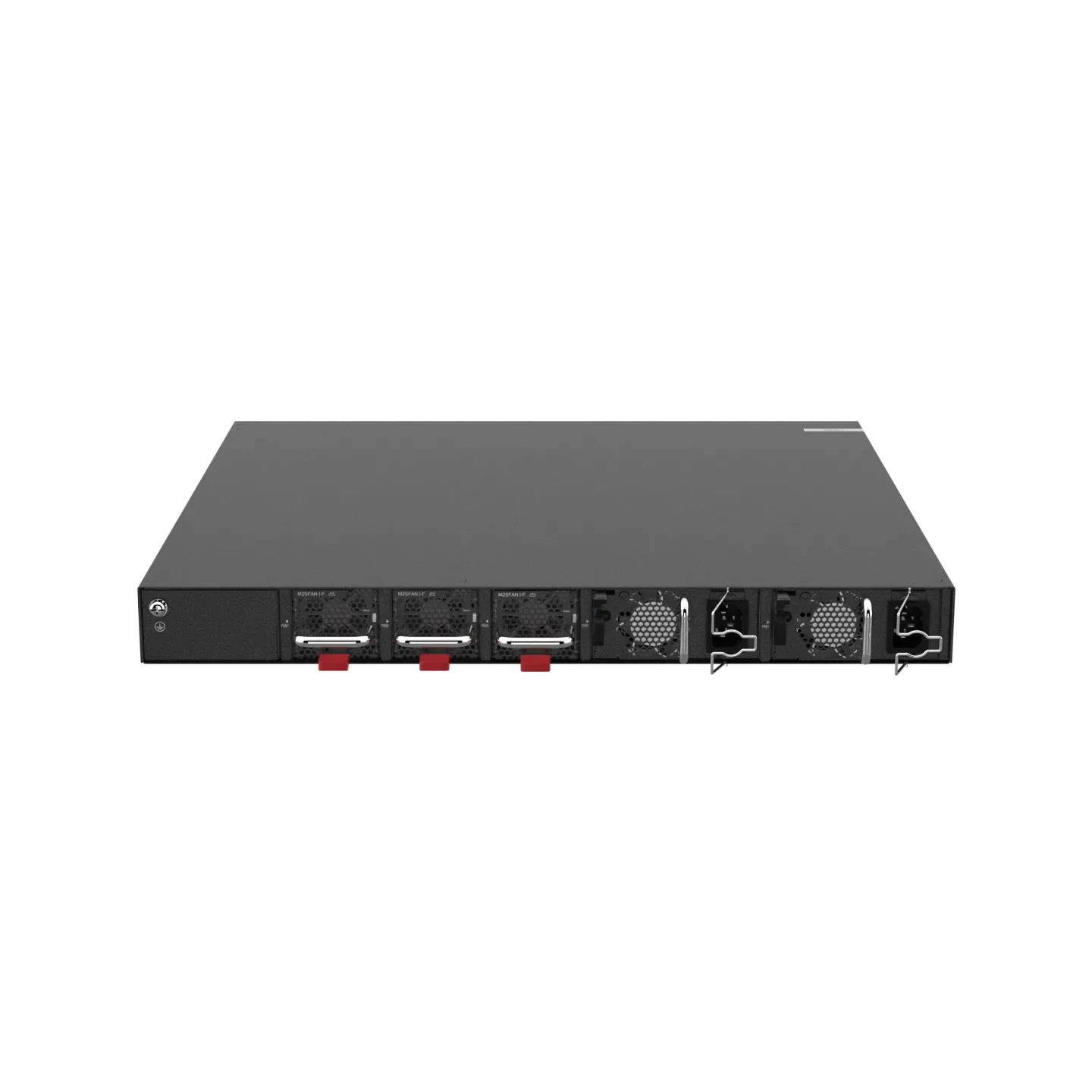

Redundancy: 2 PSU slots, 3 fan slots, hot-swap modules
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA600I-P-F | AC Power Module | 600 W hot-swappable PSU |
| NS-PA1000I-P-F | AC Power Module | 1 000 W hot-swappable PSU |
| NS-RMK-1U | Rack Mount Kit | 19″ 1U mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6000C-48GT4XS-E | 48×1 GbE RJ45, 4×10 GbE SFP+ | 256 Gbps | 192 Mpps | None | Dual PSU slots, dual-boot flash, 1 fan slot |
| NS-S6000C-48GT4XS-E | Same | Same | Same | None | Same |
| Ruijie RG-S6150-24VS8CQ-X | 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 2.8 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-24VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6150-48VS8CQ-X | 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 4 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-48VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6110-48MG4VS2QXS-UP | 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 | 840 Gbps | 625 Mpps | Up to 1 600 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6110-48MG4VS2QXS-UP | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-24XMG4XS4VS-UP-H | 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 | 760 Gbps | 565 Mpps | Up to 1 650 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6120-24XMG4XS4VS-UP-H | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-20XS4VS2QXS | 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ | 912 Gbps | 678 Mpps | None | Dual PSU slots, 2 fan slots |
| NS-S6120-20XS4VS2QXS | Same | Same | Same | None | Same |
Specification Summary
| Parameter | Details |
|---|---|
| Model | NS-S6120-24XMG4XS4VS-UP-H |
| Access Ports | 24×100 Mb/1/2.5/5/10 GbE PoE/PoE+/PoE++ (90 W HPoE) |
| Uplink Ports | 4×10 Gbps SFP+, 4×25 Gbps SFP28 |
| Switching Capacity | 760 Gbps |
| Forwarding Rate | 565 Mpps |
| MAC / ARP / IPv4 Routes | 32 768 / 16 000 / 16 000 entries |
| CPU / Memory / Flash | 1.2 GHz CPU / 2 GB DDR4 / 1 GB |
| PoE Budget | 1 650 W max (with up to 4 PSUs) |
| Dimensions (W×D×H) | 442×420×43.6 mm; 6.11 kg |
| Environment | 0 °C–45 °C; 10–90% RH |
